Week 8 - Challenge 1 - Base Bracket Design

REPORT FOR DRAFT ANALYSIS

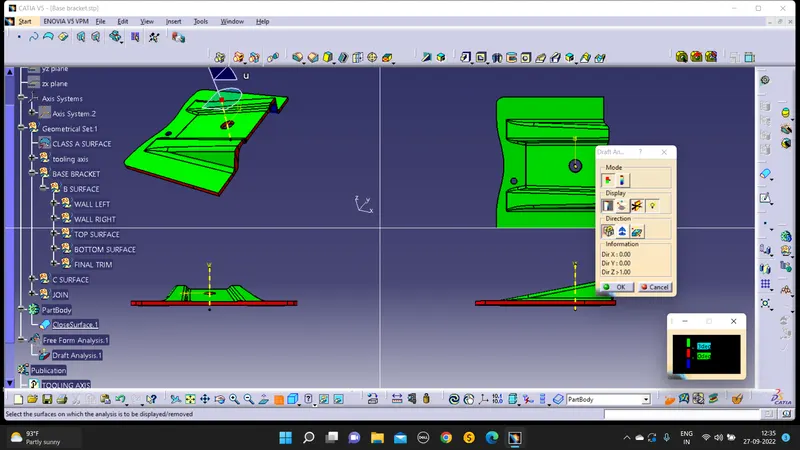

DRAFT ANALYSIS

The Draft Analysis command is used to detect if the part you drafted will be quickly removed

two types of draft analysis .they are,

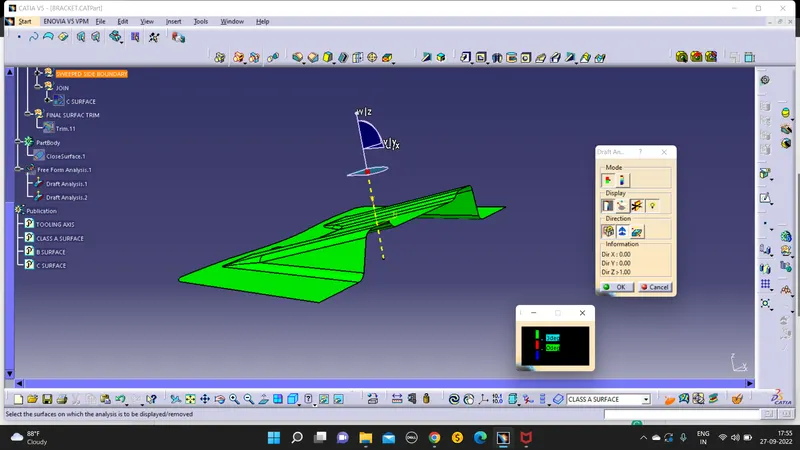

in quick analysis,

the angles within three color ranges and the angles limits can be edit

greater than 3,0-3, less than zero

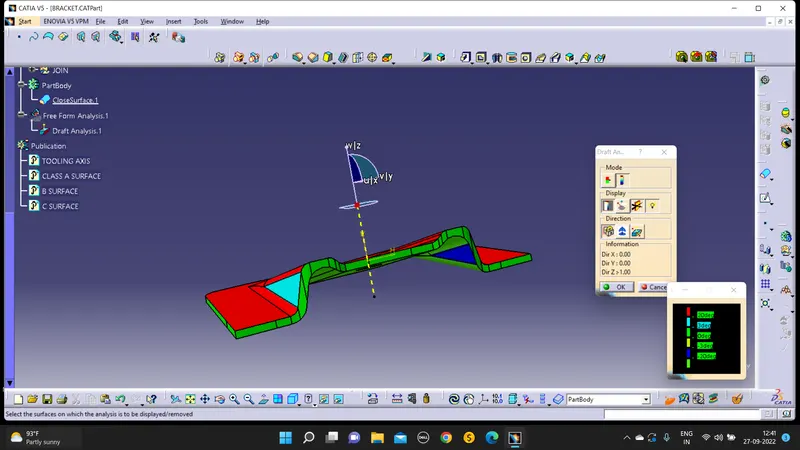

in full analysis mode, it shows more ranges o draft angles

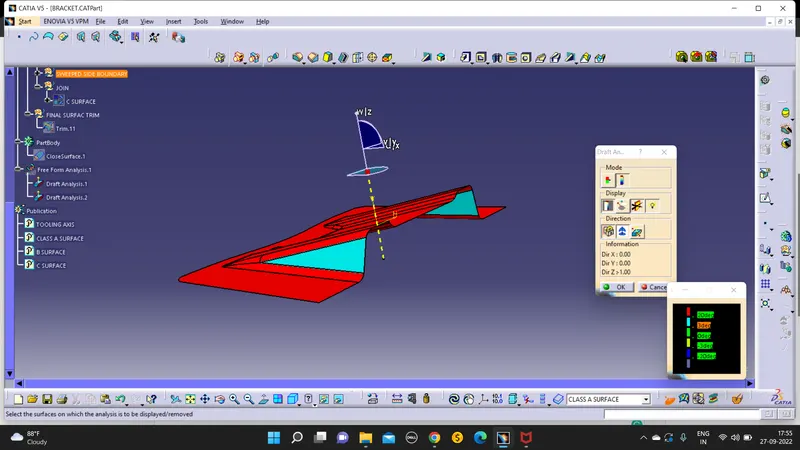

for CLASS A DRAFT ANALYSIS

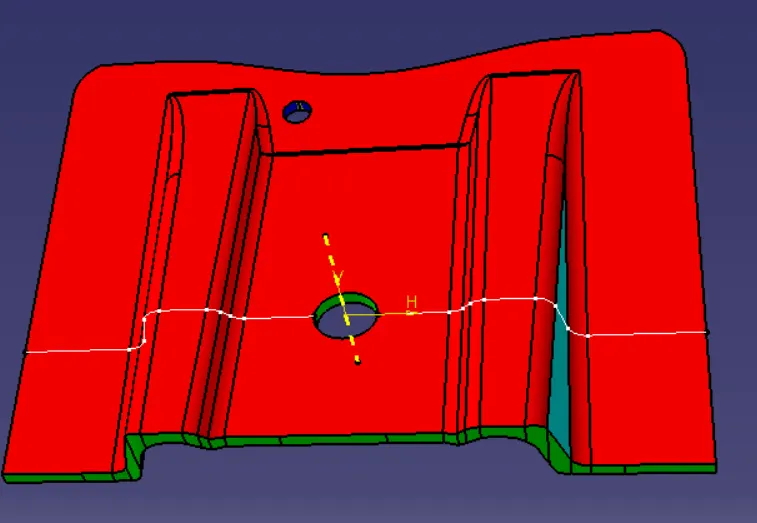

TOOLING AXIS

For making or creating a tooling axis by using the bisecting line command two of the side-angled walls.

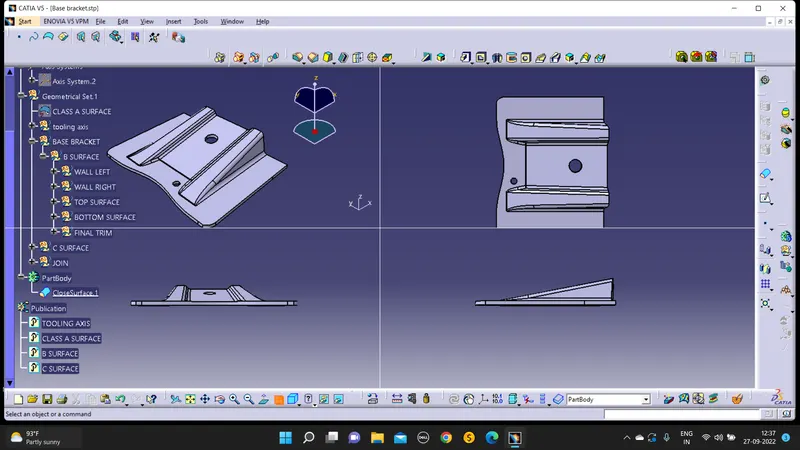

first, we select the correct position of the base bracket . then the first choice is a circle or a hole and

then an angled wall is a second choice to CREATE a perfect TOOLING AXIS.

FIRST, point the center of the circular hole to create a center point for the dummy tooling axis.

SECOND, draw two lines in the side walls and use the bisecting command to create the Tooling Axis.
