Week 9 - Project 1 - Door Trim Lower with Engineering Features

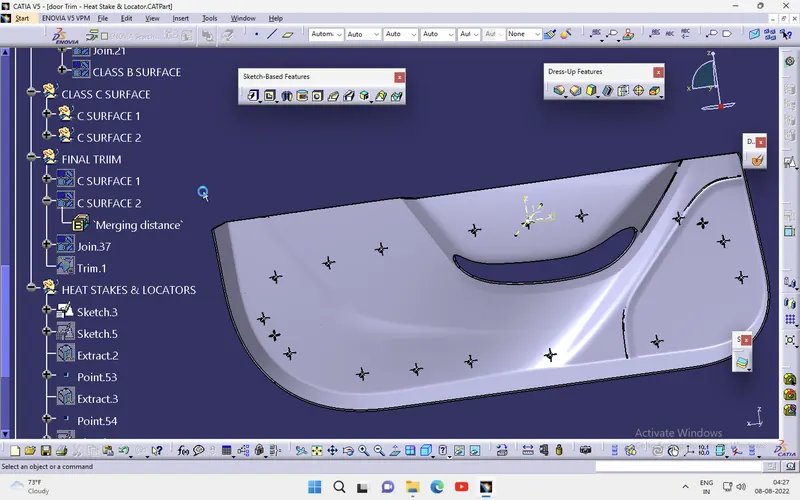

HEAT STAKES AND LOCATORS

DRAFT ANALYSIS & TOOLING AXIS

• FIRST I'M ENSURE WHICH SIDE VERY SUITABLE FOR INJESCTION AND I CHOOSED ONE SIDE

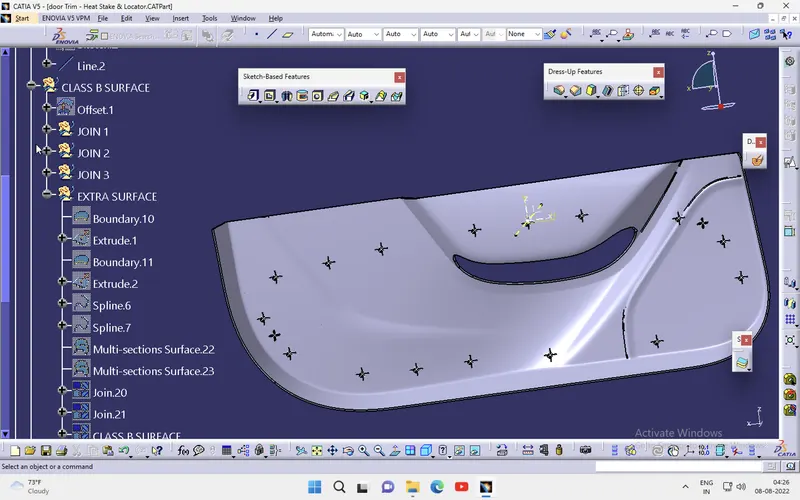

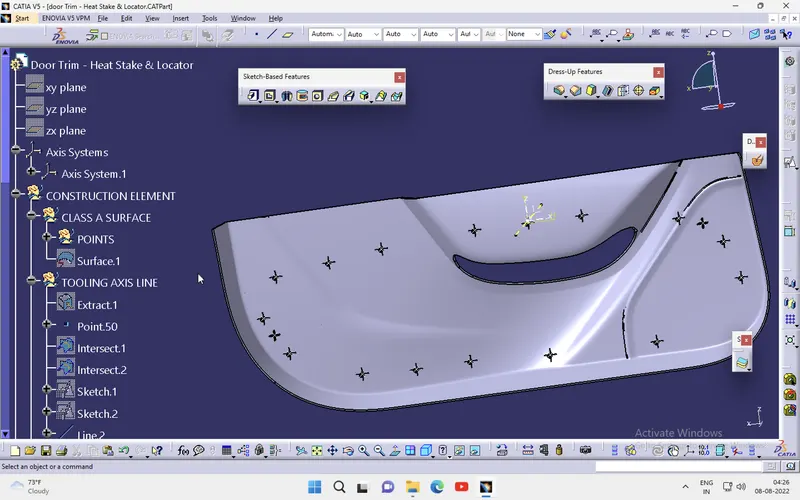

• THEN I CREATED TWO SKETCH FOR FINDING CORRECT TOOLING AXIS
• SKETCH 1 : I CREATED ONE SIDE BASED SKETCH AND ALSO IM TAKEN A SURFACE INTERSECTION AND THEN I ENSURE ALL SIDE IS VISIBLE AND THEN I TOOK TWO LINES TO CREATED A AXIS LINE
• SKETCH 2 : I CREATED SECOND BASED SKETCH AND ALSO IM TAKEN A SURFACE INTERSECTION THEN I ENSURE ALL SIDE IS VISIBLE AND THEN I TOOK MINIMUM DEVIATION LINE , WITH THAT LINE I CREATED ANOTHER AXIS LINE
• AND I CREATED BISETING LINE WITH THE HELP OF SKETCH 1 & 2.

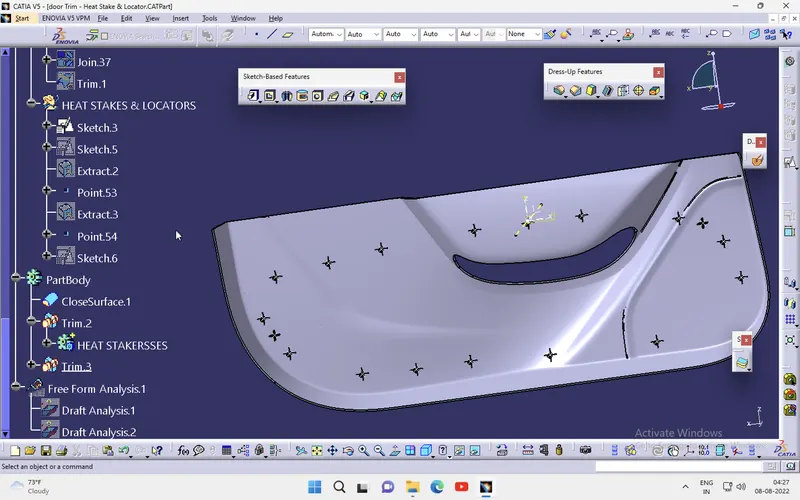

• DRAFT ANALYSIS FOR HEAT STAKERS: IN THAT ANALYS , BEFORE THAT THE BODY WILL BE DRAFT 0.5 DEGREE AND THE BODY IS HELD FOR DRAFT ANALYSE

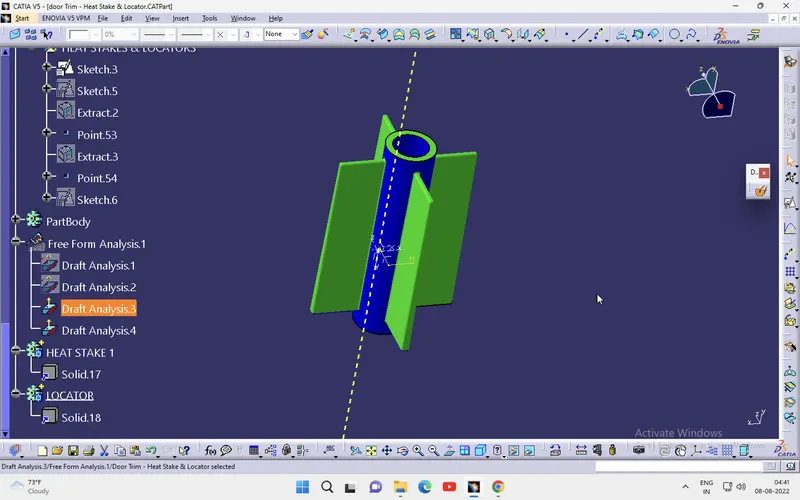

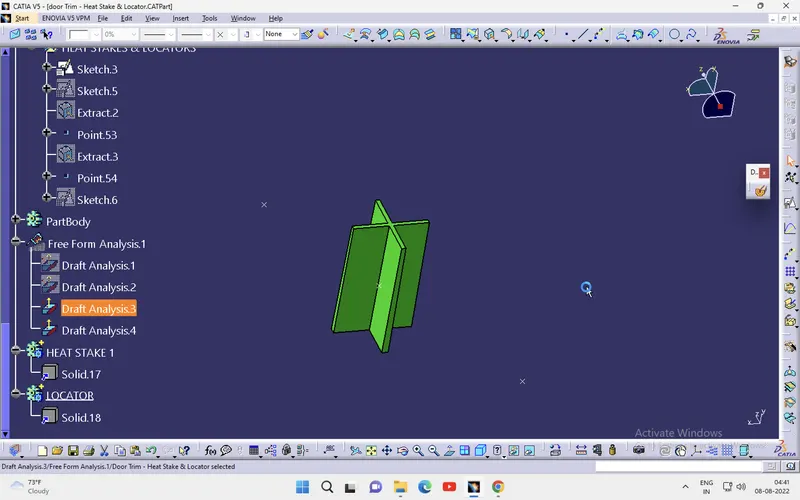

• DRAFT ANALYSIS FOR LOCATORS: IN THAT ANALYS , BEFORE THAT THE BODY WILL BE DRAFT 0.5 DEGREE AND THE BODY IS HELD FOR DRAFT ANALYSE
• AND I CHANGED THAT TO MATERIAL AND I CREATED DRAFT ANAKYSE TO CHECK ALL SIDE IS BEYOND 0.4 DEGREE.
