Week 8 - Challenge 6 - Core & Cavity Design

SWITCH BAZEL

DRAFT ANALYSIS AND TOOLING AXIS

• FIRST I'M ENSURE WHICH SIDE VERY SUITABLE FOR INJESCTION AND I CHOOSED Z SIDE

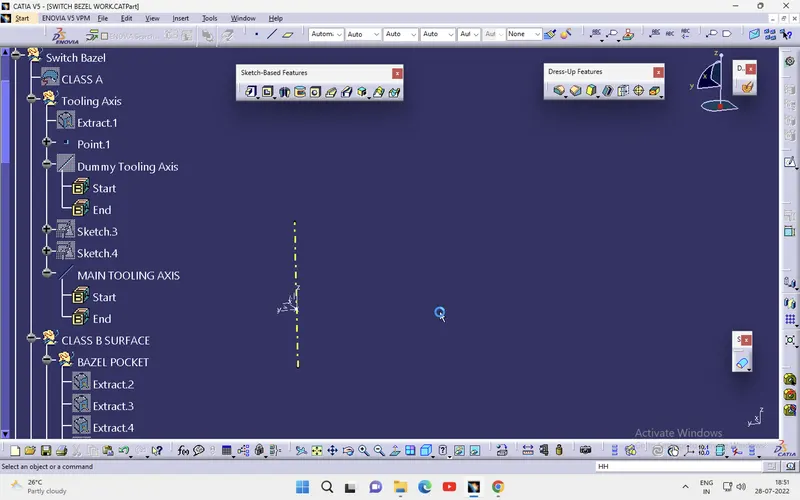

• THEN I CREATED TWO SKETCH FOR FINDING CORRECT TOOLING AXIS
• SKETCH 1 : I CREATED YZ BASED SKETCH AND ALSO IM TAKEN A SURFACE INTERSECTION AND THEN I ENSURE ALL SIDE IS VISIBLE AND THEN I TOOK TWO LINES TO CREATED A YZ AXIS LINE
• SKETCH 2 : I CREATED XZ BASED SKETCH AND ALSO IM TAKEN A SURFACE INTERSECTION THEN I ENSURE ALL SIDE IS VISIBLE AND THEN I TOOK MINIMUM DEVIATION LINE , WITH THAT LINE I CREATED XZ AXIS LINE
• AND I CREATED BISETING LINE WITH THE HELP OF SKETCH 1 & 2.

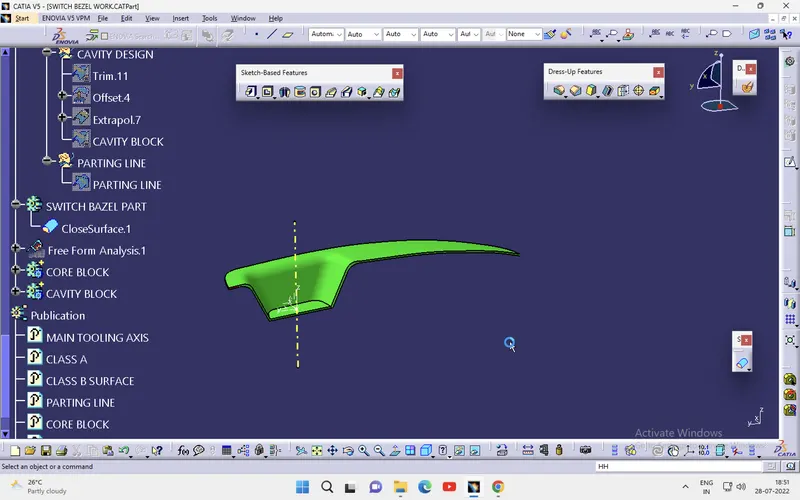

• DRAFT ANALYSIS: IN THAT ANALYS , BEFORE THAT THE BODY WILL BE DRAFT 3 DEGREE IN AFTER THE A SURFACE.
• AND I CHANGED THAT TO MATERIAL AND I CREATED DRAFT ANAKYSE TO CHECK ALL SIDE IS BEYOND 3 DEGREE.
