Week 8 - Challenge 4 - Bumper

BUMPER

EX 1

DRAFT ANALYSIS AND TOOLING AXIS:

FIRST I'M ENSURE WHICH SIDE VERY SUITABLE FOR INJESCTION AND I CHOOSED ONE SIDE

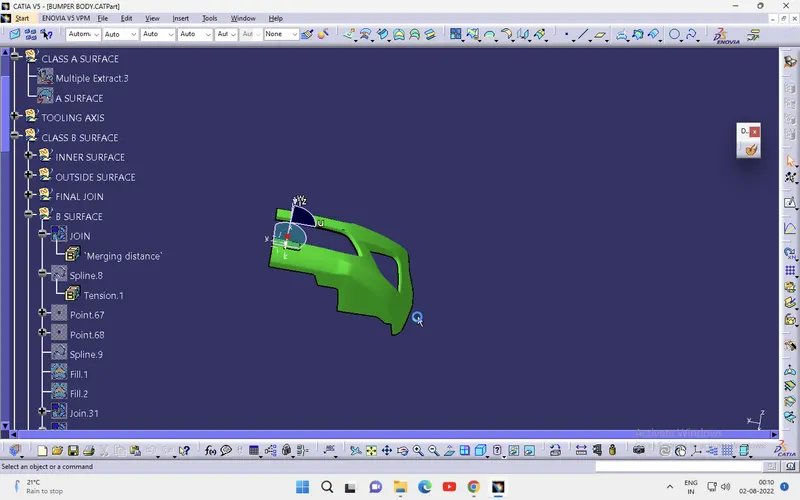

THEN I CREATED TWO SKETCH FOR FINDING CORRECT TOOLING AXIS
SKETCH 1 : I CREATED YZ BASED SKETCH AND ALSO IM TAKEN A SURFACE INTERSECTION AND THEN I ENSURE ALL SIDE IS VISIBLE AND THEN I TOOK TWO LINES TO CREATED A YZ AXIS LINE
SKETCH 2 : I CREATED XZ BASED SKETCH AND ALSO IM TAKEN A SURFACE INTERSECTION THEN I ENSURE ALL SIDE IS VISIBLE AND THEN I TOOK MINIMUM DEVIATION LINE , WITH THAT LINE I CREATED XZ AXIS LINE
BOTH AXIS LINE ARE SAME THEN I DECIDED THAT LINE TO A TOOLING LINE.

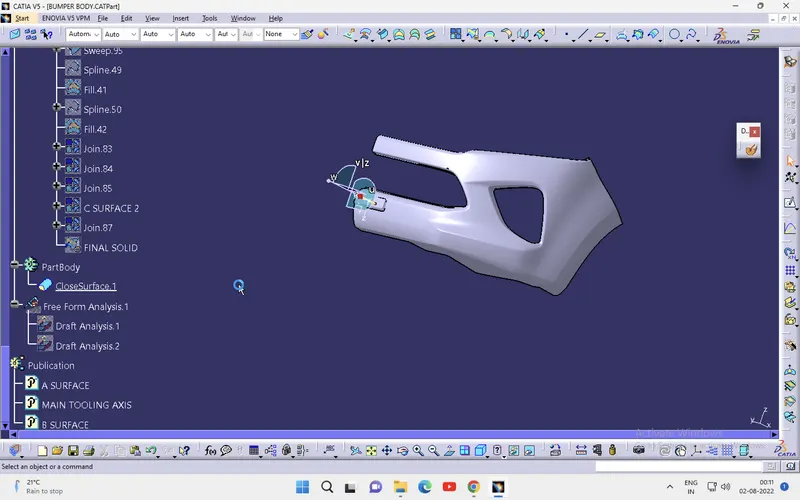

DRAFT ANALYSIS: IN THAT ANALYS , BEFORE THAT THE BODY BOUNDRY WILL BE DRAFTED ON FROM THE A SURFACE.

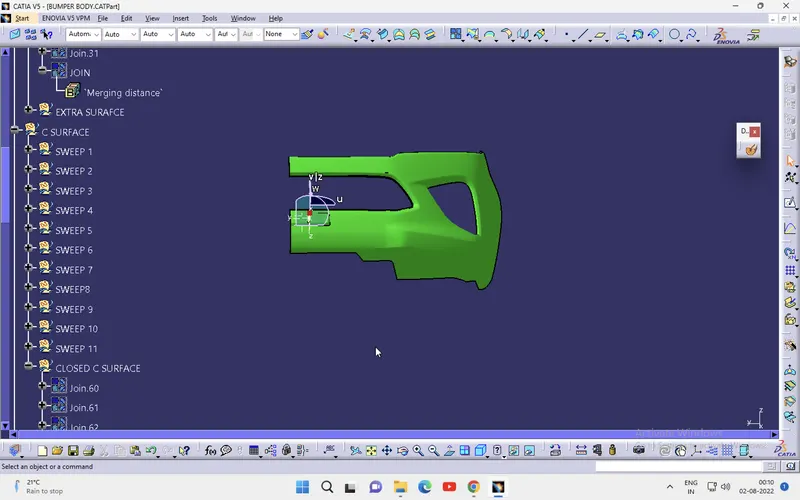

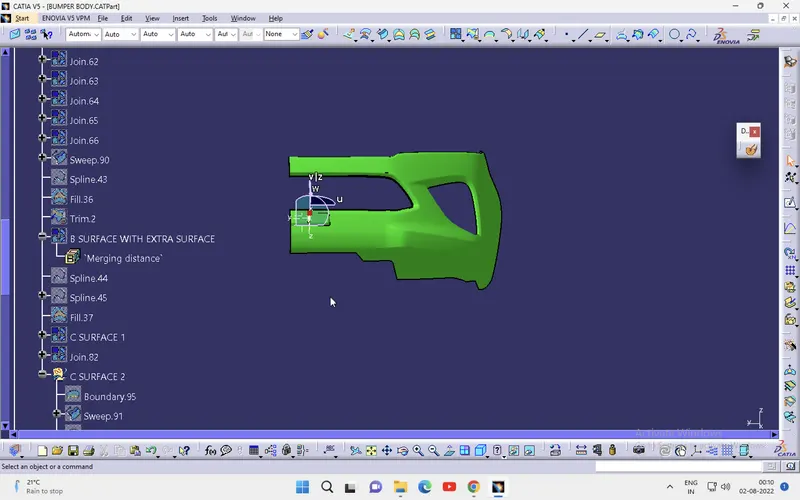

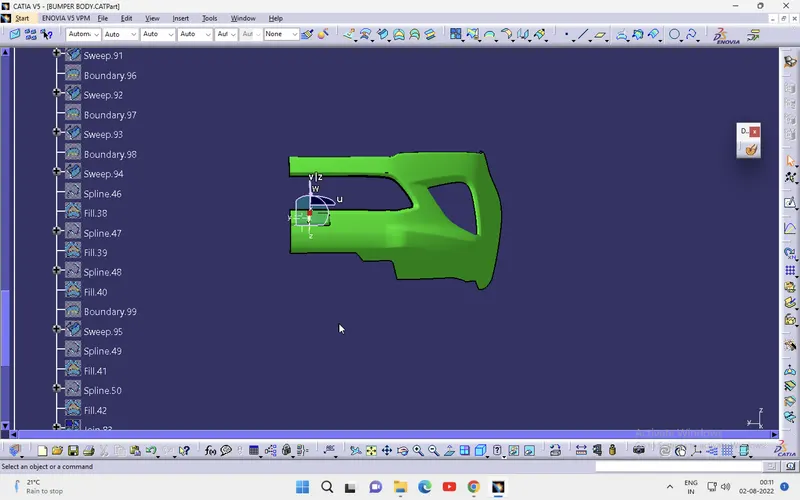

AND I CHANGED THAT TO MATERIAL AND I CREATED DRAFT ANALYSE TO CHECK ALL SIDE IS GREEN
