Week 9 - Project_1 - Door Trim Lower with Engineering Features

Aim

Create the Door Trim Lower Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Create the Heat Stakes and the locators considering the design rules mentioned in the video for the door applique.

Procedure for creating the switch bezel

• Create tooling axis
• Create B class surface
• Create C class surface
• create closed surface

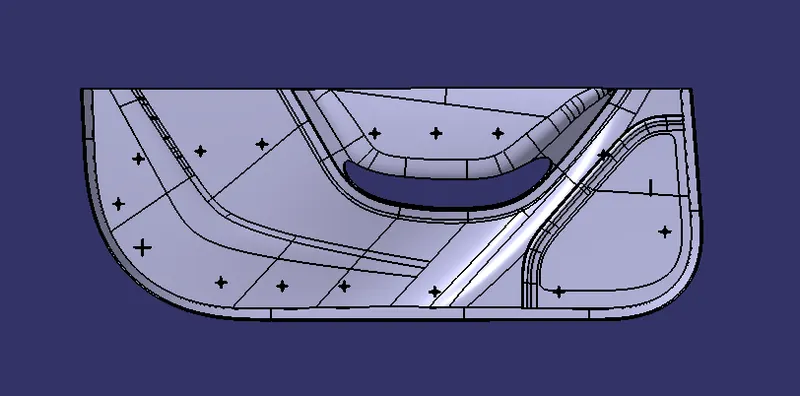

• create 4 way locators
• create 2 way locators
• create Heat Stakes
• Do draft analysis

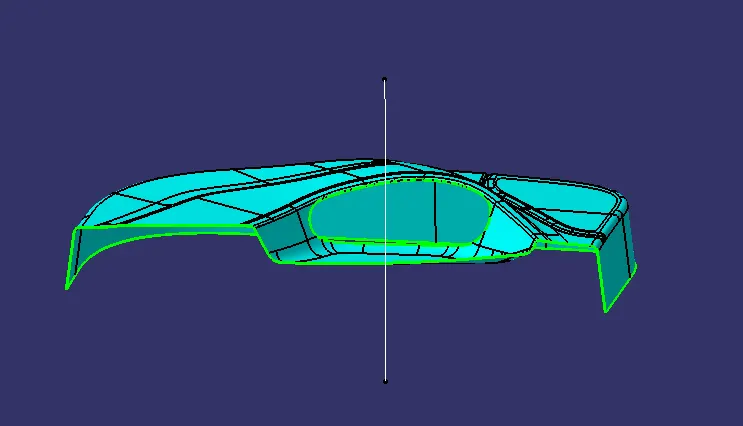

Create tooling axis

1.the tooling axis is created by Evaluating w.r.t X,Y,Z axis method (Y axis used)

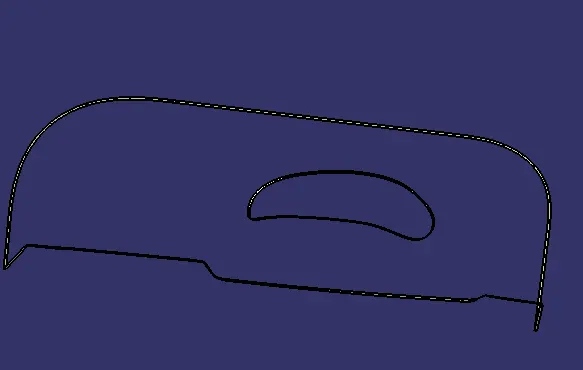

2.The base surface of the class - A was extracted and a point at the centre is created

3.then use line commend to creat tooling axis in the y direction

Create B class surface

1.In the case of Class A the surface below is called core and the surface above is called cavity.

2.Class A is an aesthetics surface and class B is an engineering surface.

3.B surface should be inside the class A surface.

4.To create the class B surface, offset the class A surface inside as per our thickness requirement .

5.we can observe some patches on the offset surface by taking the boundary for the offset surface, those patches are formed due to the fillets on the class A surface. We need to cover those patches with the help of the multi-section surfaces command by extracting the patch boundaries

6.Once all the patches on the offset are covered properly join all the patches with the offset surface, to get the surface of the class B surface.

Create C class surface

1.To create the class C surface concerning the boundary of the class A surface, I used the sweep command. Initially, I extracted the boundary of the class A surface with tangent continuity, and I sweep the extracted boundary concerning the surface at 90 (for draft angle)

2.Once we sweep all the surface boundaries of class A, extrapolate the sweeped surfaces until both surfaces got intersected properly, and trim them to remove extended extrapolated surfaces to get a proper sweep boundary throughout the entire surface, including the centre hole of the bumper.

3.Now, join both class A and sweep boundary to get the complete class C surface.

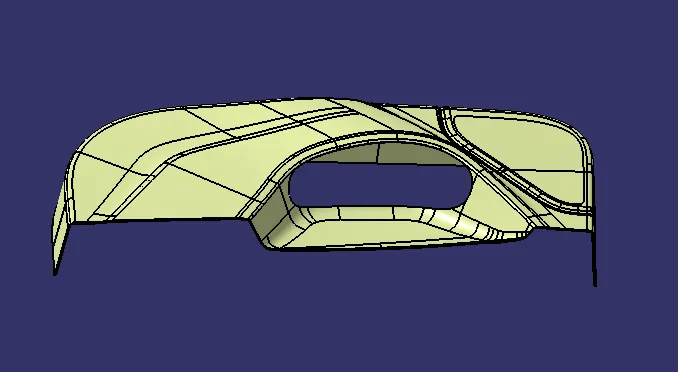

Create closed surface

1.Check whether all the sides of class B and Class C surfaces are intersecting properly with each other, to get a closed surface by trimming class B and class C surfaces.

2.If the class B and class C sides are not intersected properly, we need to extrapolate the sides of the class B surface which are not intersecting with the class C surface.

3.Now, check class B and class C surface boundaries whether all the sides are intersecting or not with each other.

4.Once the surfaces are intersecting properly trim them together to get a closed surface.

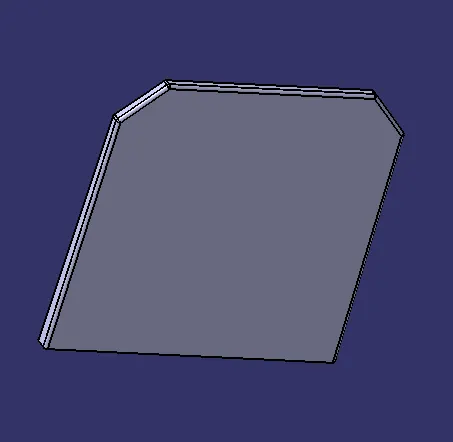

create 4 way locators , 2 way locators

1.created a sketch on the body. After creating the sketch

2.then pad it 20mm in height and thicken it to 1.3mm and drafted it with 0.5deg in the direction of the tooling axis.

3.next gave 3mm of chamfer with 45deg of inclination and after gave a fillet of 0.3mm radius.

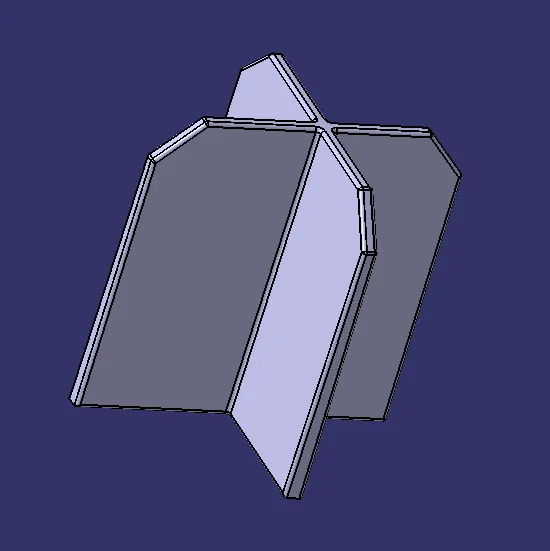

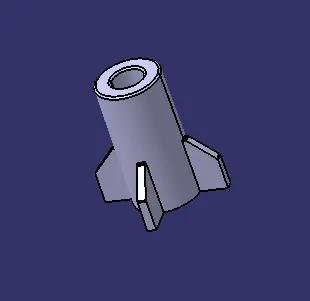

create heat stakes

1.draw a sketch on the surface. After the creation of the sketch, then pad it to 15mm height

2.then gave a draft angle of 0.5deg on both sides (inside and outside) and then I gave a fillet with a 0.25mm radius. After creating the heat stake

3.next created the ribs for supporting purposes. To create the ribs, draw a sketch and padded it to 6mm in height and 1mm in thickness.

4.After padding the ribs, then drafted 0.5deg in the tooling asix direction and filleted it with a 0.25mm radius.

5.Finally, union trim the ribs with a heat stake to remove the ribs, which are present inside the heat stakes.

6.Now translated the heat stakes by copy-pasting them in the part body according to the requirement

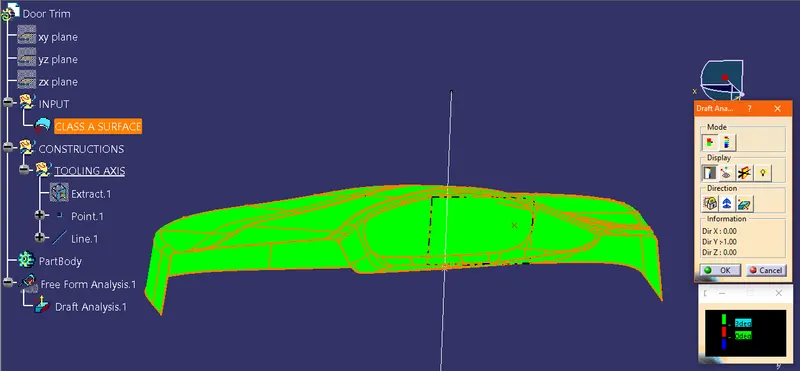

Do Draft analysis

1.First the following the below procedures.

2.By changing the view mode to custom view parameters - Material mode then the feature draft analysis is enabled.

3.Then the compass was activated and placed with the tooling axis by dragging the redpointer and then lockes it

4.Then, by selecting the quick analysis mode, the nominal value will be 3 degrees and checked for the component's draft angle

5.The green colour area shows that it satisfies the 3 degree draft angle

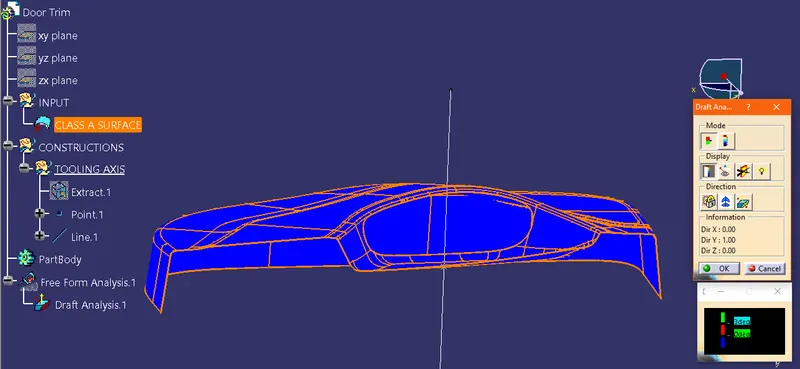

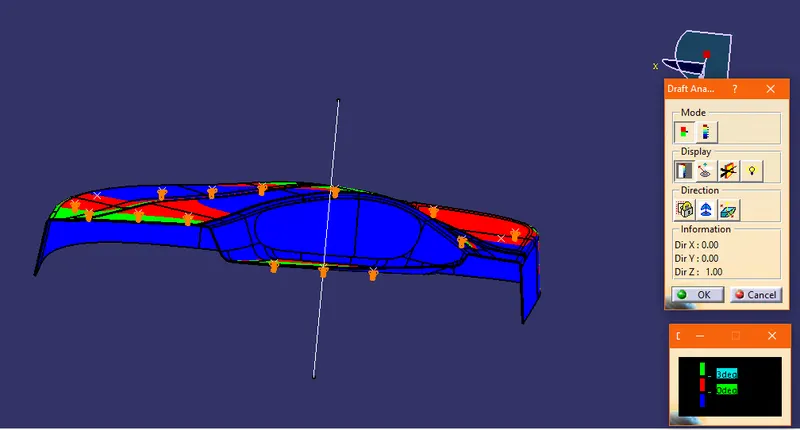

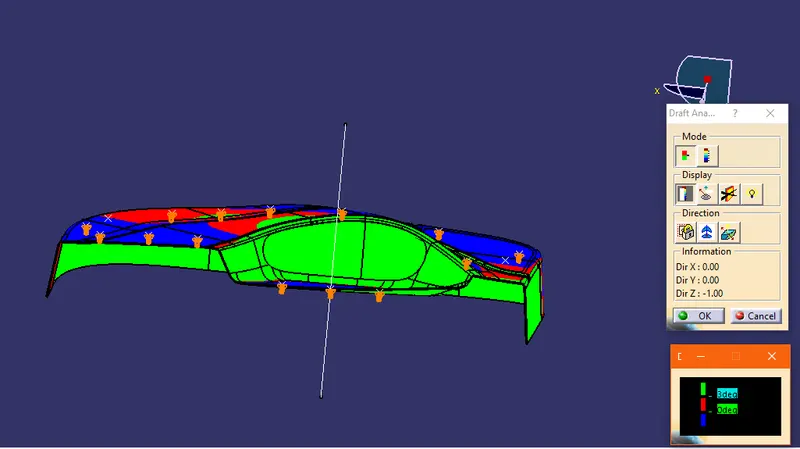

draft analysis on class A surface

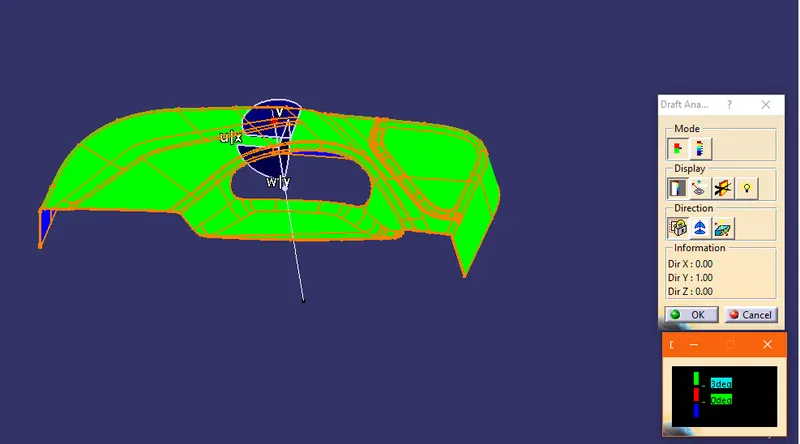

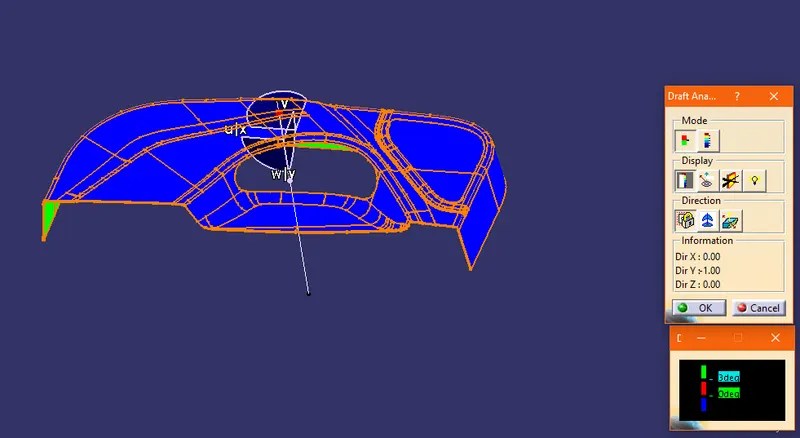

draft analysis on final surface

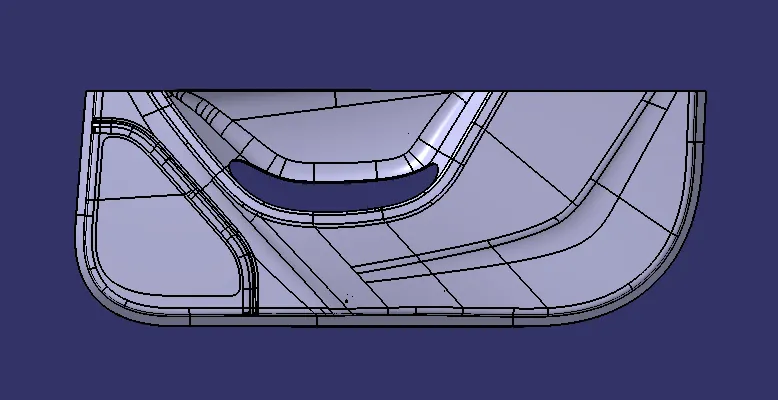

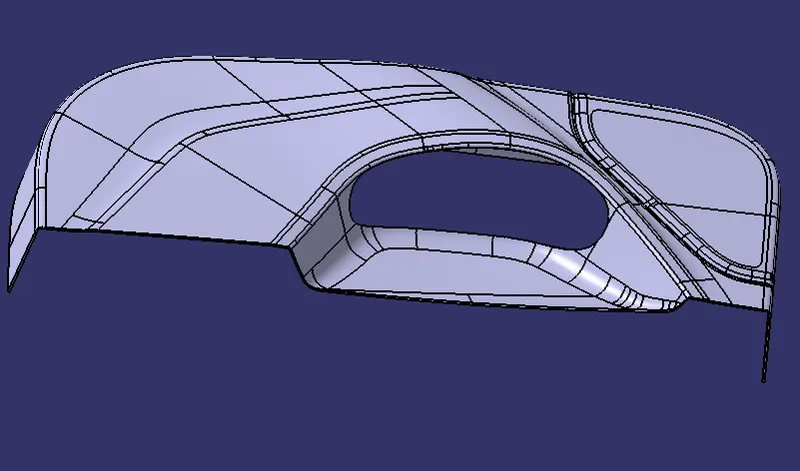

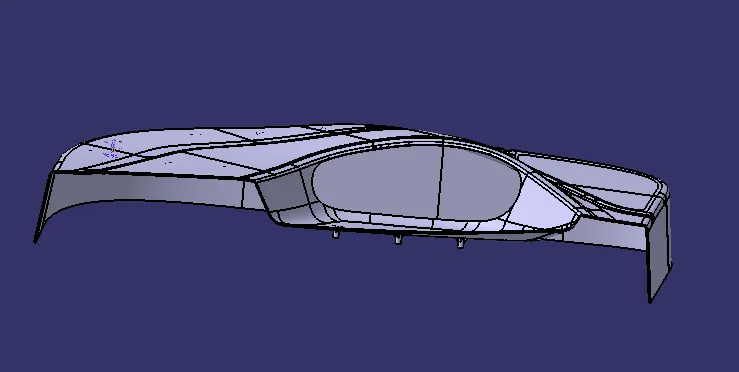

Isometric, Front, Side, and Top View

Conclusion

Created the Door Trim Lower Plastic component with the Heat Stakes and the locators
