Week 9 - Project 1 - Door Trim Lower with Engineering Features

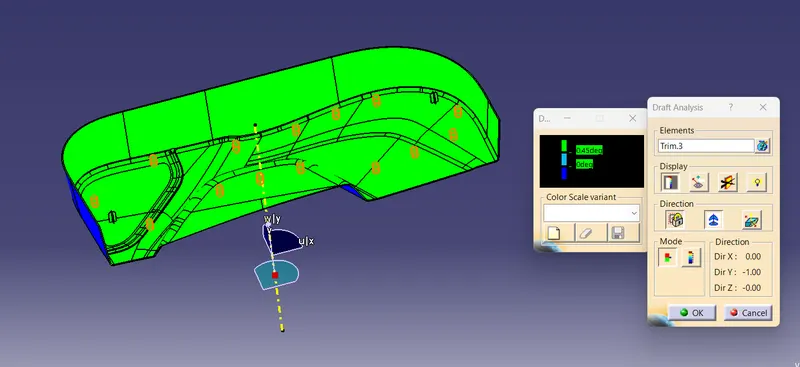

1. Draft Analysis of Class A surfaces is creating by choosing the flat surface and tooling axis to be the normal to surfaces.

Class B surface is creating by offset the input and missed patches to be fill by the multiple extract the parts except fillets and to be solved by the extaplate and trim options of edges and finally fillet the edges.

Class C surface created by sweep by references to surface of class A surface and join with that.

Final trim to be happaened between class B and C surfaces

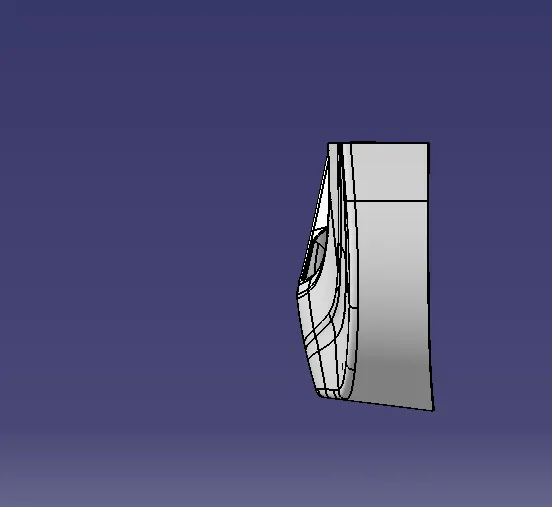

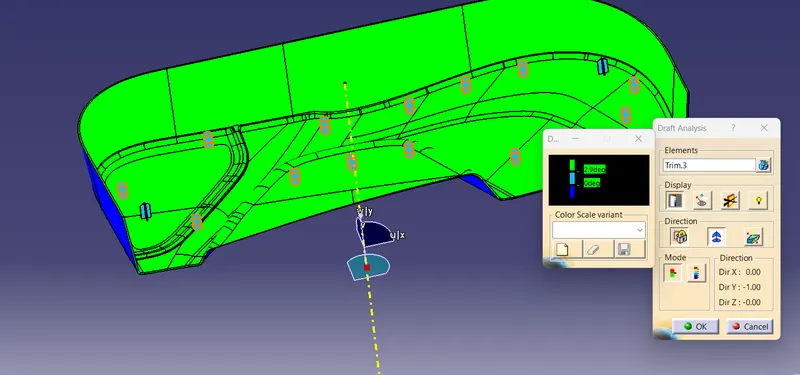

Analysis with final solid part to cleared by tooling axis which is created using normal to surface.

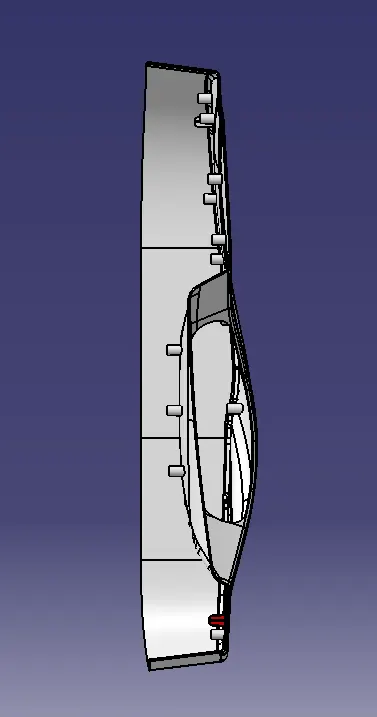

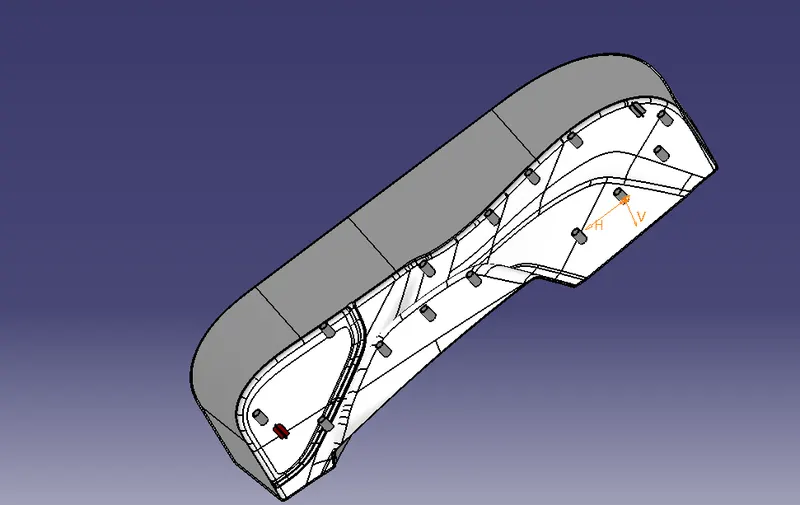

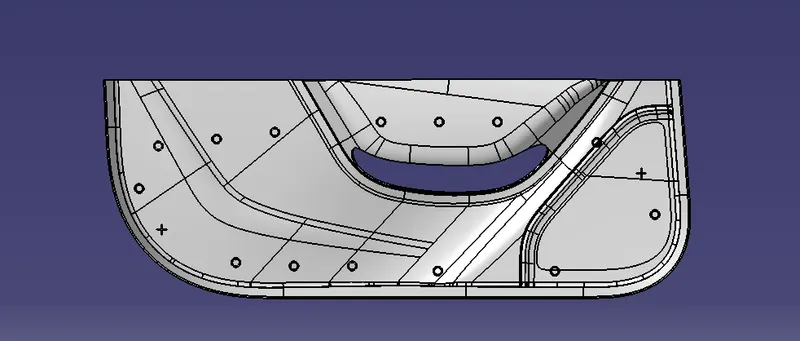

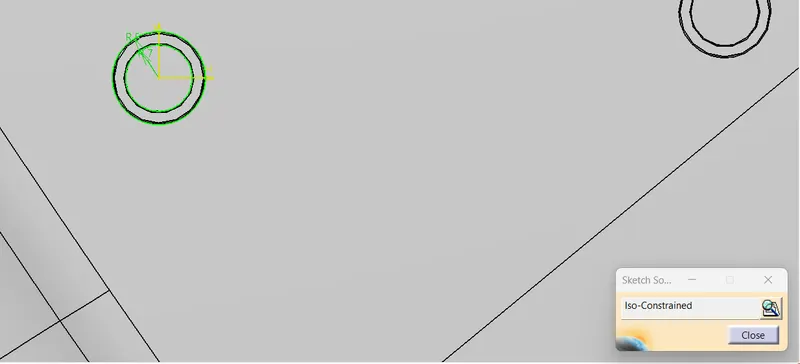

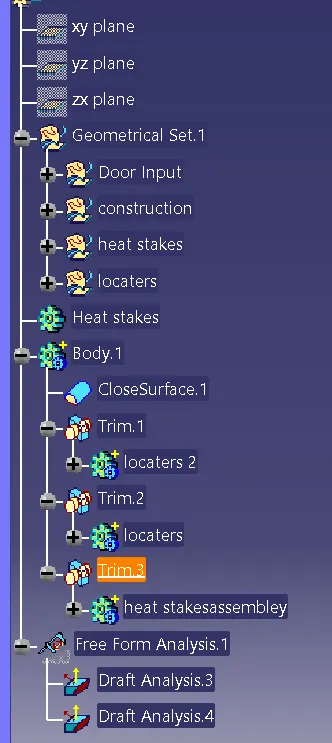

Locaters and Heatstakes created on the surfaces of lower door trim and it to be union trim with the door trim and it to be cleared with the same tooling axis with the degree values of 0.5.
