Week 8 - Challenge 2 - Switch Bezel Design

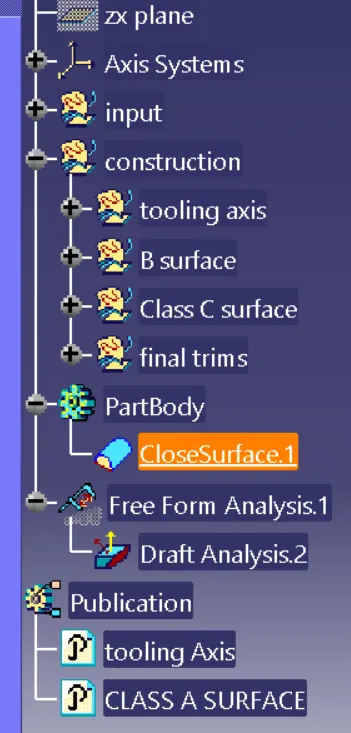

1.For Tooling axissecting I choose pocket surfaces due to flat surface better for tooling axis to bisecting we have to create 2 lines I choose intersetion of two tappered side walls for line 1 and line 2 to be chooe in x axis there is no other side wall to create bisecting so give angle of minmum draft angle 3degree late it change to 6 degree to pass the draft analysis.Tooling axis to be created by bisecting 2 lines.

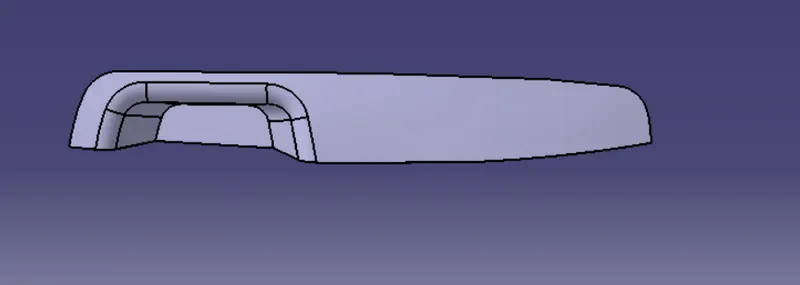

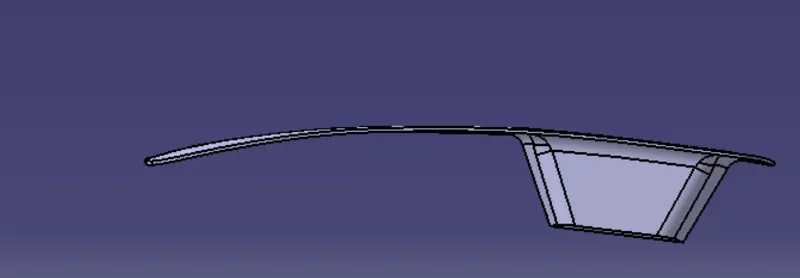

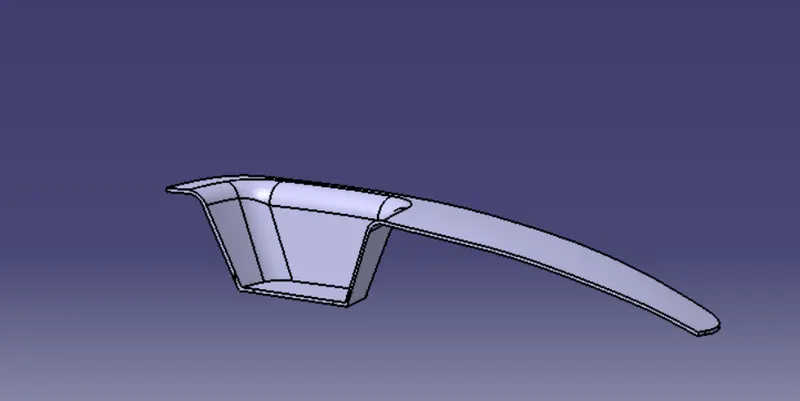

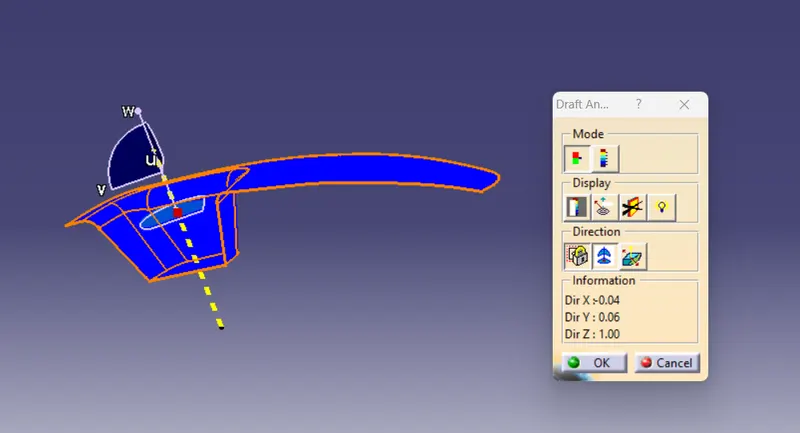

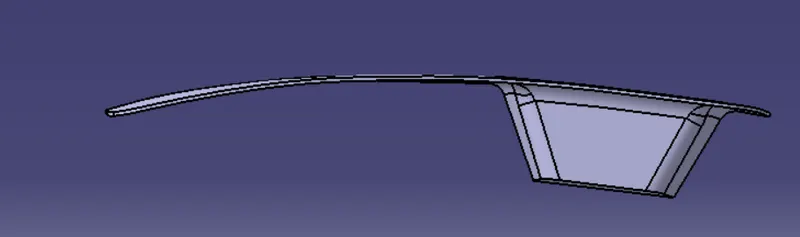

For draft analysis of final part i created by thickening the components by 2.5mm.Draft analysis by placing axis in the tooling axis and to click.colour code shows the draft angle of the componenets.I created for minimum draft angle for 3 degrees.
