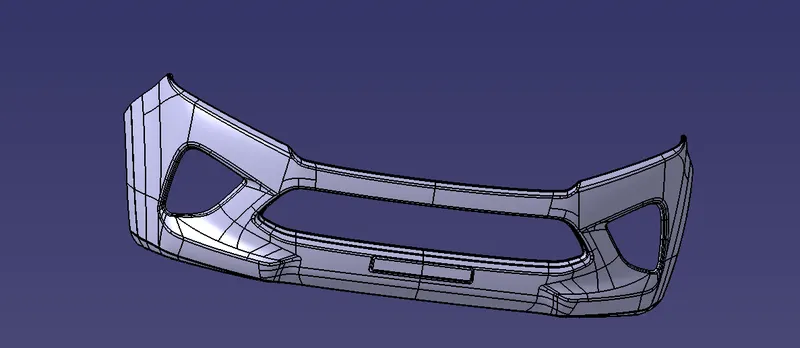

Week 8 - Challenge 4 - Bumper

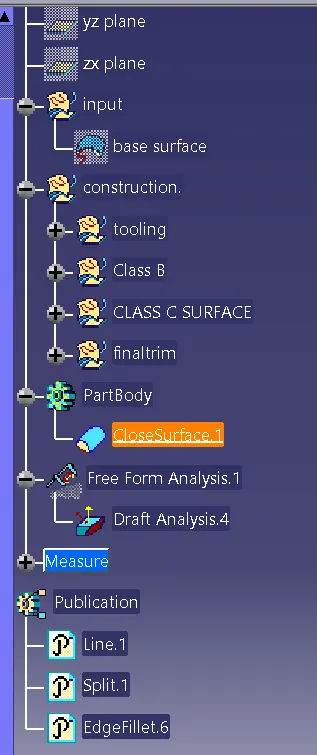

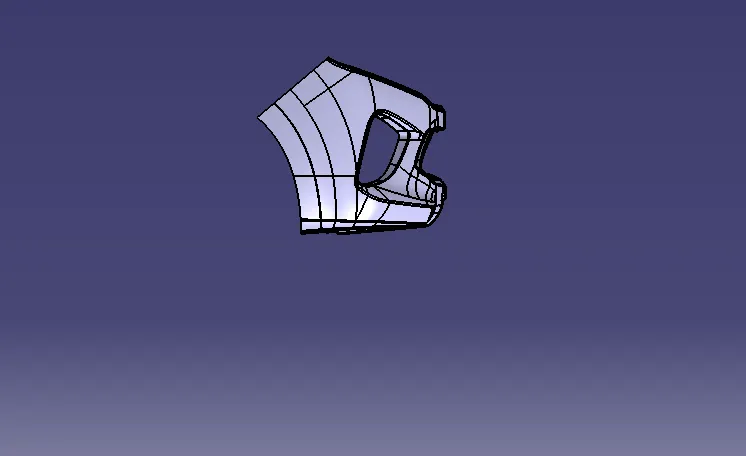

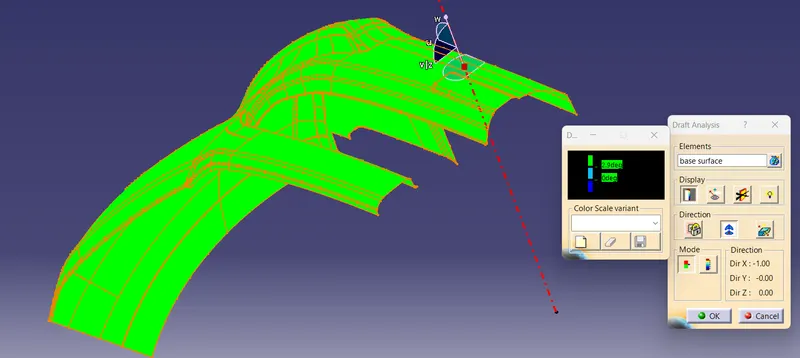

1.Draft analysis of class A surfaces is Created by Tooling axis normal to the flat surface of components

Class B surfaces is created offset the components 3mm and missed patches to fill by the extraplate the corners and trim that.

Class C surfaces is created by sweep by normal to surface and normal to tooling axis of class A surface.

Join the sweep and class A surfaces and final trim to be done with class B and C surfaces

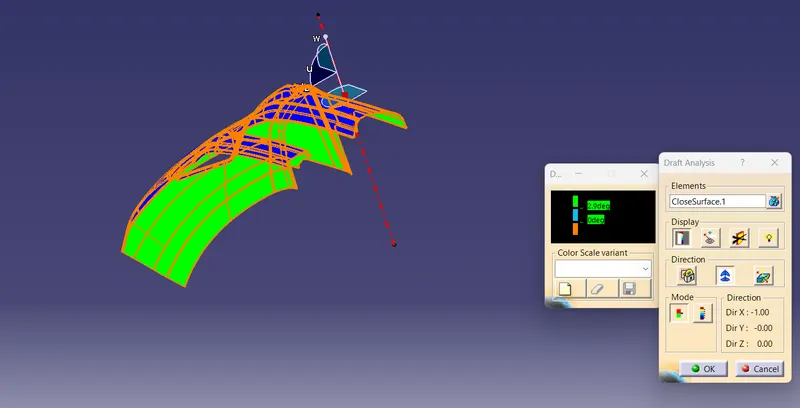

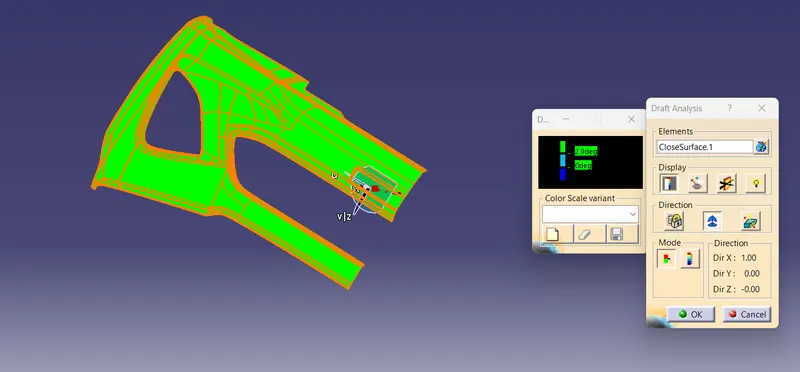

Draft analyisis to be done with closest surfaces.
