Week 9 - Project 1 - Door Trim Lower with Engineering Features
HEAT STAKES AND LOCATOR
CLASS A SURFACE
It is the surface which is given to the plastic designer as input.it is the outer most and aesthetic surface.
CLASS B SURFACE
A surface that is at a distance of thickness from class A surface is class B surface.all engineering features are contained in B surface.
CLASS C SURFACE
A surface that joints class A and class B is called C surface.

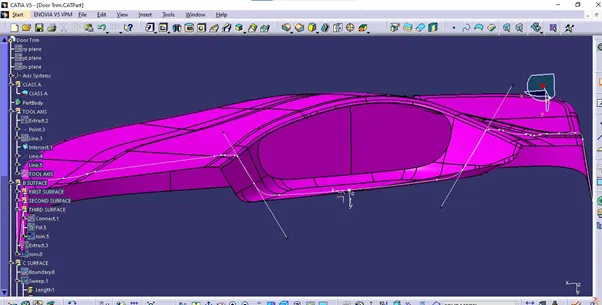

TOOLING AXIS
- The tooling direction is used to find the direction in which the part is ejected out of the mold.
- First look at the part in all views and check which is the most appropriate direction for the tool axis.
- From all views we can see that all parts of the surface is visible in the Y direction.
- Then we take the intersection between the part and XY plane in order to get the intersection curve for the problem making 2 surfaces.
- Then we draw extend line on the problem making surfaces.
- Then we take the bisecting between those line which is the final tooling axis.
DRAFT ANALYSIS
- Draft analysis is done to check whether the part designed is manufacturable or not.
- Minimum draft angle considered is 3*.
- For analysis goto insert>analysis>feature draft analysis.
- Then place the compass on the tooling axis and click on the part.

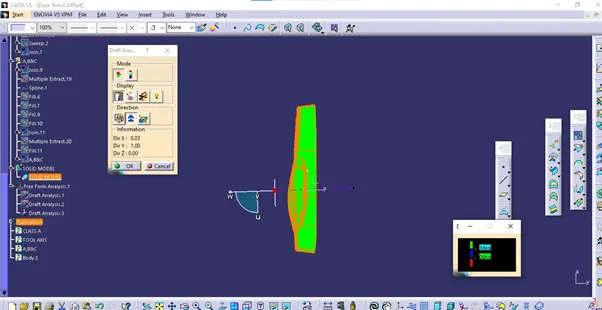

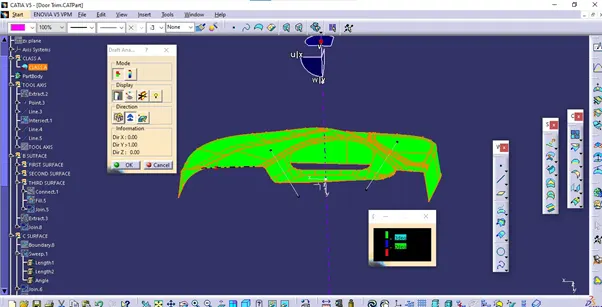

DRAFT ANALYSYS ON CLASS A SURFACE

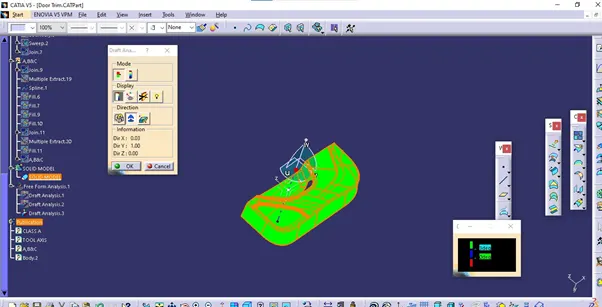

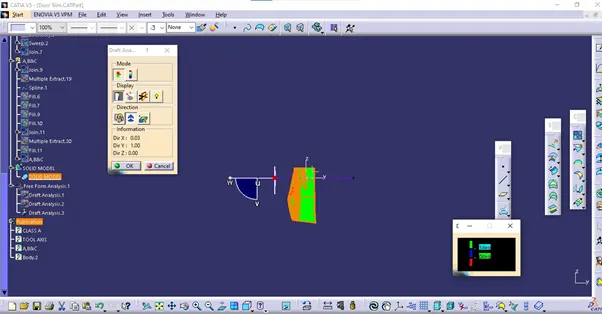

DRAFT ANALYSYS ON FINAL SURFACE

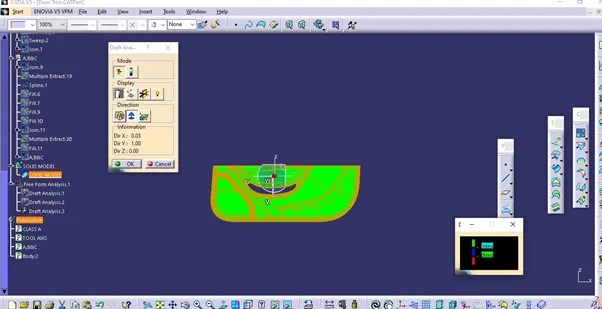

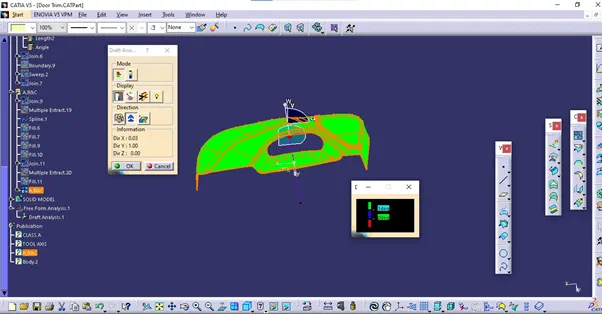

DRAFT ANALYSYS ON SOLID MODEL

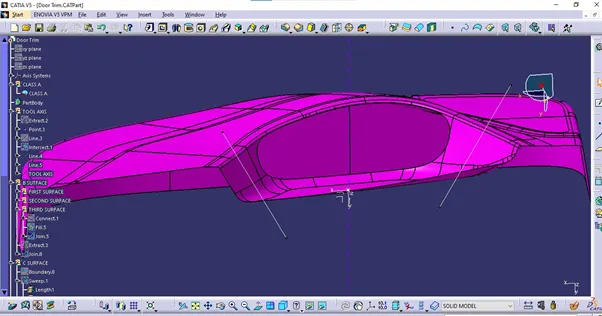

ISOMETRIC VIEW

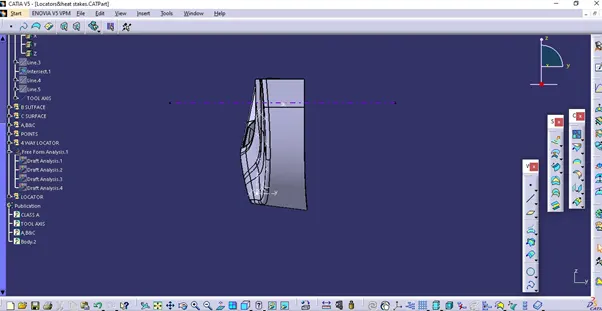

FRONT VIEW

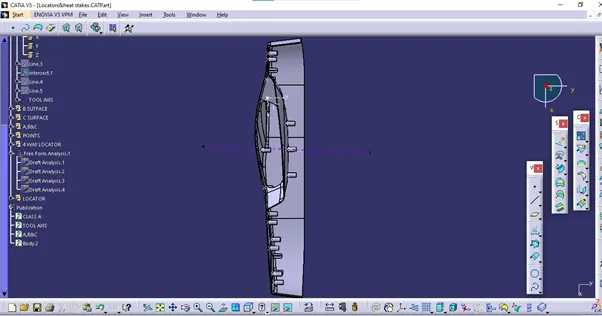

SIDE VIEW

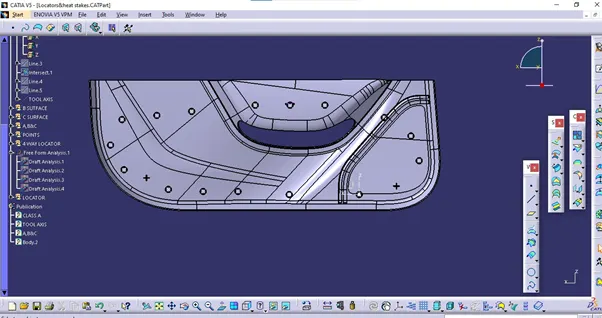

TOP VIEW

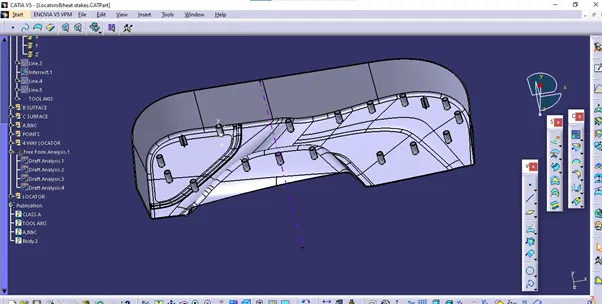

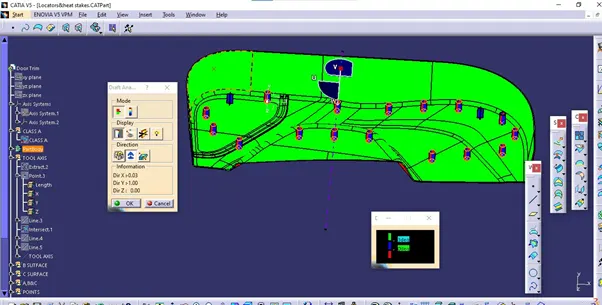

DRAFT ANALYSIS WITH HEAT STAKES AND LOCATOR
DOOR TRIM WITH HEAT STAKER AND LOCATOR
