Week 9 - Project 1 - Door Trim Lower with Engineering Features

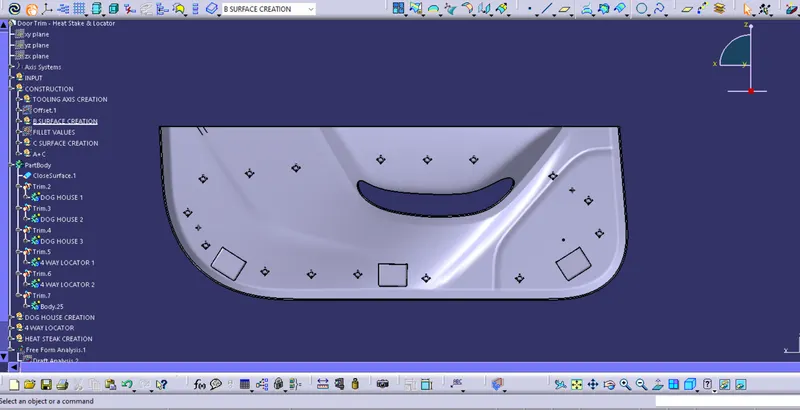

Draft analysis: 1.First the draft analysis is done for the class A surface the image attached below:

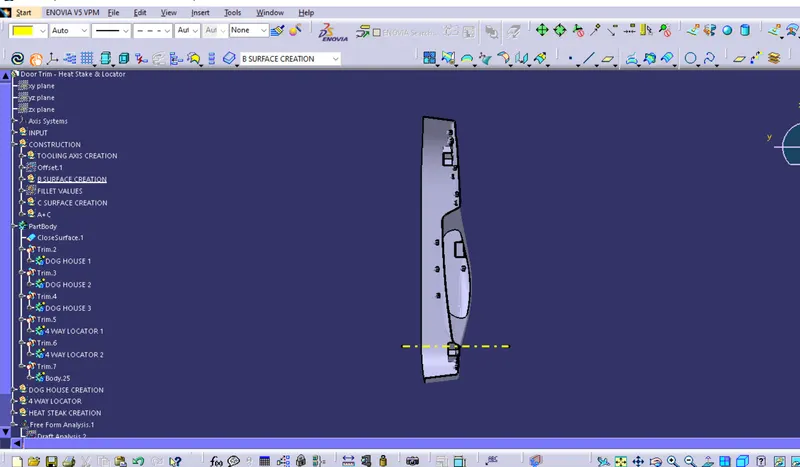

Tooling axis creation:

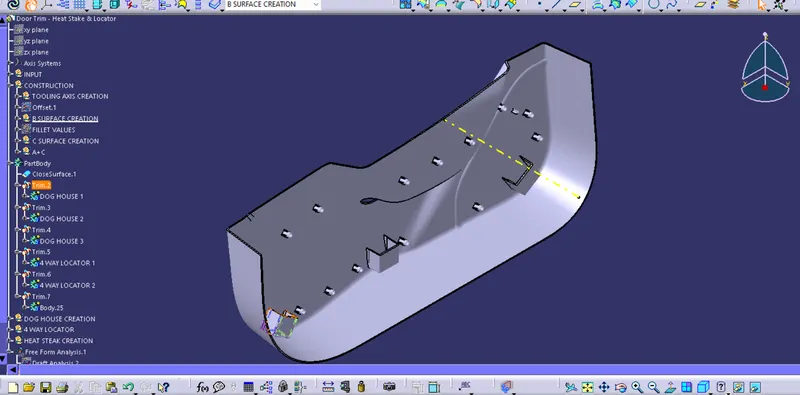

Here we have created tooling axis with the perpendicular method for the.I just extracted the base surface and created a centre point on and axis system it after this created a line perpendicular to this surface this is our tooling axis
