Week 9 - Project 1 - Door Trim Lower with Engineering Features

                                                 Heat stakes& locaters Creation challange

Class A surface:

Get a class A surface form Door trim lower Cat Part and Boundery check for any open And gap in Surface.

Tooling Axis:

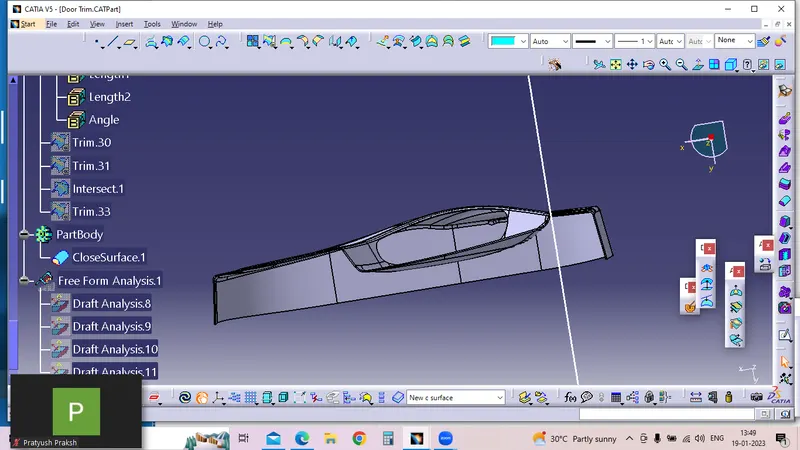

Door trim lower single Extract mothod Idendify The Flat surface get in the tooling axis ON surface mothed Point on the middle of the surface after that draw the line Point and direction method Check the Class A surface with line Draft will clear Class A surface.

Draft Analayis:

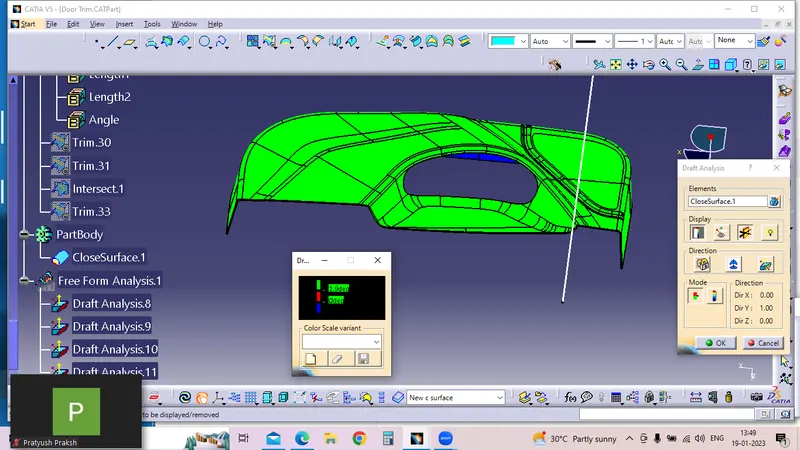

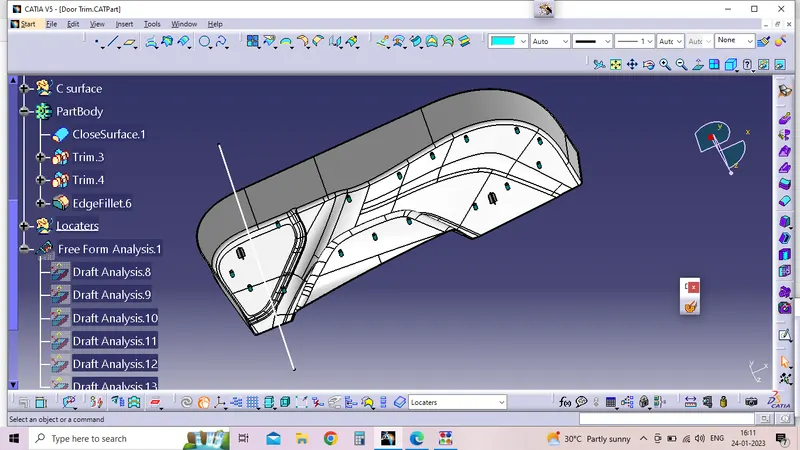

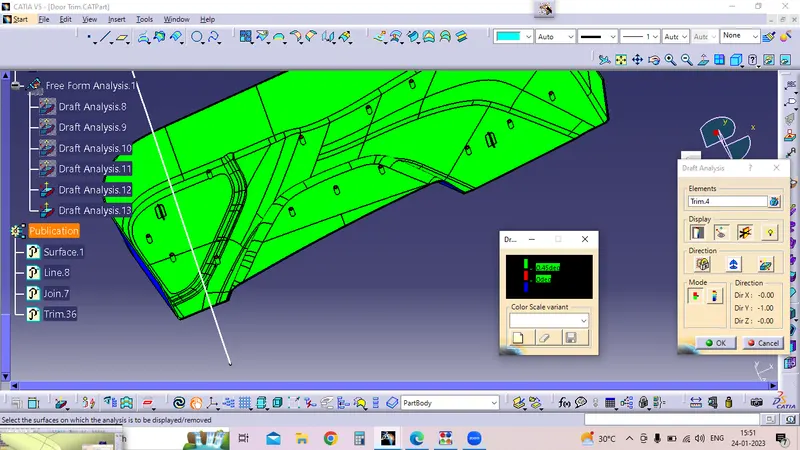

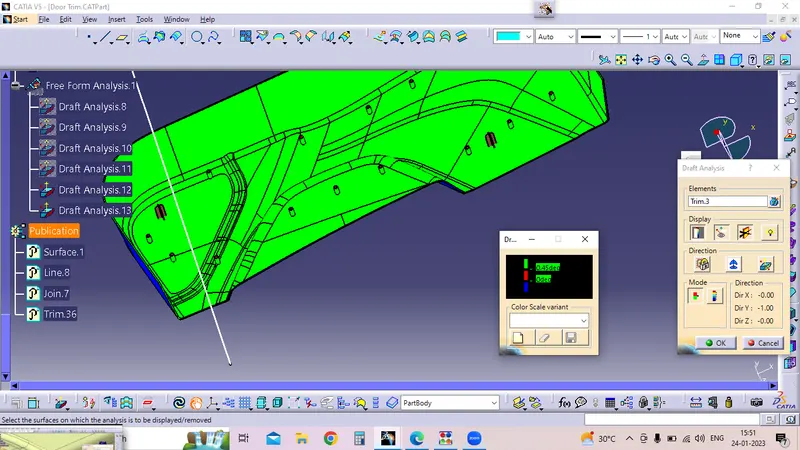

Class A Surface  offset form 2.5 mm and 2.9 degrees for draft anglewith the meet Class A surface Colour scale method  used my class A clear. My closed surface Tooling axis parallel legs area not clearing in 3 degree draft  angle. Heat stackes & locaters are clearing in .45 degree angles.
