Week 9 - Project 1 - Door Trim Lower with Engineering Features

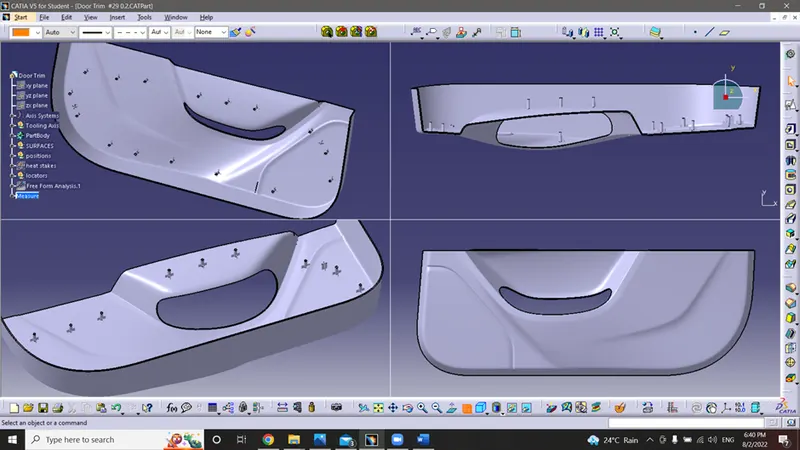

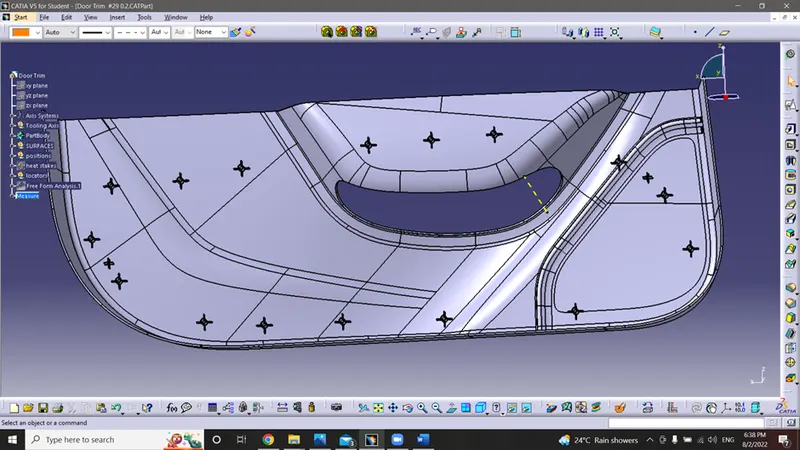

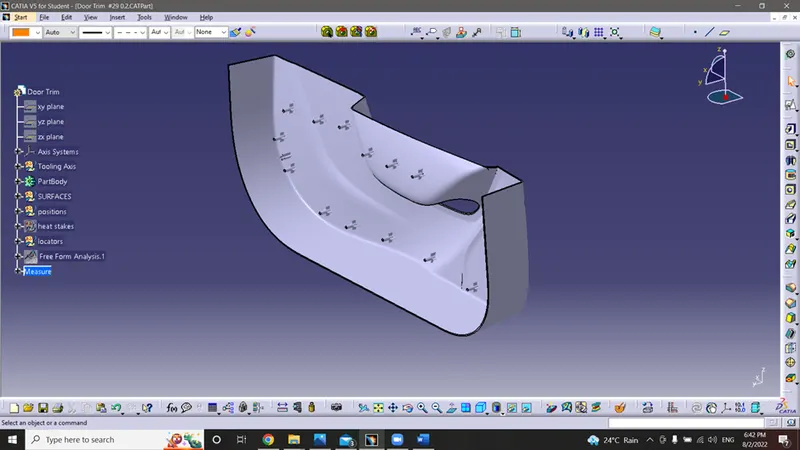

Different Views of completed Design

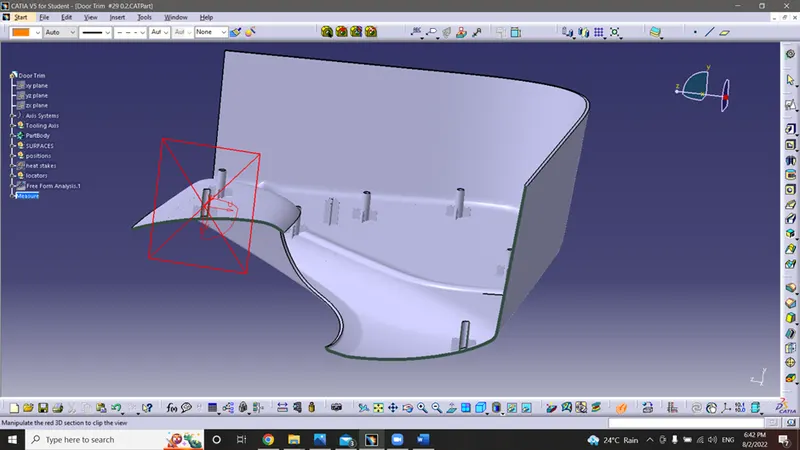

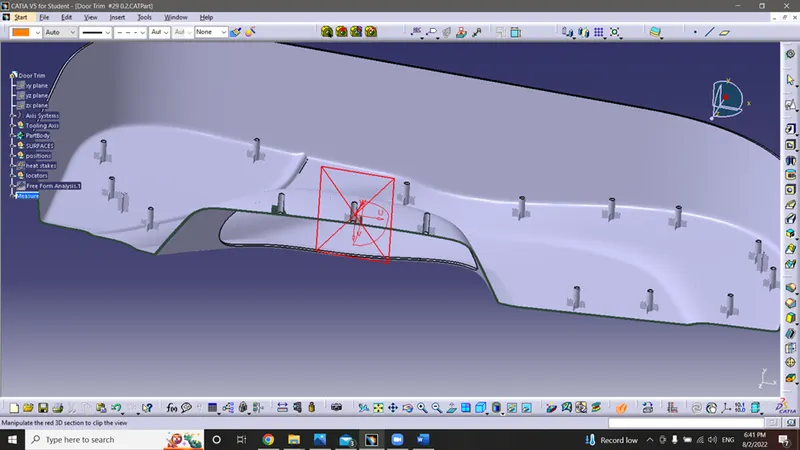

Some sectional Views

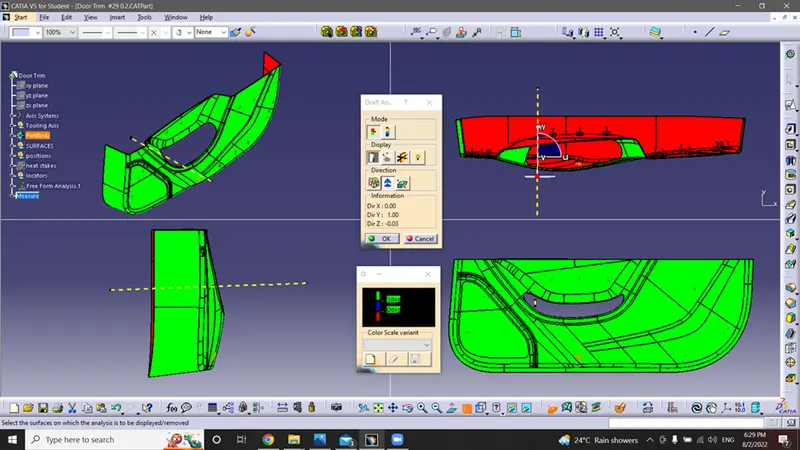

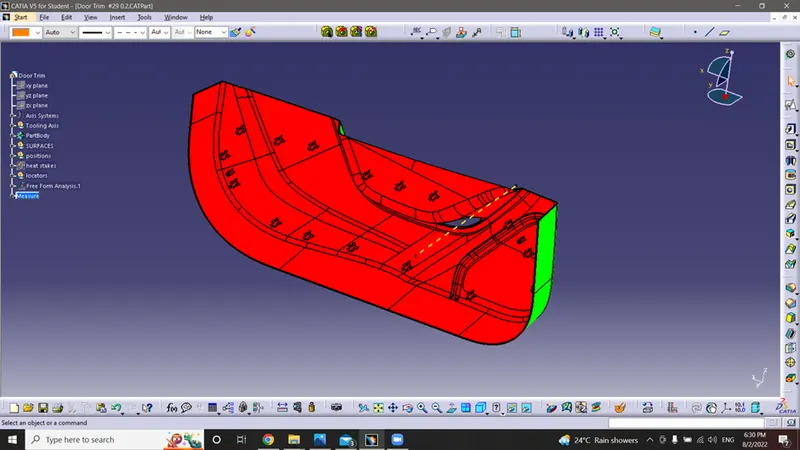

Drafting Analysis on Completed design

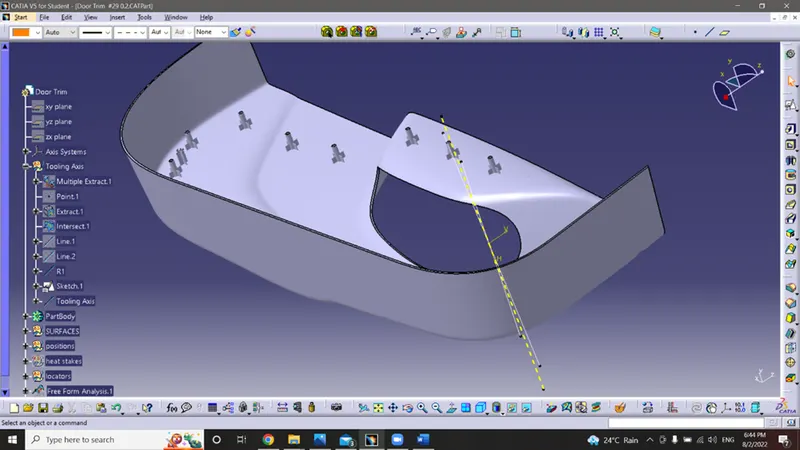

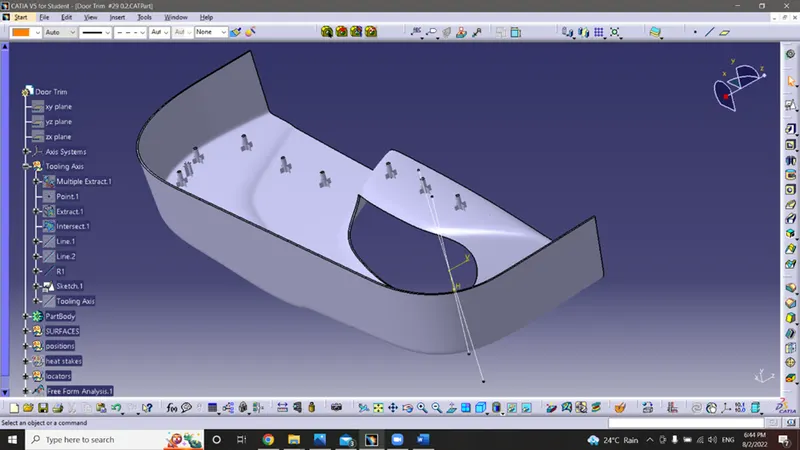

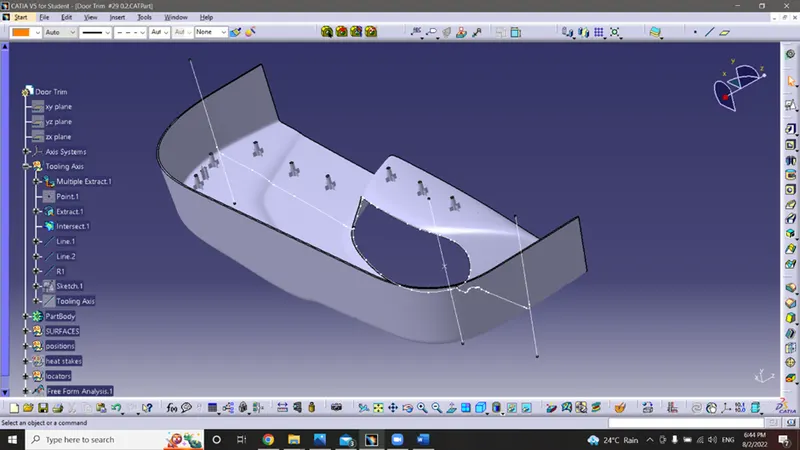

Tooling axis Making

• Created point centre to the hole
• inserted an axis system on that point.
• Made intersecting profile with respect to plane in new axis system.
• Made Two linew using point-point line type on the profile on the edges.
• line R1 is created by bisect line using the last two lines as reference.

• Created another line through the point on a position sketch, making an angle greater than 3 with the other edge profile on the part.
• Then Created our tooling axis by bisecting line type using line R1 and the last line created on the position sketch.
