Week 9 - Project 1 - Door Trim Lower with Engineering Features

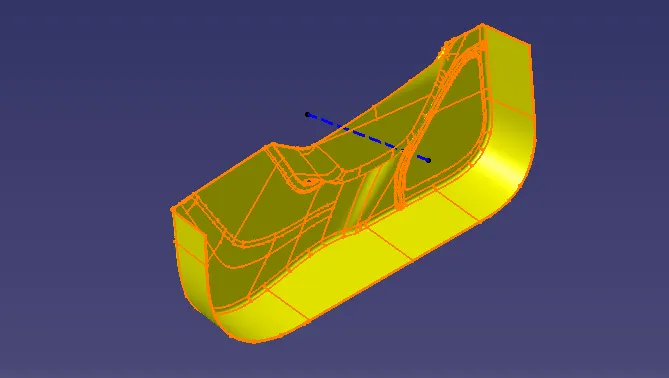

Fig.1.1 Class A Surface

• Ensure the class A surface is continuity.
  Create the required part for draft analysis. Check the part is continuity if no means create a product
  into part using command join or boundary. Here I chosen the Door trim.
• The Draft Analysis command enables you to detect if the part you drafted will be easily
  removed. This type of analysis is performed based on colour ranges identifying zones on the
  analyzed element where the deviation from the draft direction at any point, corresponds to
  specified values.
•

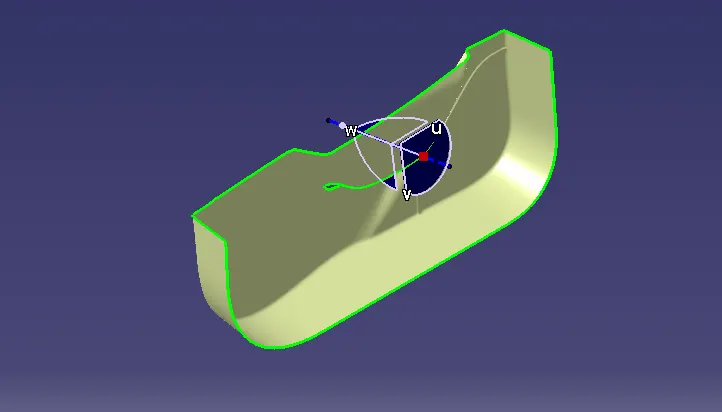

Fig.1.2 Class B Surface

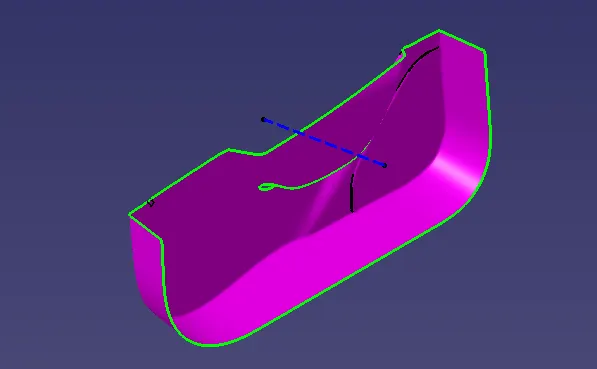

Fig.1.3 Class C Surface

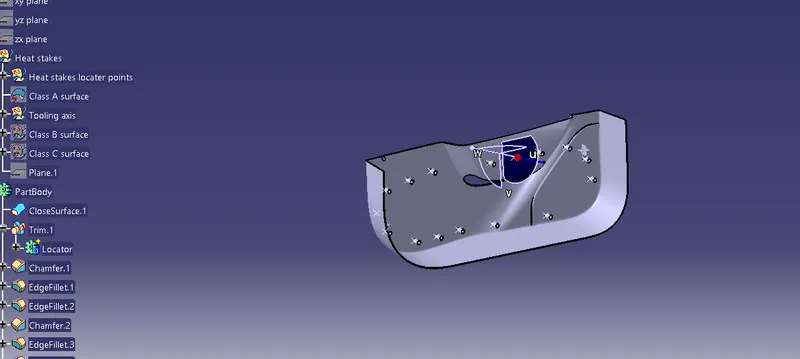

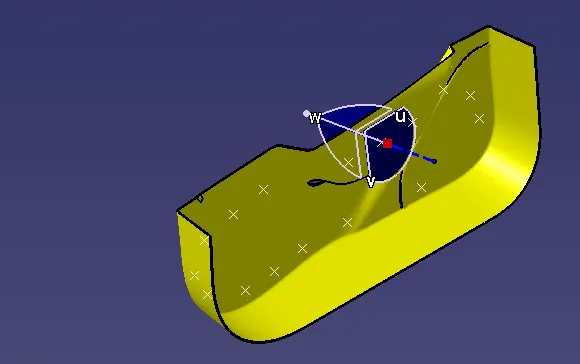

Heat stake locators

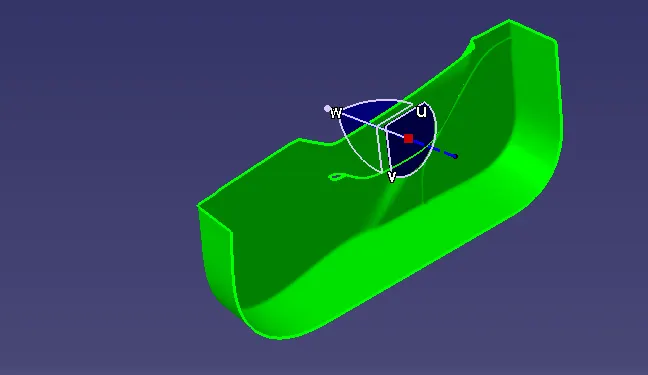

At the fininshing of component is close surface using close surface tool in part design work bench.

It is solid part from surface.

Conclusion

Created Coin holder with given parameters.

Here used class A surface as referance.

Tree stucture is maintained.

Tooling axis created by using Normal to surface line command .
