Week 9 - Project 1 - Door Trim Lower with Engineering Features

Tooling axis

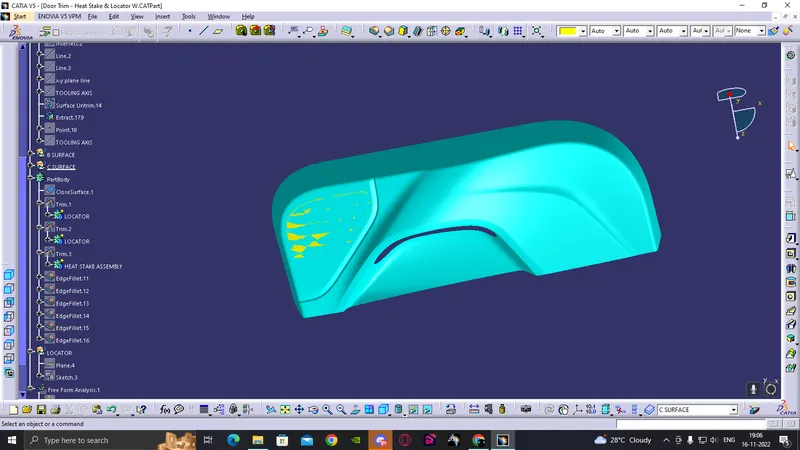

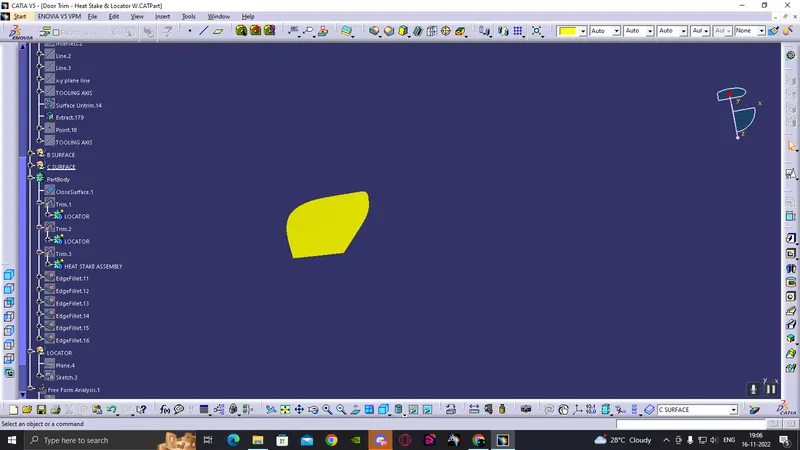

select a suitable surface to be extracted

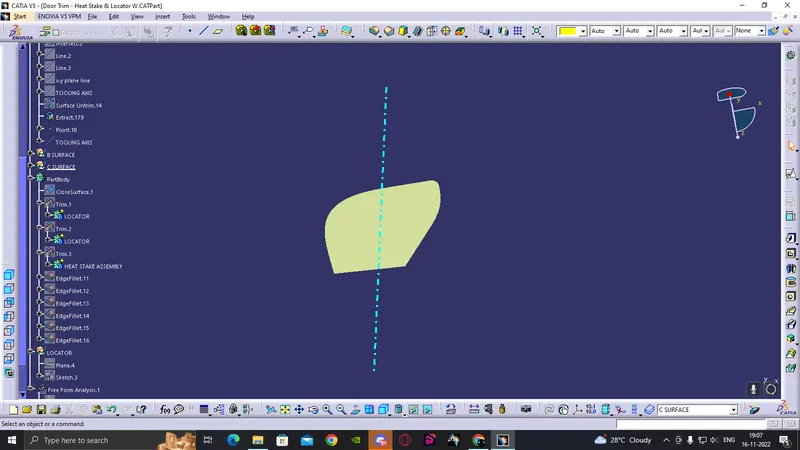

then mark a point and draw a line normal to the surface through the point

draft analysis

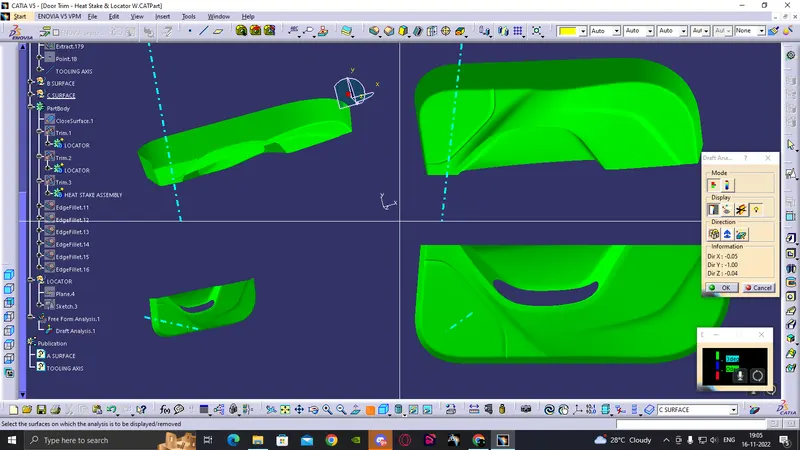

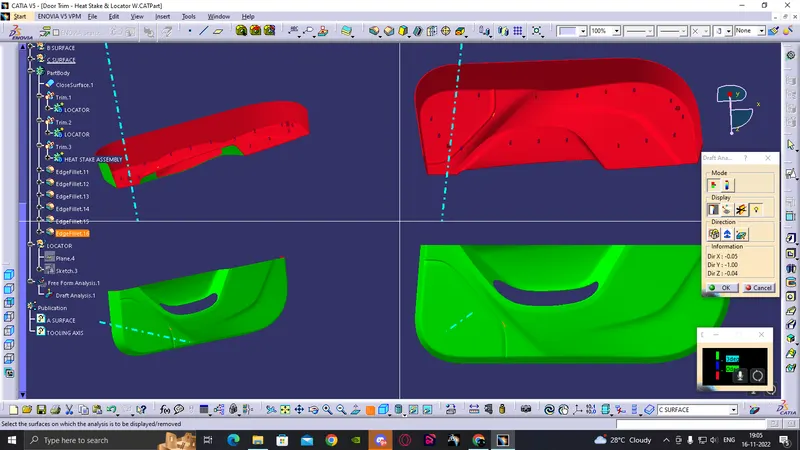

the angle the surface have with the tooling axis is as showm below
