Week 9 - Project 1 - Door Trim Lower with Engineering Features

Door Trim Lower with Engineering Features

Objective- To Create the Door Trim Lower Plastic component through the given Class-A surface.The tooling axis for the given Class-A Surface are created by meeting the requirements of the draft angle and at the end to perform the Draft analysis on the model.

Aim- To Create the Heat Stakes and the locators considering the design rules mentioned.

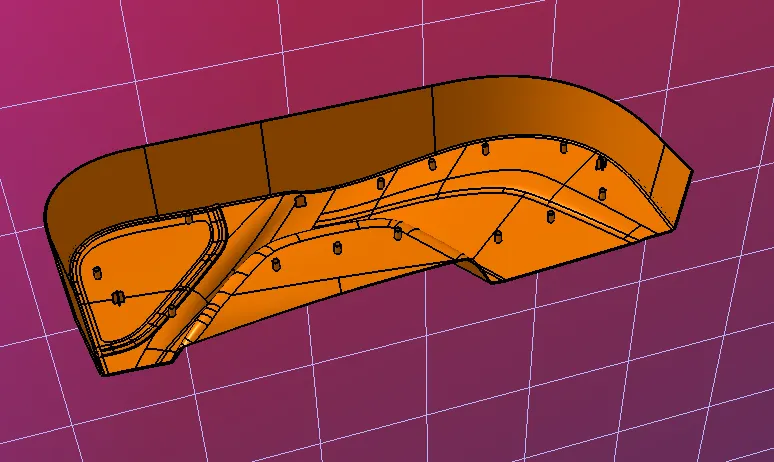

Design requirement-

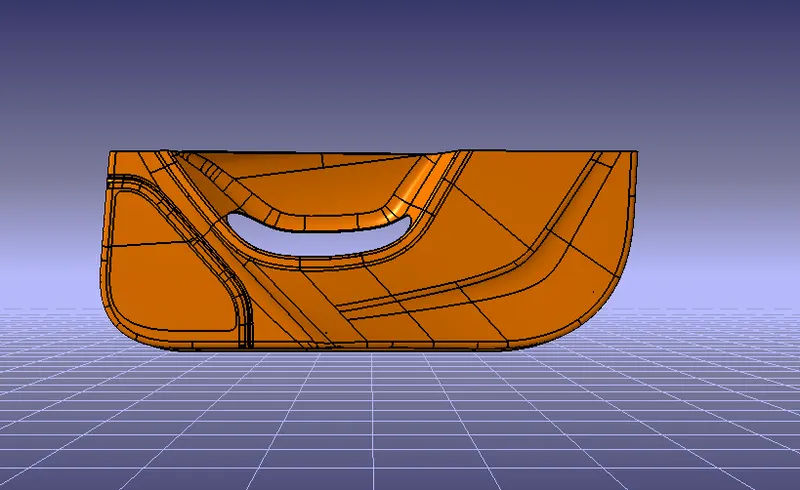

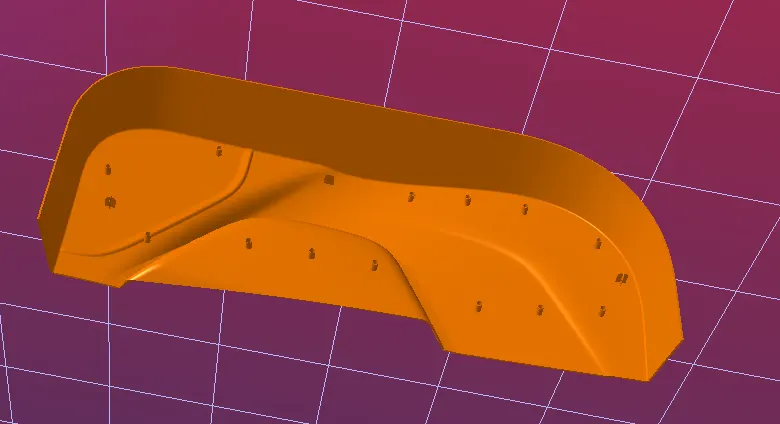

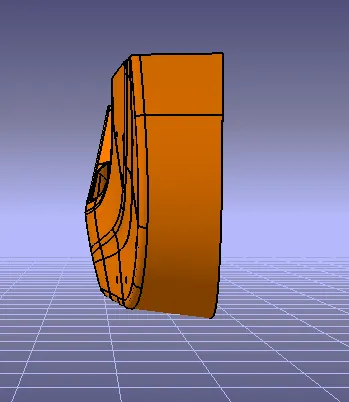

iso view side view front view

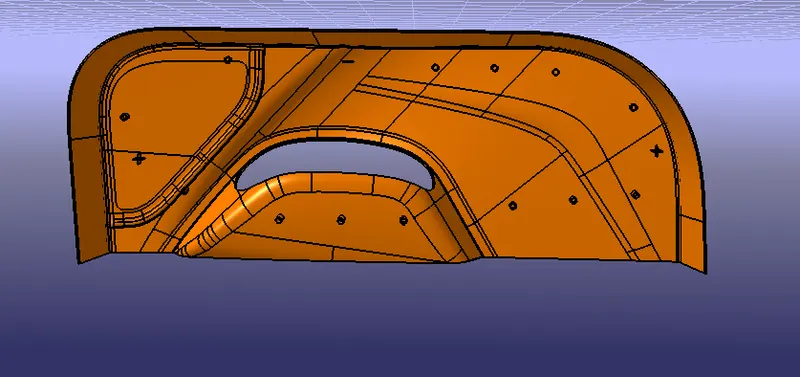

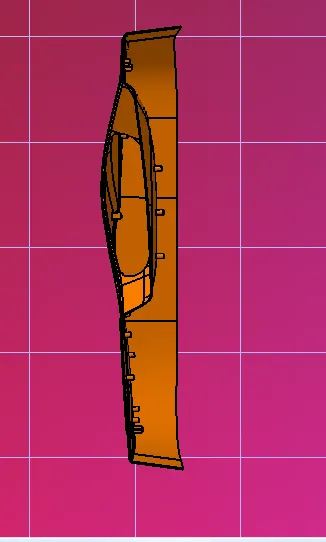

side view bottom view

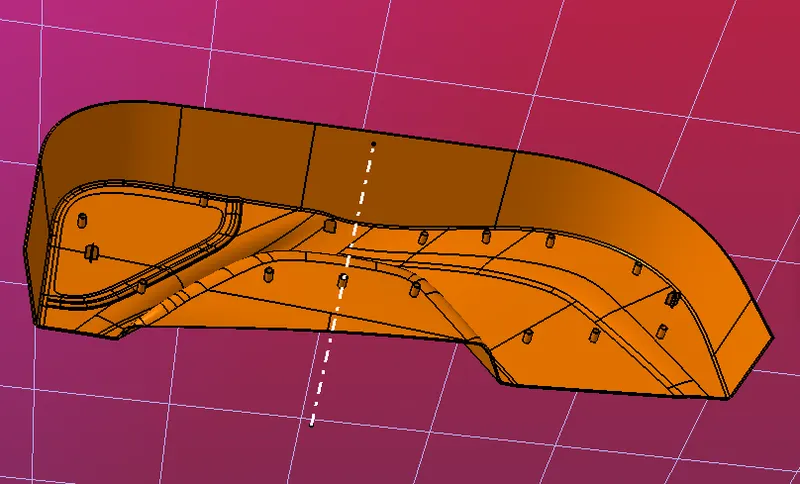

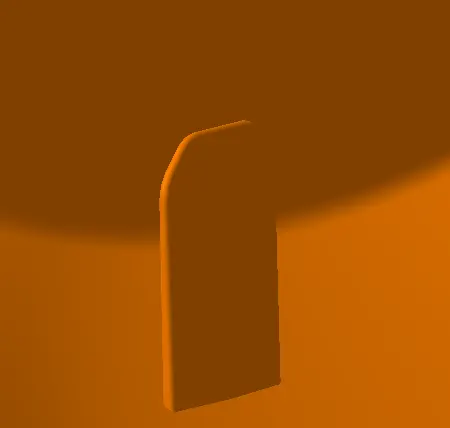

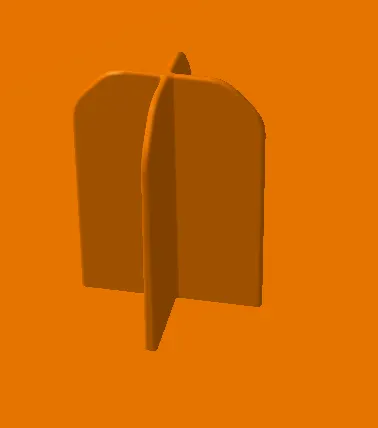

Heat stake and locator-

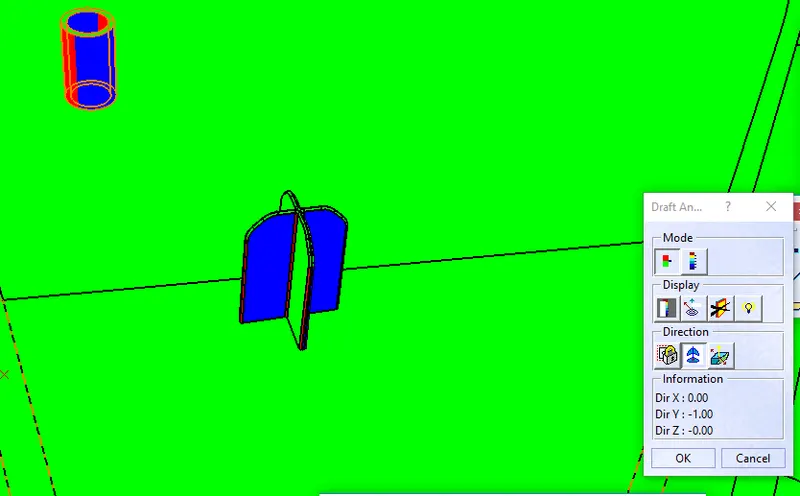

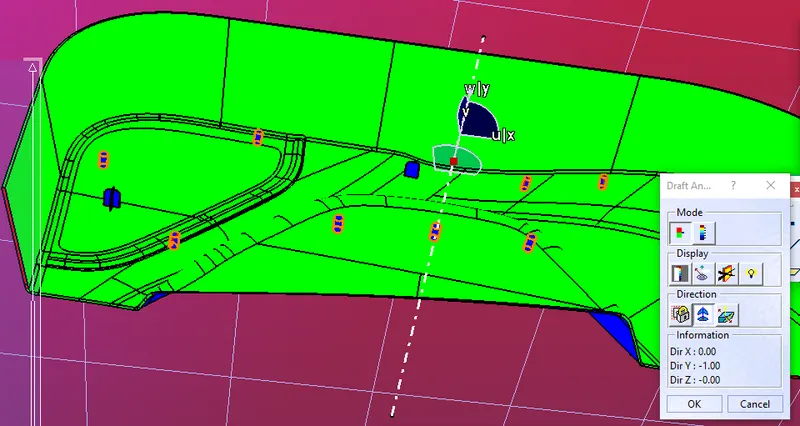

Draft analysis-

The Draft Analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on color ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified values.

Tooling direction-

The Tooling Direction is basically the direction that the mold pulls apart. The mold is built in two separate pieces, basically. You have a Cavity side and you have the Core side. The Core pulls apart from the Cavity and that's the Dyeline or the Tooling Direction.

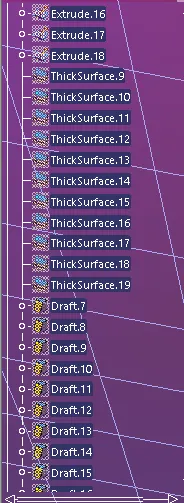

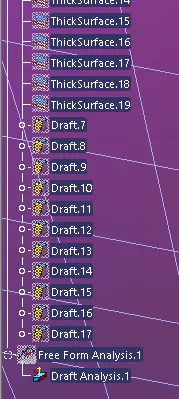

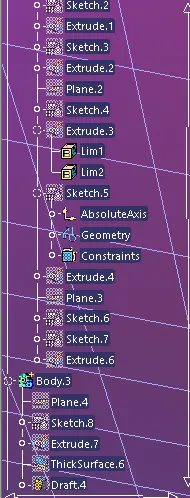

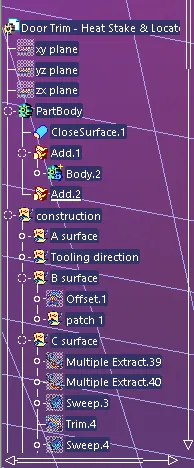

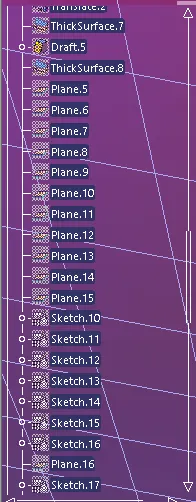

Tree structure-

Conclusion-

The model is suucesfully designed as per the design requirements.
