Week 9 - Project 1 - Door Trim Lower with Engineering Features

AIM

This Report aim is to perform draft analysis for the given surface by defining a tooling direction appropriate to the shape of the surface and also to create the class-B,class-C surfaces and final closed body with the help of given Class A surface of Door trim lower and to create heat stakes and 4 way loactors based on design rules.

THEORY

Class A surface:

This is the styling surface which provides the aesthetic features of a component. A designer starts the design of component from a class A surface.

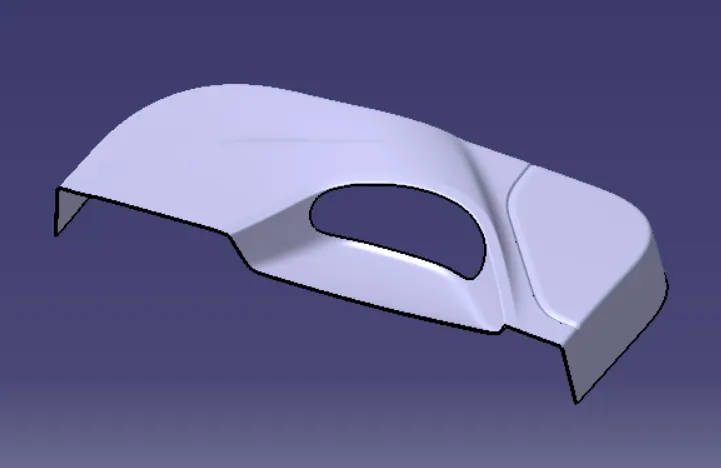

Given class A surface

Class B surface:

Class B surface is obtained by offsetting the class A surface by the component thickness value. This B surface contains all the engineering features of the component. So it is also called as Engineering Surface.

Class C surface:

Class C surface is created along the tooling direction of the component and it connects the class A and class B surfaces.

Tooling Axis:

Tooling axis is the direction in which the part is released from the mould.

Closed Body:-

Heat Stakes:

In heat staking, we use local heating and cooling to raise the temperature of plastic components and allow plastic reforming to be carried out.Then fillet is applied to the faces of the rib. As per the design rule, the fillet can be 0.25 mm.These heat stakes will enter the mating component and using a heat staking machine these heat stakes are melted and cooled. When cooled this will get hardened and the two components will stick together. Thus all degrees of freedom are arrested.

4 WAY LOCATORS:

The locators restrict all the other degrees of freedom except the translation along the direction of tooling axis Le along y-axis. For restricting that degree of freedom we will be using the heat stakes.

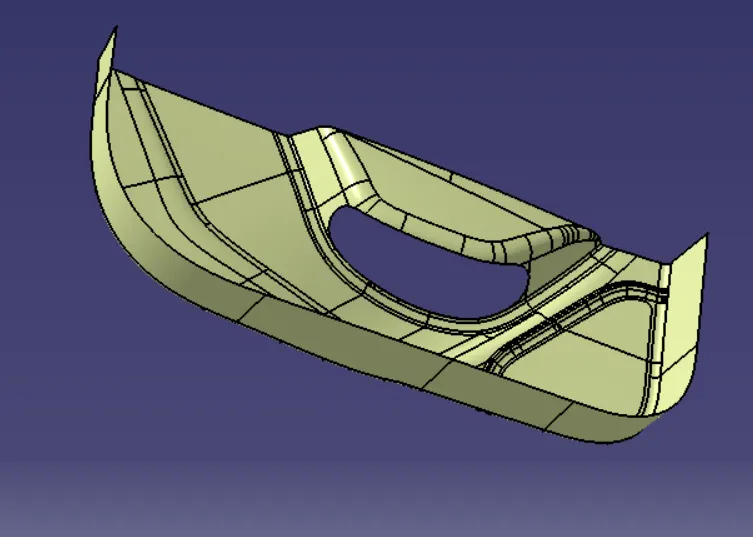

Final closed body with loactors and heat stakes

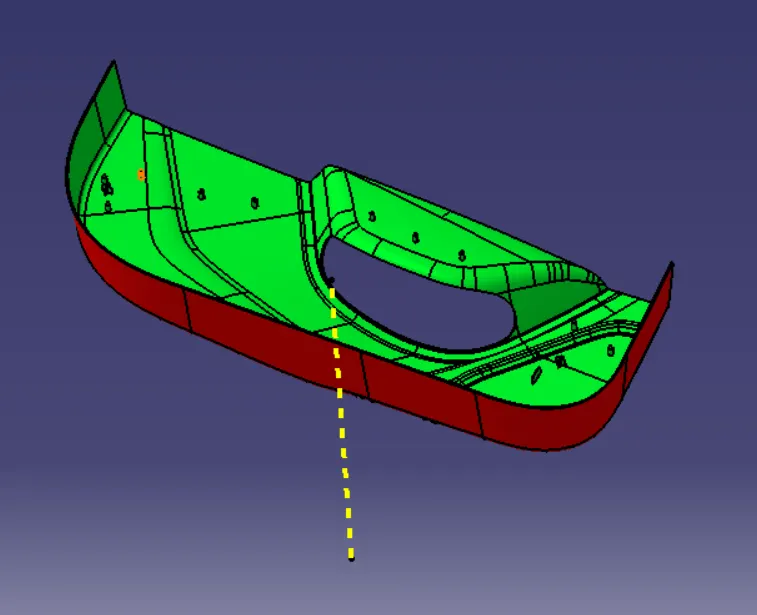

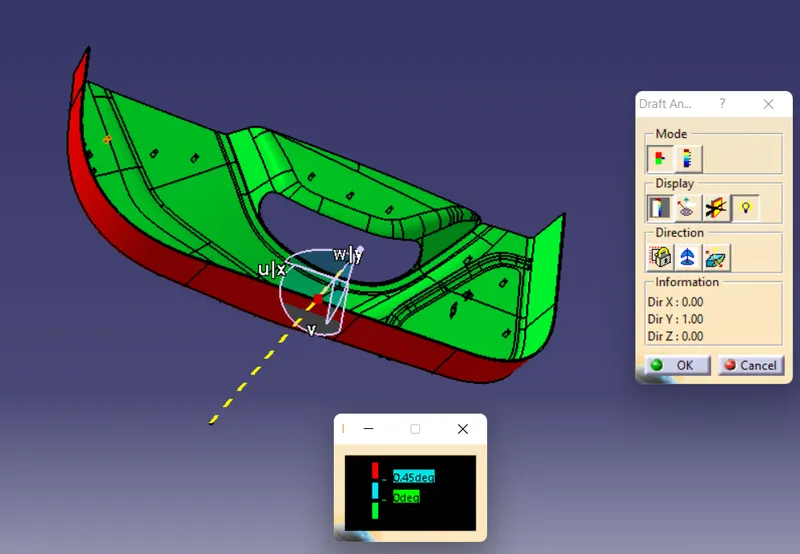

Draft analysis:

Draft analysis is an operation that is performed to know the draft angles of the surfaces concerning the tooling direction. The minimum feasible draft angle for this design is taken as 3 degrees. Generally for plastic components, a minimum draft angle that can be achieved is 0.5 degrees.

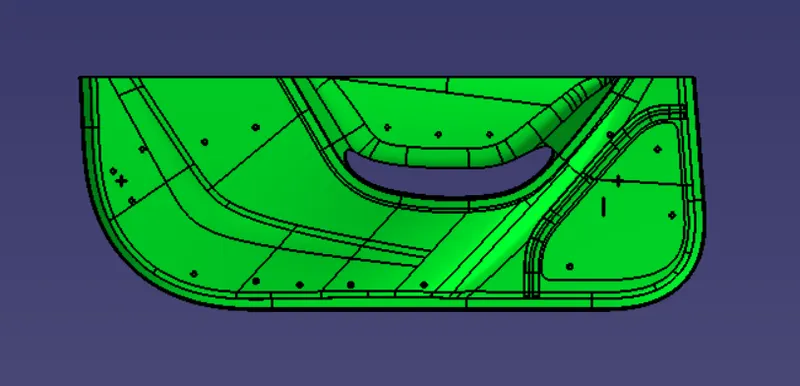

FRONT VIEW-

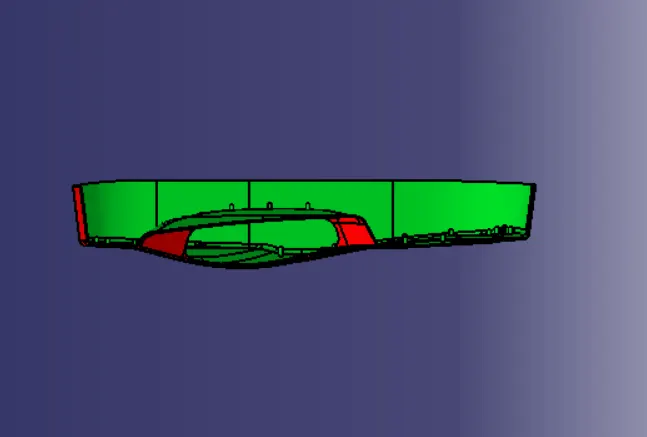

TOP VIEW-

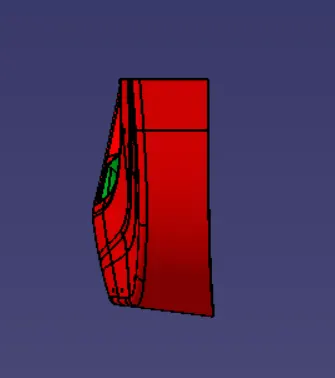

SIDE VIEW-

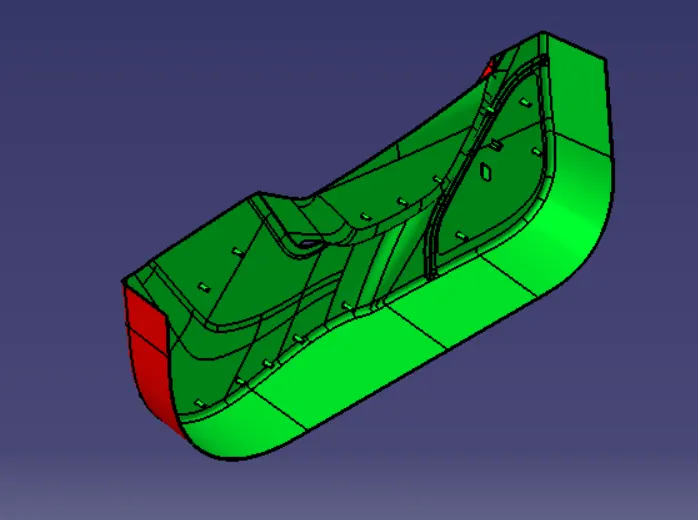

ISOMETRIC VIEW-
