Week 9 - Project 1 - Door Trim Lower with Engineering Features
DOOR TRIM LOWER
STEPS FOR THE CAT PART
- CREATE A TOOLING AXIS IN THE CAT PART WITH BISECTING LINES
- CREATE A OFFSET FOR THE CLASS A SURFACE TO BECOME B SURFACE
- WHILE OFFSETTING THE CLASS A THERE WERE SOME PATCHES, SO WE RECTIFIED THE PATCHES.
- NOW, WE CREATE C SURFACE USING THE SWEEP COMMAND.
- THEN JOIN THE C SURFACE WITH THE CLASS A SURFACE.
- THEN JOINED CLASS A&C TRIM WITH THE B SURFACE.
- USING THE CLOSE SURFACE COMMAND TO MAKE THE SURFACE TO SOLID BODY.
- AFTER CHECKING THE DRAFT ANALYSIS DRAFT IS 3 DEG LIMIT.
- NOW WE CREATE THE DOG HOUSE, RIB, AND 4-WAY LOCATORS.
- THE EXTENDED PARTS ARE CUT IT OUT AND BECOME A SINGLE PART BODY.
- AGAIN WE ANALYSE THE DRAFT USING THE DRAFT ANALYSIS METHOD.
TOOLING AXIS
THE FIRST STEP IS TO CREATE A TOOLING AXIS BY BISECTING METHOD
THE SECOND STEP IS TO OFFSET THE CLASS A SURFACE
CLASS A
THE OFFSET SURFACE IS CALLED B SURFACE
B SURFACE

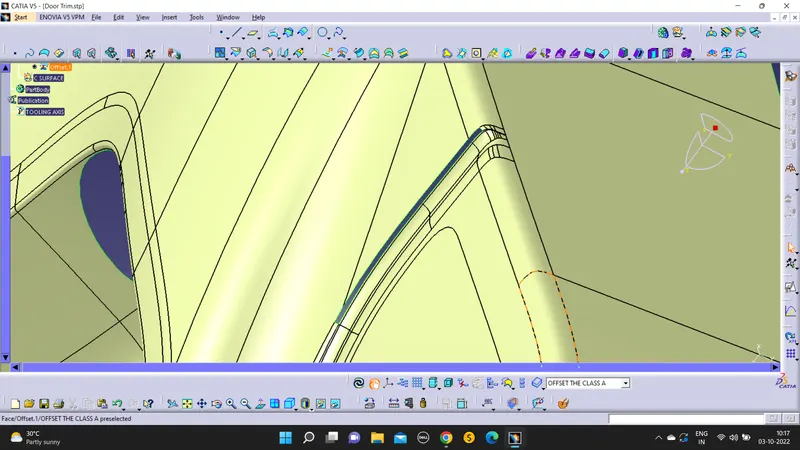

WHILE OFFSET SOME ERRORS COME, FOR EXAMPLE, THE GAP BETWEEN THE JOINING IN THE SURFACE

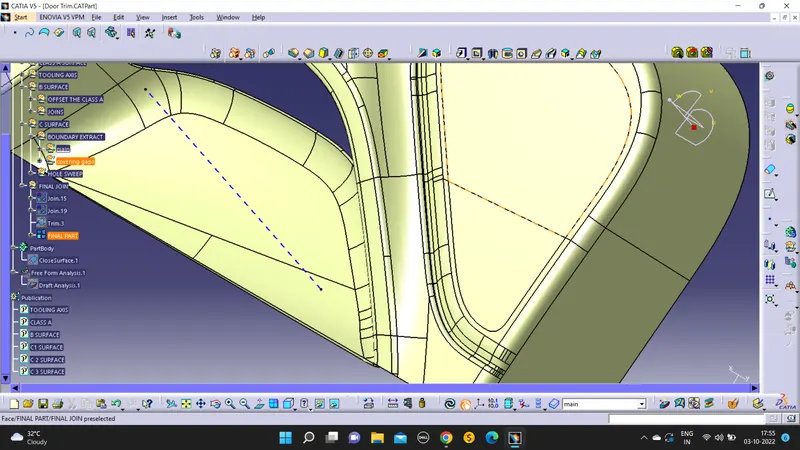

USING THE BLEND, FILL COMMAND TO SOLVE THE PROBLEMS

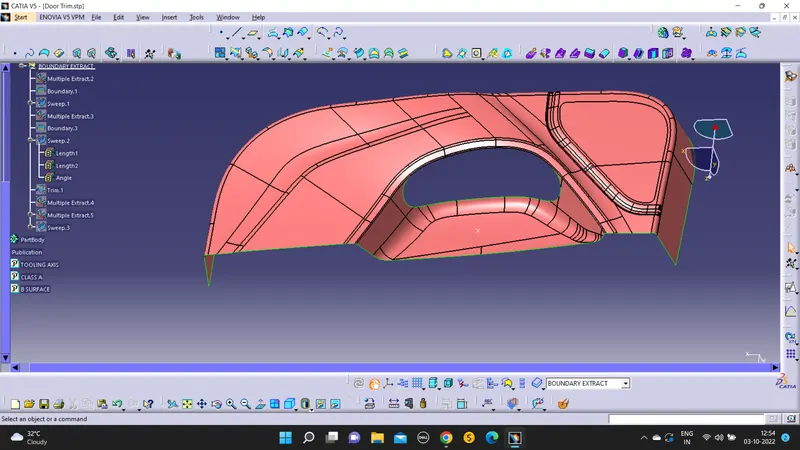

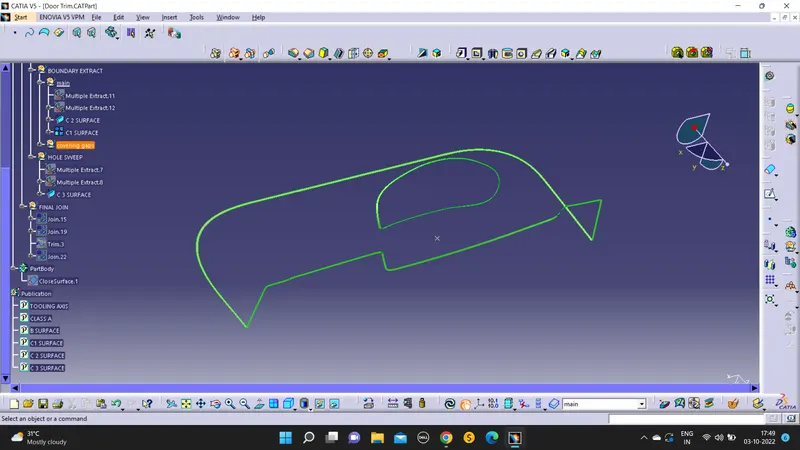

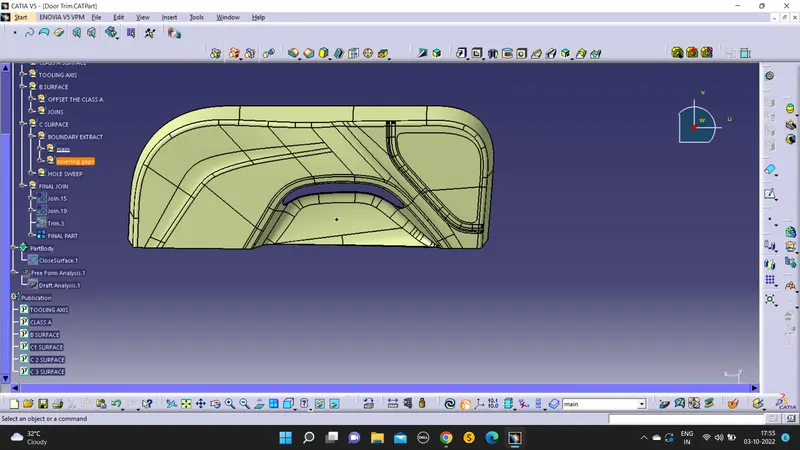

C SURFACE
IN THIS SURFACE, CLASS A JOINS WITH C SURFACE TO MAKE A CLOSE SURFACE

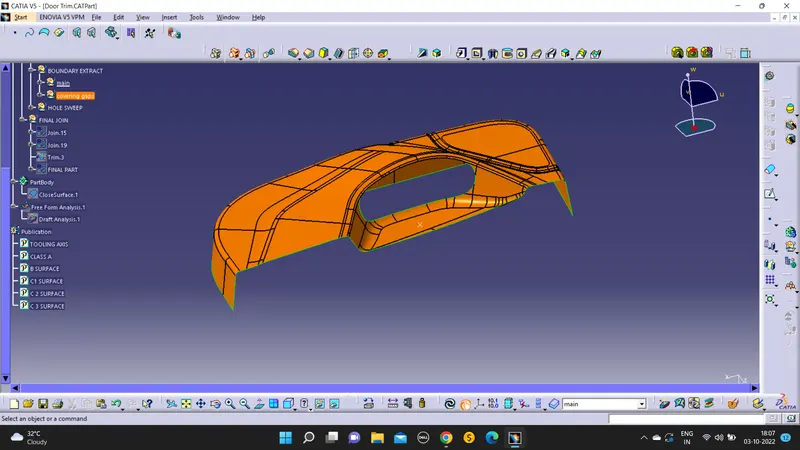

FINAL PART

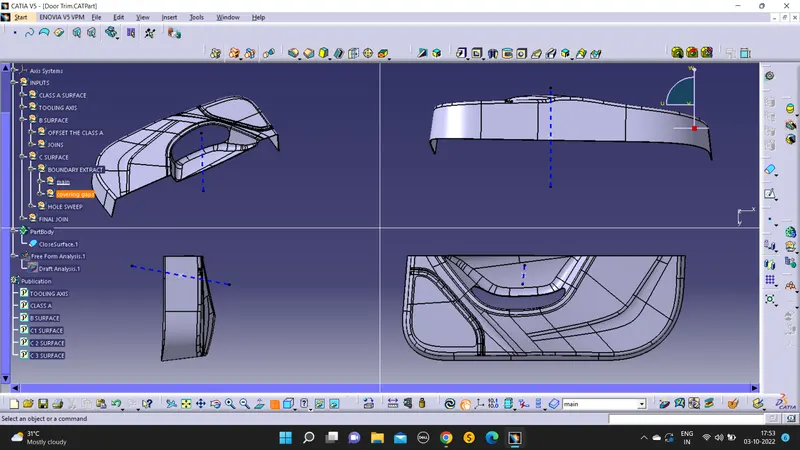

AFTER CLASS A JOINS WITH C SURFACE, THE JOINED SURFACE TRIMS WITH THE B SURFACE TO MAKE A CLOSE SURFACE

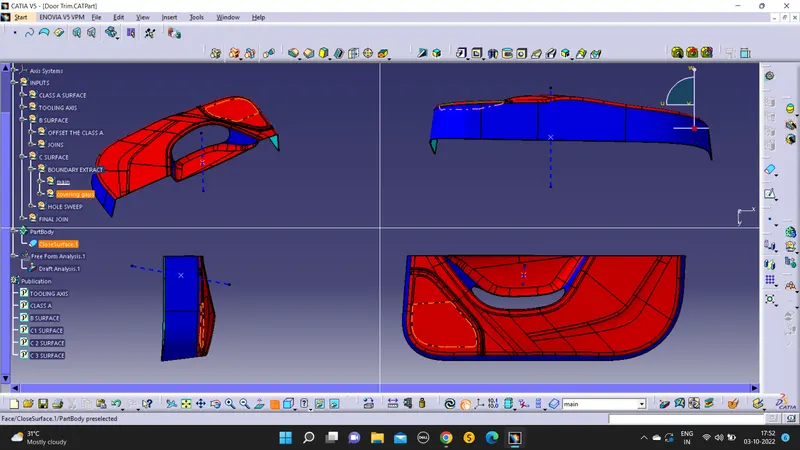

CLOSED BODY
THICKNESS IS 2.5mm

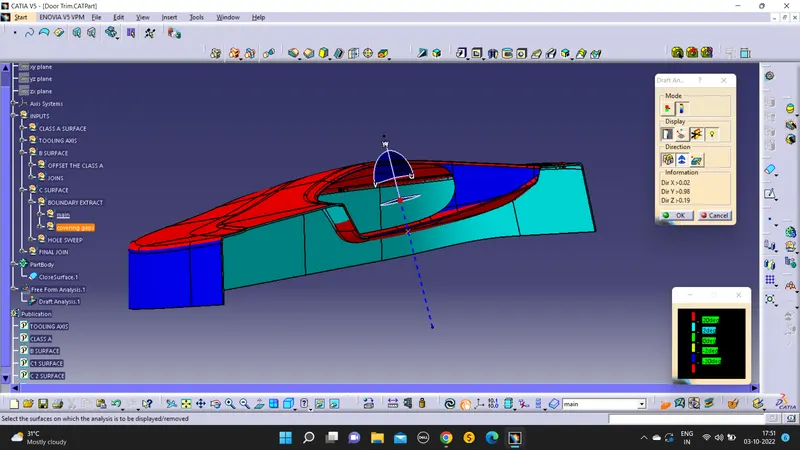

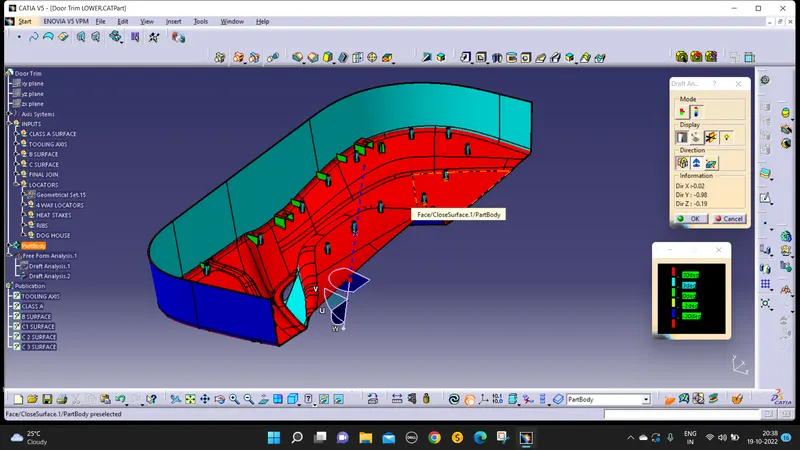

DRAFT ANALYSIS

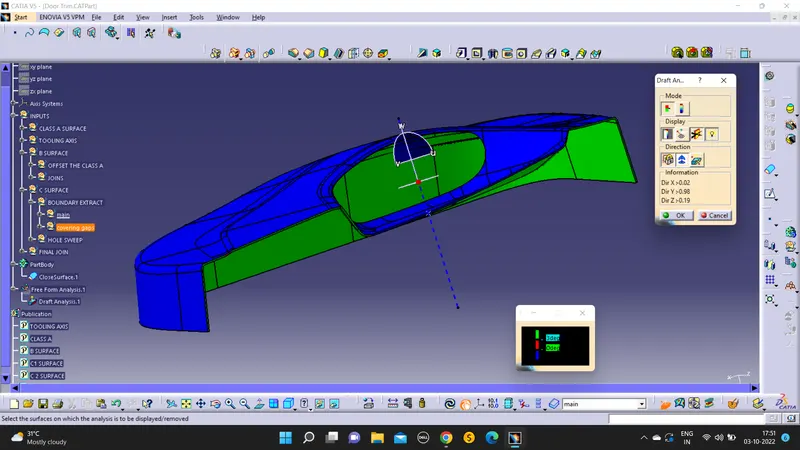

THE DRAFT ANALYSIS FOR THE CLOSE SURFACE

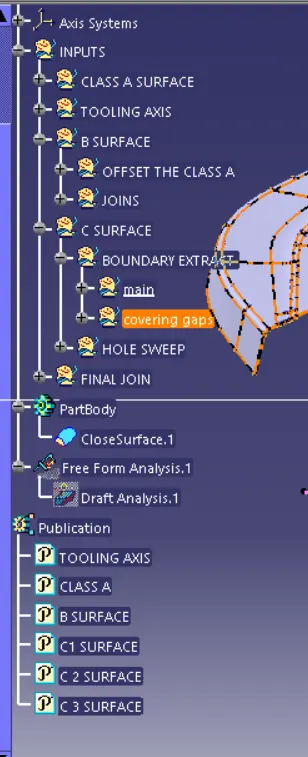

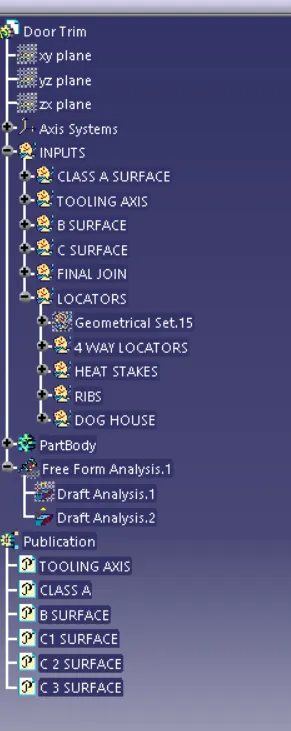

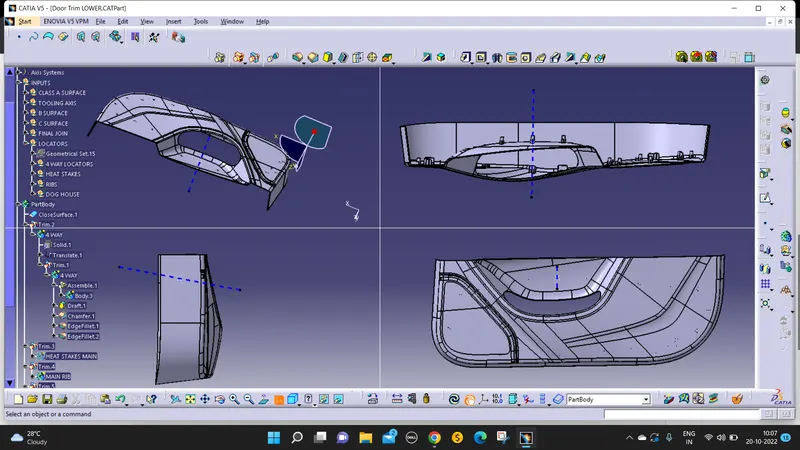

GEOMETRICAL TREE FOR CAT PART

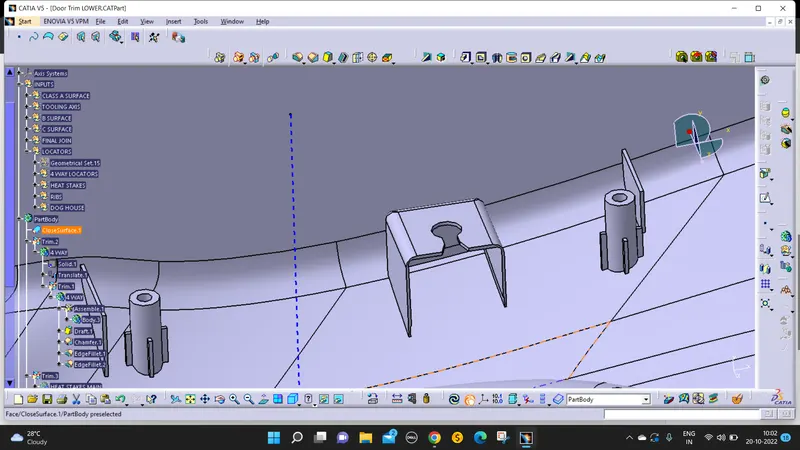

DOG HOUSE

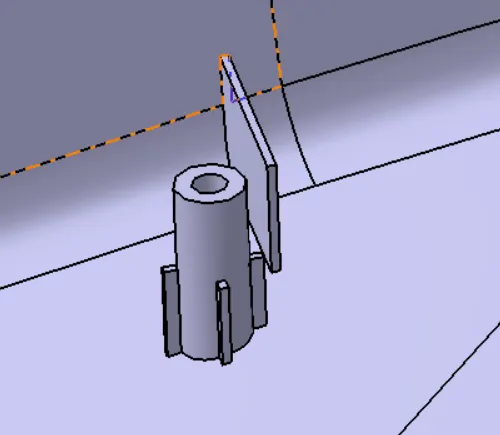

RIBS AND HEAT STAKES

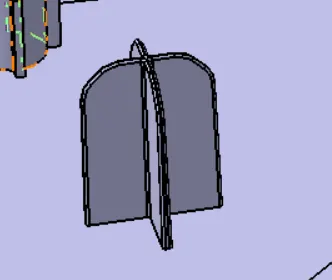

4-WAY LOCATORS

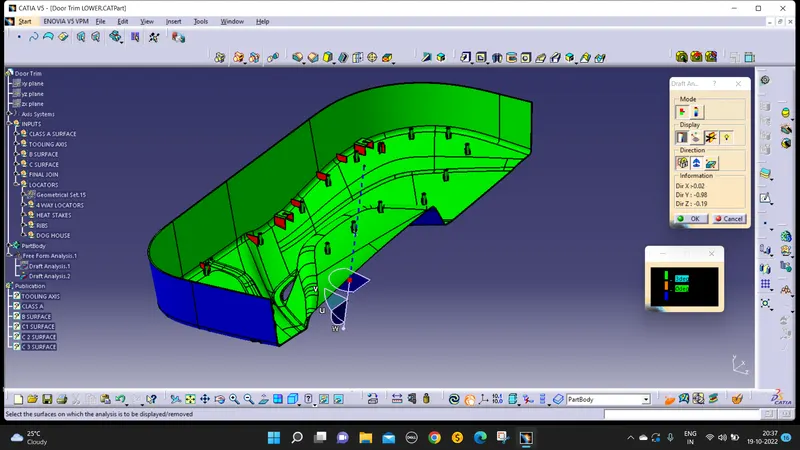

DRAFT ANALYSIS FOR FINAL COMPONENT

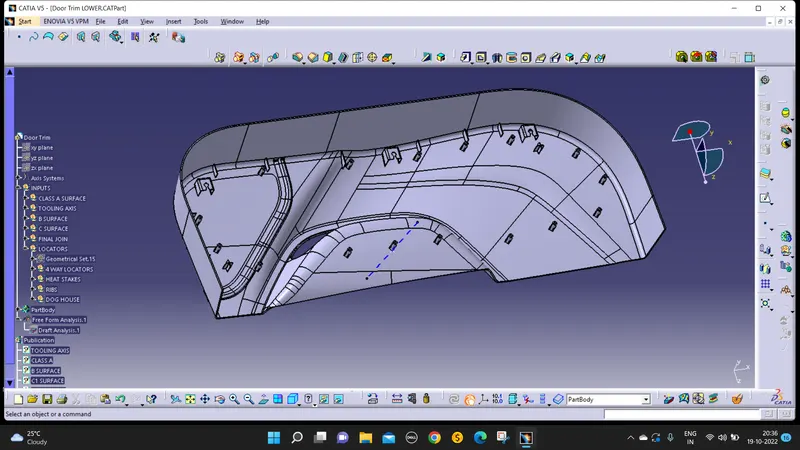

FINAL PART
DRAFT ANALYSIS
GEOMETRICAL TREE
