Week 9 - Project 1 - Door Trim Lower with Engineering Features

REPORT

DRAFT ANALYSIS

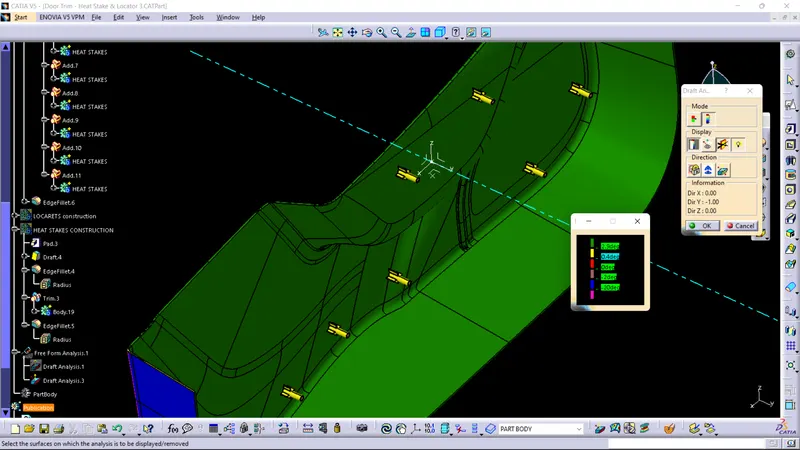

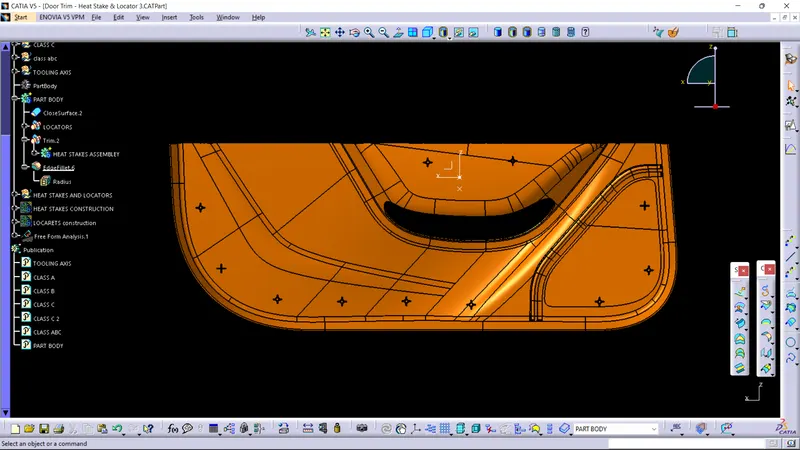

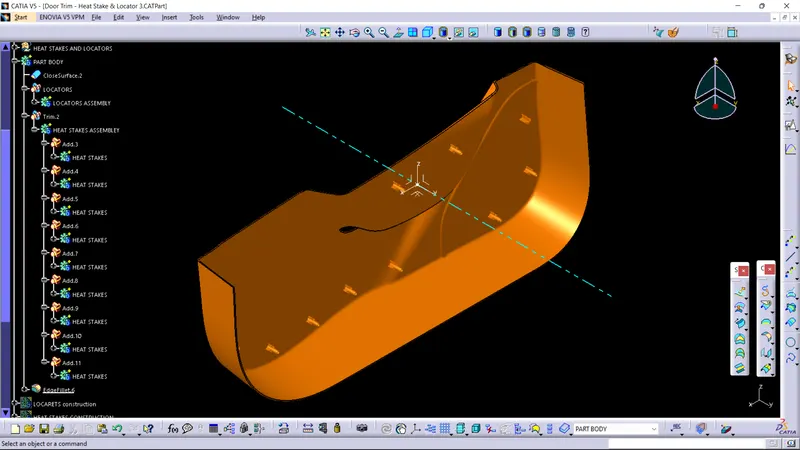

Heat stakes and locators are created according to the design rules. ribs are provided to support the strength of the heat stakes. tooling axis is created along the y axis

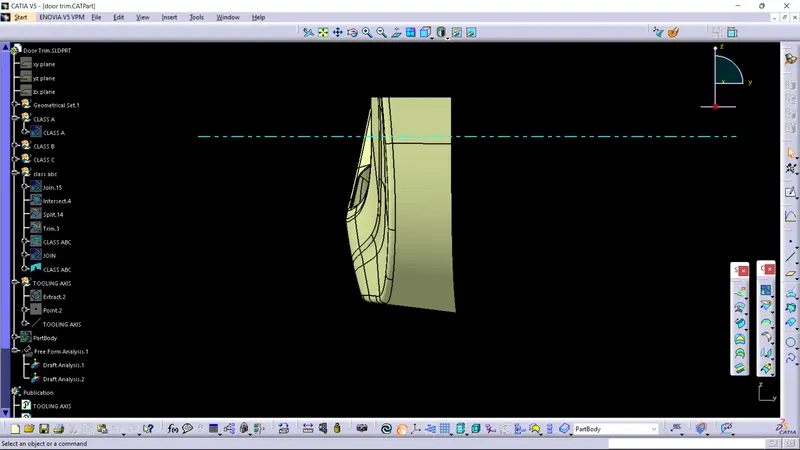

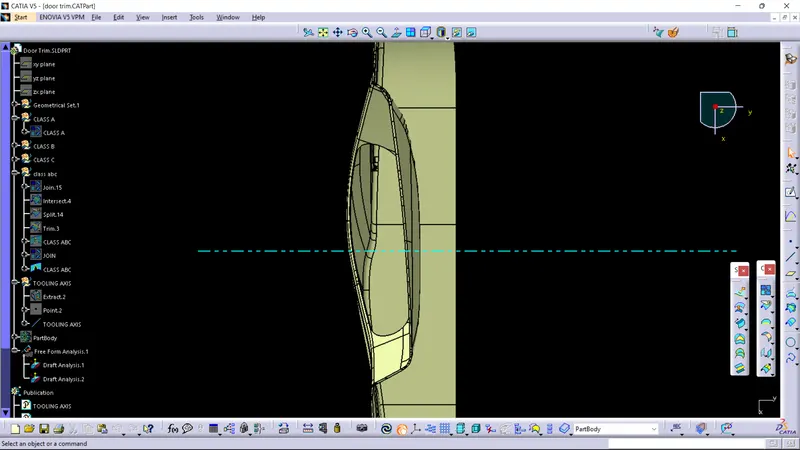

The tooling axis is created by following the steps

• check the possibility of tooling axis along the axis XYZ
• if not go for bisecting lines

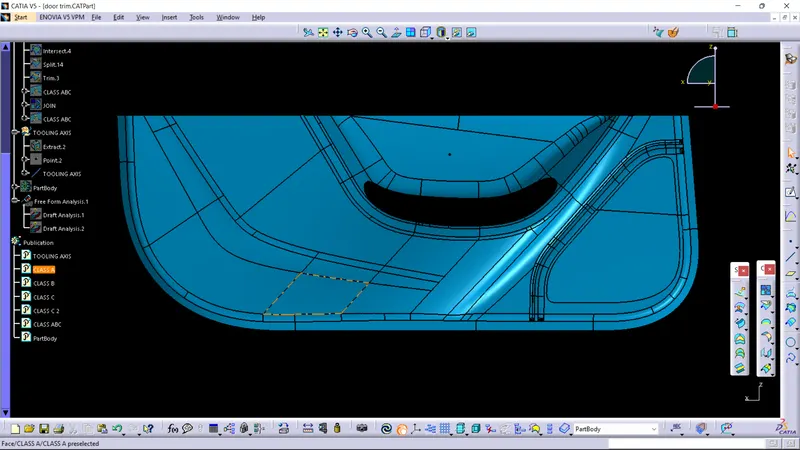

The bisecting line is created at the point on the surface and parallel lines on the class A surface

3-degree draft is given to the component and 0.5-degree draft is given to the ribs and locators
