Week 9 - Project 1 - Door Trim Lower with Engineering Features

Created Class B surface by offsetting class A.

and improved the Class B surface quality by using multisection solid and sweep.

Created Class C surface by using sweep(with reference surface).

and Trimmed both AC with B and created a closed body.

and started created Heat stackes and translated it to various location by point to point.

similarly to 4way locators.

and made boolean operation to remove the excess material.

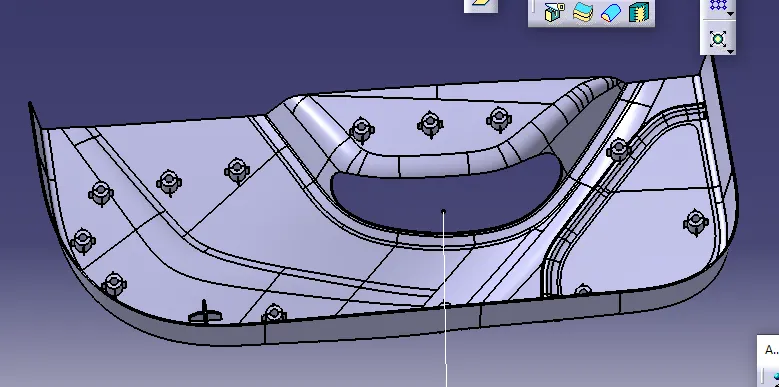

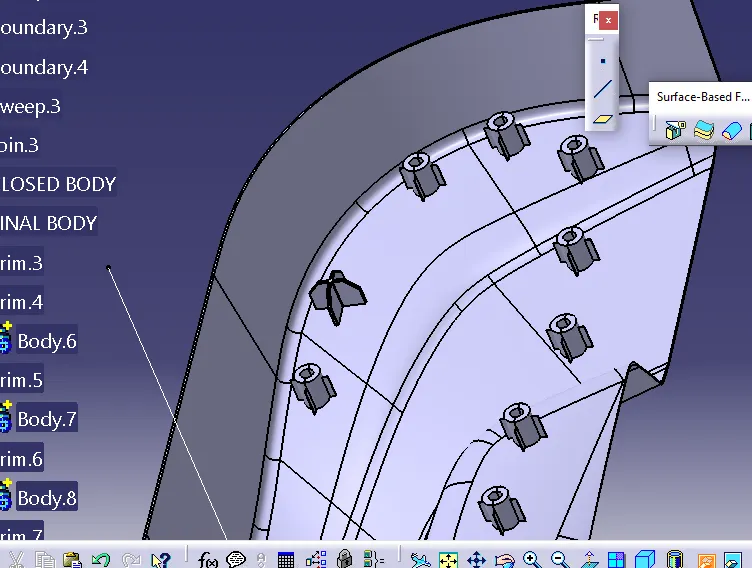

Kindly refer the attached images for reference.
