Week 9 - Project 1 - Door Trim Lower with Engineering Features

FOR CREATING TOOLING AXIS

• FIRST WE SHOULD CONSIDER THE DUMMY TOOL AXIS ALONG THE TOOL OPEN AND CLOSE DIRECTION.
• THEN WE FIND THE ALL SURFACE THAT ARE NOT PARALLEL ALONG THE AXIS WE CREATED BUT IN THIS MODEL NO PROBLEM CREATING NON PARALLEL SURFACE FOUND.
• THUS WE CAN CONSIDER THE AXIS THAT IS NORMAL TO THE BASE SURFACE AS OUR TOOLING AXIS.

FOR DRAFT ANALYSIS

• FIRST THE NOMINAL DRAFT ANGLE IS 3 DEGREE
• THE DRAFT ANALYSIS IS DONE TO CHECK WHETHER THE SURFACE ALONG THE TOOLING AXIS ARE CORRECT DRAFTING ANGLE
• SINCE THE TOOLING AXIS IS NORMAL ALL THE DRAFING ANGLE WILL BE SAFE
• ALSO THE PARTING LINE FALLS IN THE PERPENDICULAR TO THE TOOLING AXIS

LOCATOR AND HEAT STACKER

• USED 4 WAY LOCATOR AT GIVEN LOCATION
• THICKNESS BE 1mm AND HEIGHT BE 5xTHICKNESS AND FOLLOWED DESIGN RULES
• DRAFT ANGLE 0.5 GIVEN FOR ALL FEATURES.

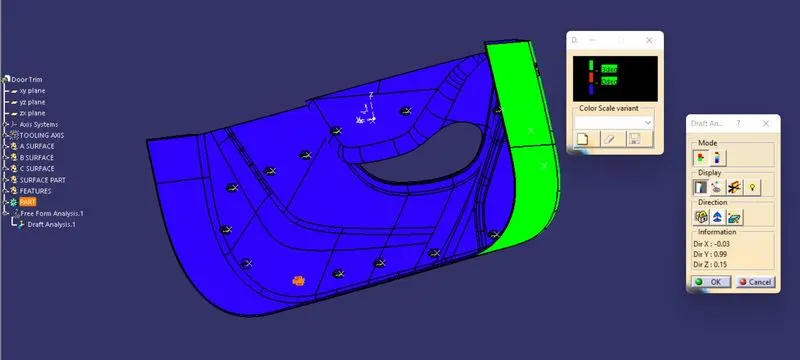

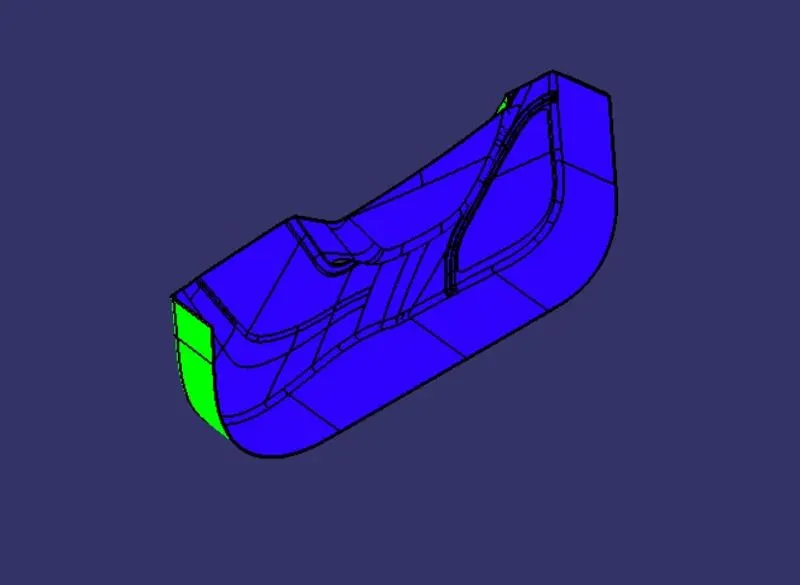

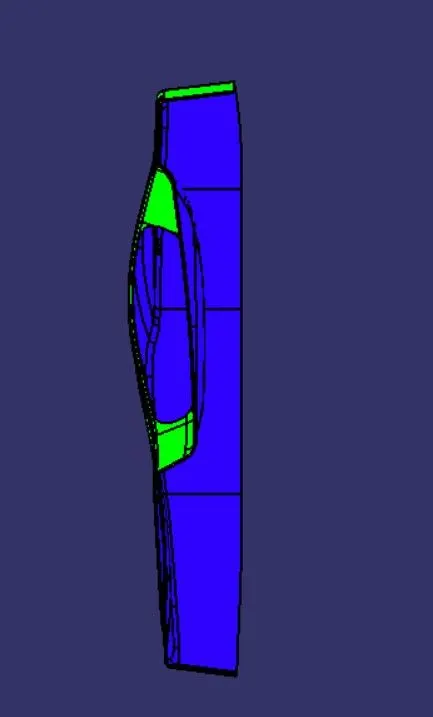

DRAFT ANALYSIS

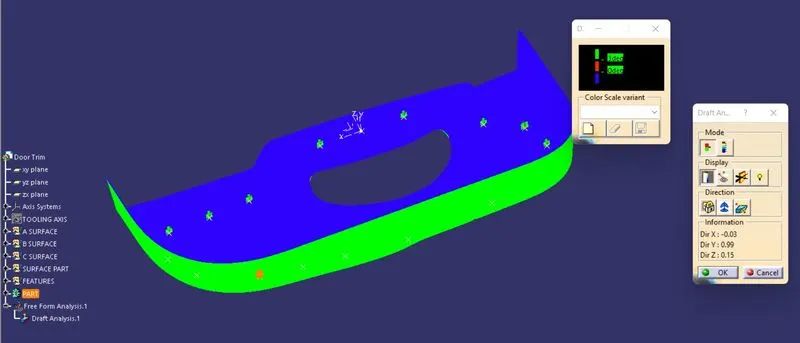

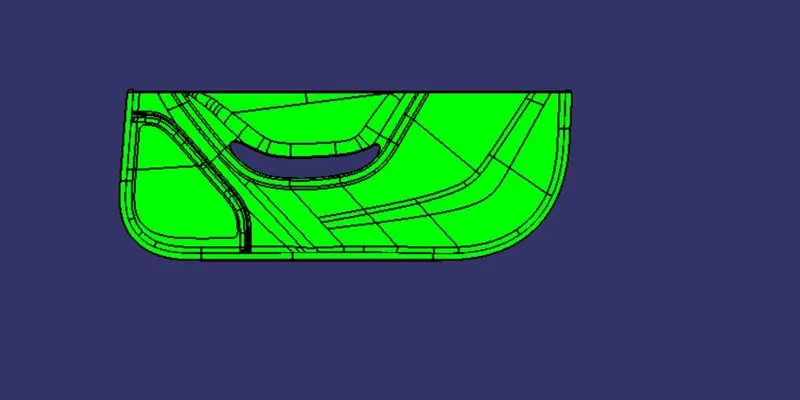

DRAFT ANALYSIS WITH FEATURES

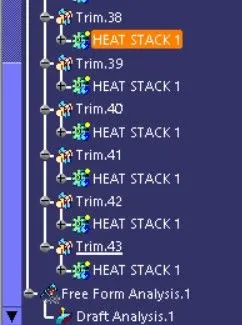

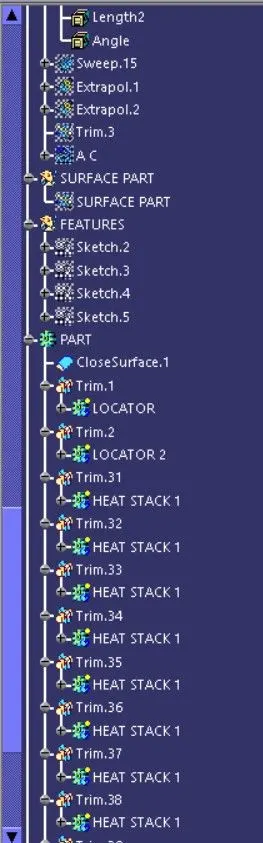

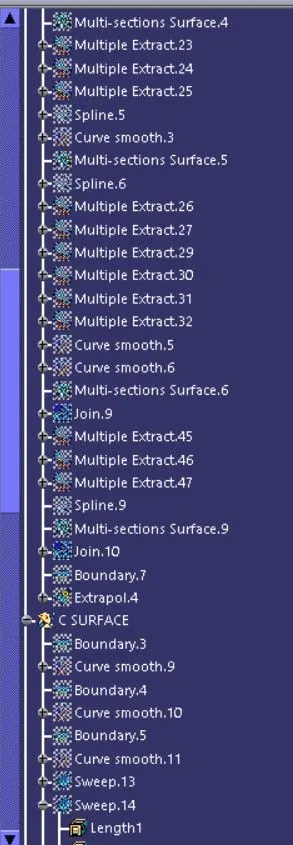

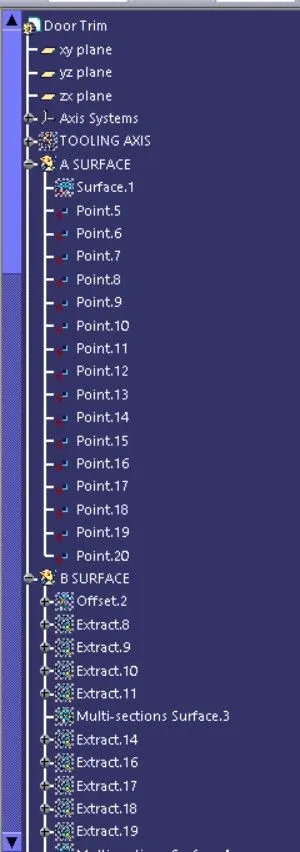

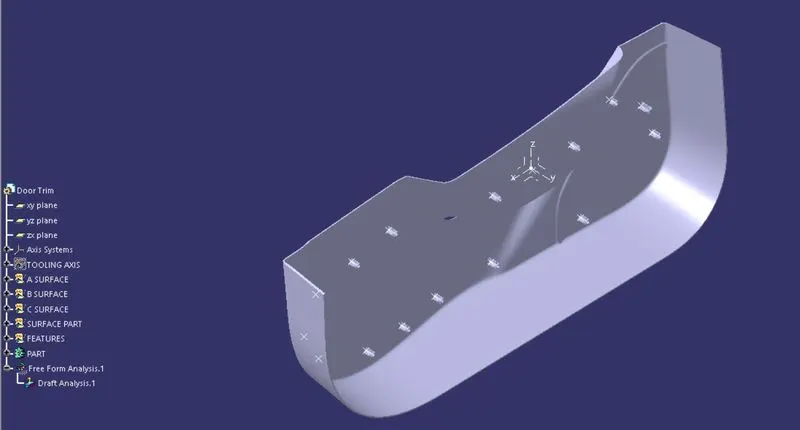

FEATURE TREE

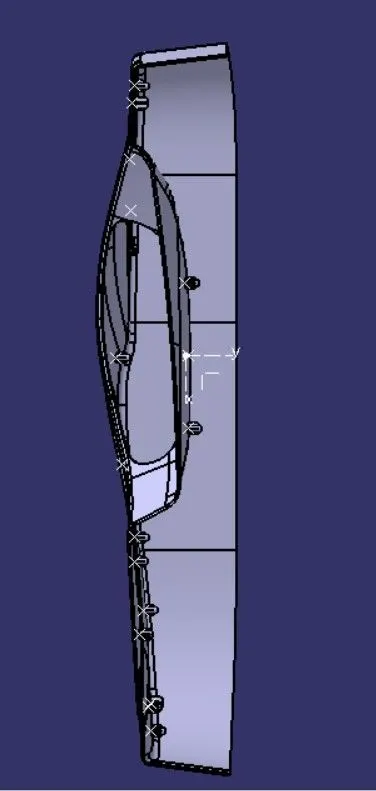

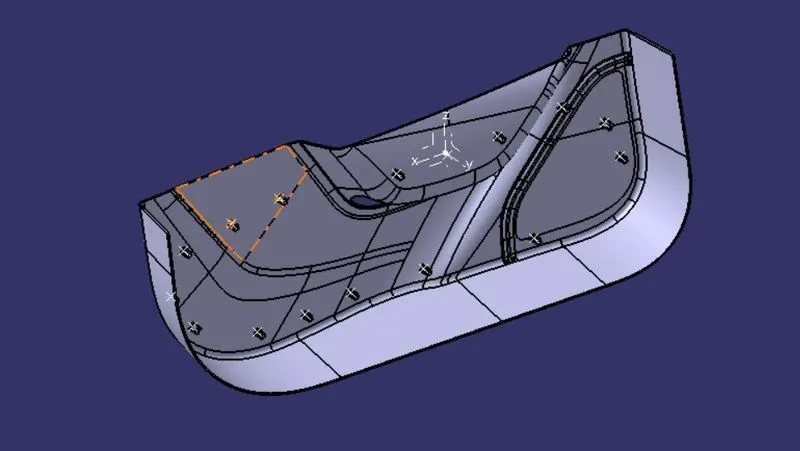

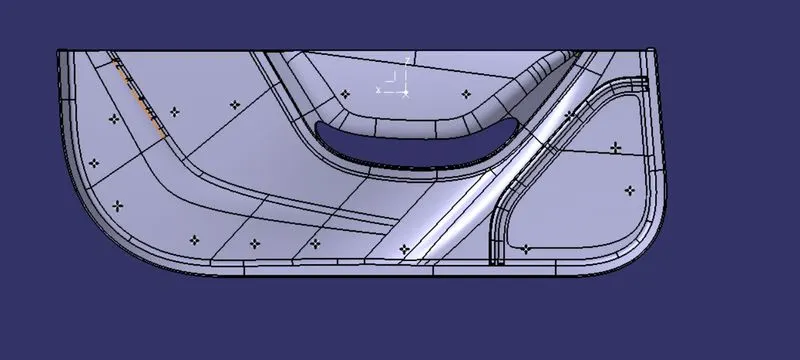

VIEWS OF MODELS
