Week 8 - Challenge 1 - Base Bracket Design

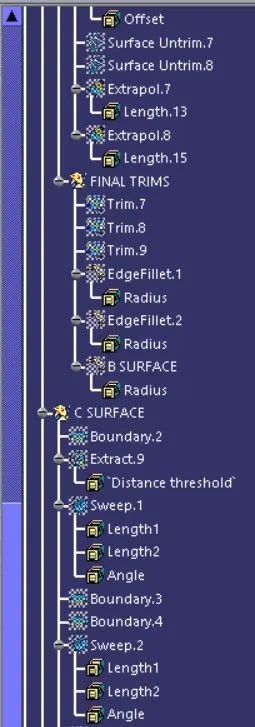

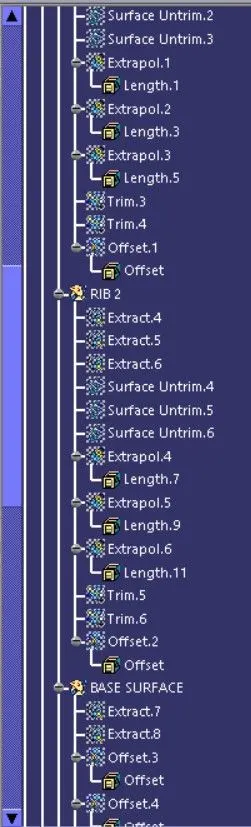

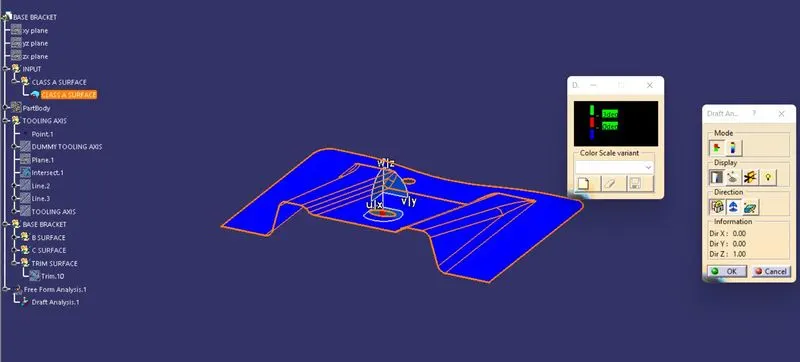

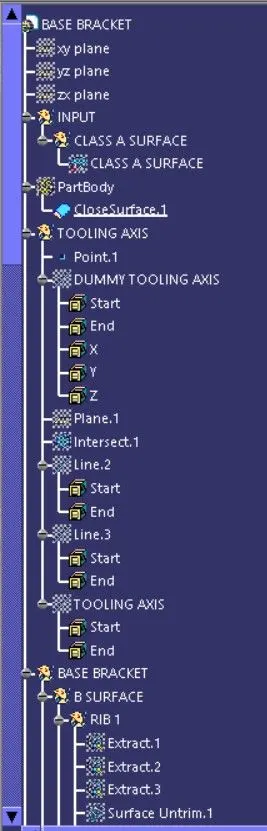

FOR CREATING TOOLING AXIS

• FIRST WE SHOULD CONSIDER THE DUMMY TOOL AXIS ALONG THE TOOL OPEN AND CLOSE DIRECTION.
• THEN WE FIND THE ALL SURFACE THAT ARE NOT PARALLEL ALONG THE AXIS WE CREATED BECAUSE PARALLEL FACE CREATE NO PROBLEM WHEN GIVEN DRAFT ANGLE
• FOR THE NON PARALLEL AXIS , WE SHOULD CREATE THE INSECTING LINE ALONG ALL THE X,Y,Z DIRECTION.

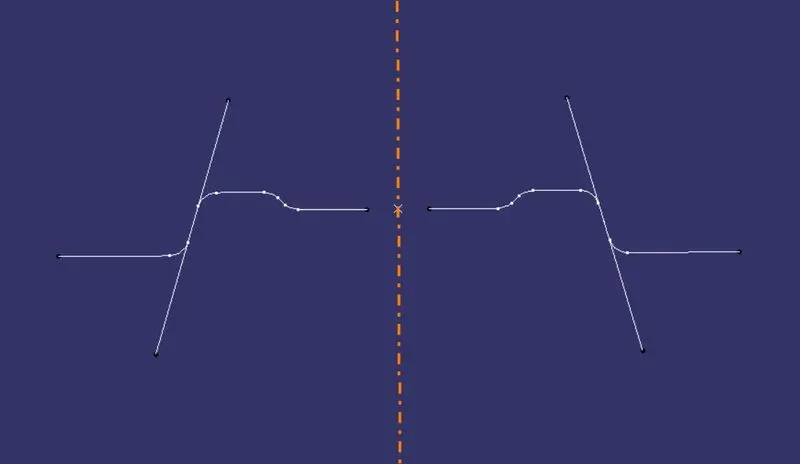

• THEN USING THE BISECTING LINE METHOD SHOULD FIND THE TOOLING AXIS ALONG THE DUMMY AXIS DIRECTION

• EX., IF THE SIDE OF NON PARALLEL SURFACE IS AT SAME ANGLE SUCH AS 5 DEGREE THEN THE BISECTING TOOLING AXIS IS PERPENDICULAR,BUT IF THEY ARE DIFFERENT ANGLE SUCH AS 5 AND 10 DEGREE , IT WILL CREATE ANGLED TOOLING AXIS.

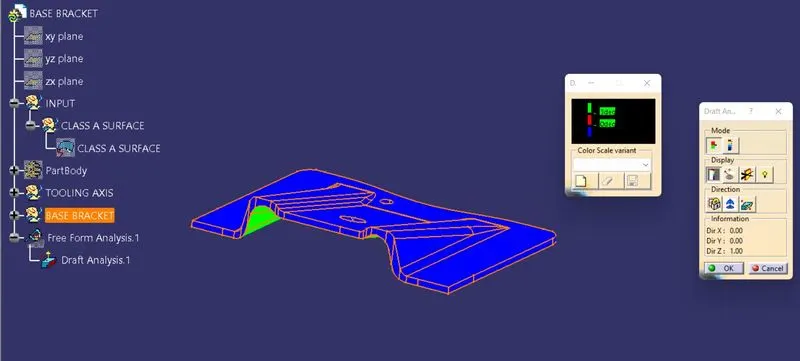

FOR DRAFT ANALYSIS

• FIRST THE NOMINAL DRAFT ANGLE IS 3 DEGREE

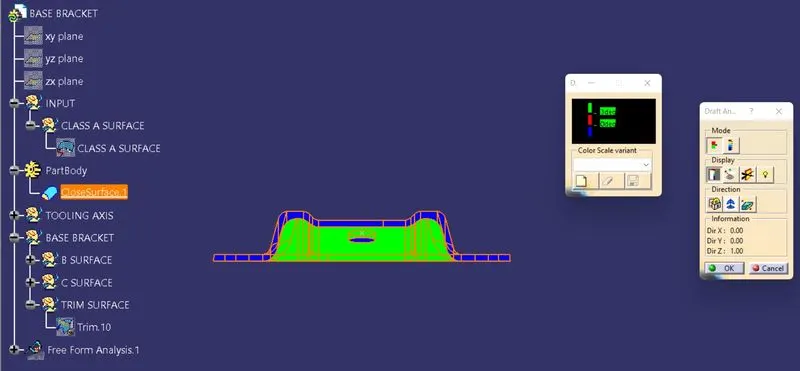

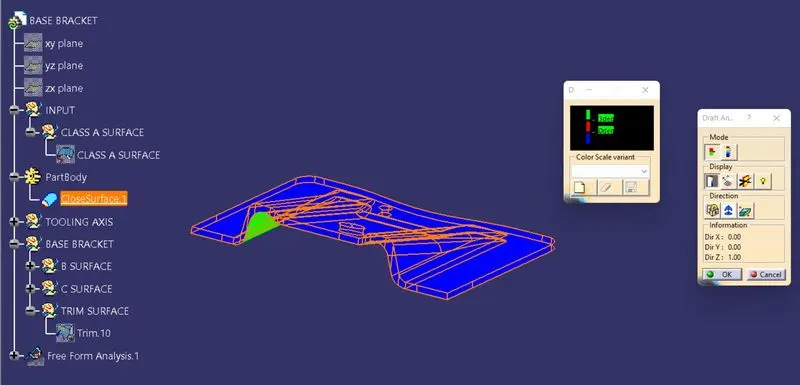

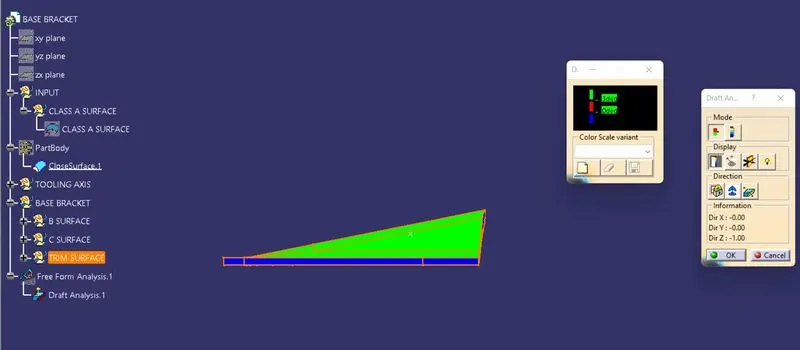

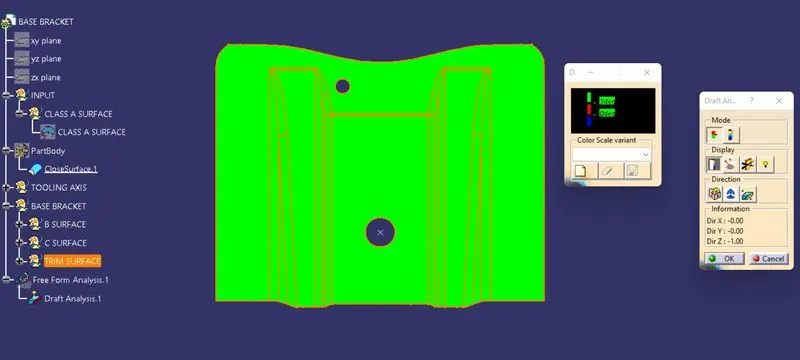

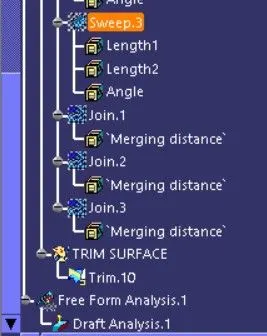

• THE DRAFT ANALYSIS IS DONE TO CHECK WHETHER THE SURFACE ALONG THE TOOLING AXIS ARE CORRECT DRAFTING ANGLE

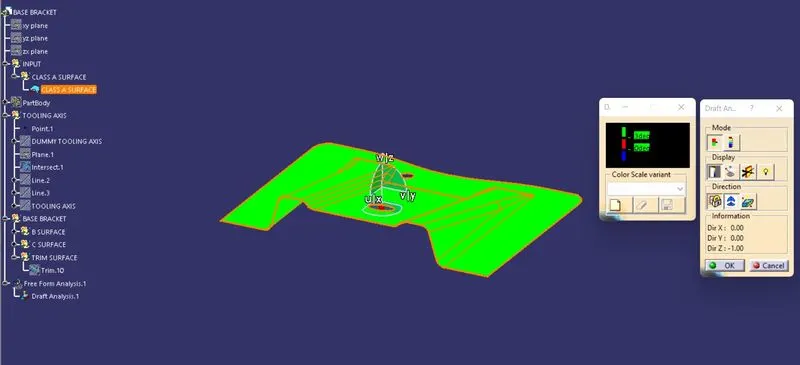

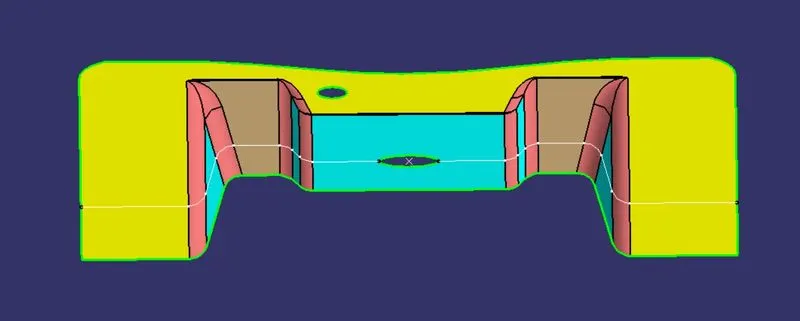

• IT CAN CHECK WITH COLOR VARIENT SCALE, LIKE GREEN AND BLUE COLOR INDICATION.
• IT CAN ALSO SPECIFICALLY CHECKED ON THE SURFACE WE WANT BY RUNNING POINT METHOD WHICH IS AVAILABLE.
