Week 9 - Project 1 - Door Trim Lower with Engineering Features

OOmkar Bavadekar17 Aug 2022

Door trim lower with engineering feature (locator and heat stakes)

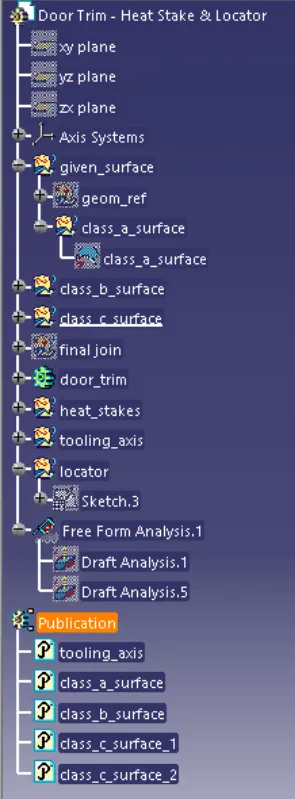

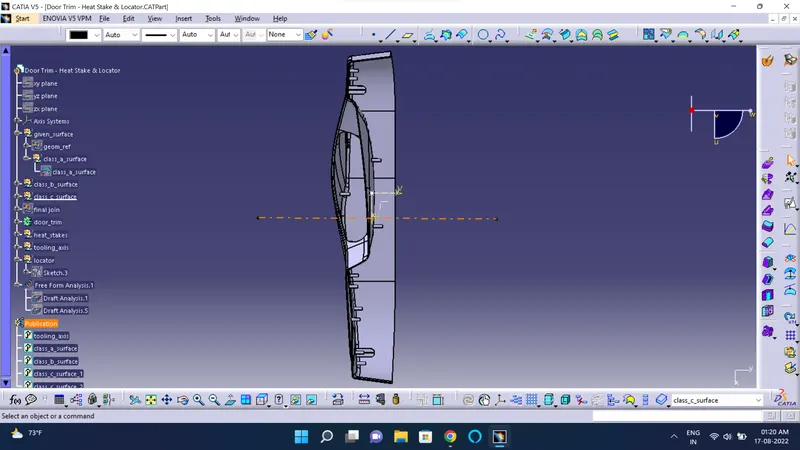

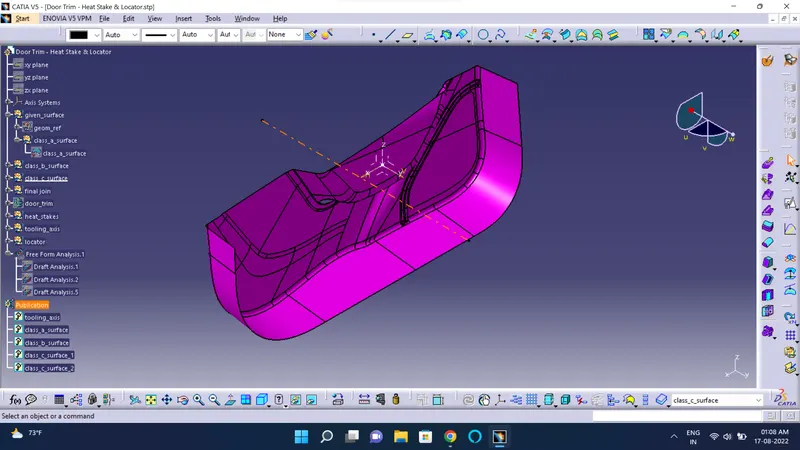

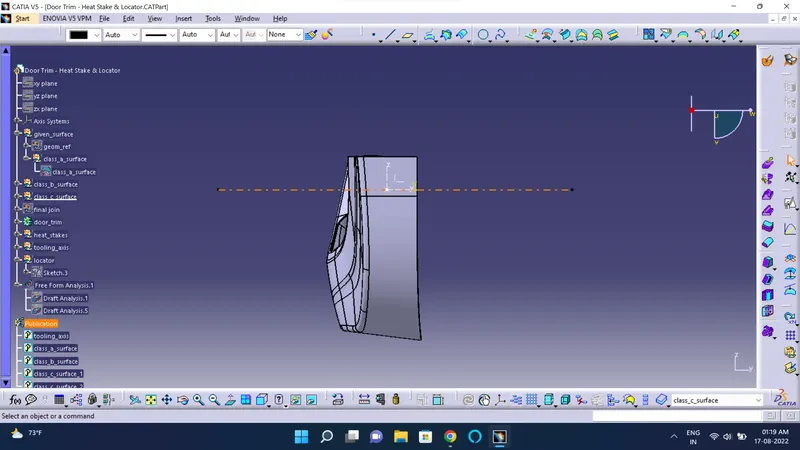

Tooling axis:-

Telling access or tooling direction is the main consideration for plastic part and more parts because it is defined moment of mold part and the possibility of the plastic part to come out from the mold part core and cavity in molding machine arrangement is the one to open the mold along the direction which is known as telling direction the mold is the build from two separate half over and cavity and trolling direction basically defines the direction of mold pull apart tolling direction and is known as primary direction.

Draft analysis:-

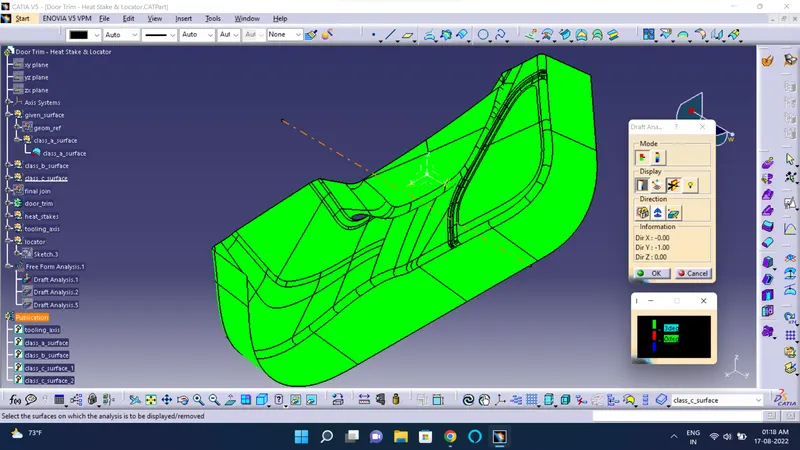

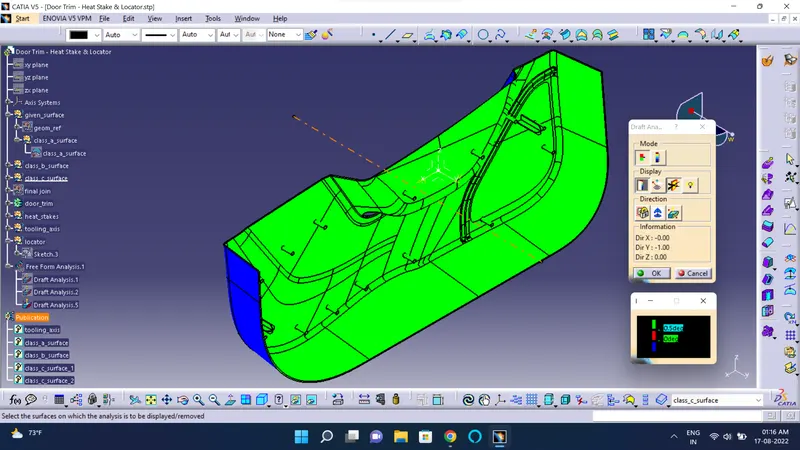

The draft and analysis allow the user to easily analyze apart for proper draft angle a draft angle describes the amount of paper for molded Our cast parts perpendicular to the parting line dropped analysis is applicable for 3-D parts models to create a draft analysis for any 3-D part file the user needs to select parts surface and select the poll direction you can change the pulling direction.

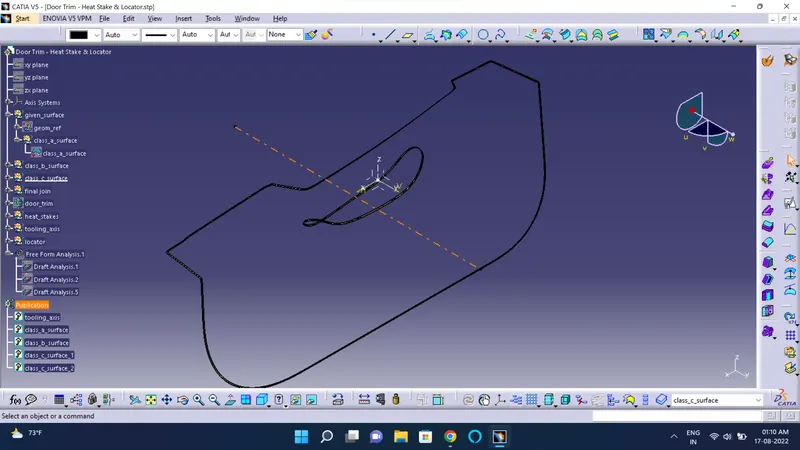

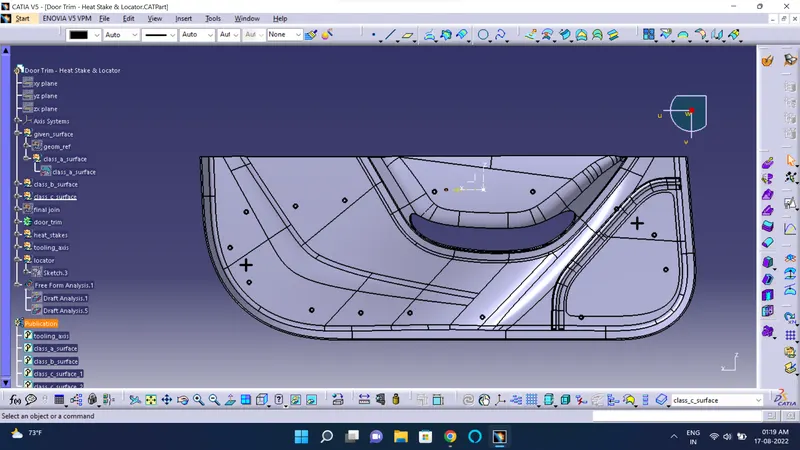

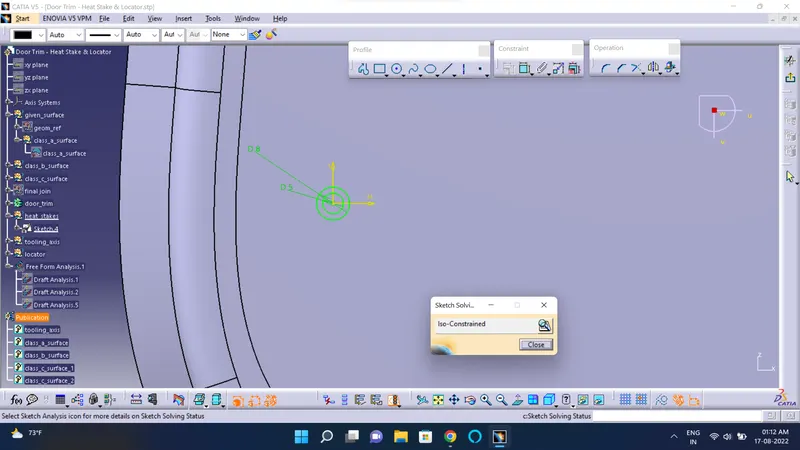

Iso-constrained sketches

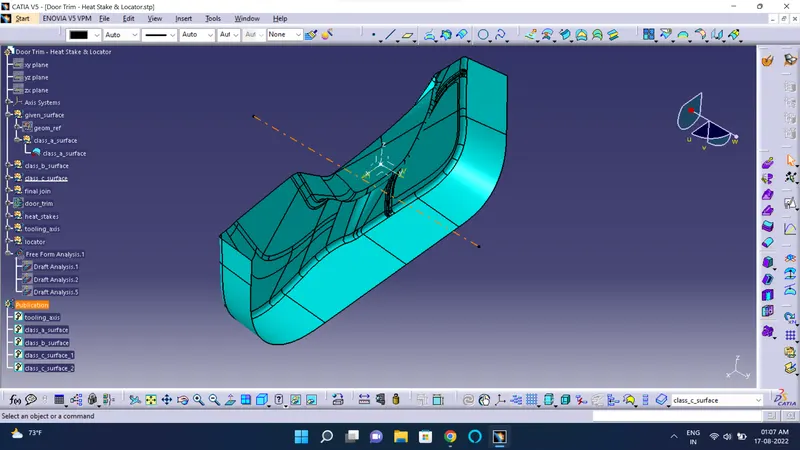

Class A surface

Class B surface

Class C surface

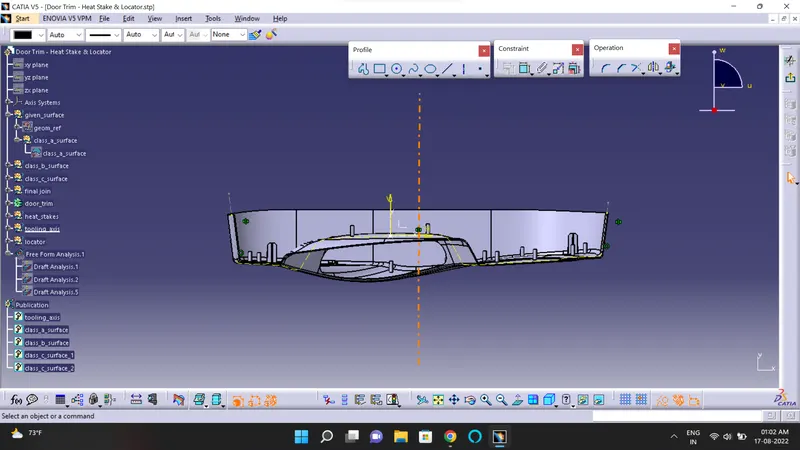

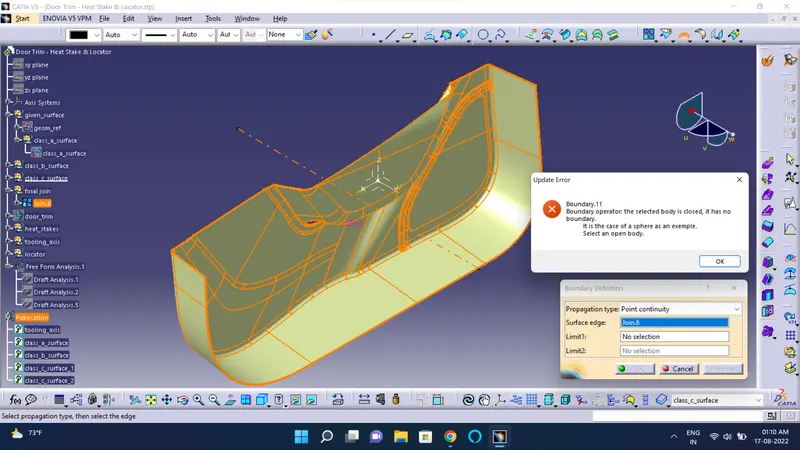

Final joined surfaces

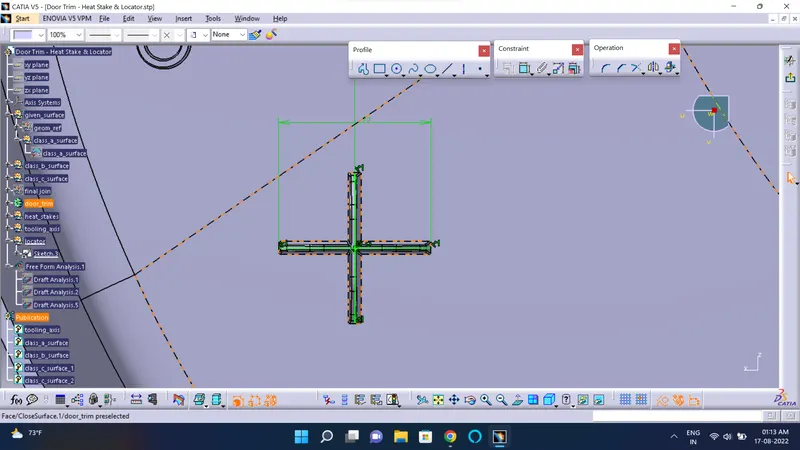

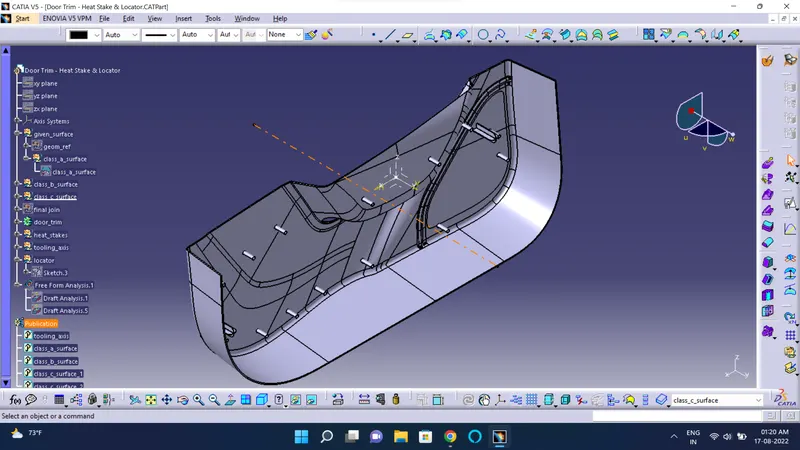

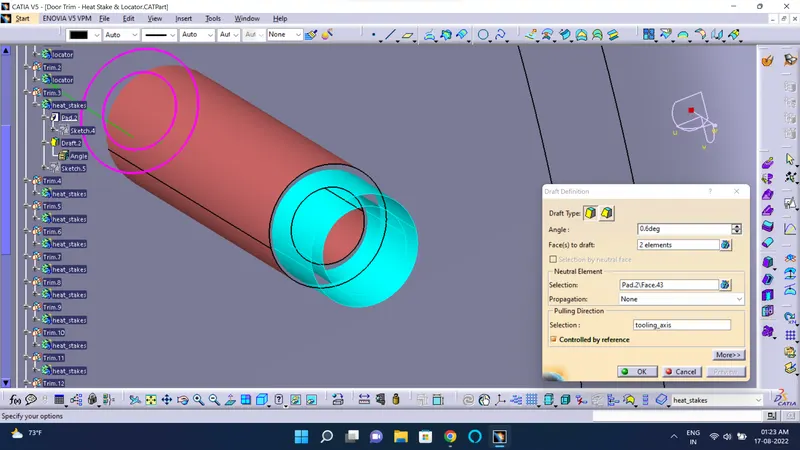

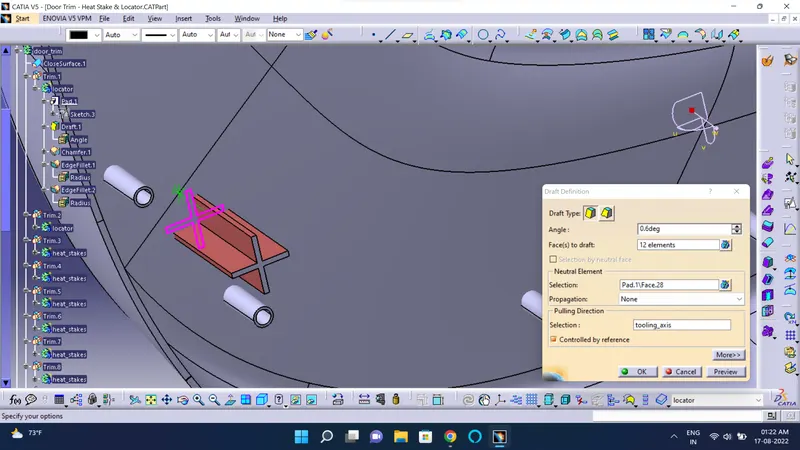

Draft on locator and Heat stakes-

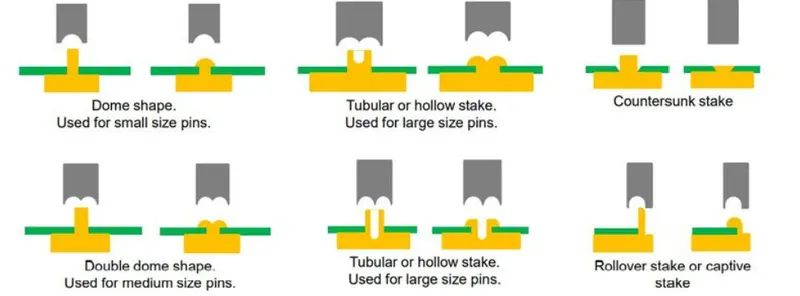

Heat staking is joining technology to join two or more parts together of plastic where at least one is made of plastic the process is used to melt and form the plastic material using it and force at a set process time.
