Week 9 - Project 1 - Door Trim Lower with Engineering Features

Aim:

ToCreate the Door Trim Lower Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model

Body of content:

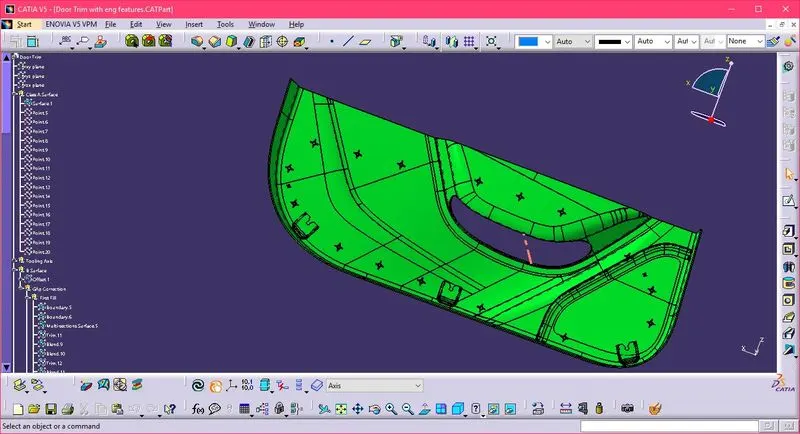

• From the Given Class A surface, B Surface has been created by offset command
• by doing this there were many missing elements in CLASS B surface

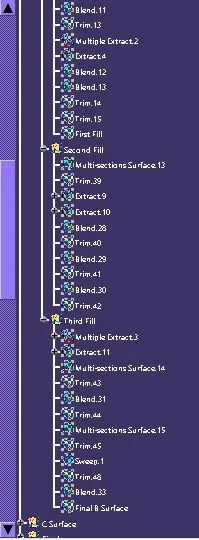

• sorted out each and every missing elements in the Class B Surface with help of various commands like blend, multi surface, offset, join(remove the surface), trim, offset and more
• Once the surface is finished with the outer boundary
• After completing the b surface the CLass C Surface is created from the Class A surface by sweep command
• as we cannot sweep the whole boundary the sweep is used to tangenct continuvity
• and with the join command join all the sweep into one Class C surface
• Once the Class C surface is formed with no internal boundary
• trim class C and Class B surface together
• Once the trim is created join the Class A Surface with trim
• Check whether there is any boundary in it to confirm the closed body

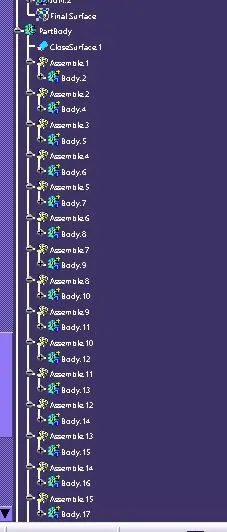

• once confirmed use close surface to create the partbody

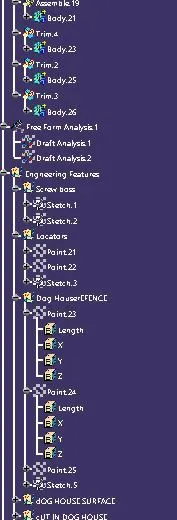

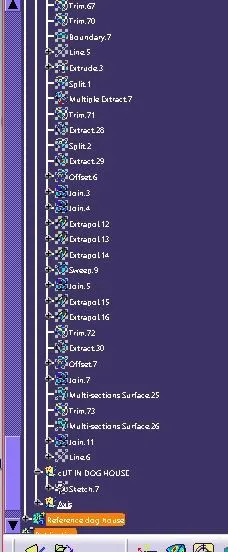

• For Engineering Features such as dog house, screw boss, locators etc, create a sketch on the surface of the body
• pad the sketch with the draft of 1.5 deg and the create the wall of the features
• use translate Command to copy and move the fetures to various positions
• for some features make the surface and then convert into part using the thick command
• follow the rules respectively

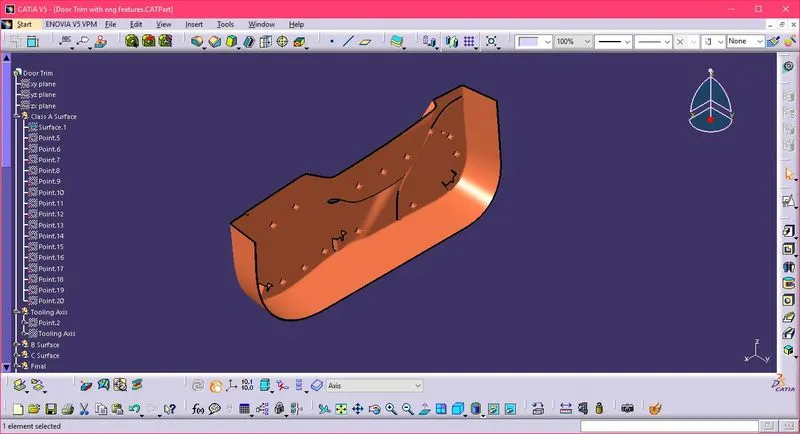

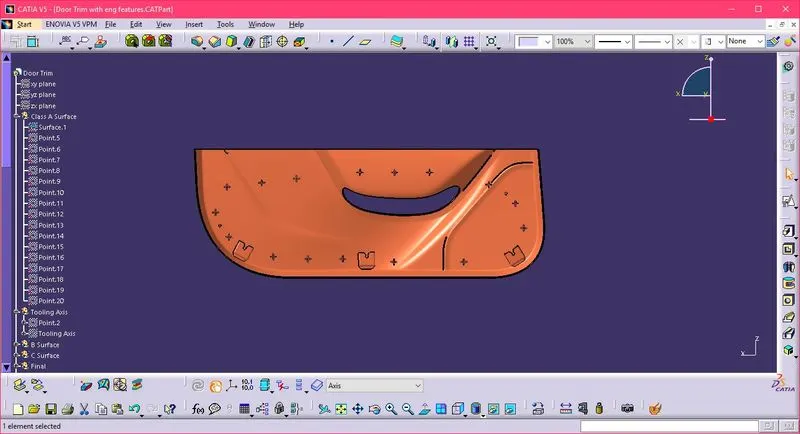

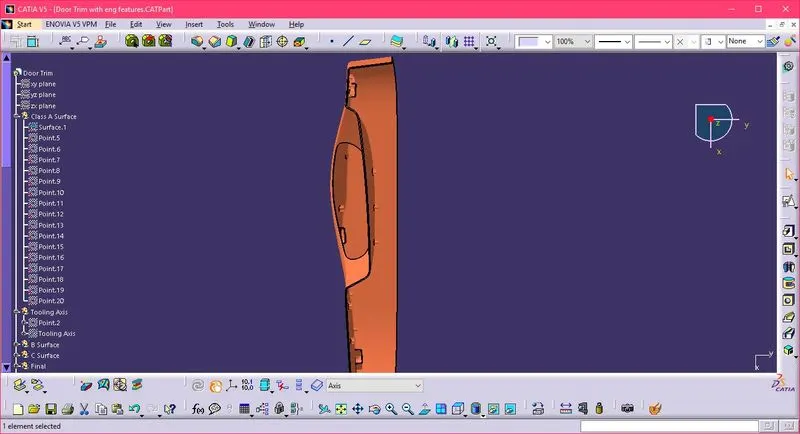

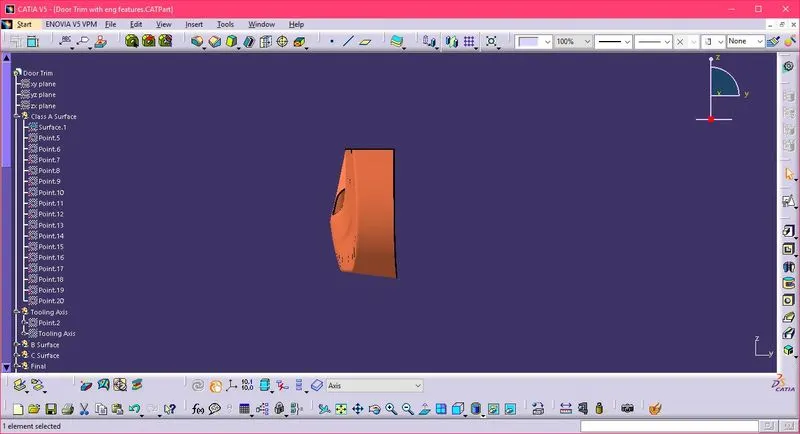

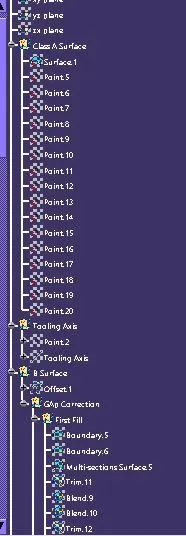

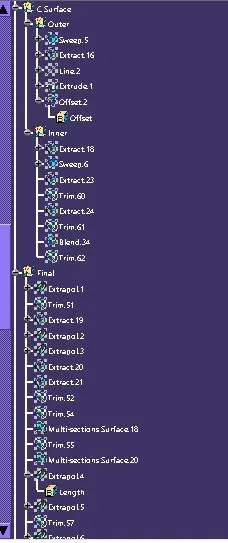

• the screen shots are attached

Results :

• Zip file is attached
• CATPART is attched
• Drive : https://drive.google.com/drive/folders/1SjKWAvCtzVJ3xZzblxeqFqVGhhq1ZqhW?usp=sharing
