Project 1 - Parsing NASA thermodynamic data

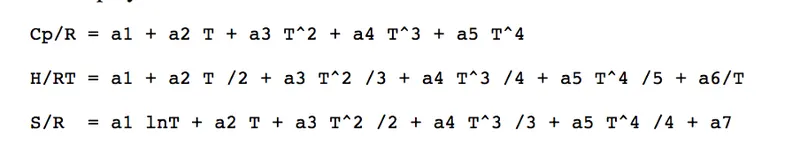

function [cp, h, s] = cp_h_s_func(a1,a2,a3,a4,a5,a6,a7,a8,a9,a10,a11,a12,a13,a14,mid_t3,T,R)
for i = 1:length(T)
    if T(i)>mid_t3
        cp = (a1 + (a2.*T) + (a3.*T.^2)+ (a4.*T.^3) + (a5.*T.^4)).*R;
        h = (a1 + (a2.*T)./2 + (a3.*T.^2)./3 +(a4.*T.^3)./4+(a5.*T.^4)./5+(a6./T)).*T.*R;
        s = ((a1.*log(T))+ (a2.*T) +(a3.*T.^2)./2 + (a4.*T.^3)./3 + (a5.*T.^4)./4 + a7).*R;
    else
        cp = (a8 + (a9.*T) + (a10.*T.^2)+ (a11.*T.^3) + (a12.*T.^4)).*R;
        h = (a8 + (a9.*T)./2 + (a10.*T.^2)./3 +(a11.*T.^3)./4+(a12.*T.^4)./5+(a13./T)).*T.*R;
        s = ((a8.*log(T))+ (a9.*T) +(a10.*T.^2)./2 + (a11.*T.^3)./3 + (a12.*T.^4)./4 + a14).*R;
    end
end
​

• With Help of function the values for Specific heat, Enthalpy, Entropy are been determined
• For the same data plotting is done for Temperature vs Specific heat, Temperature vs Enthalpy, Temperature vs Entropy.
• Create the new folder for each species to save the plotted graph
• Returns back to the parent folder
• Same process is repeated all the species and store their graph in indiduval folder
• for calculating the molecular mass formula is used with the help of if command and fprintf command is used to print the molecular mass
• the progarm is as follows

  close all
  clear all
  clc

  % reading the data file given
  f1 = fopen('THERMO.dat','r');
  fgetl(f1);

  %Reading the header file
  h = fgetl(f1);                  %Read the header line
  h = strsplit(h,' ');
  global_low = str2num(h{2});     %defining the global temperature
  global_mid = str2num(h{3});
  global_high = str2num(h{4});

  %Skipping next 3 Lines
  for i = 1:3
      fgetl(f1);
  end

  % Reading Every line and extarct data using for loop
  for i = 1:53

      first = fgetl(f1);                      %Read the indiduval data
      species_head = strsplit(first,' ');
      molecule = (species_head{1});           %Read the name of the molecules
      low_t1 = str2num(species_head{end-3});  %Reading local Temperature
      high_t2 = str2num(species_head{end-2});
      mid_t3 = str2num(species_head{end-1});

      %reading the co-efficient of molecule line by line
      coeff_l1 = fgetl(f1);
      a_l1 = strfind(coeff_l1,'E');
      a1 = str2double (coeff_l1(1:a_l1(1)+3));
      a2 = str2double (coeff_l1(a_l1(1)+4:a_l1(2)+3));
      a3 = str2double (coeff_l1(a_l1(2)+4:a_l1(3)+3));
      a4 = str2double (coeff_l1(a_l1(3)+4:a_l1(4)+3));
      a5 = str2double (coeff_l1(a_l1(4)+4:a_l1(5)+3));

      coeff_l2 = fgetl(f1);
      a_l2 = strfind(coeff_l2,'E');
      a6 = str2num (coeff_l2(1:a_l2(1)+3));
      a7 = str2num (coeff_l2(a_l2(1)+4:a_l2(2)+3));
      a8 = str2num (coeff_l2(a_l2(2)+4:a_l2(3)+3));
      a9 = str2num (coeff_l2(a_l2(3)+4:a_l2(4)+3));
      a10 = str2num (coeff_l2(a_l2(4)+4:a_l2(5)+3));

      coeff_l3 = fgetl(f1);
      a_l3 = strfind(coeff_l3,'E');
      a11 = str2num (coeff_l3(1:a_l3(1)+3));
      a12 = str2num (coeff_l2(a_l3(1)+4:a_l3(2)+3));
      a13= str2num (coeff_l2(a_l3(2)+4:a_l3(3)+3));
      a14= str2num (coeff_l2(a_l3(3)+4:a_l3(4)+3));

      % Reading Local temperature (low and high)
      T = linspace(low_t1,high_t2,100);
      % Stating Gas Constant
      R = 8.314;
      %Calling the function for Specific Heat,Entropy & Enthalpy
      [cp h s] = cp_h_s_func(a1,a2,a3,a4,a5,a6,a7,a8,a9,a10,a11,a12,a13,a14,mid_t3,T,R);

   %Plotting Graph between temperature vs Specific heat, Enthalpy, & Entropy
   %for Each Molecules
      figure(1)
      plot(T,cp,'linewidth',3,'color','r')
      grid on
      title ('T vs Sp of',molecule)
      xlabel('temperature')
      ylabel('Specificheat')

      figure(2)
      plot(T,h,'linewidth',3,'Color','b')
      grid on
      title ('T vs H of',molecule)
      xlabel('temperature')
      ylabel('Enthalpy')

      figure(3)
      plot(T,s,'linewidth',3,'Color','g')
      grid on
      title ('T vs S of',molecule)
      xlabel('temperature')
      ylabel('Entropy')

      %Creating a new folder for saving the graph
      mkdir(['/Users/maheshwaransenthil/Desktop/Matlab Study/file parsing project/',molecule]);
      %Directed to the created folder
      save = (['/Users/maheshwaransenthil/Desktop/Matlab Study/file parsing project/',molecule]);
      cd(save)

      %Save the graph to its respective folder
      saveas(1,'Specific Heat.jpg')
      saveas(2,'Enthalpy.jpg')
      saveas(3,'Entropy.jpg')

      %Directing back to the main folder
      cd('/Users/maheshwaransenthil/Desktop/Matlab Study')

  % For Calculating the Molecular mass of each Molecule
      elements = ['H','C','O','N','A','S'];           %Stating the atoms in the given Molecule
      atomic_mass = [1.00784 12.011 15.999 14.0067 39.948 32.065];    %Stating the atomic mass for the same
      molecular_mass = 0;                             %Intial input for molecular mass
      for i = 1:length(molecule)                      %Using For loop calculating the Molecular mass
          for j = 1:length(elements)
              if strcmp(molecule(i),elements(j))      %comparing the elements with molecule
                  molecular_mass = molecular_mass+atomic_mass(j);
                  x=j;
              end
          end

              n = str2num(molecule(i));
              if n>1                              %if loop is used to calulate homonuclear molecules
                  molecular_mass = molecular_mass+atomic_mass(x)*(n-1);
              end
      end

     fprintf('The Molecular Weight of %s = %f',molecule,molecular_mass); % Printing the results
     fprintf('\n')
  end
  fclose(f1)



  ​

  RESULTS:

• The molecular weight of each species and display it in the command window and Screenshot is been attached along with this
• Graph is Plotted, Cp, Enthalpy and Entropy for the local temperature range (low temperature : high temperature) specific for each species
• The plots are saved as images with appropriate names and dump in separate folders for each species with suitable name screenshot for the same is attached
• The graph for o2, N2 and Co2 species are attached
