Week 9 - Project 1 - Door Applique Design with Engineering Features

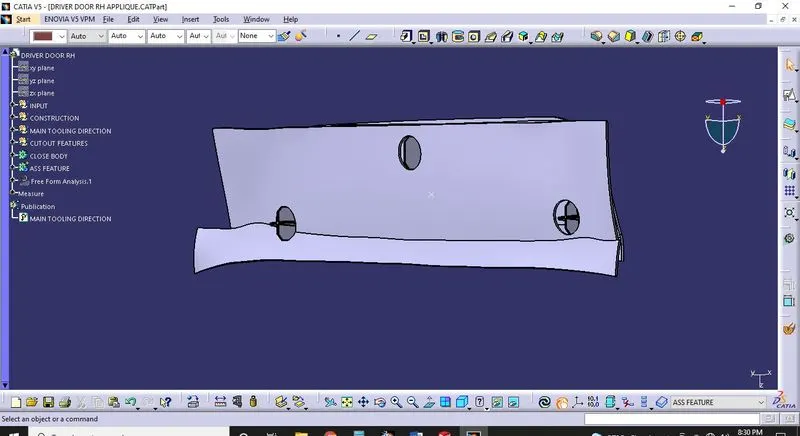

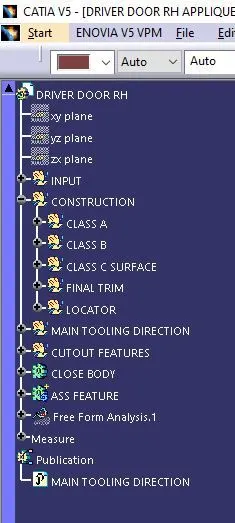

DRIVER DOOR RH APPLIQUE Design
AIM:
To design a DRIVER DOOR RH APPLIQUE DESIGN using given Class A surface.

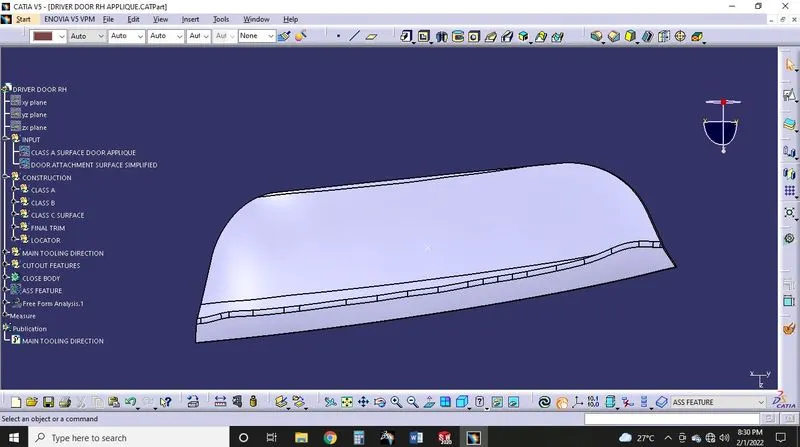

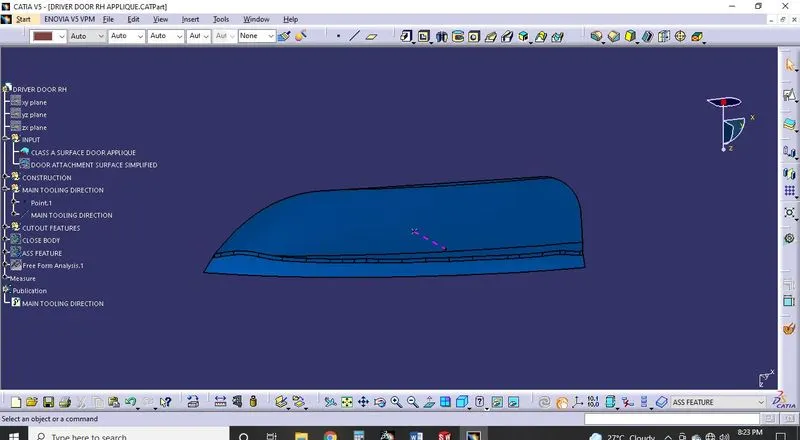

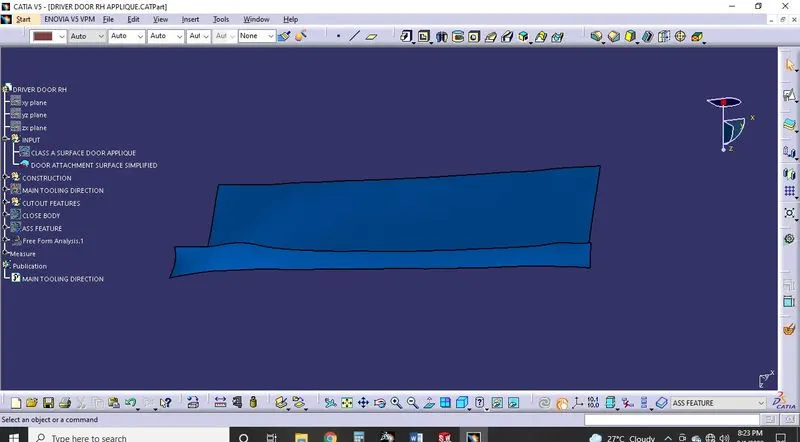

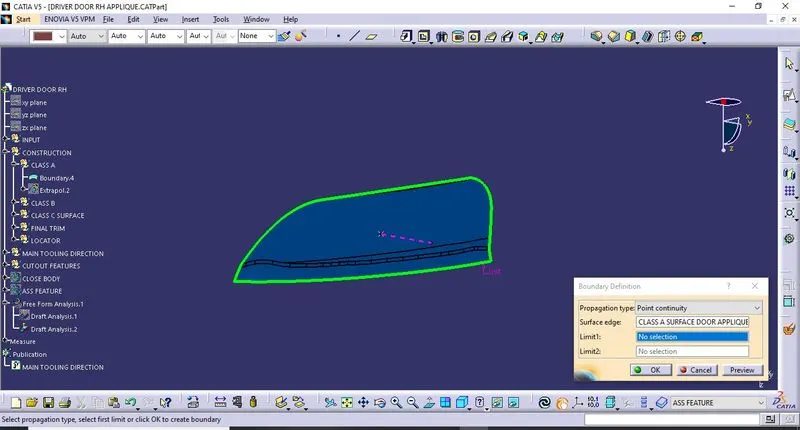

CHECKING QUALITY OF CLASS A SURFACE:
Checking a class a surface using a command of boundarycommand there is any opening patch a surface locally.
FINDING MAIN TOOL DIRECTION:
To find tooling axis I am using method of POINT&DIRECTION method
I. First I am creating point on center of the part using command of measure inertia
II. After creating line.
III. And locked the compass position and creating line (TOOLNG AXIS)
IV. Ref below image green color area are 3deg above
V. In this condition this part not required side core and any mechanism.
VI. All area releasing core & cavity

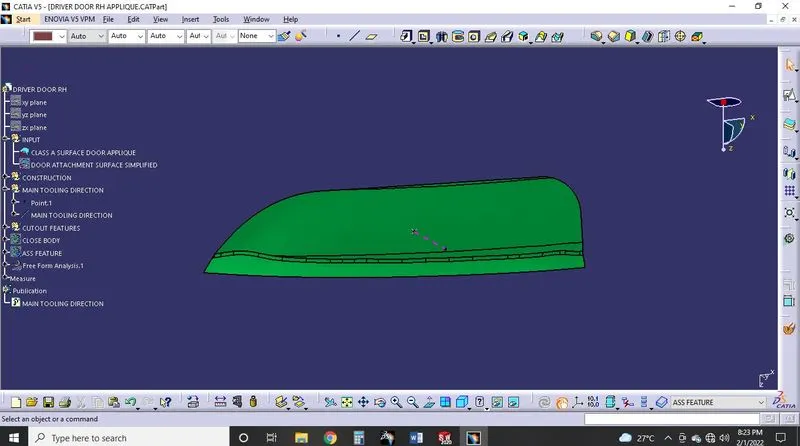

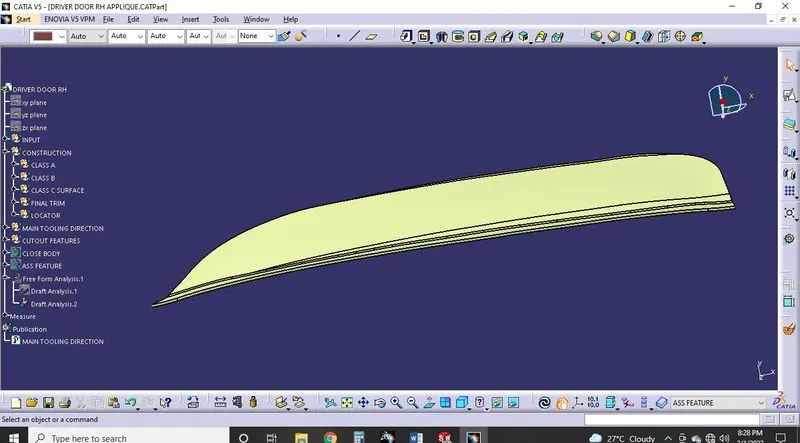

DRAFT ANALYSIS A CLASS A SURFACE:

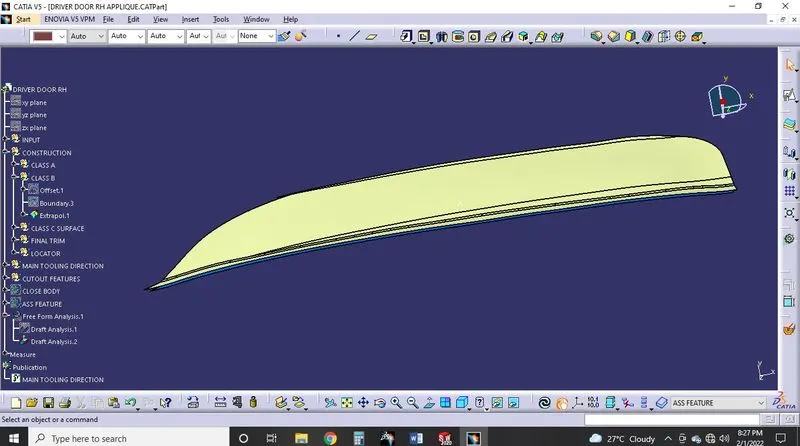

CREATION OF CLASS B SURFACE:
I. Creating a class B surface using command of extract ,multiple extract
II. And untrimmed the surface to each surface
III. Fillet are not consider in this condition

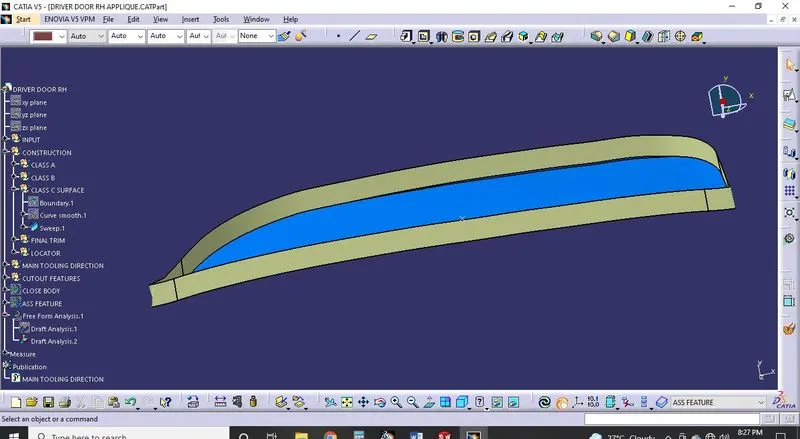

CREATION OF CLASS C SURFACE:
I. Class C surface area creating a command of sweep with direction & sweep with ref surface
multi section surface, fill commands.
MERGE A SURFACE CLASS A,B,C:
II. Merging a class A,B,C surface are merged together to get sold model.

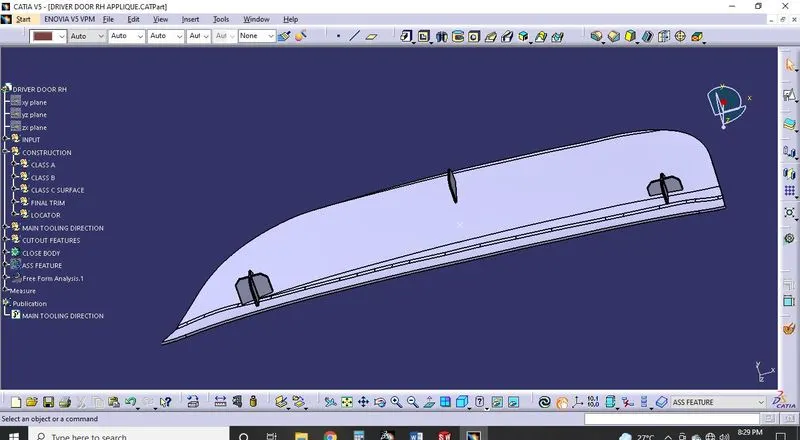

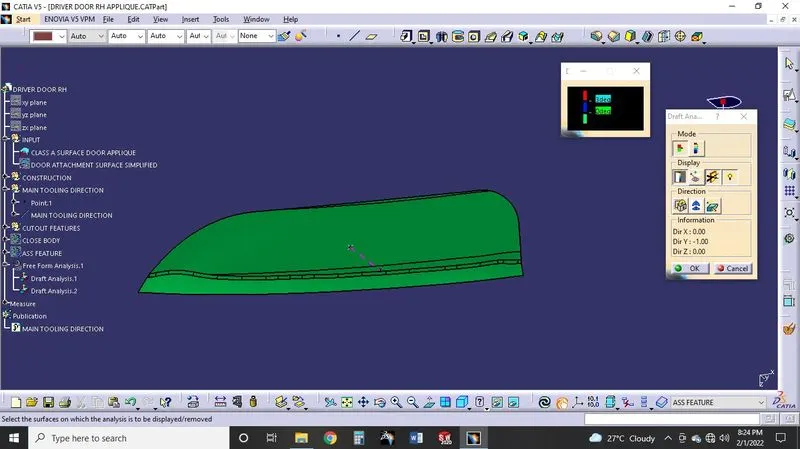

DRAFT ANALYSIS A SOLID MODEL:
Green color highlighted area having 3deg and above.
CONCULSION:
DRIVER DOOR RH APPLIQUE DESIGN completed using CATIA V5
