Week 9 - Project 1 - Door Applique Design with Engineering Features

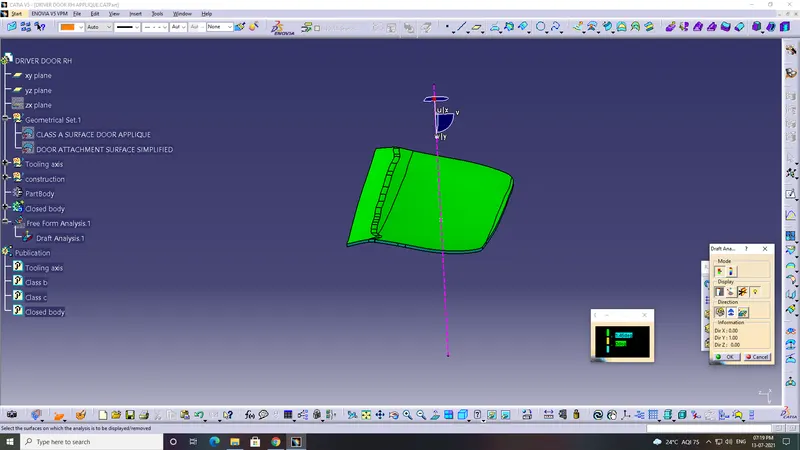

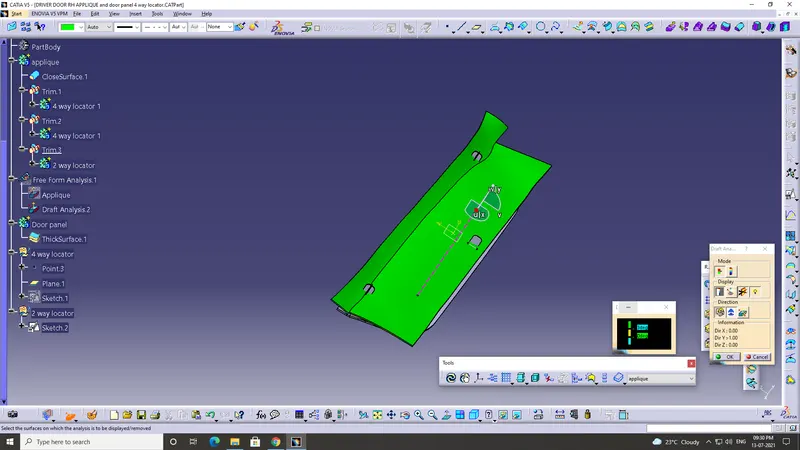

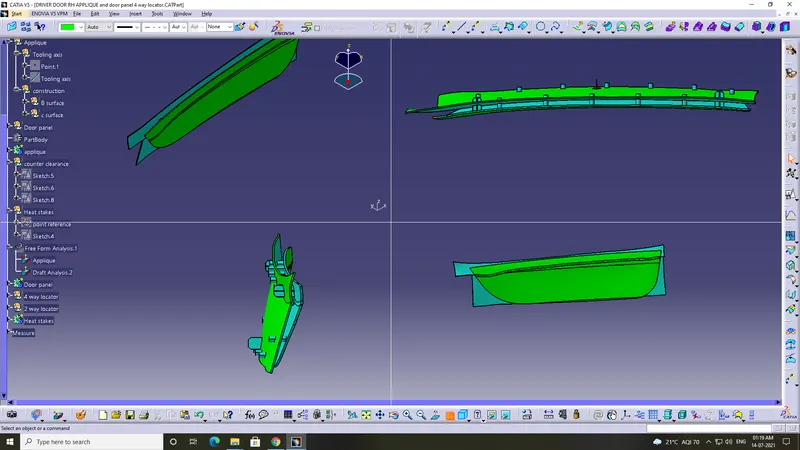

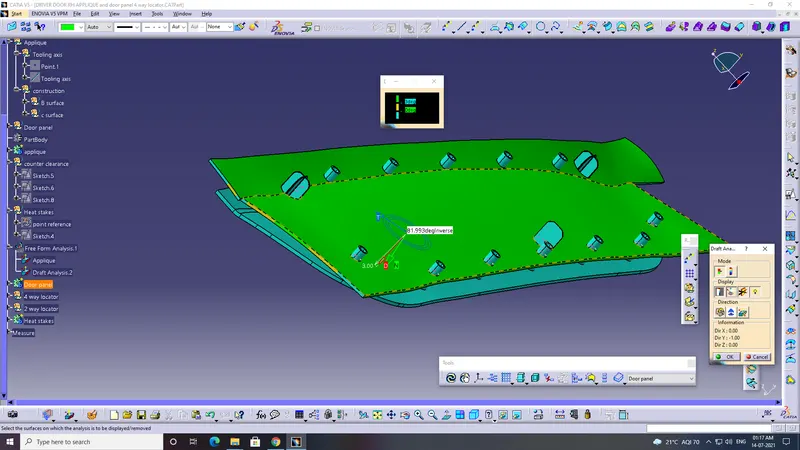

AIM : Create the Base Bracket Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Create the Heat Stakes and the locators considering the design rules mentioned in the video for the door applique.

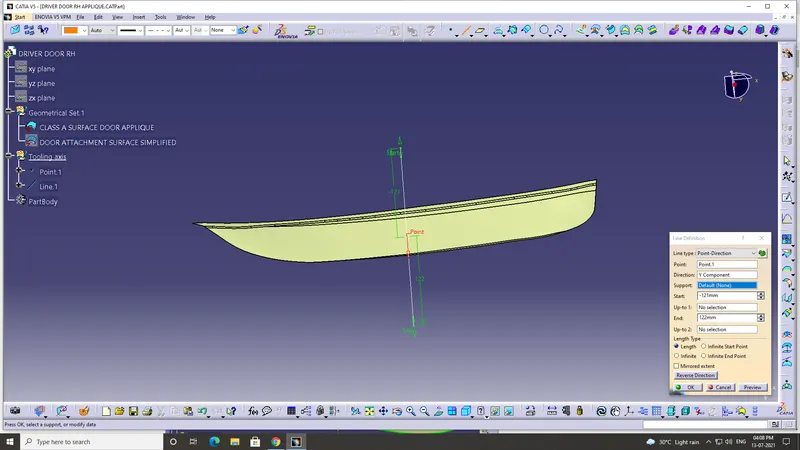

Create a tooling axis along the given class A surface.

Create point in the middle of the component

And draw a perprndicular line in the component.

The outside of the enclosure will be a cavity in the A-side of the mold and the inside will be a core on the B-side.

Gonna work theparting line and the parting surface.

Give boundary and disassambled and give domian 2 only

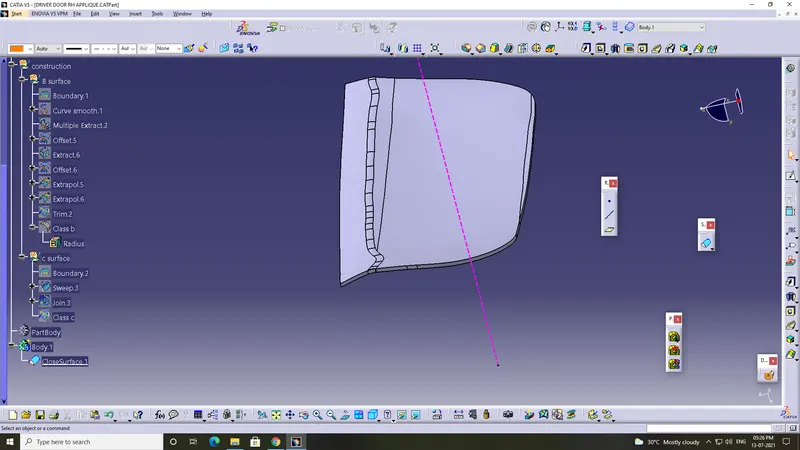

Create a geometric set and name as B SURFACE ------ SIDE WALL SURFACE.

Extract the ALL four side surface without the fillets and give no propagation.

untrim the surface.

Extrapolate 20 mm with point continuity.

trim it.

Hide the extract.

and give the offset value of 2.5mm.

inser the geometric----name as c surface .

in the generative design.

extract the boundary of class A.

AND extrapolation the boundary.2

and extrapolation the class A.

length 15mm.

curvature and tangent

click ok.

unhide the class B surface and joinwith the class C.

Locators :

There are 2 types of locators.

4way and 2 way locators.

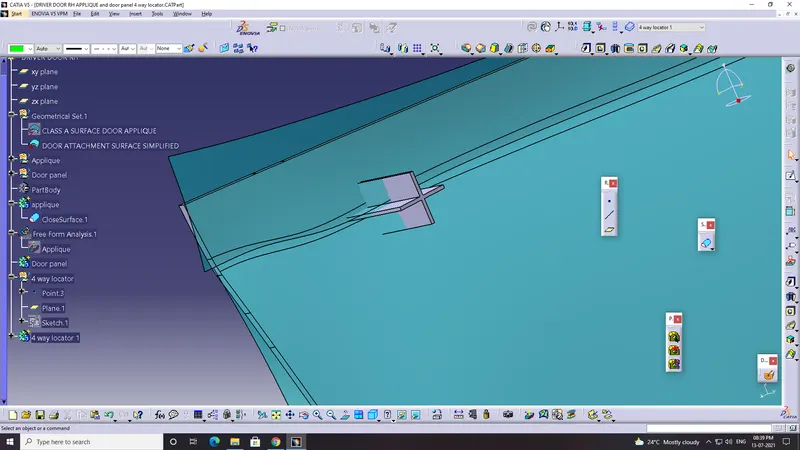

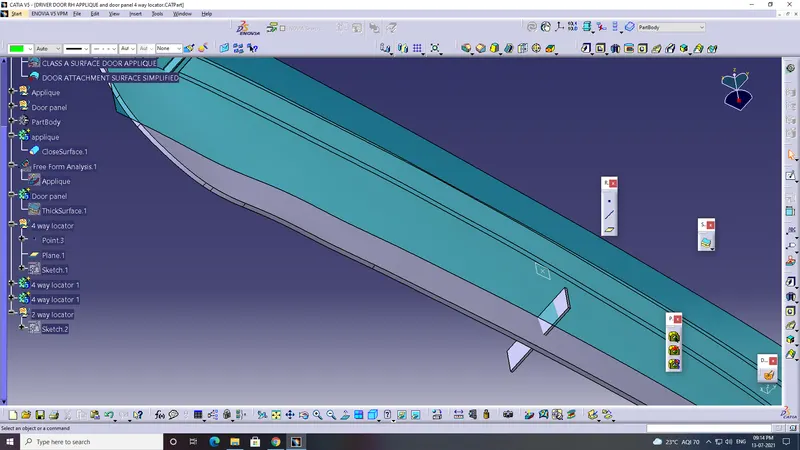

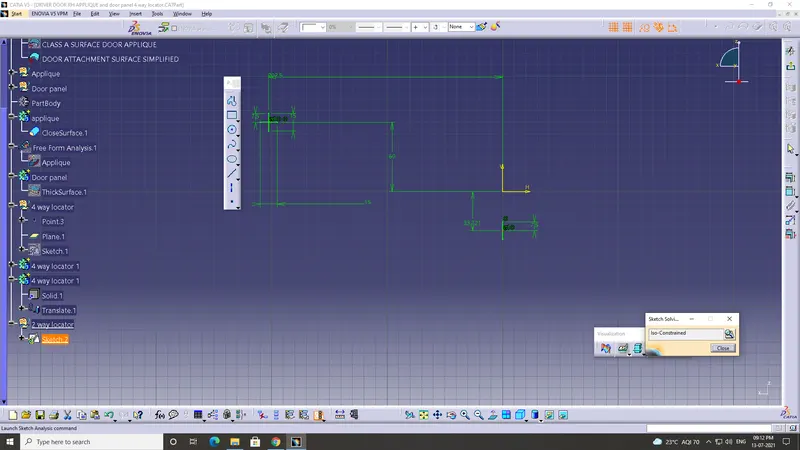

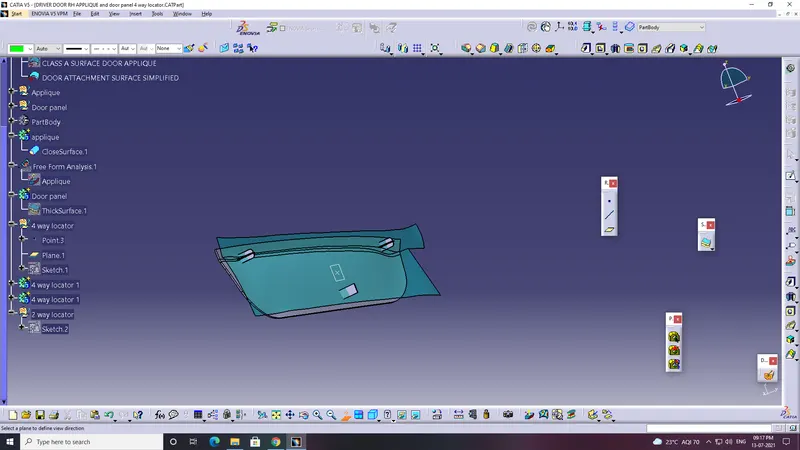

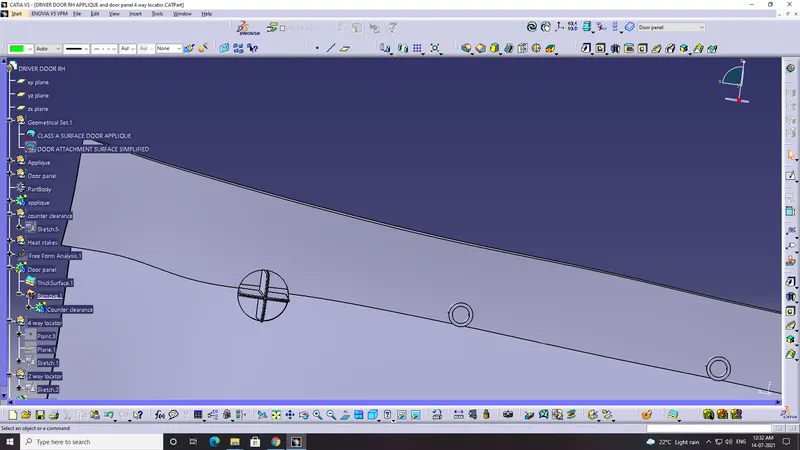

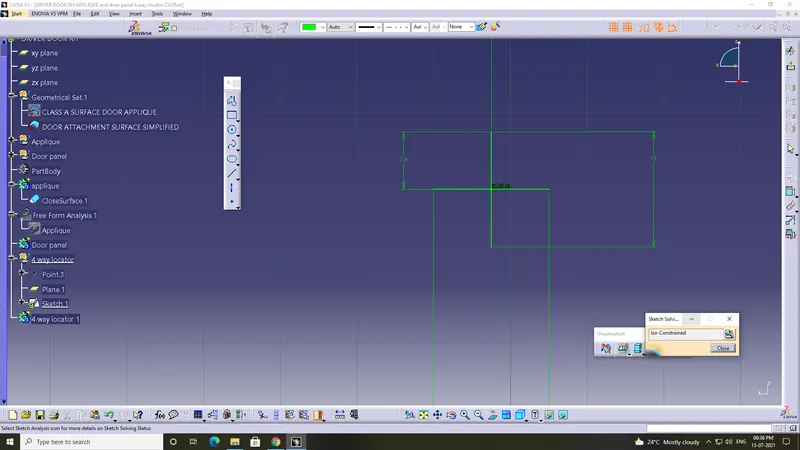

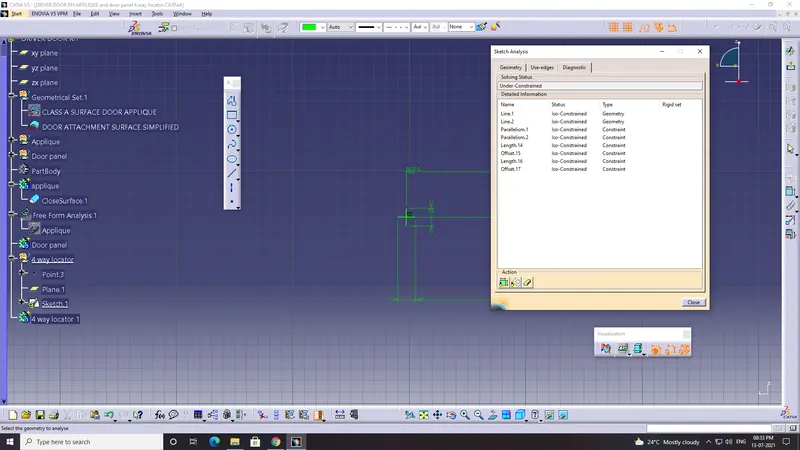

Now gonna start the 4 way locators. For that sketch is involed.

and give pad to the sketch

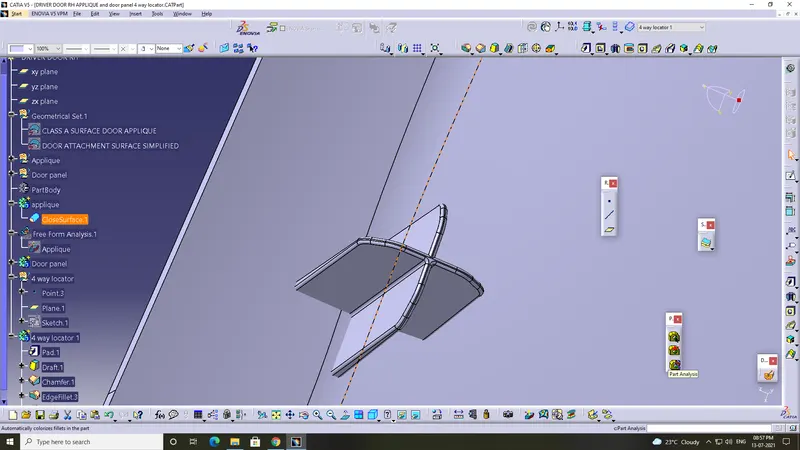

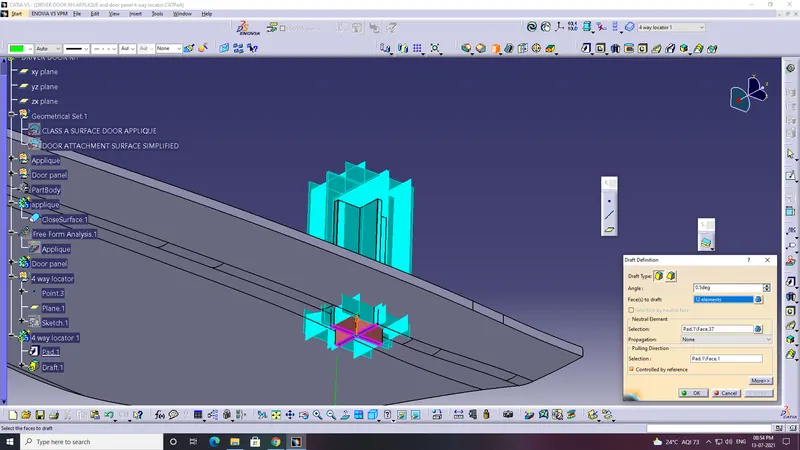

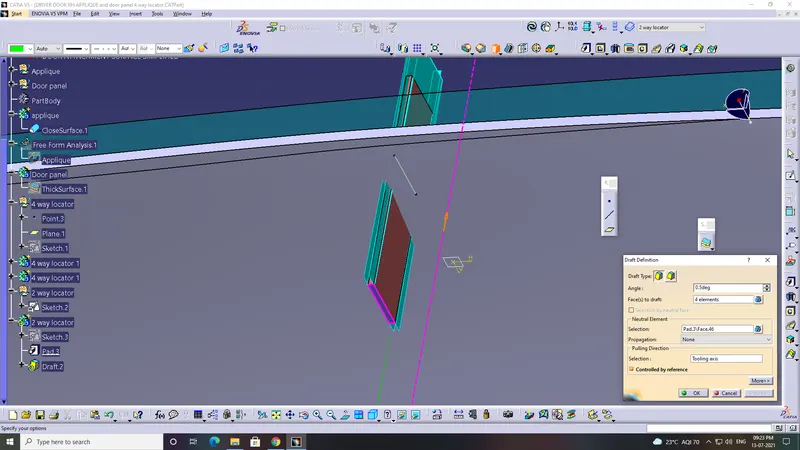

after that give draft with .5 degree to tha pad and give the appropriate chamfer and fillet.

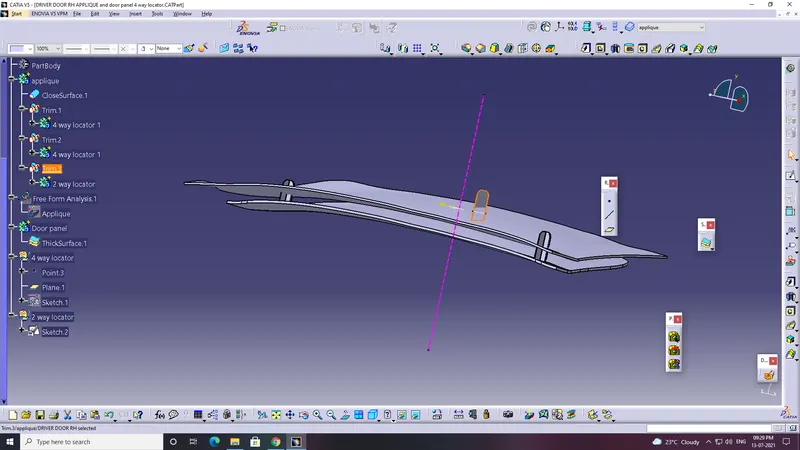

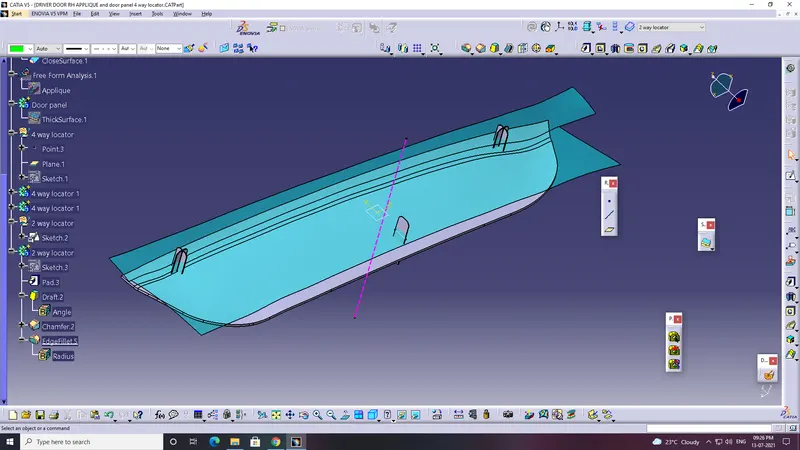

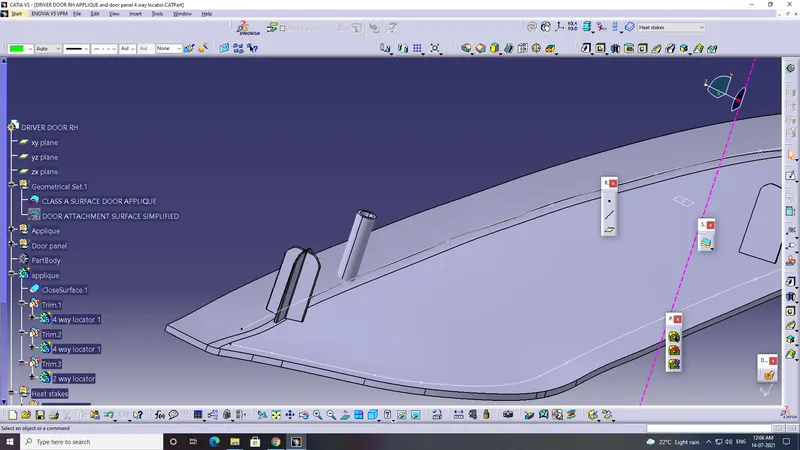

NOW 2 way locators.

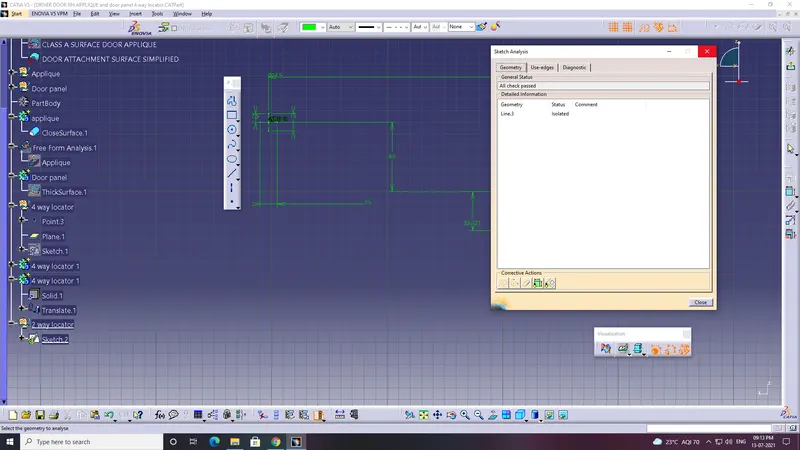

For that sketch is involed.

and give pad to the sketch

after that give draft with .5 degree to tha pad and give the appropriate chamfer and fillet.

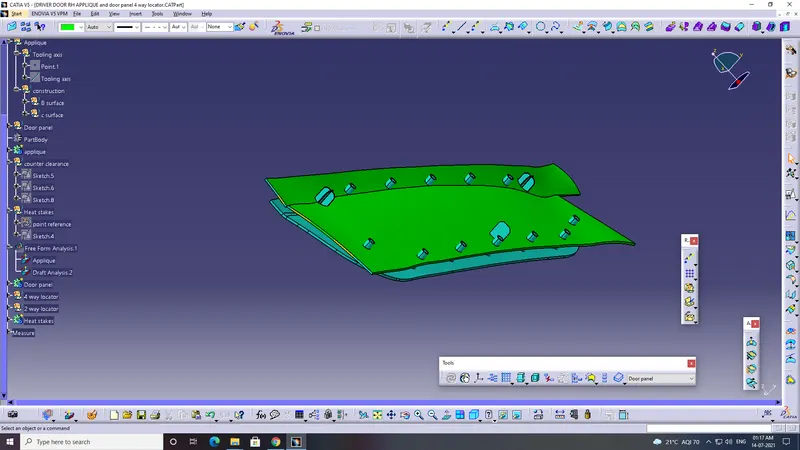

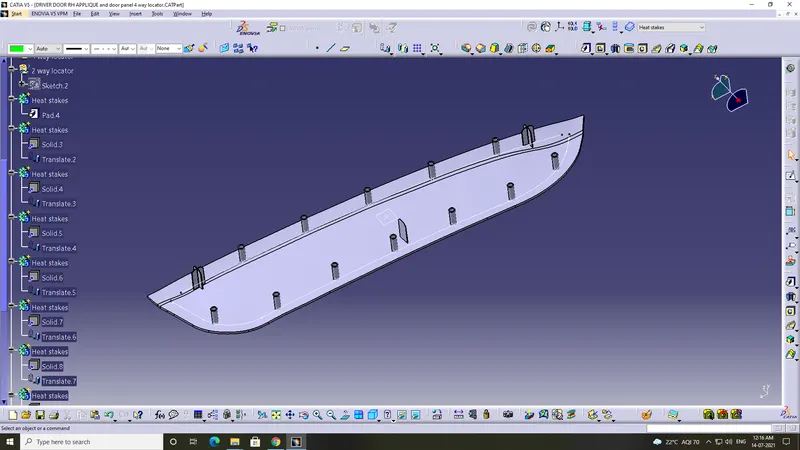

Now heat stakes.

Create a sketch for that.

craeate a new part body and pad it.

Similarly 12 more features has to be created.

Create an offset of an boundary line which is created in C surface around 5mm of the component.

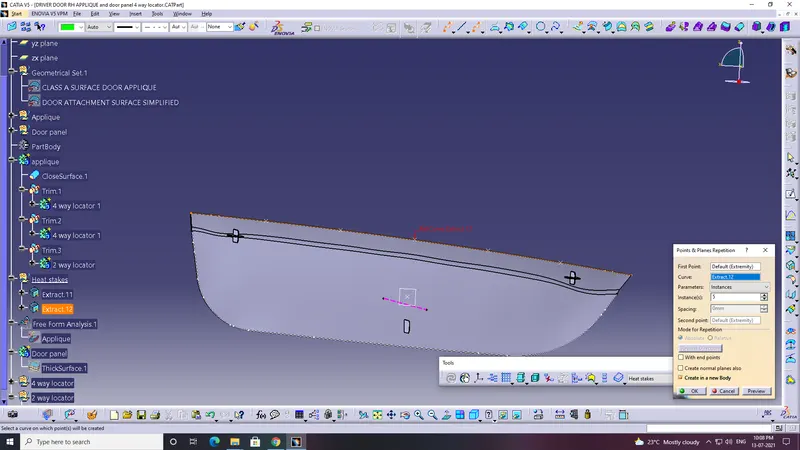

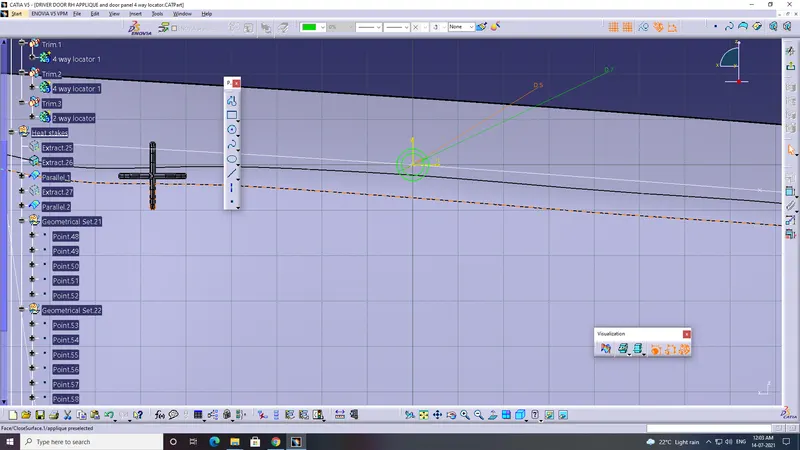

Now create a 12 point in the boundary line and maintaine 50 mm gap between each other.

Translate the locator to the appropriate points.

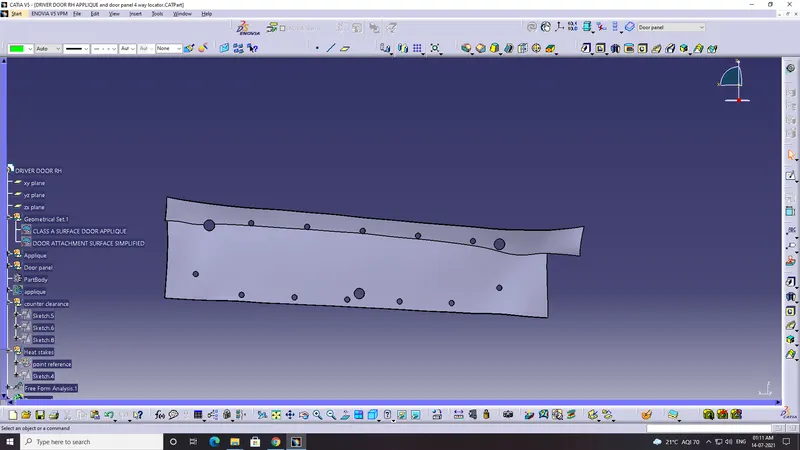

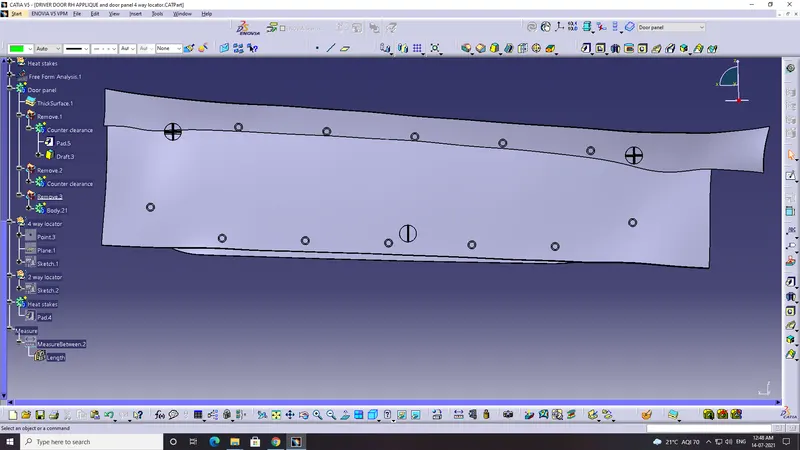

NOw create aholes which is oppening for heat stakes in the door panel.
