Week 9 Machining with Planer Challenge
Expilicit Dynamic analysis of Machining with a Planar.
Aim: Expilicit Dynamic analysis of Machining with a Planar by taking Steel 1006 material for workpiece and veloctiy of cutter for case 1 as 20000 mm/s and case 2 as 15000 mm/s.
Steps followed:
1) Material selection:
Material of workpiece & cutter reamins same for case 1 & 2 as mentioned below.

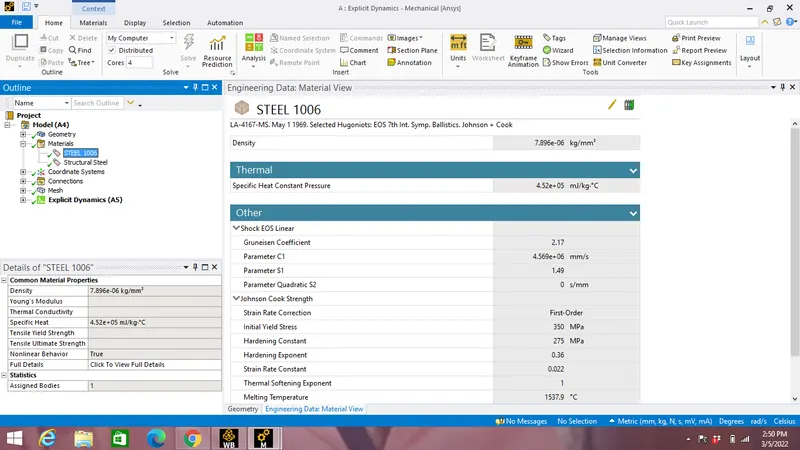

For workpiece Steel 1006 material is choosen with material specification as shown in the image below:

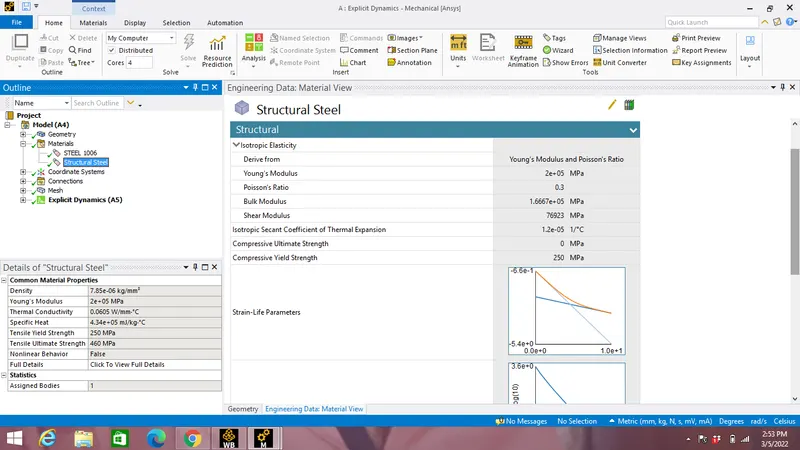

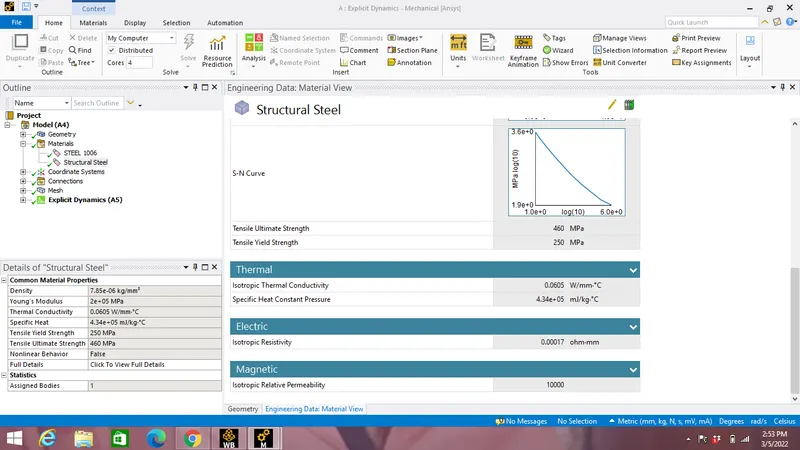

For cutter Structural steel is choosen with material specifications as shown in the image below:
2)Geometry:

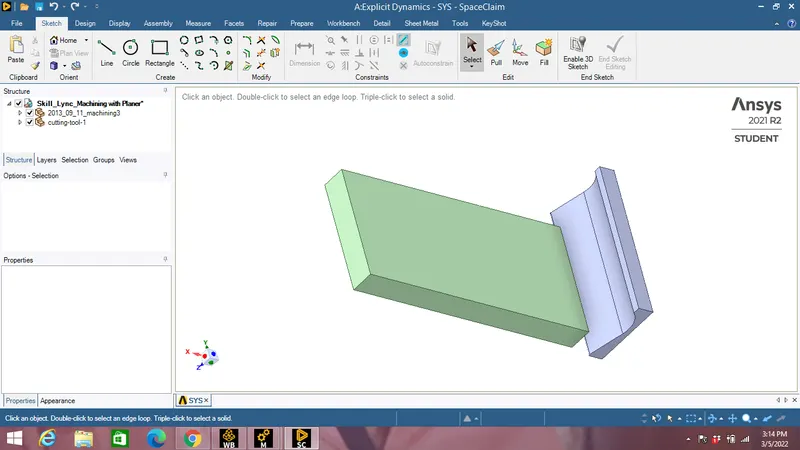

Geometry for Cutter-Workpiece assembly is imported from the CAD files with assembly as shown in the image below:
For both Case 1 & Case 2 geomerty are similar.
3) Models:

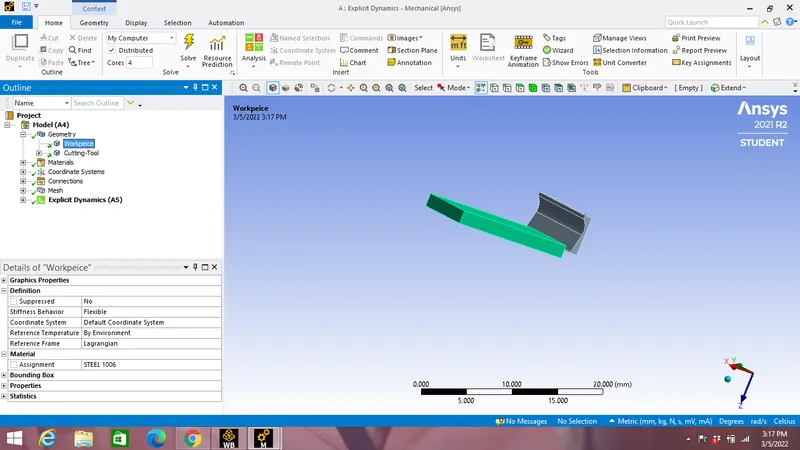

Workpiece is assigned with Steel 1006 as shown in the image below:
4) Connections:

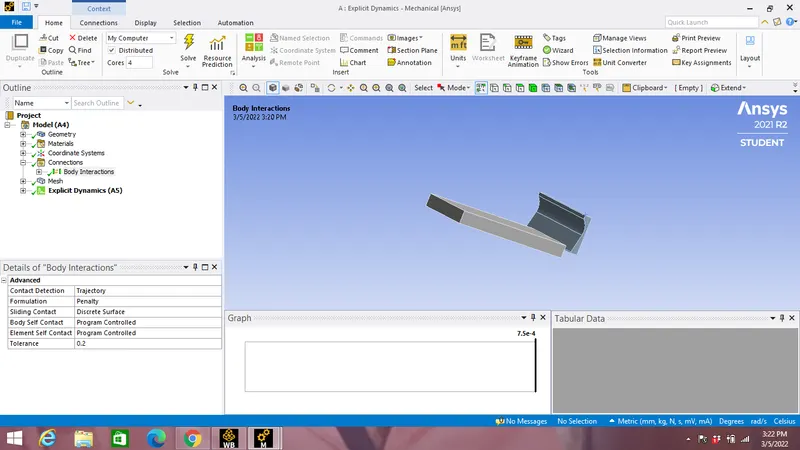

For both case 1 & 2 Bonded type contact between cutter & workpiece is deleted only Body interactions remains as shown in the image below:
5) Meshing:

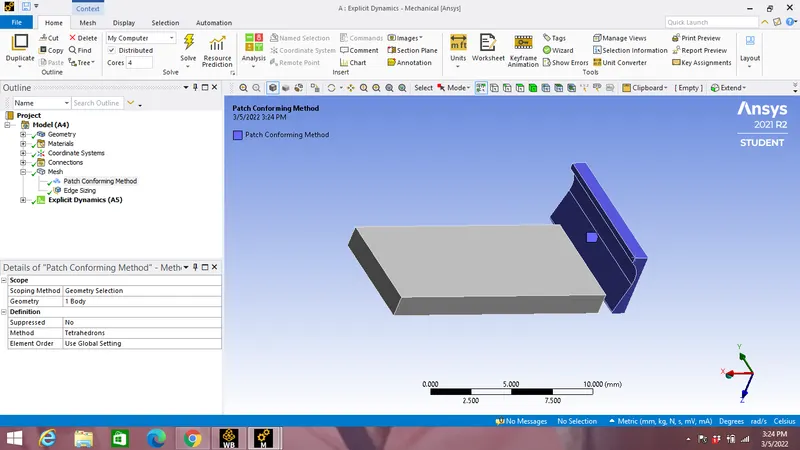

Tetrahedron meshing is applied by Body selecting the Cutter as it has complex geometry as shown in the image below:

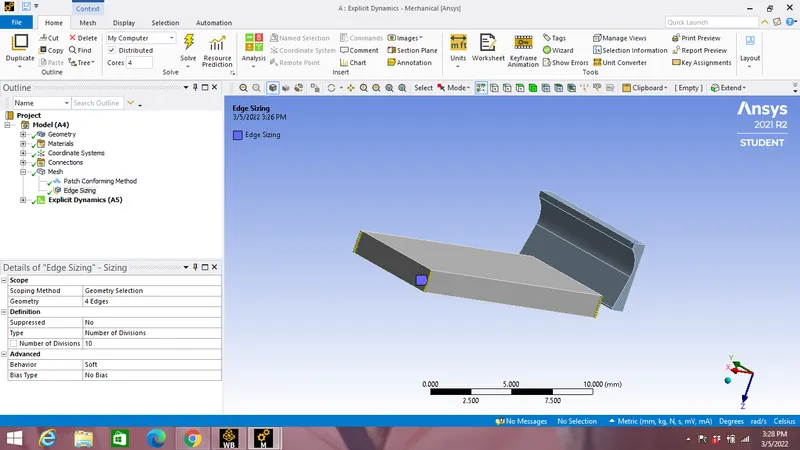

Edge sizing is applied by selecting the small edge of Workpiece with Type as Number of Divisions which is applied as 10 like shown in the image below:
6) Boundary canditions:
a)Analysis setting:

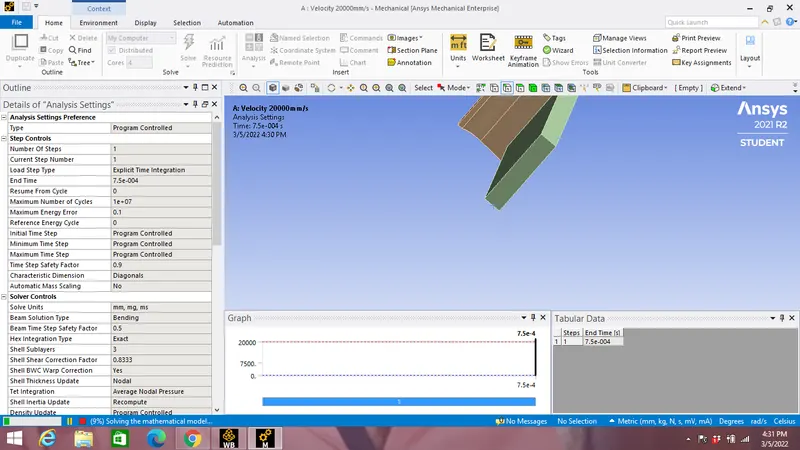

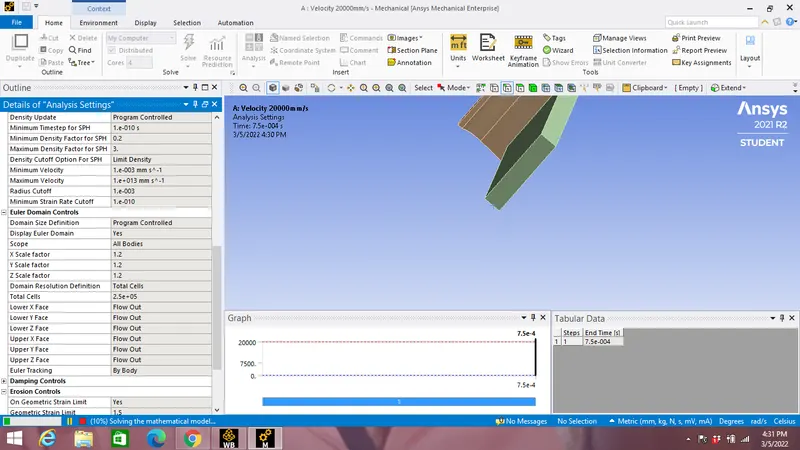

For both Case1 & 2 Number of steps taken as 1 with End Time is inputed as 7.5 e-04 s and Maximum number of cycles as 1E+07,Maximum Energy Error as 0.1. Intial time step,Minimum Time step & Maximum time step as Programme Controlled.
;
b)Fixed support:
Fixed support for case 1 & 2 is applied to the workpiece with similar settings.

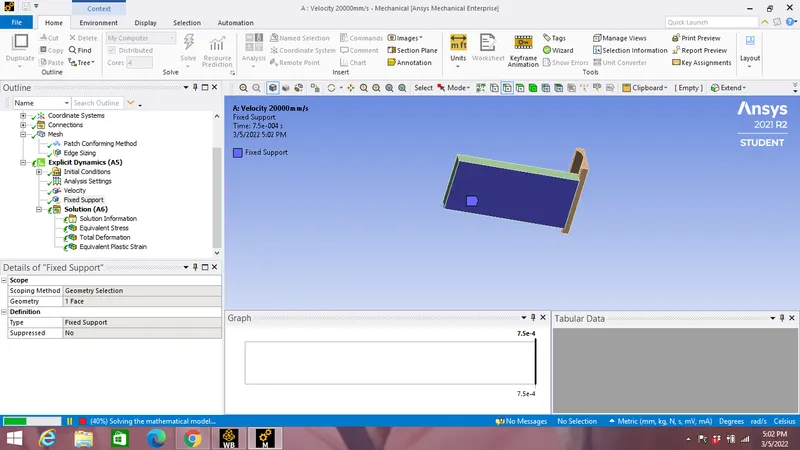

A fixed support is applied to the workpiece by selecting it's one of the faces as shown in the imge below:
c)Velocity:
Case 1:

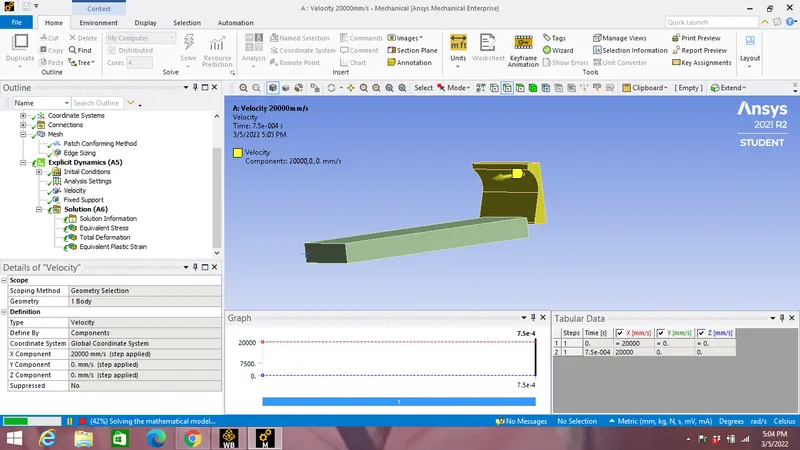

Velocity of 20000 mm/s is applied with the help of Body selection to the cutter along X axis by keeping the Y & Z axis at constant of 0 as shown in the image below:
Case 2:

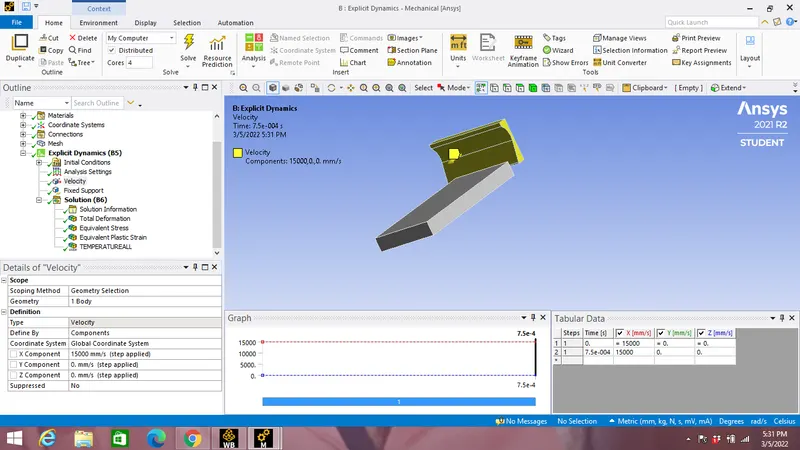

Velocity of15000 mm/s is applied with the help of Body selection to the cutter along X axis by keeping the Y & Z axis at constant of 0 as shown in the image below:
Results:
Case 1:

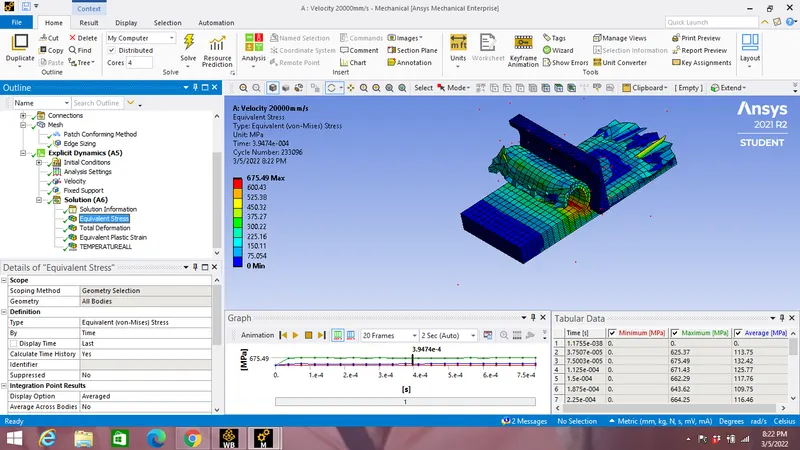

Equivalent Stress:
Equivalent Stress vs Time graph:
Maximum Equivalent stress:675.49 MPa.

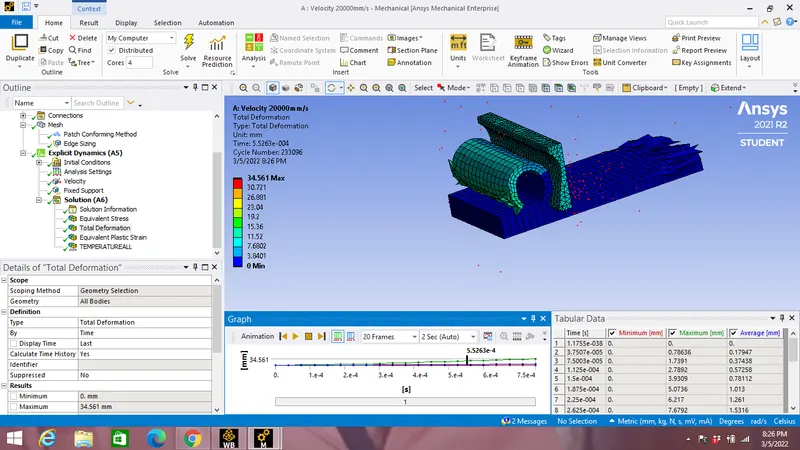

Total Deformation:
Total Deformation vs Time graph:
Maximum Total Deformation:34.561 mm

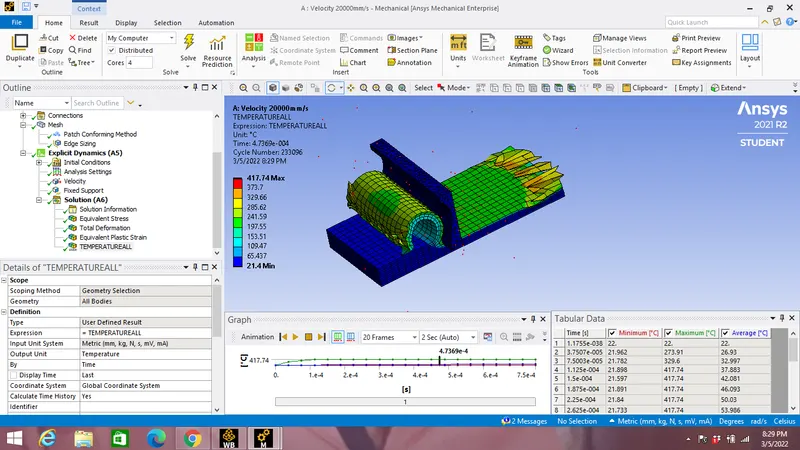

Temprature of Workpiece:

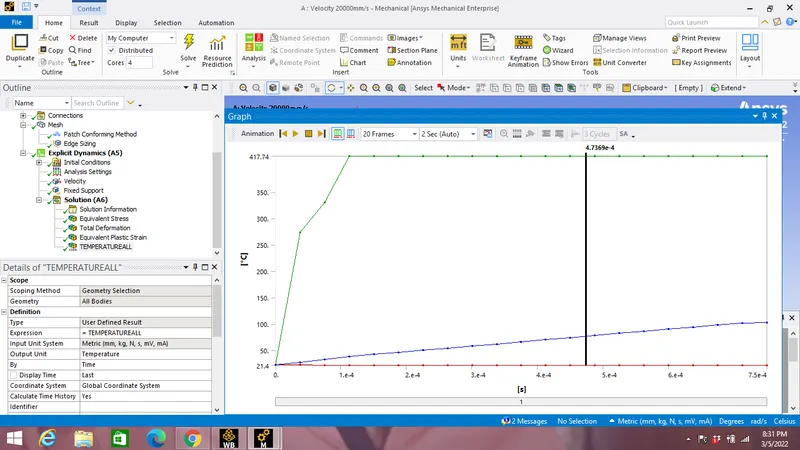

Temprature vs Time graph:
Maximum Temprature of workpiece: 417.74 C
Case 2:

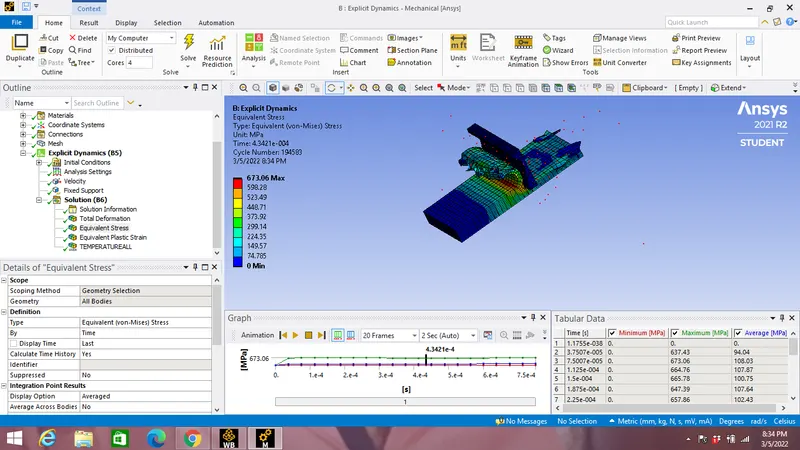

Equivalent Stress:

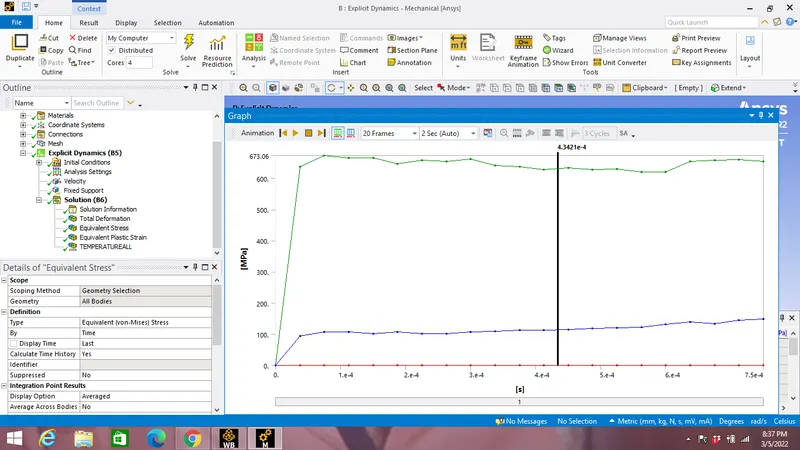

Equivalent Stress vs Time graph:
Maximum Equivalent stress:673.06 MPa.

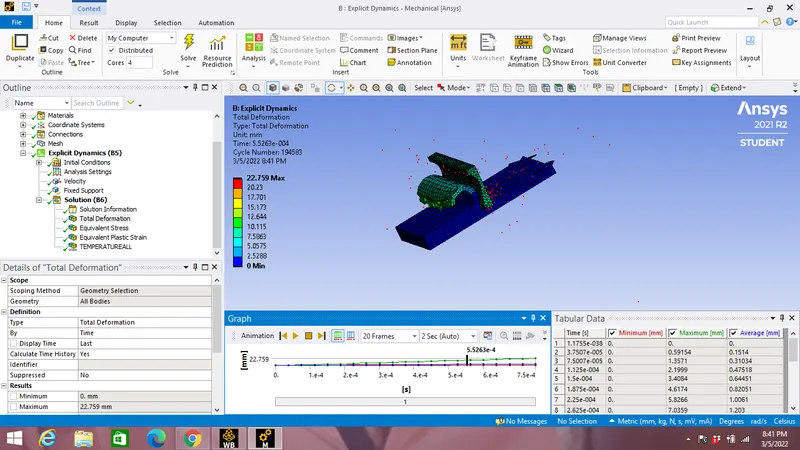

Total Deformation:

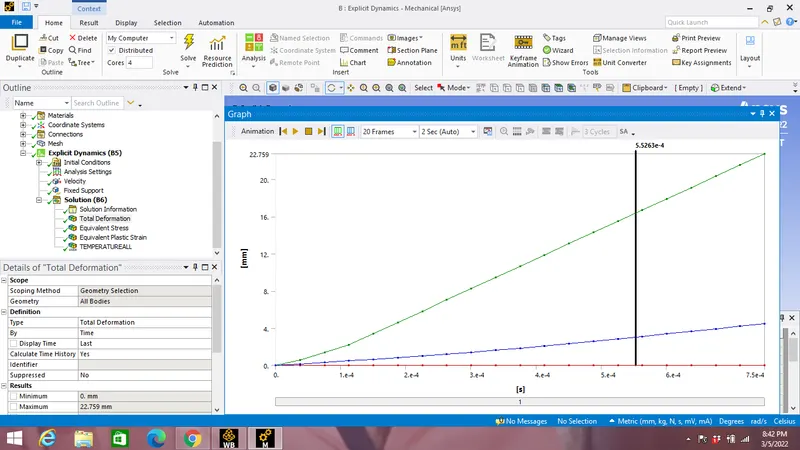

Total Deformation vs Time graph:
Maximum Total Deformation:22.759 mm

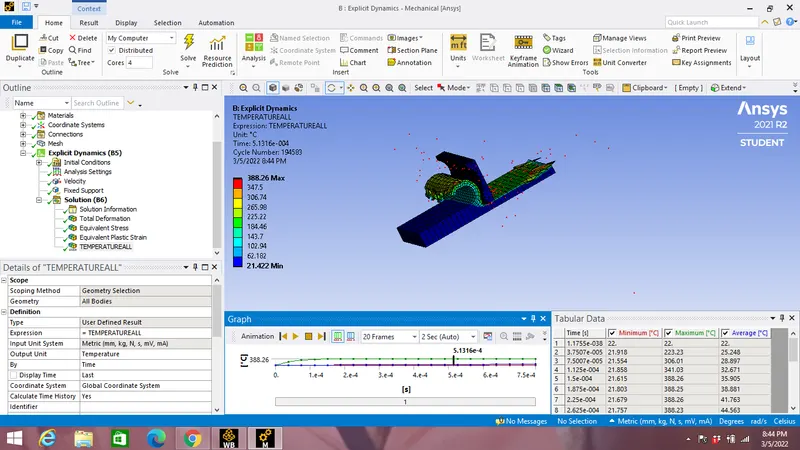

Temprature of Workpiece:
Temprature vs Time graph:
Maximum Temprature of workpiece: 388.26 C.
Comparison of Maximum equivalent stress, maximum total deformation & temprature of workpiece for case 1 & 2:
| Case | Maximum Equivalent Stress(MPa) | Maximum Total Deformation(mm) | Maximum Temprature(C) |
| 1 | 675.49 | 34.561 | 417.74 |
| 2 | 673.06 | 22.759 | 388.26 |
Conclusion:
- Maximum total deformation in case 1 than in case 2 because of high velocity of cutter.
- Maxiimum equivalent stress occurs in case 1 compared to case 2 again reason being high velocity of cutter.
- Maximum temprature in case 1 is higher than in case 2 because of high rate of chip removal by cutter due to its high velocity.
