Week 9 Machining with Planer Challenge

Aim :

To perform an explicit dynamics simulation on a Planner Machining to find out the , Equivalent Stress, Total Deformation,  temperature of the body.

Procedure :

OPen explicit dynamic module in ANSYS workbench

open engineering data and select the required material

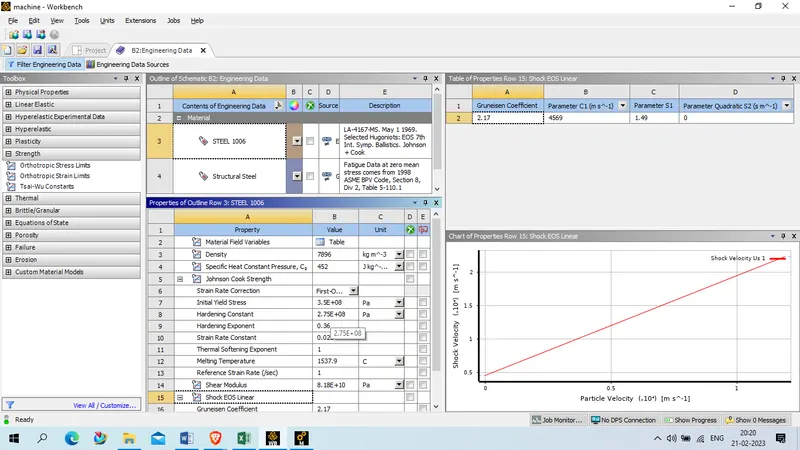

1. Steel 1006, and the mechanical property of the material is as below

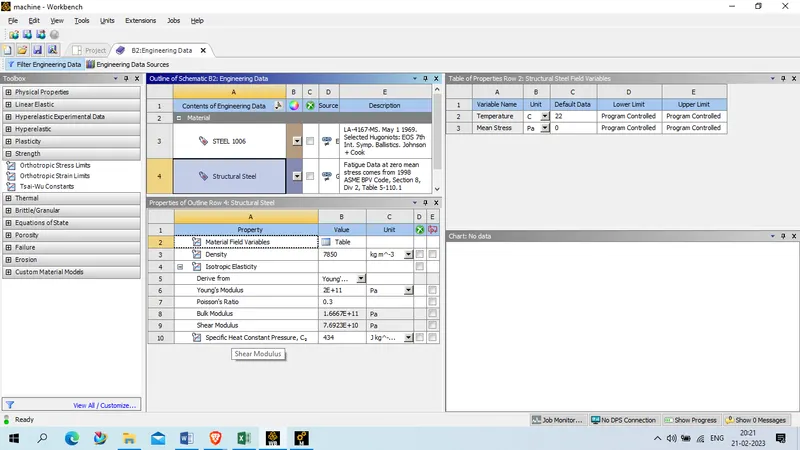

2. structural steel, the mechanical property of the material is given below

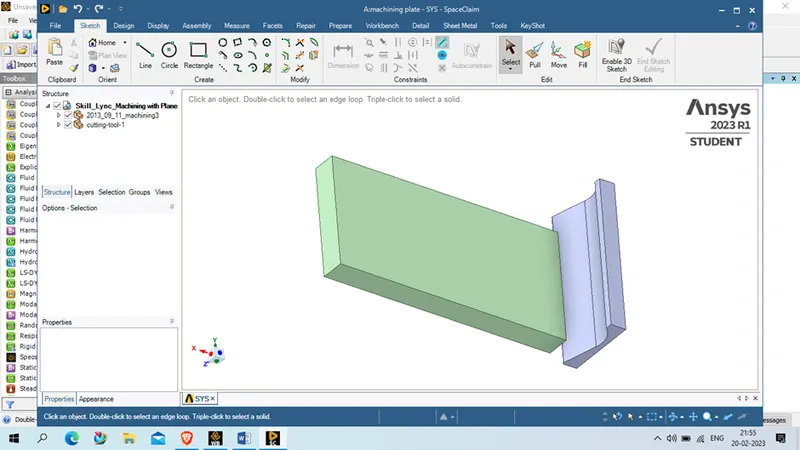

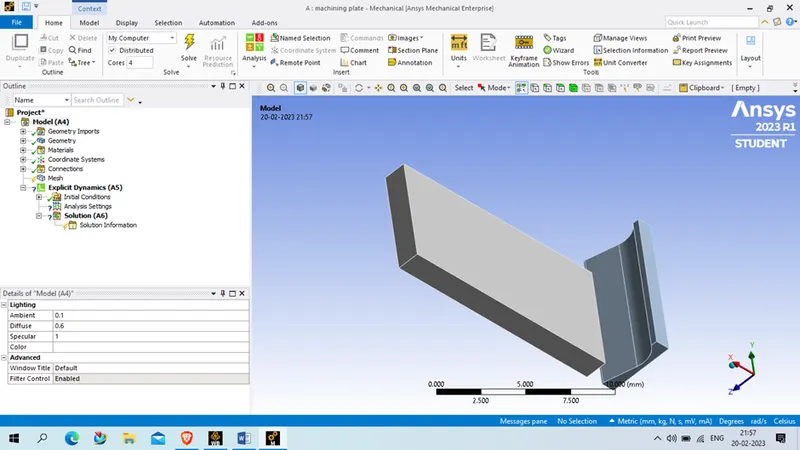

now close the engineering data tab and upload the geometry in spaceclaim ,

as all geometry look good for proceed, we will close the spaceclaim and open mechanical model

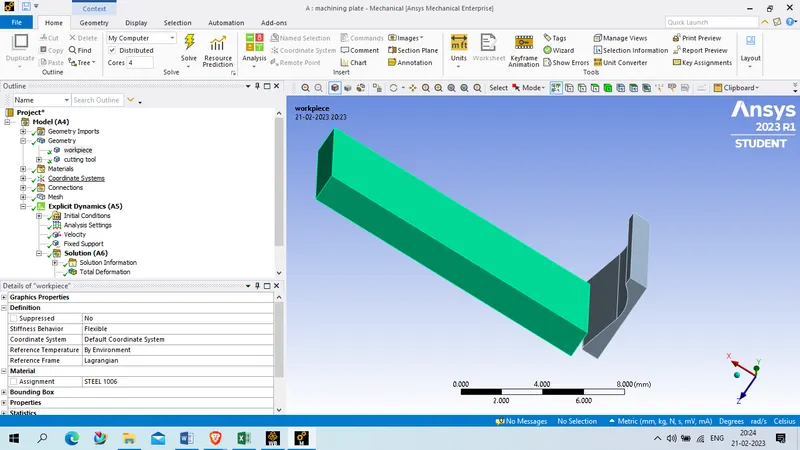

now expand geometry and assign material and rename the component as per given below

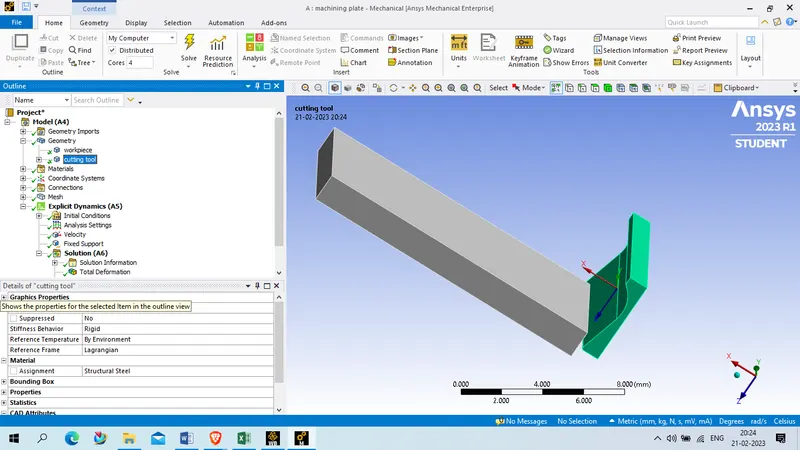

make to tool as rigid body and material as structural steel

now delete all default generated connection

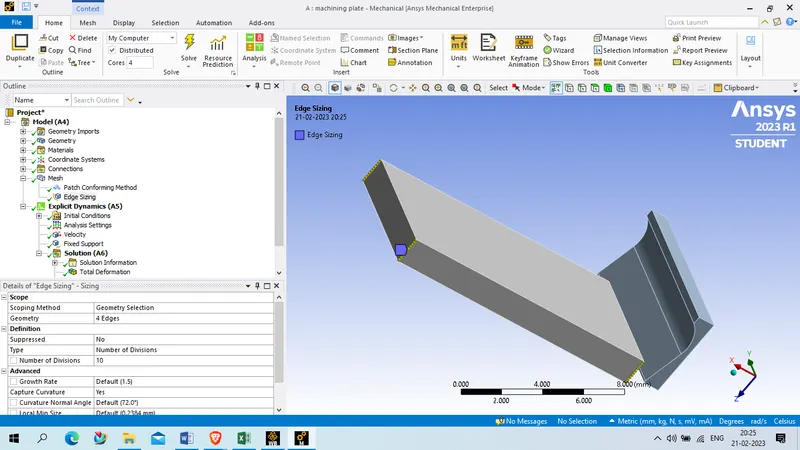

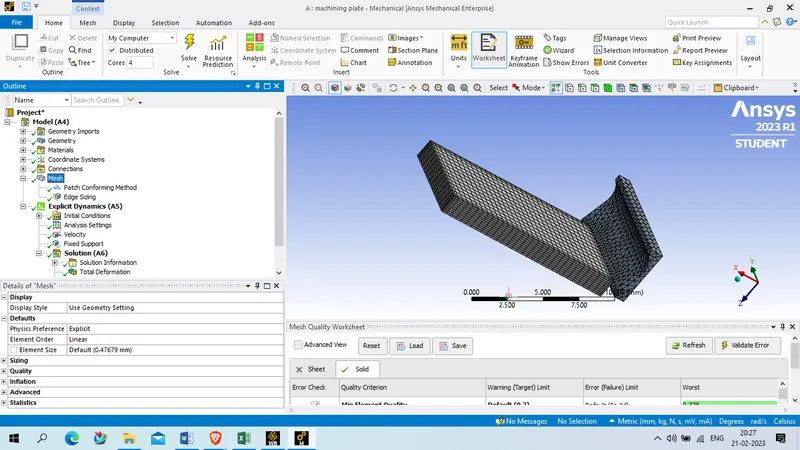

for mesh , we mesh workpiece using edge meshing option and divide the workpiece into 10 parts

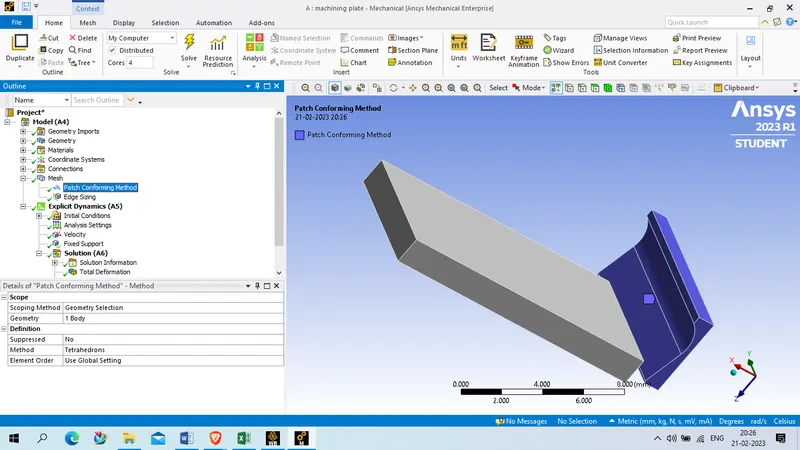

cutting tool will be meshed with tetrahedron element with patch conforming algorithm

The statics of mesh is as given below

No of node: 7711
no of element : 8364

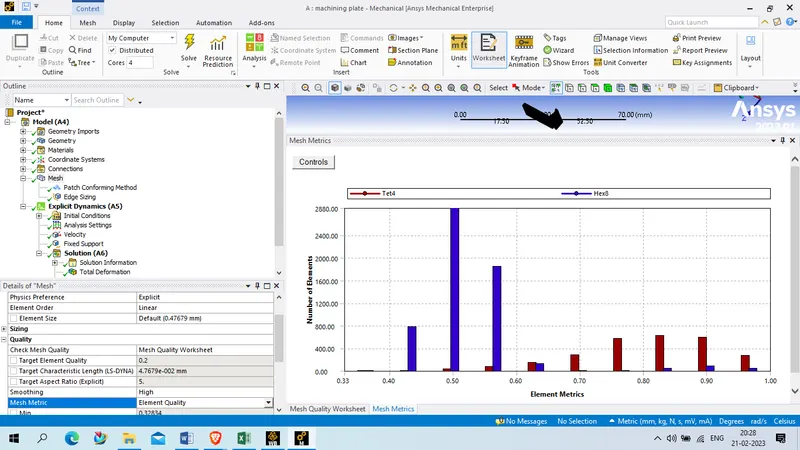

the element quality of the mesh is given as below

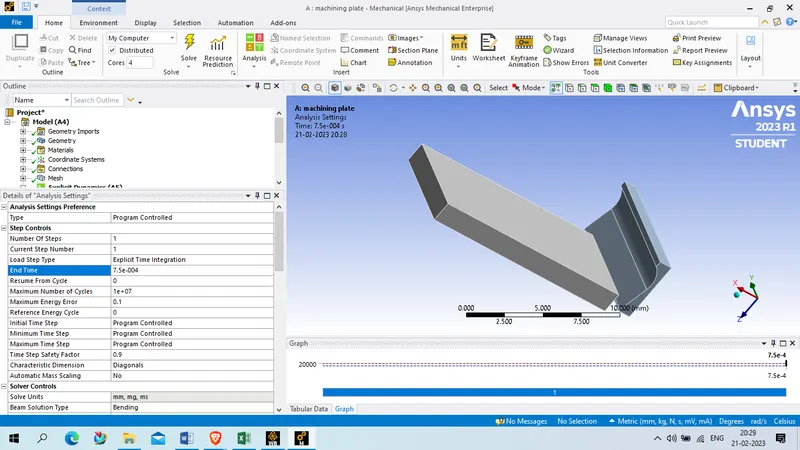

for analysis setting , set end time as 7.5e-004 and rest setting will be as default

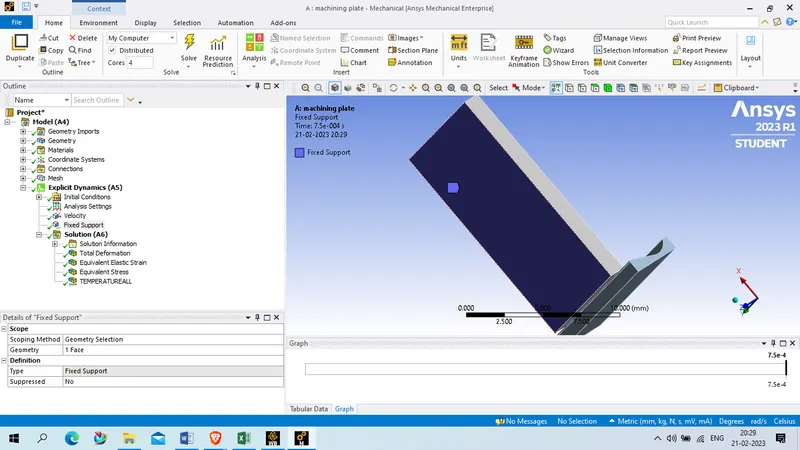

deployed fixed support to the back face of workpiece as given below

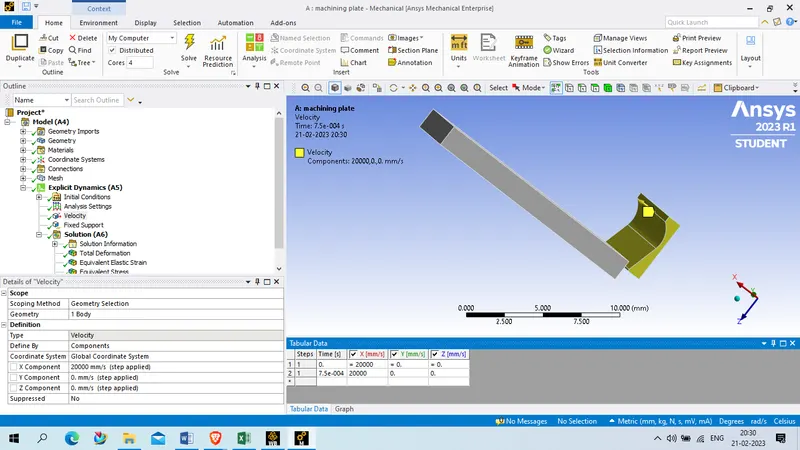

now deployed a velocity to cutting tools with a velocity of 20000 mm/s in positive x axis

now list out the required output parameter and run for the simulation

Picture :

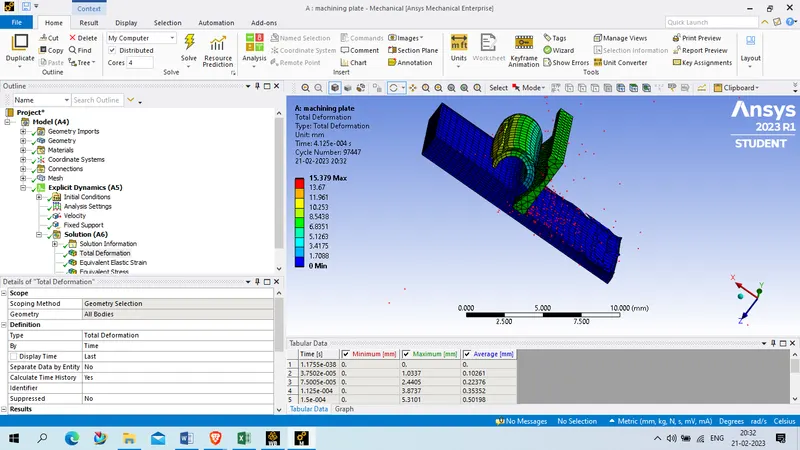

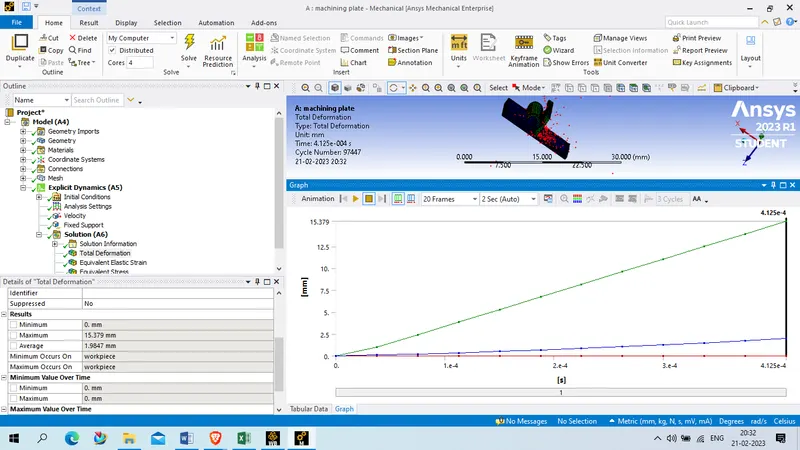

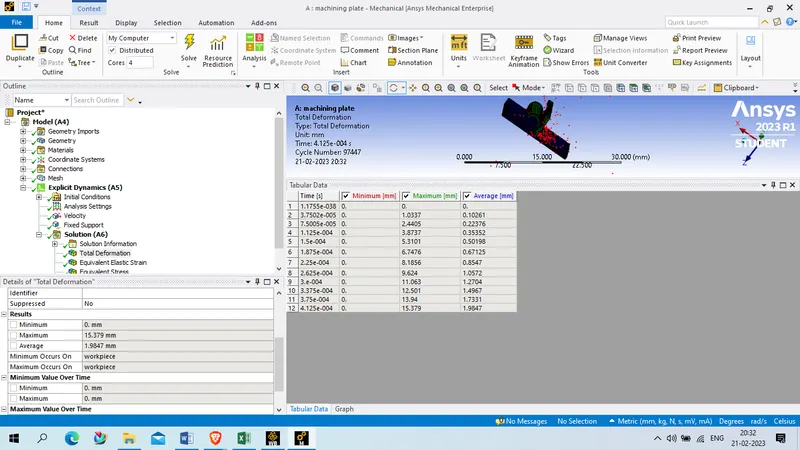

Total  deformation

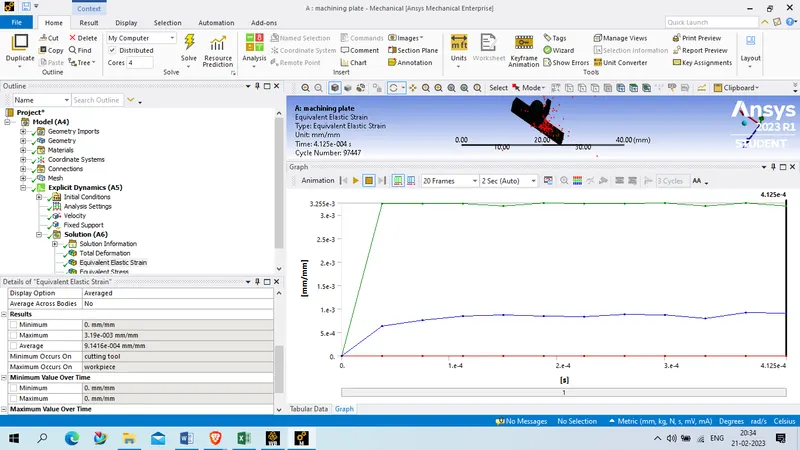

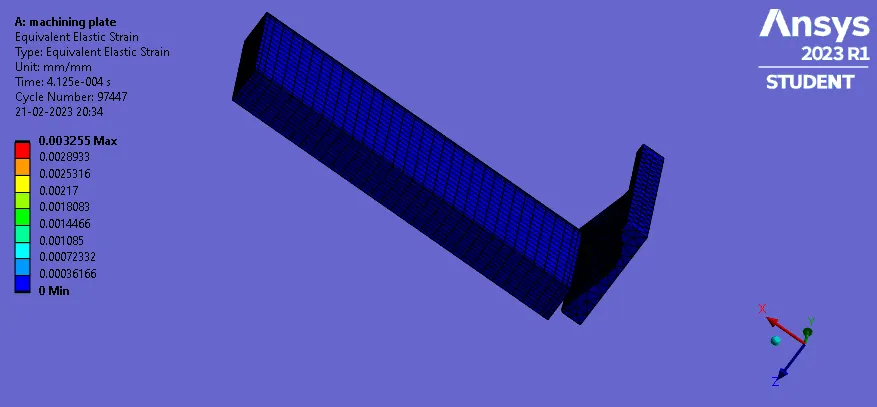

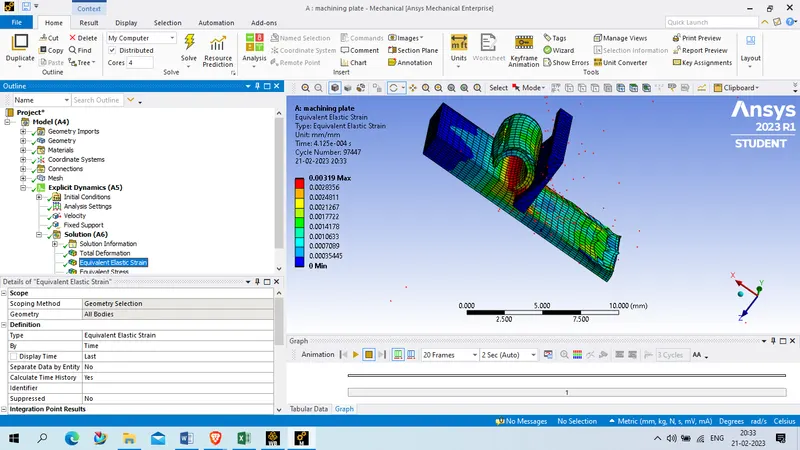

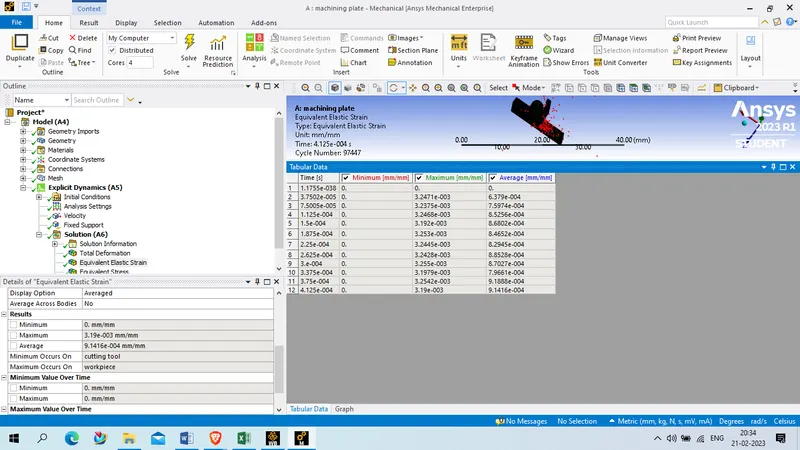

Equivalent elastic strain

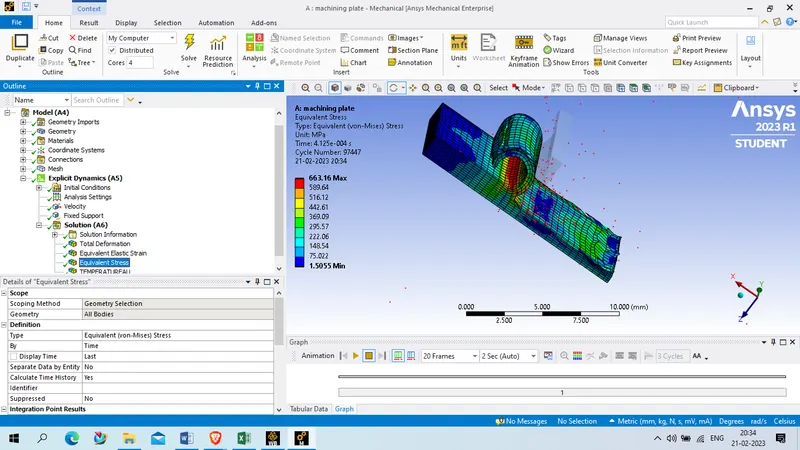

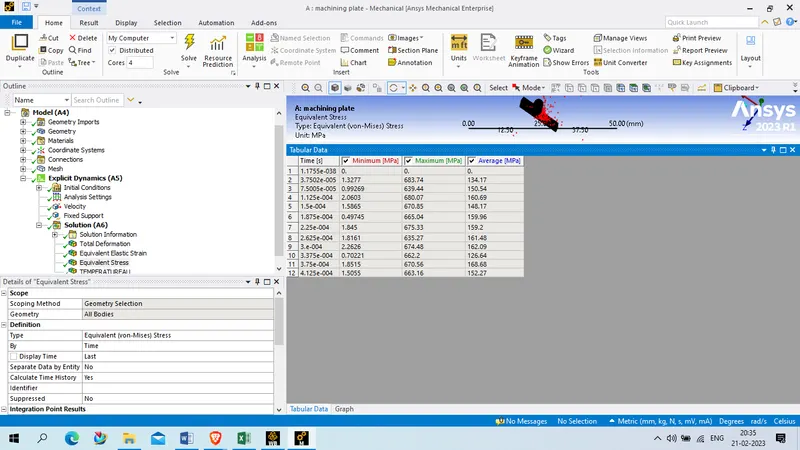

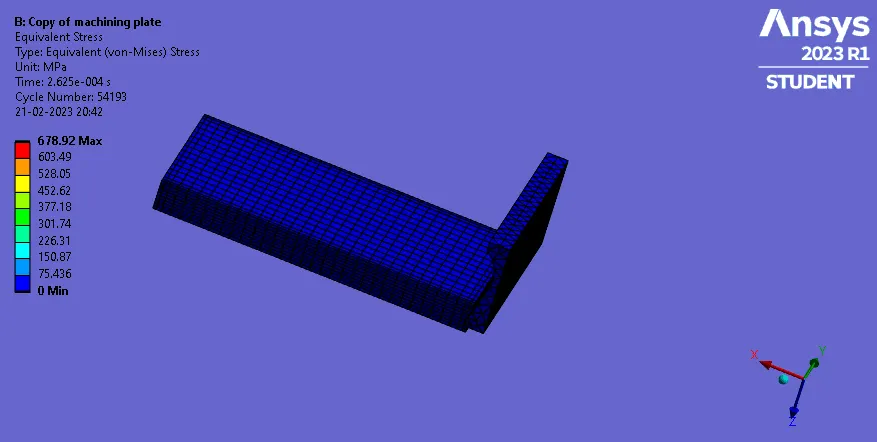

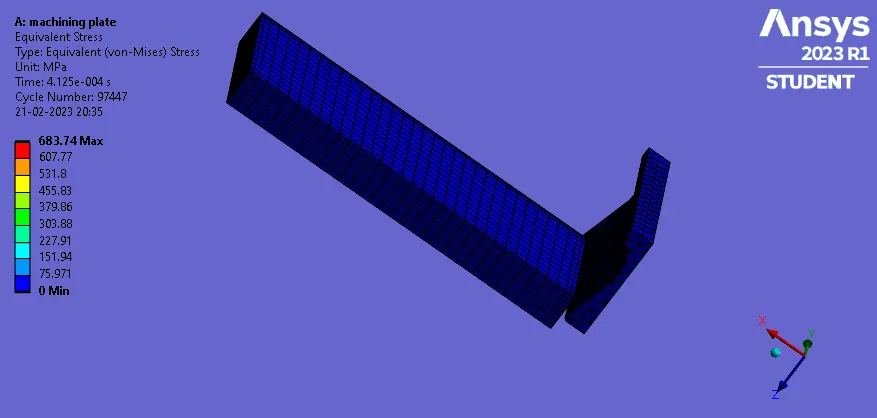

Equivalent stress

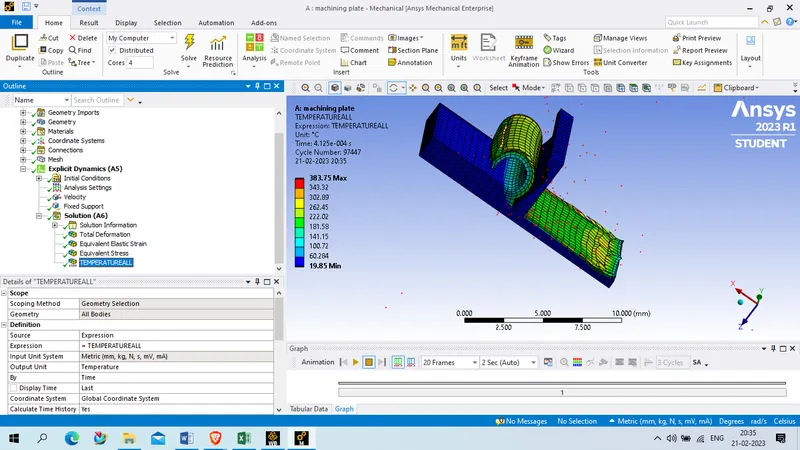

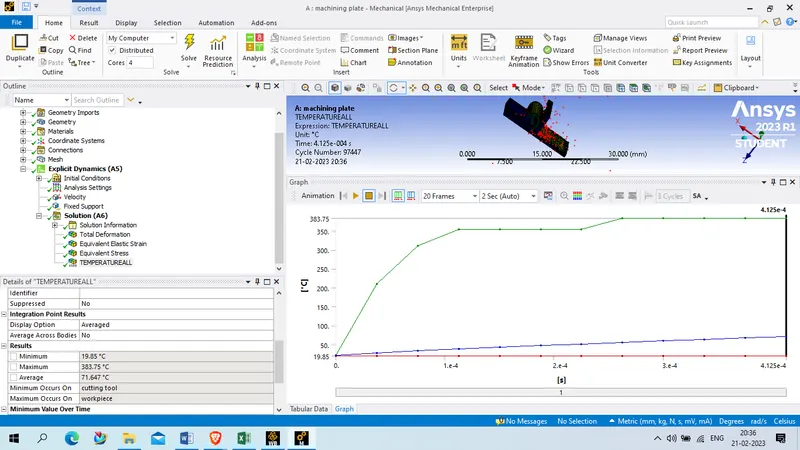

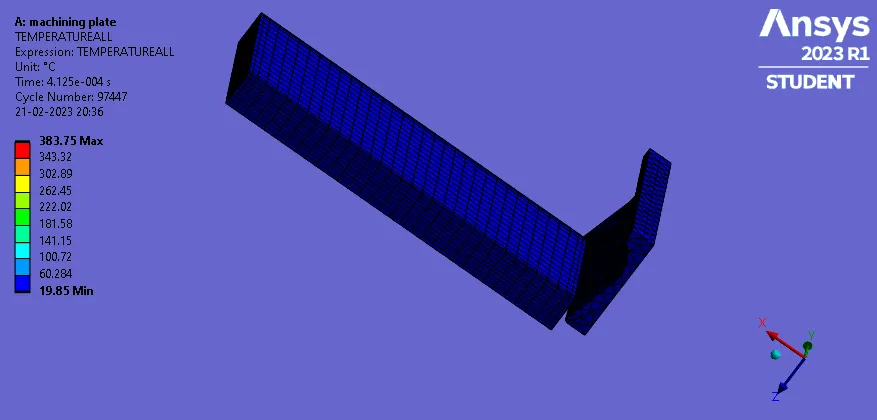

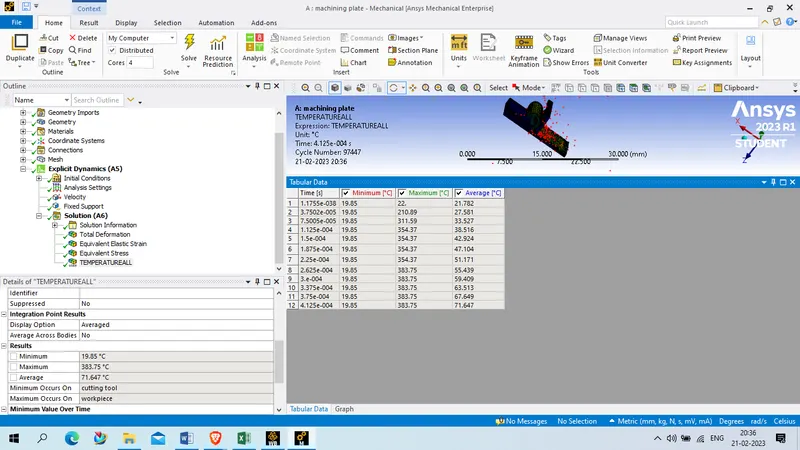

Temperature :

for case 2: we change the velocity to 15000 mm/s

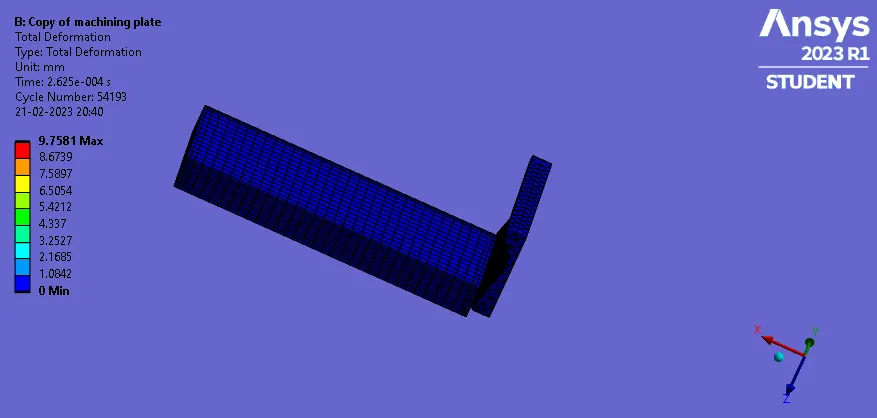

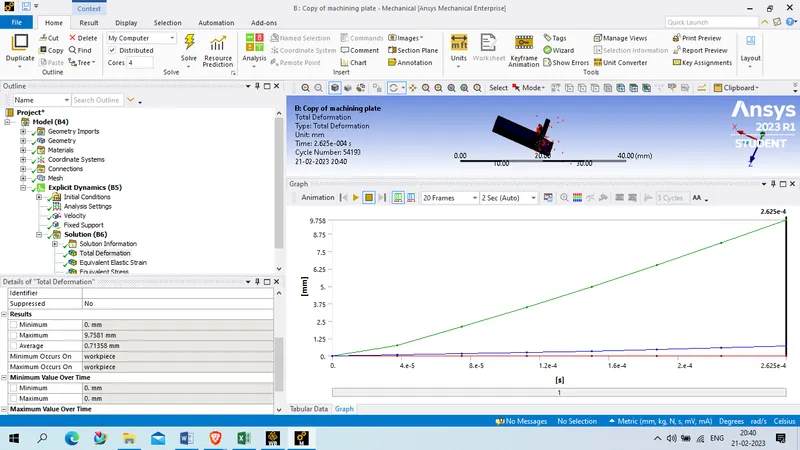

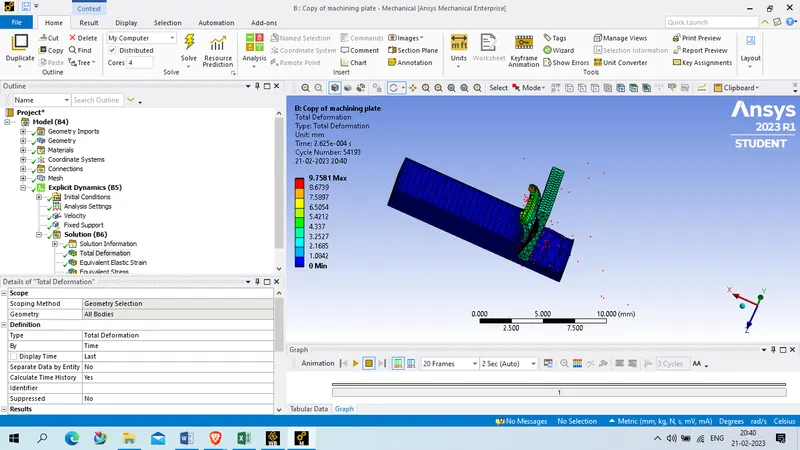

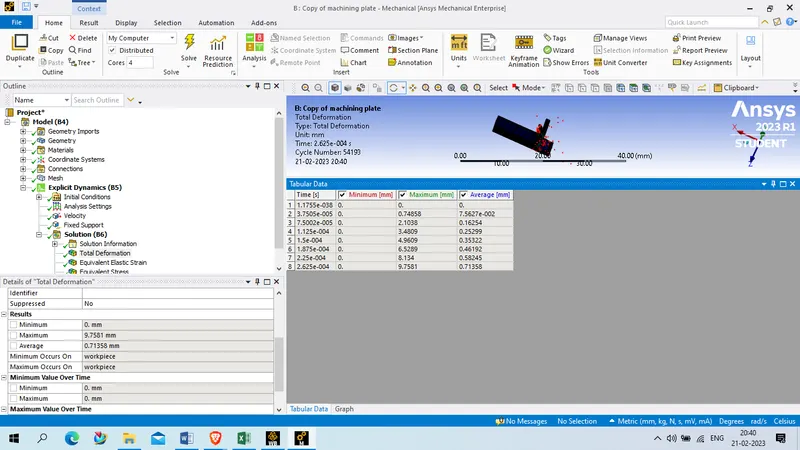

Total deformation

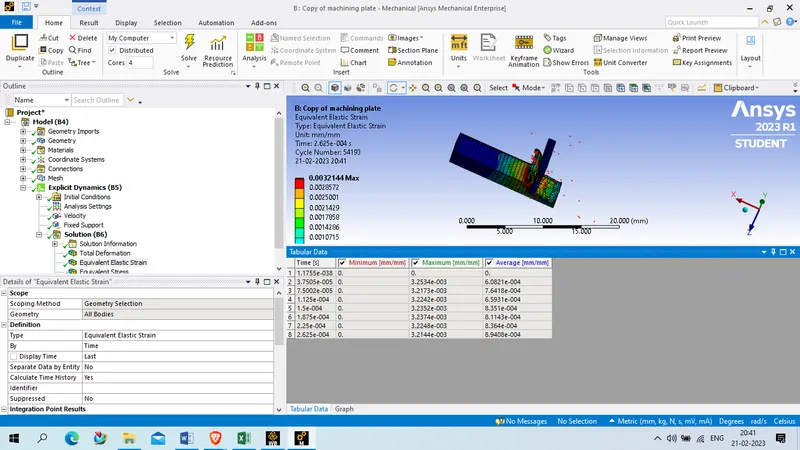

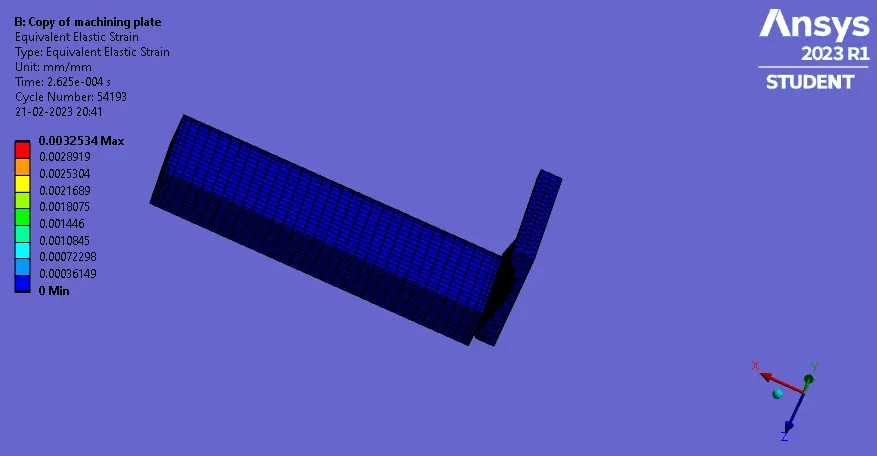

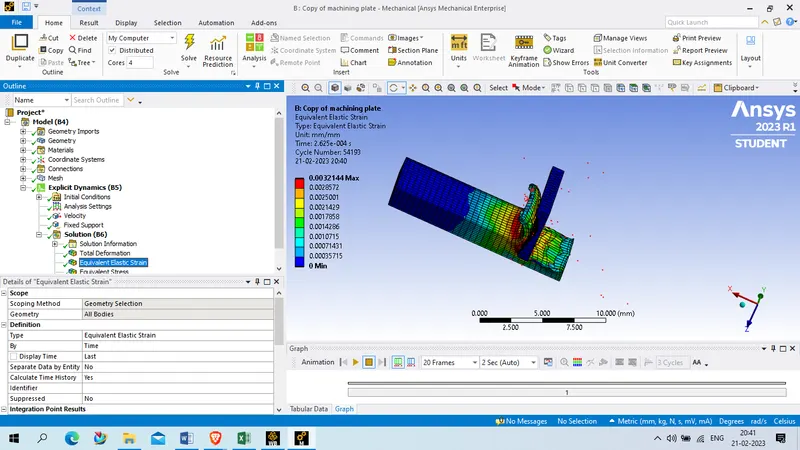

Equivalent stain

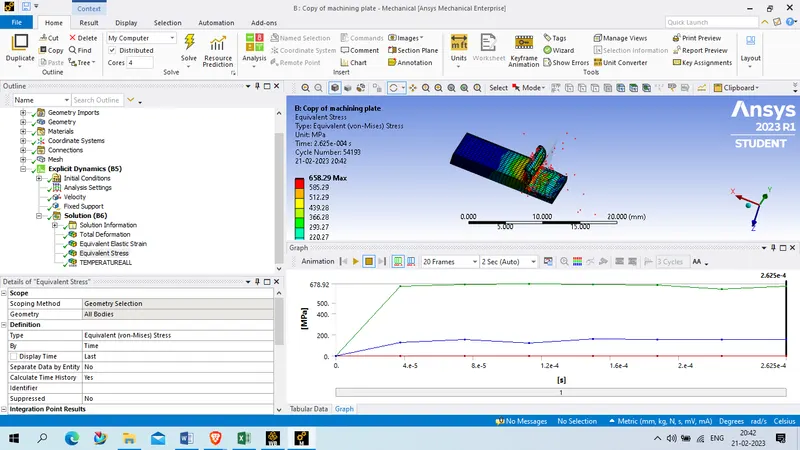

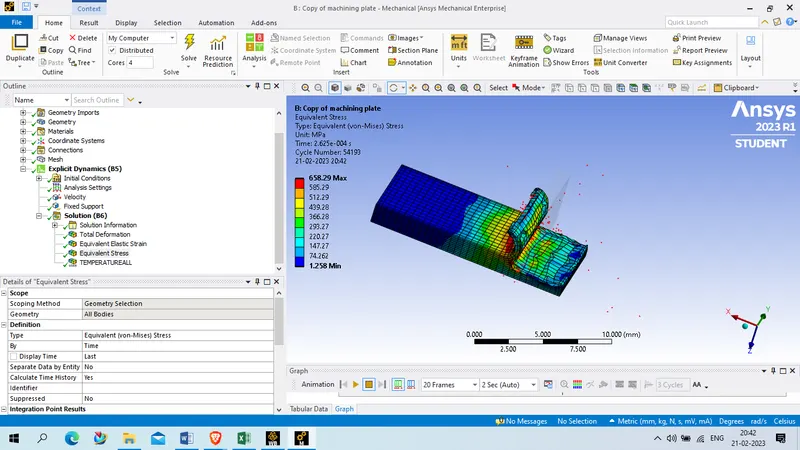

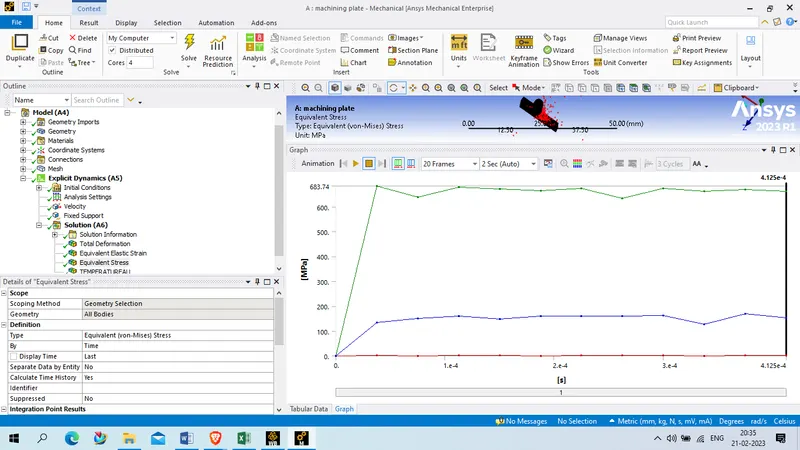

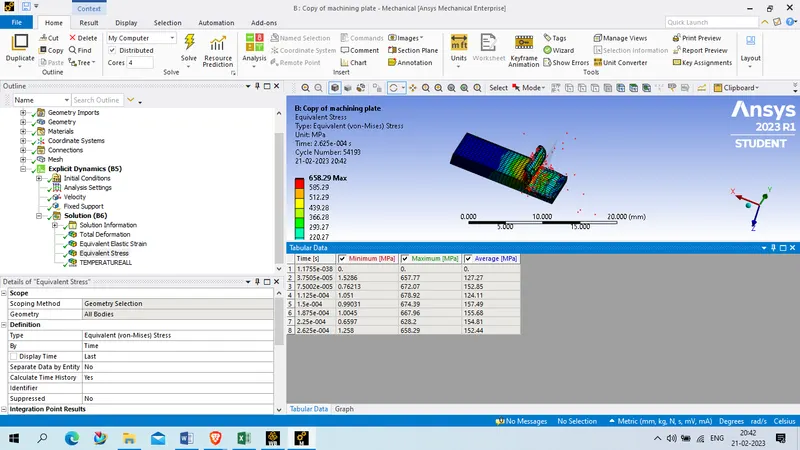

Equivalent stress

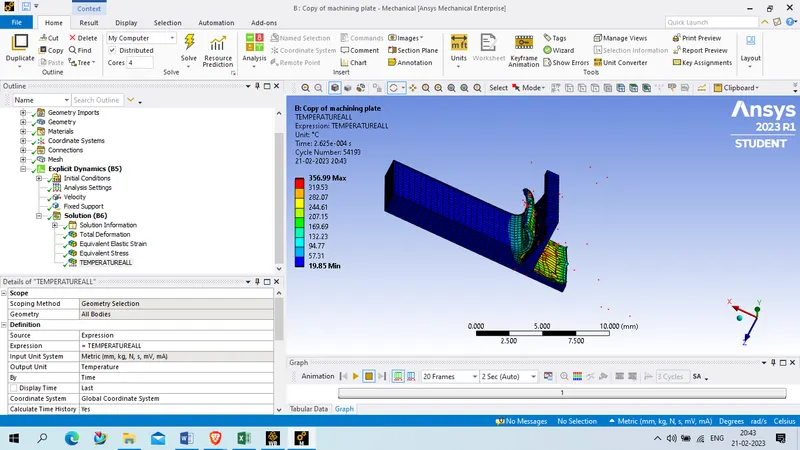

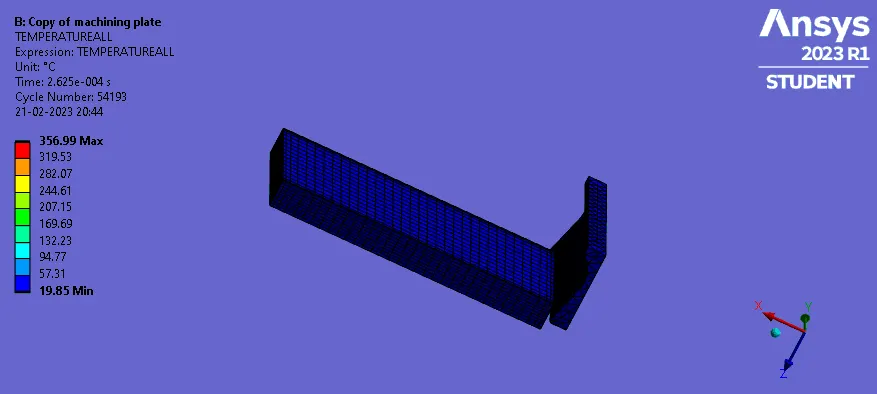

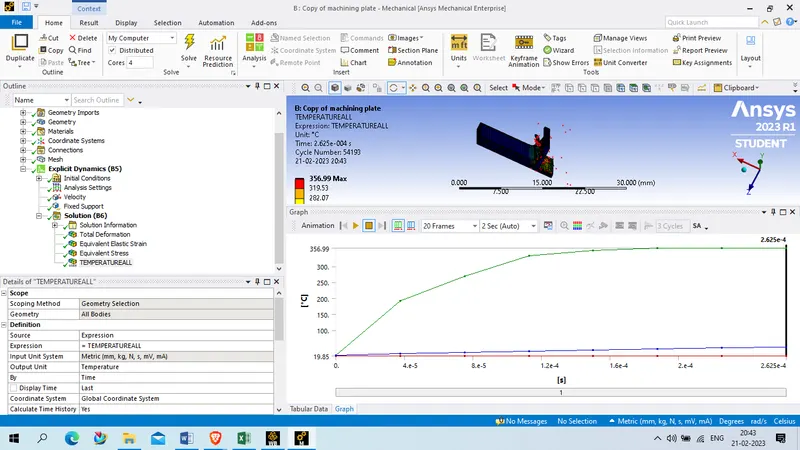

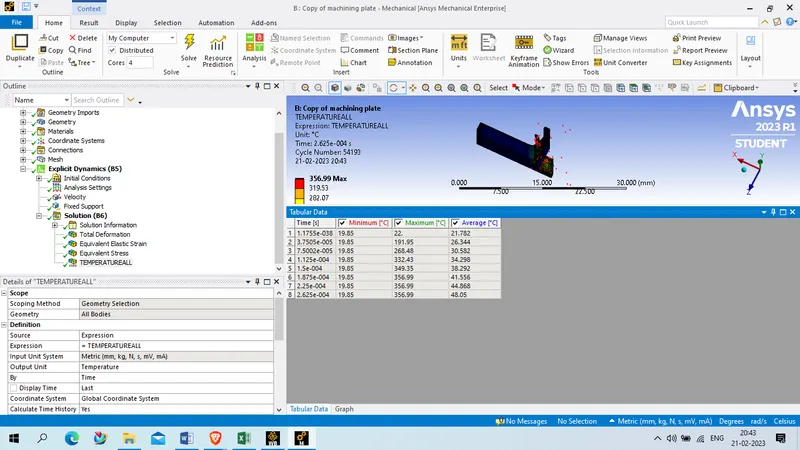

Temperature :

Result :

		Velocity 20000 mm/s	Velocity 15000 mm/s
Total deformation	Maximum (mm)	15.379 mm	9.7581 mm
Equivalent stress	Maximum (Mpa)	663.16 MPa	658.29 MPa
Equivalent elastic strain	Maximum	3.19E-03	8.94E-04
Temperature	Maximum Degree celcius	383.75 °C	356.99 °C

conclusion :

From the above Table comparison, it is seen that the Total-deformation, Equivalent stress, Temperature of the body is raised in the case-1 as compared with the case-2.
