Week- 5 - Solid meshing

Aim :

Solid meshing

Method / Steps ( procedure )

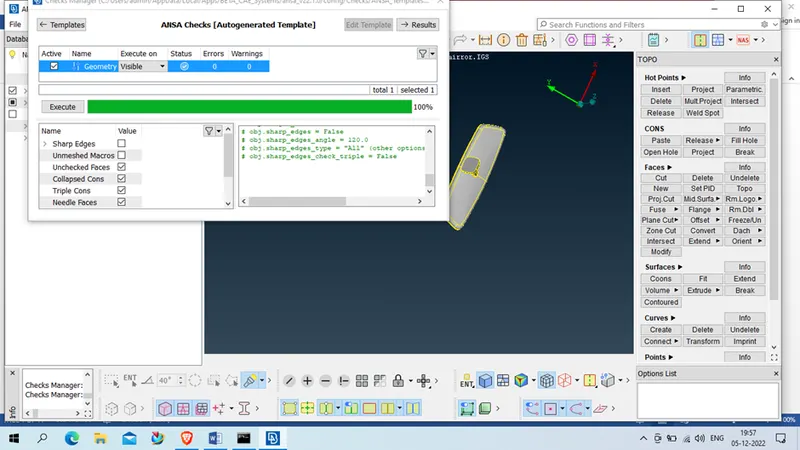

1. Take the product from question and checked the from ( Tool – check- Geometry – select geometry using drop down select ) – select single corn also

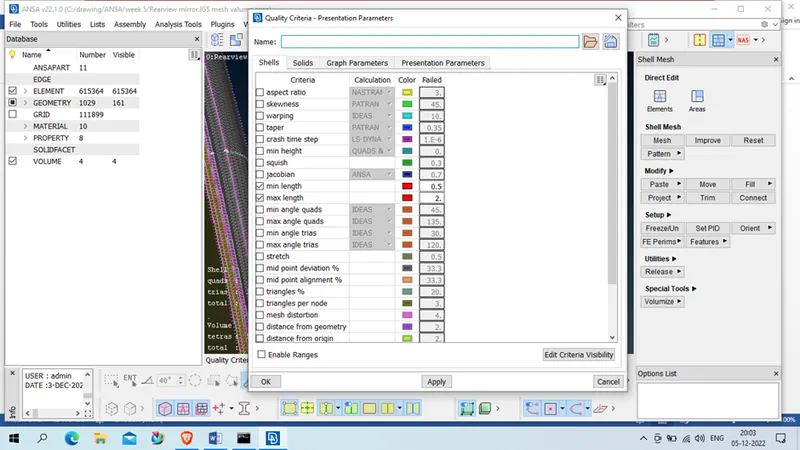

2. Set quality criteria for meshing

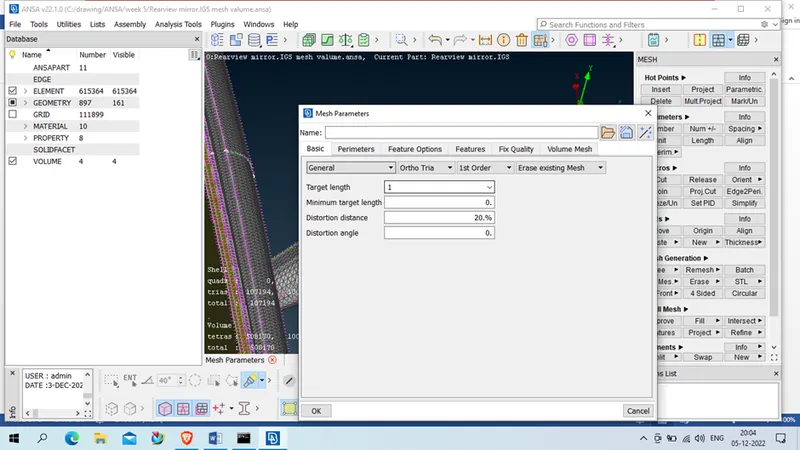

3. Set mesh parameter

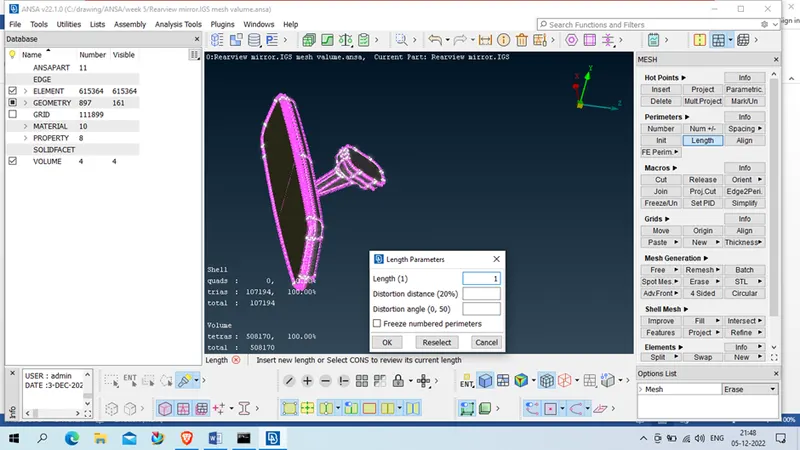

4. Assign length and micros parameter in classic mesh – parameter – length

5. Mesh the geometry using Classic mesh- mesh generation – spot mesh

In all the geometry till unmesh entity become 0

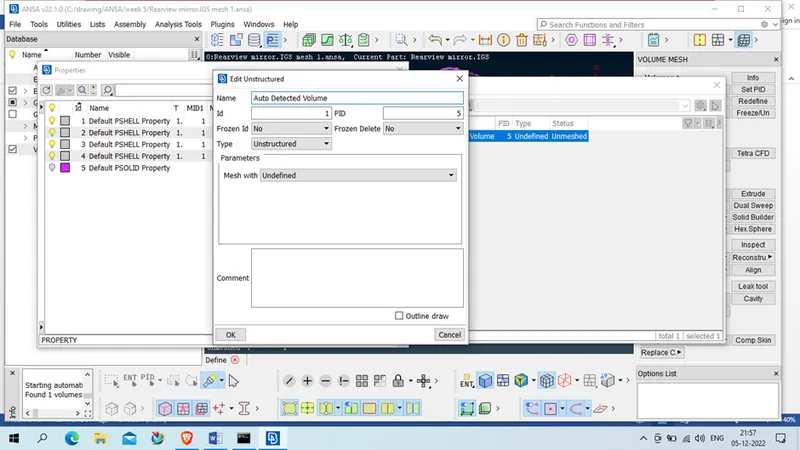

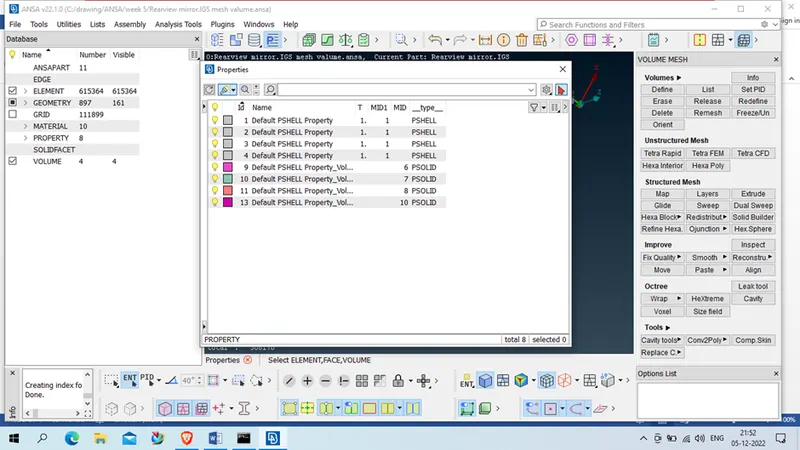

6. After meshing all the parts move to volume mesh and define each part using define in volume mesh –volume –define

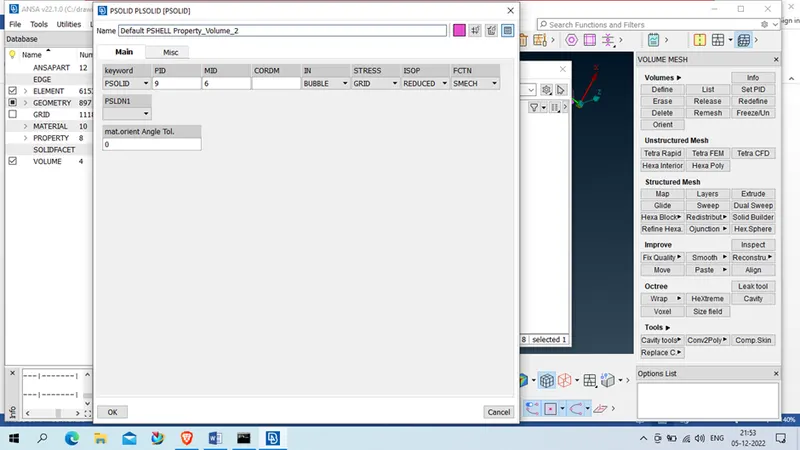

   Give PID, Mid and proper name to volume , it create 4 volume in 4 step which is unstructured

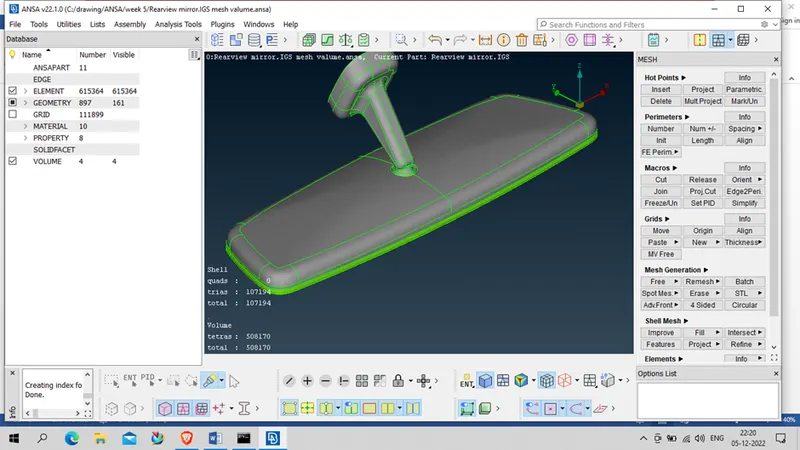

7. Volume mesh

After generating volume we will create

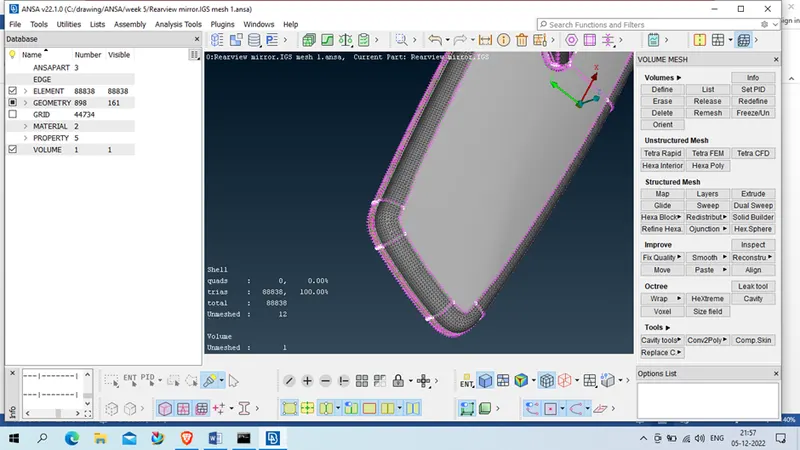

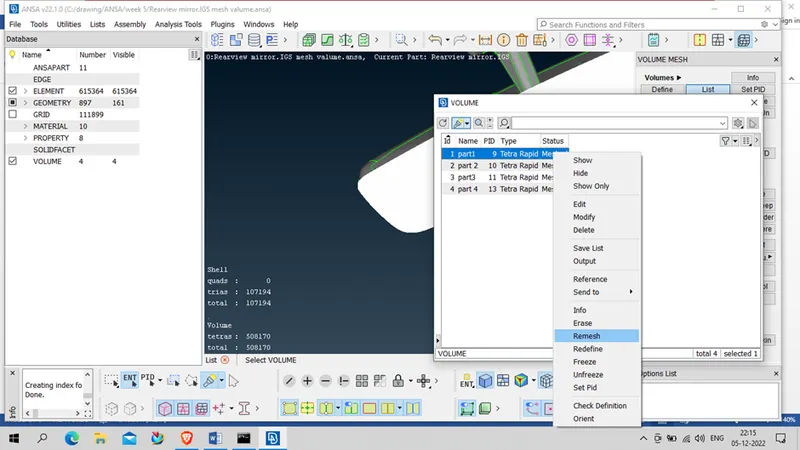

8. Go to List in Volume and generate 1 by 1 volume mess using Volume mesh- volume- list – right click – remesh

All doing the same for all the parts .

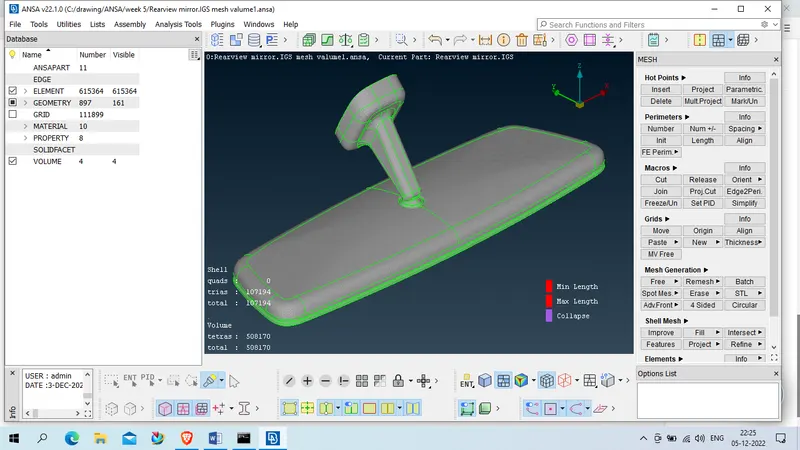

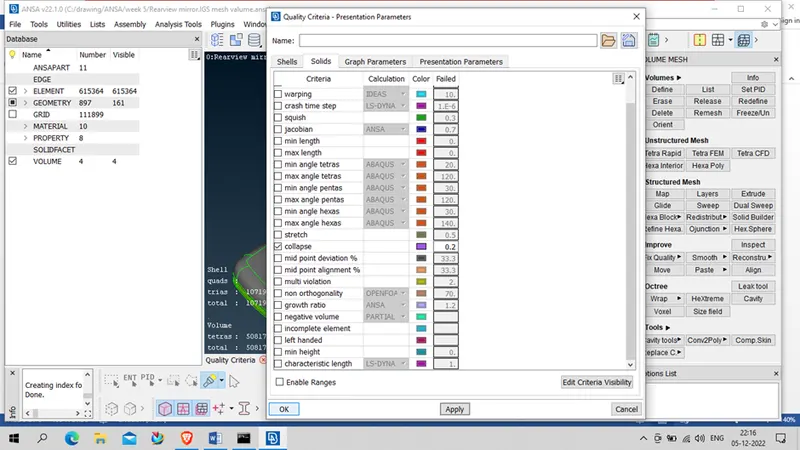

Go to quality criteria and apply collapse and set it

Check the all quality criteria must be satisfy , if any off element we have to solve that using MVfree in class mess – grid – mvfree in desirer direction

After doing all clear we will get volume mesh which will be ready for next process

Conclusion

In this session we had learn to mesh solid body ( volume mesh)
