Week 9 Machining with Planer Challenge

Objective: To perform an explicit dynamics simulation of a planar machining process and to find out the Equivalent Stress, Total Deformation and a User defined result to calculate the temperature of the specimen. The Simulation is done for 2 different cases of Velocity.

CASE 1: 20000 mm/s

CASE 2: 15000 mm/s

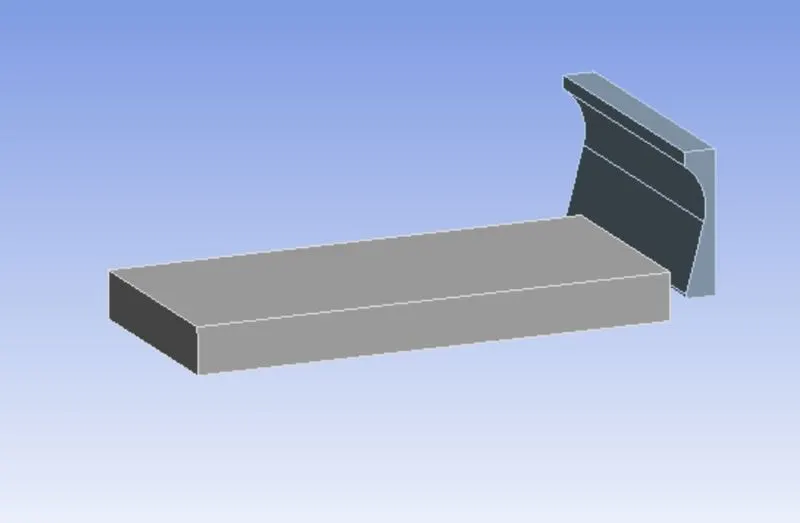

1. Geometry:

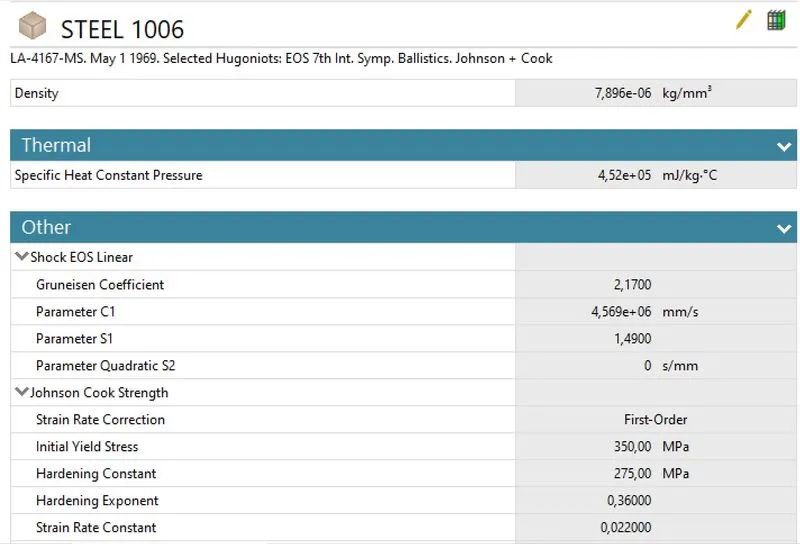

2. Material:

3. Case Setup and settings:

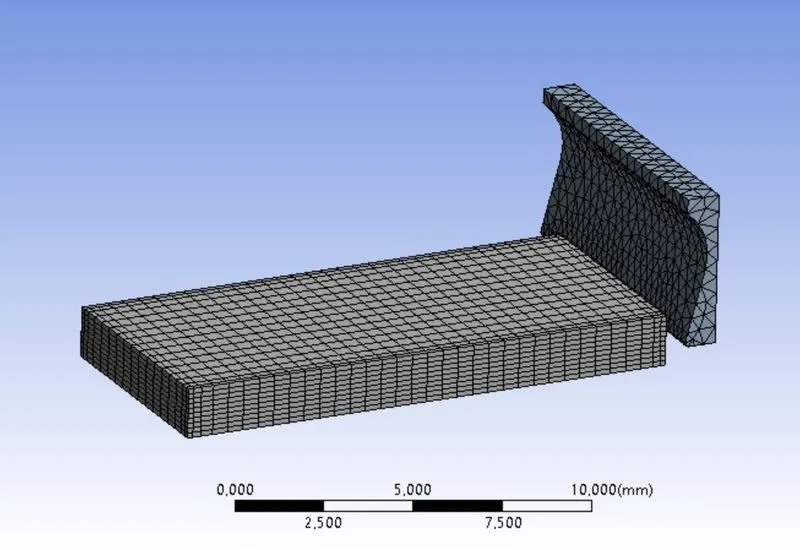

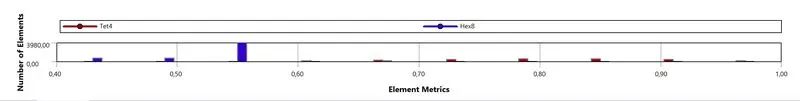

i. Mesh:

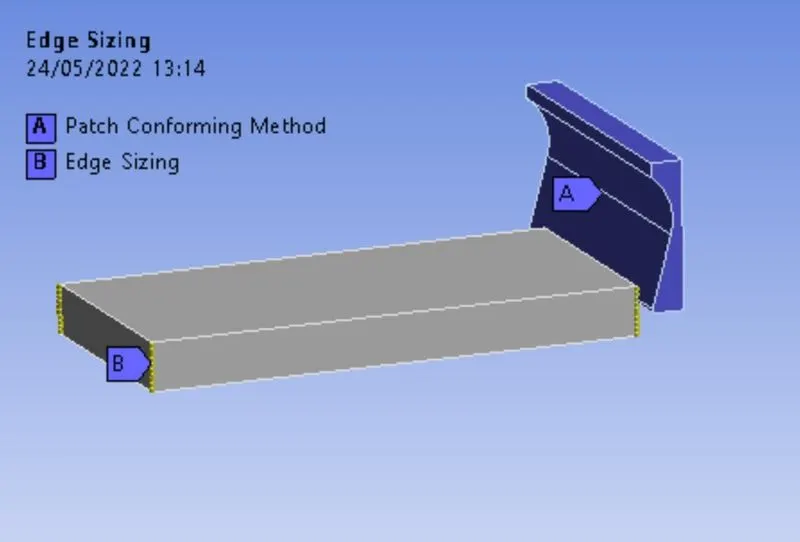

A defined mesh sizing through element division of about 10 elements are given for the body and a tetrahedron mesh for the tool.

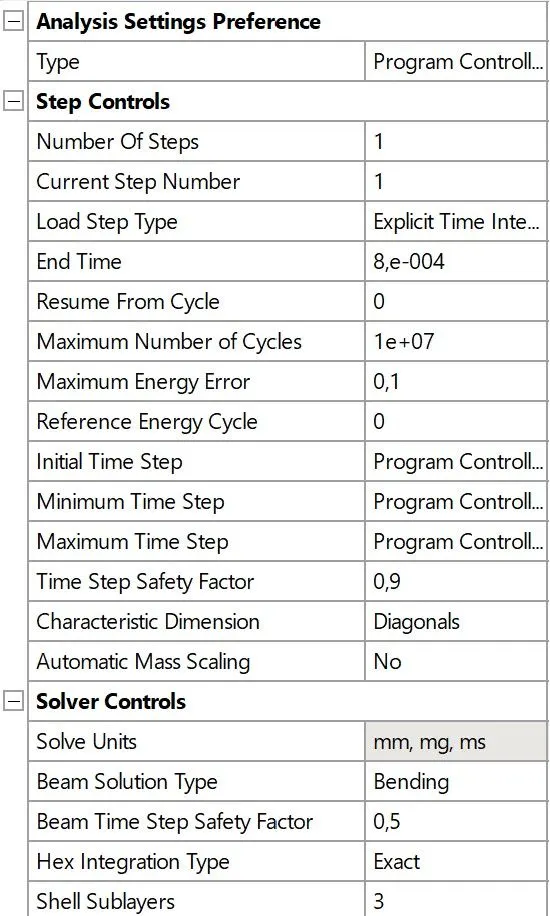

ii. Analysis settings:

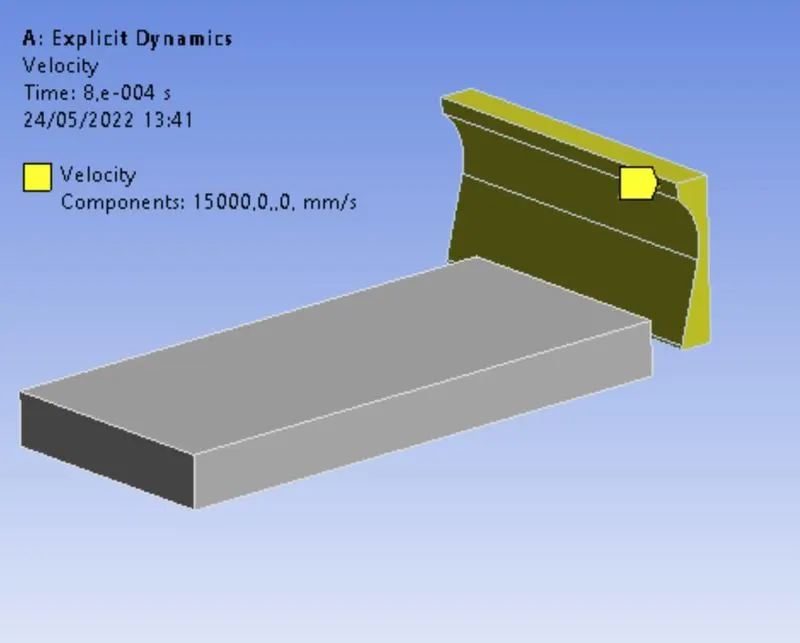

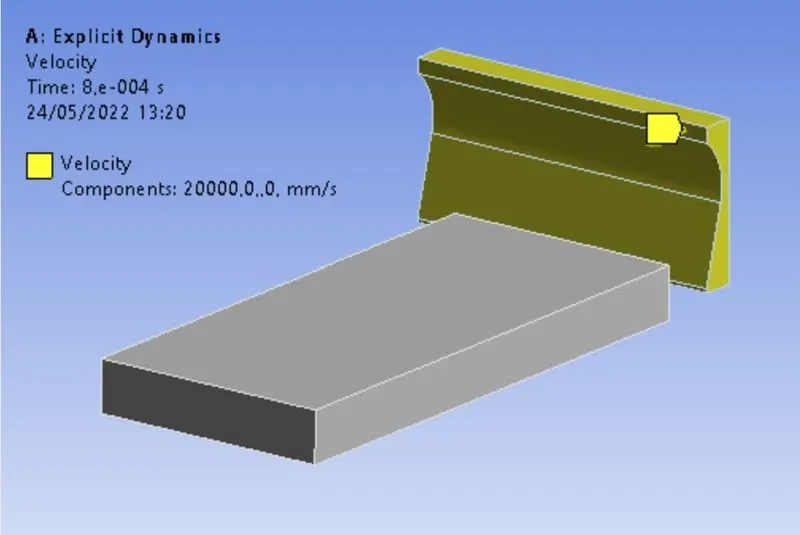

iii. Velocity:

Case 1 Case 2

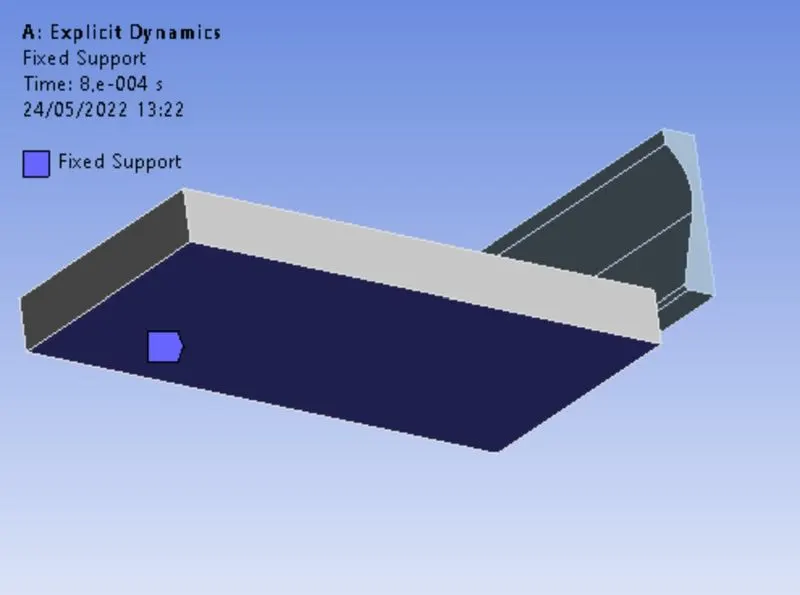

iii. Fixed support:

4. Solutions:

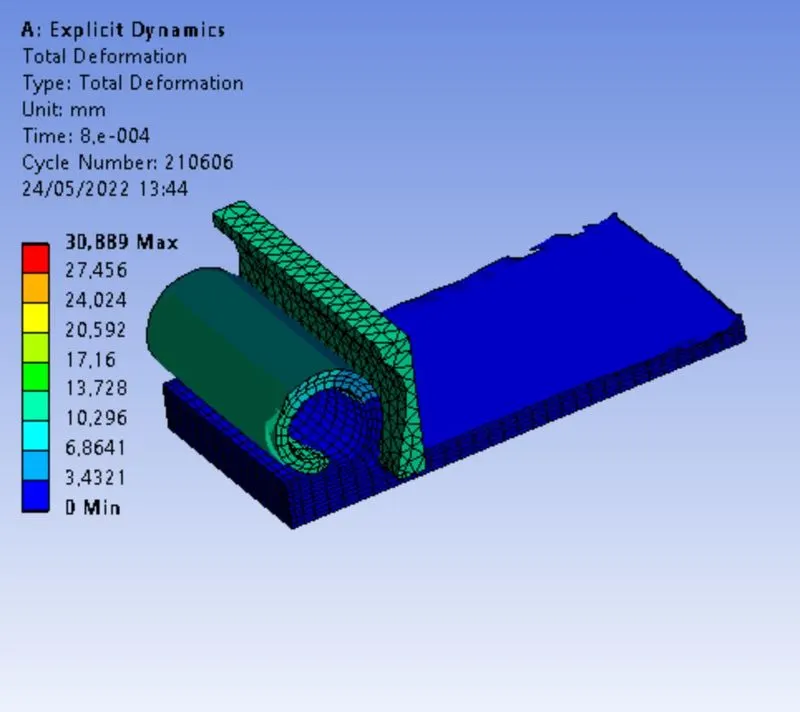

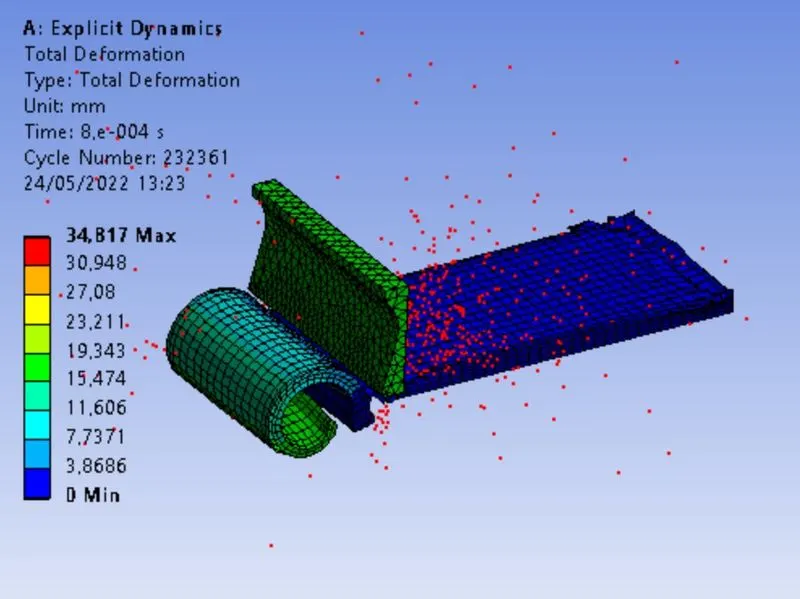

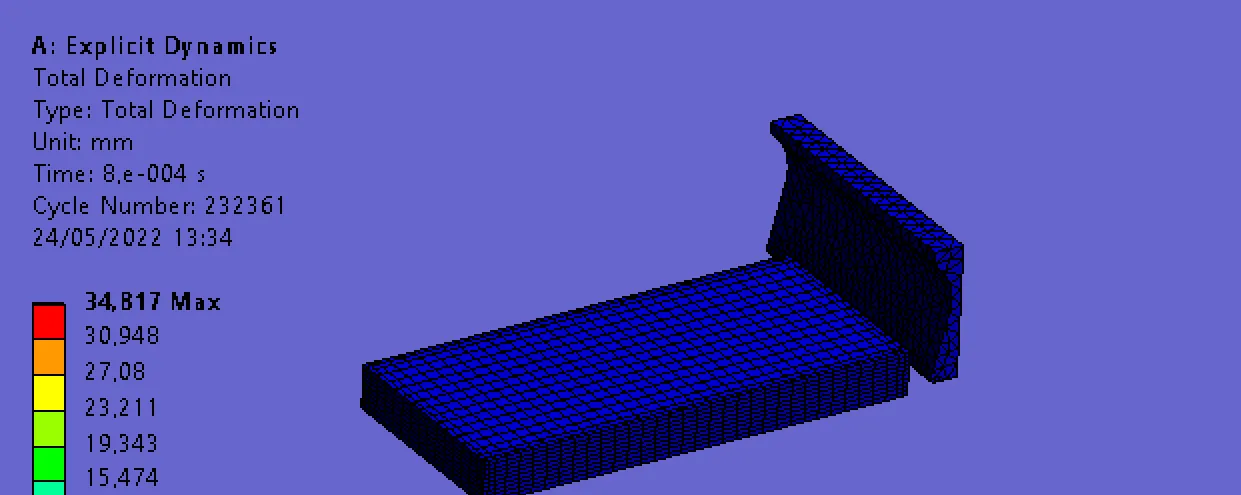

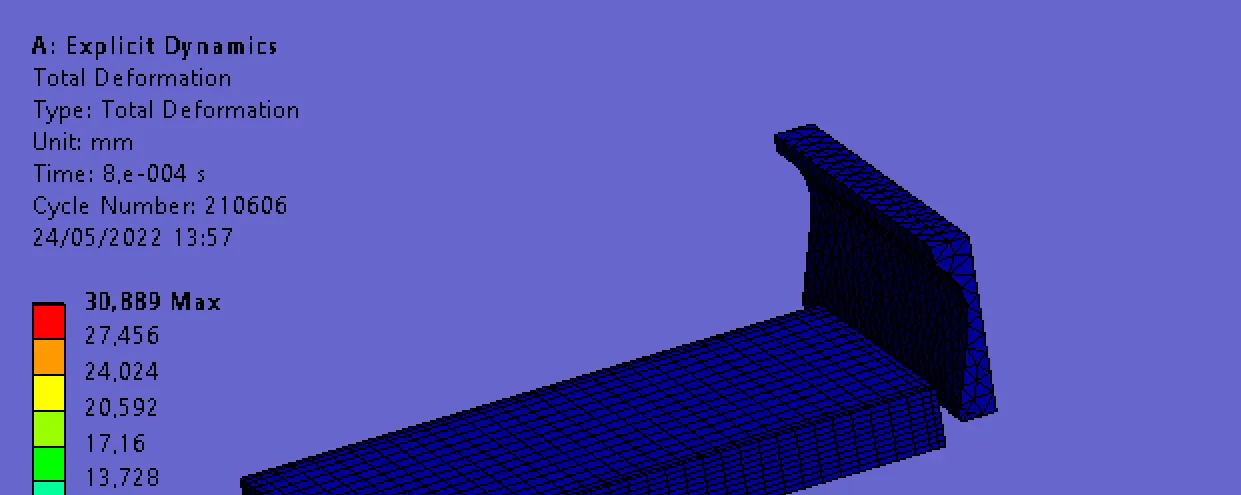

i. Total Deformation:

Case 1 Case 2

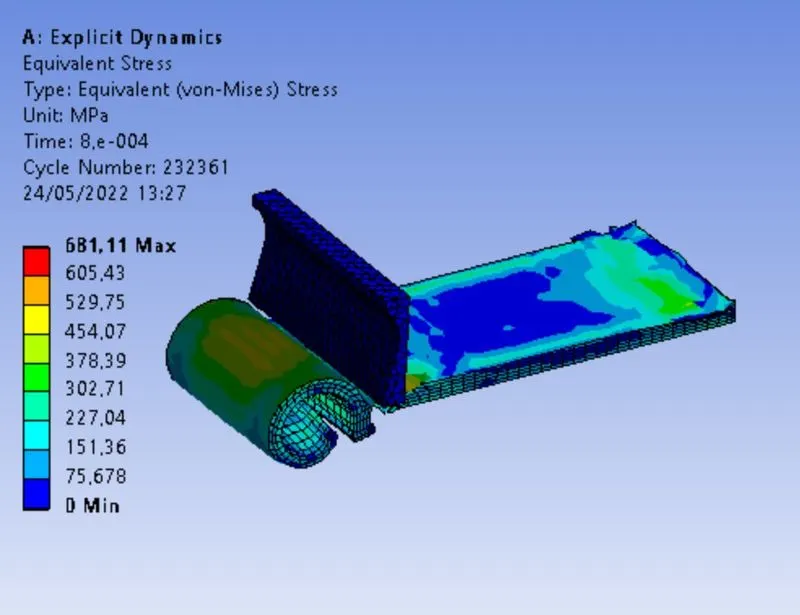

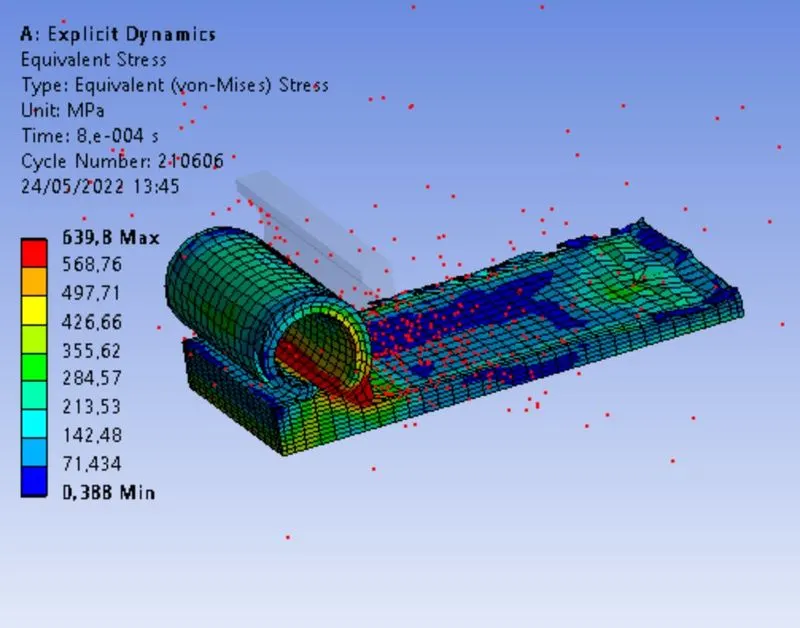

ii. Equivalent Stress:

Case 1 Case 2

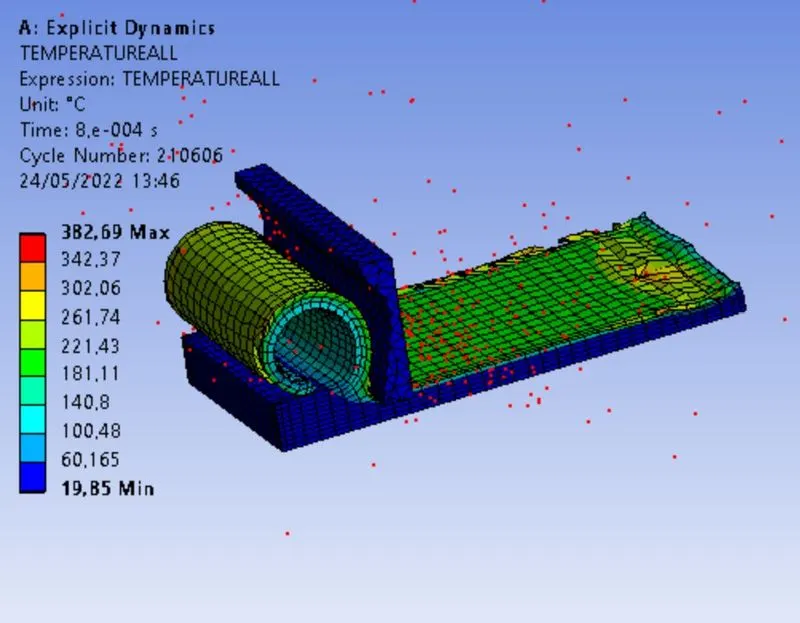

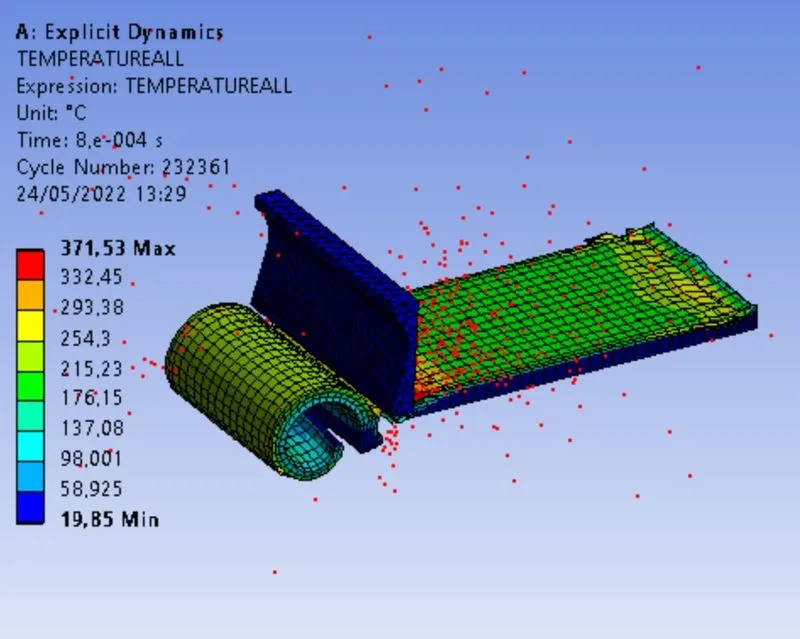

iii. Temperature:

Case 1 Case 2

5. Result:

	Total Deformation (mm)	Equivalent Stress (MPa)	Temperature (°C)
Case 1	34.817	681.11	371.53
Case 2	30.889	639.8	382.69

The Explicit Dynamic simulation is realized on Planar machining. It is observed that the Velocity had a linear Relationship with Deformation And Stress. However, the values aren't accurate as further grid dependency test and other iteration should be performed for concluding on the relation obtained.
