Week 9-Creation of 1D Connectors Challenge

AIM:

To mesh the given geometry component. Provided below are the quality parameters that need to have to follow.

Target Element size - 5 Units

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	8 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	30
10	Max angle Tria	110
10	Tria %	15

Process

• to do the connectors on component
• mesh all the component on mid surface by
• 2D> Automesh >select the componet (surface)> mesh
• for the connectors as per given parameters
• 2D>connectors> select the type of connector you want

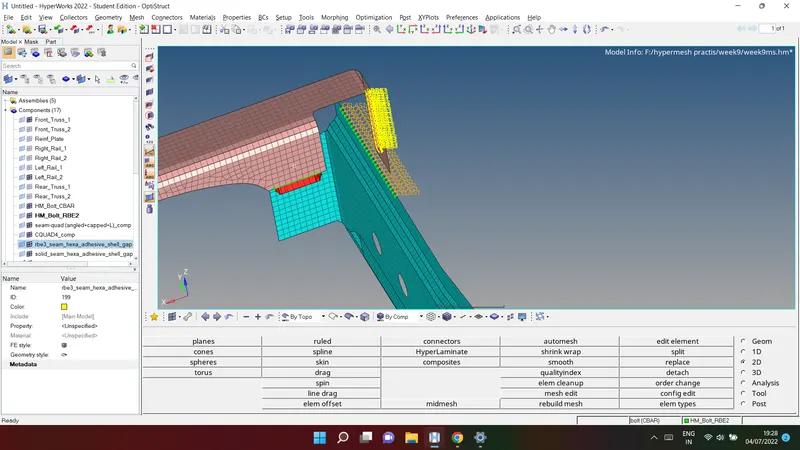

1. Right_Rail_2 & Front_truss_1:- Seam-Quad(angled+capped+L)

2. Left_Rail_2 & Front_truss_1:- Quad elements

3. Front_truss_2, Front_truss_1 & Right_Rail_1:- Spot weld with 2 Layers and 5 mm Diameter

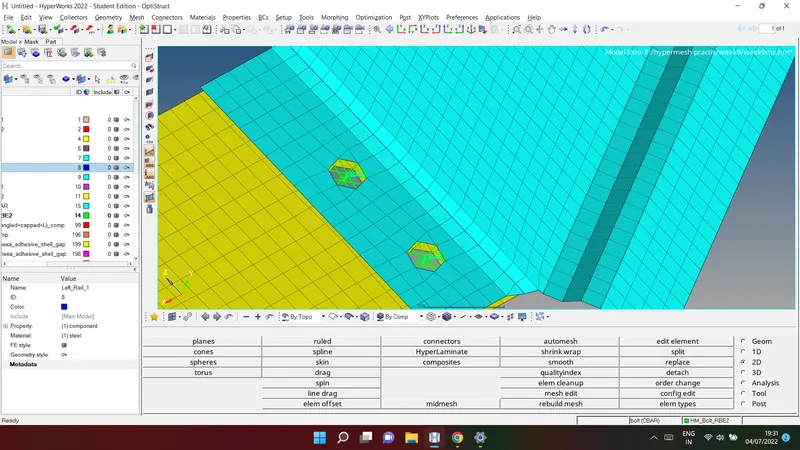

4. Front_truss_2, Front_truss_1 & Left_Rail_1:- Hexa (Adhesive)

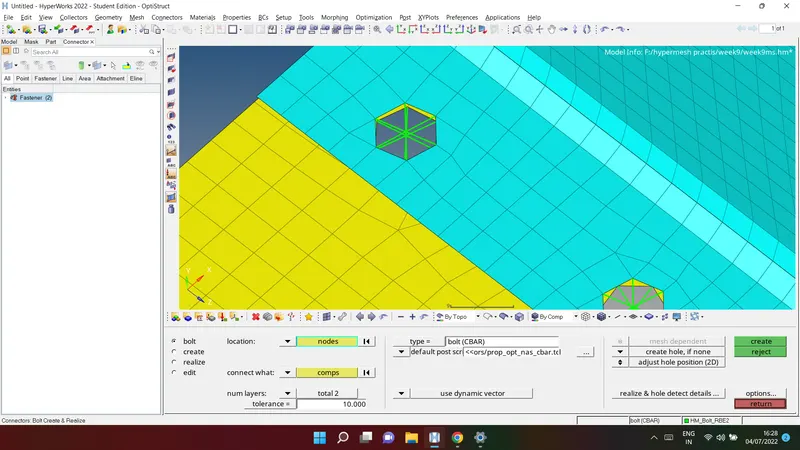

5. Rear_truss_2 & Right_Rail_2:- Bolt Connector

6. Rear_truss_2 & Left_Rail_2:- Bolt Connector

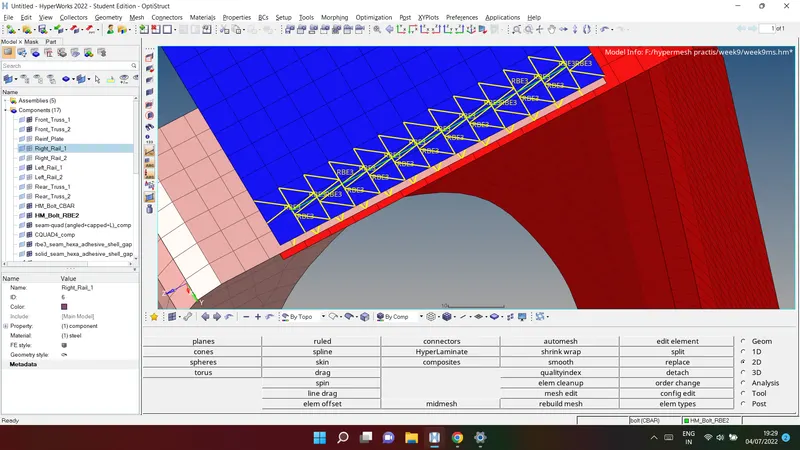

7. Right_Rail_1 & Right_Rail_2:- Spot-weld with Rigid Elements

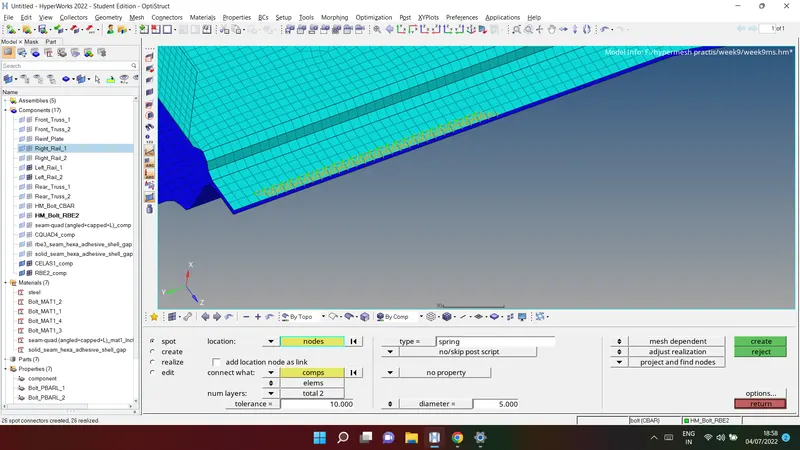

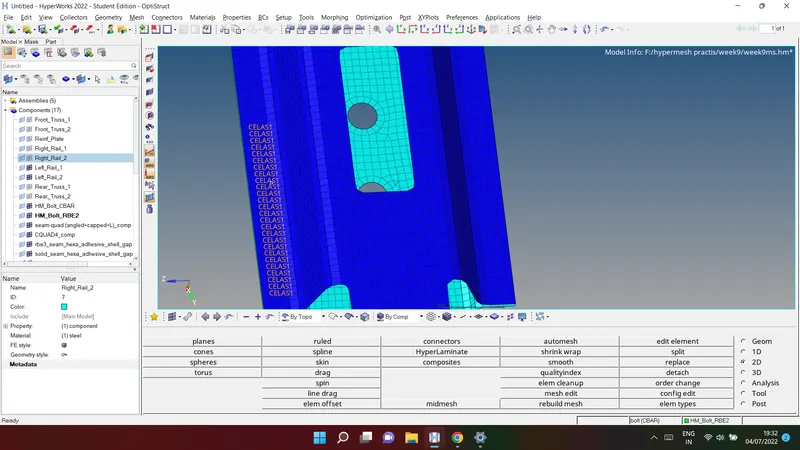

8. Left_Rail_1 & Left_Rail_2:- Spot-weld with Spring Elements

9. Rest all the component left Join them with suitable connectors

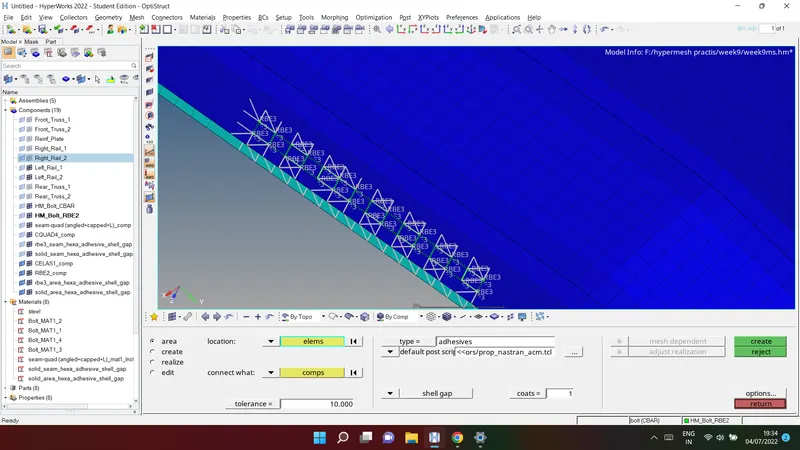

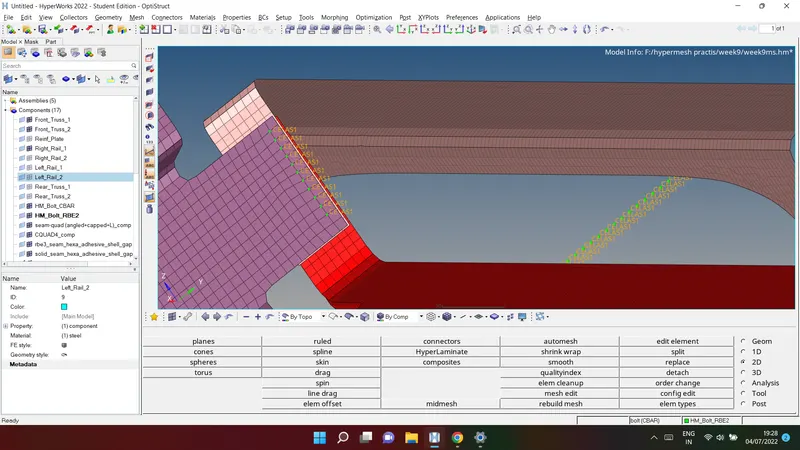

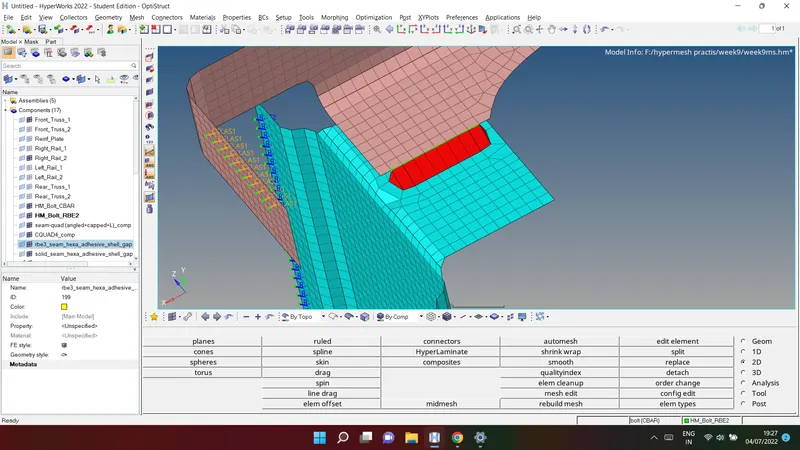

Area connection

Here i have attached .hm file for further reference by name of week9ms
