Week 9-Creation of 1D Connectors Challenge

AIM: To mesh the given model by satisfying given quality criteria and deploy connections in the given manner.

Procedure:

• the given model has eight different components, cleanup the components and meshed them with target length of 5mm.
•
• Connectors are the one which connect two or more components.
• there are varous kinds of connectors namely, Bolt, Spot weld, Seam weld. and they too have many types in them internally.
• the various types deployed are shown below:

Results:

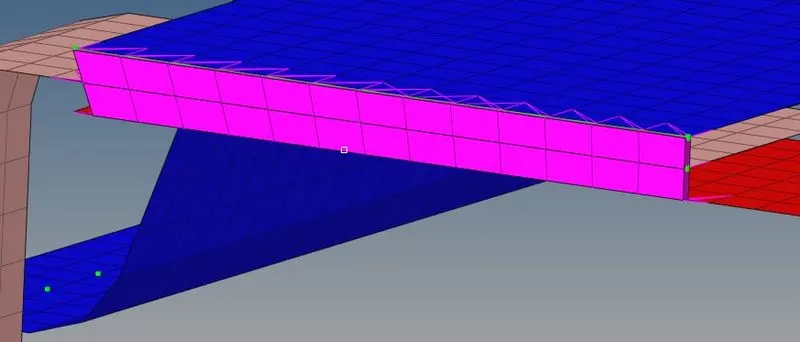

Seam-Quad(angled+capped+L):

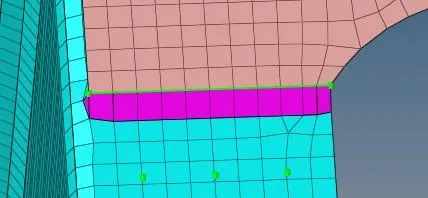

Quad elements:

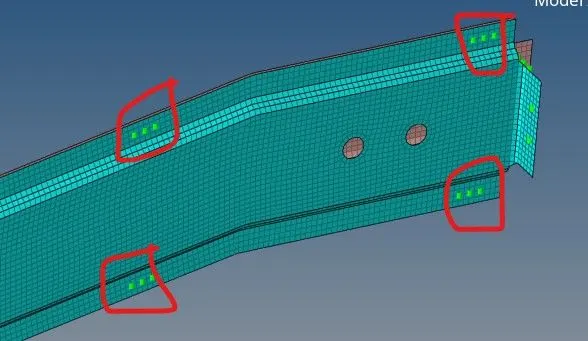

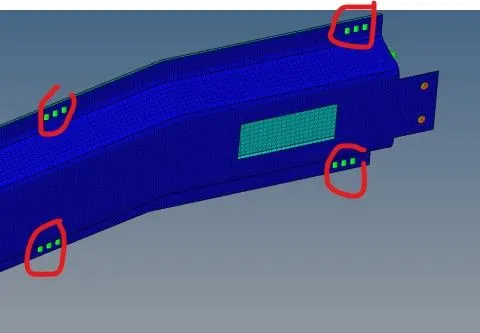

Spot weld with 2 Layers and 5 mm Diameter:

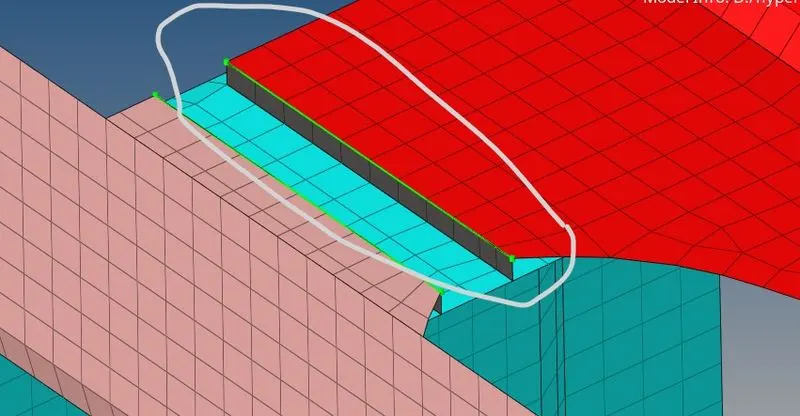

Hexa (Adhesive):

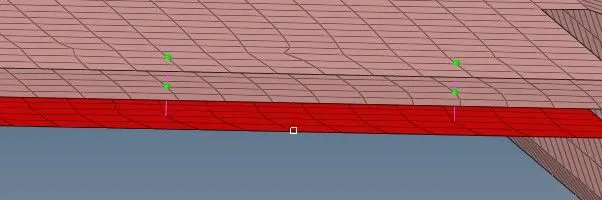

Bolt Connector:

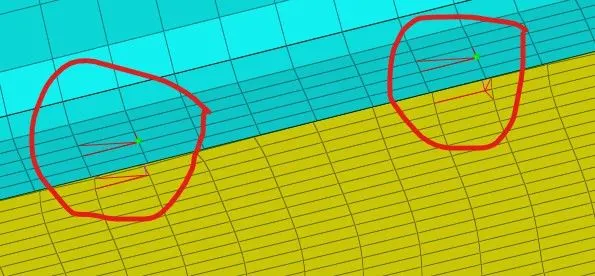

Spot-weld with Rigid Elements:

Spot-weld with Spring Elements:

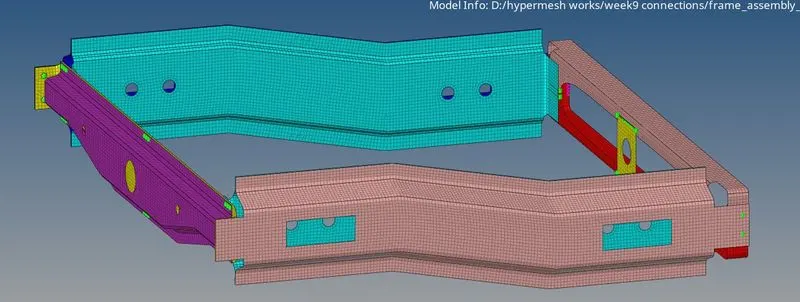

Final model:

•

Conclusion: All the given connections are deployed successfully for the frame assembly.
