Week 9 - Creating connection for Rear door

Aim: Connections to be set up for the front door by using different 1D elements.

Procedure:

• Different PID's are set up initially to different components as shown in the figure.
• Based on the application either spotweld, spot line, bolt connections are to segments over the entire part.

Learning Outcomes:

• Learned about BRE2, RBE3 elements
• Learned how to create a bolt joint
• Learned how to cbush rbe3 connection to window using spot line
• Learned how to give spotweld joint

Conclusion: I have learnt how to give different connection between the components based on the application

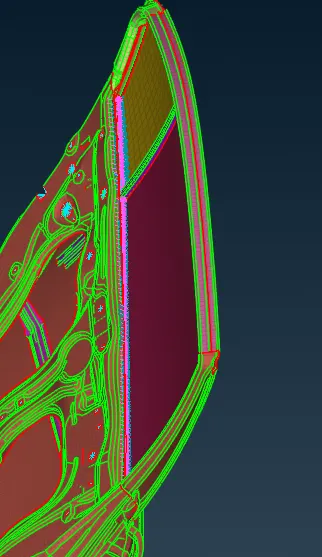

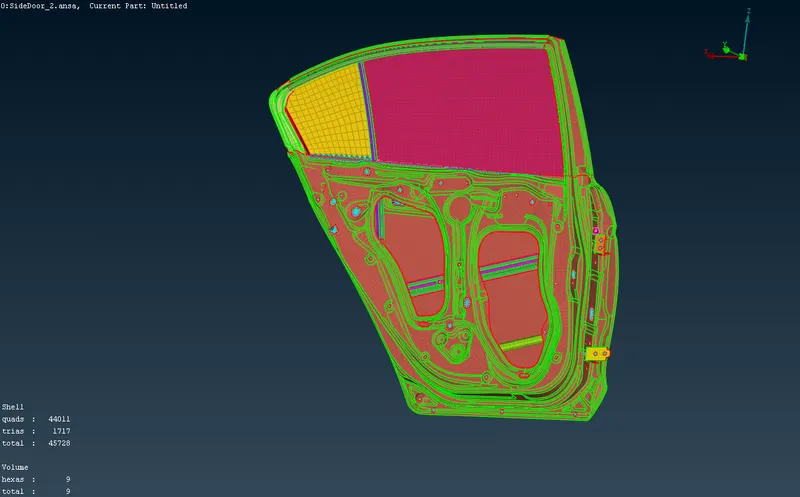

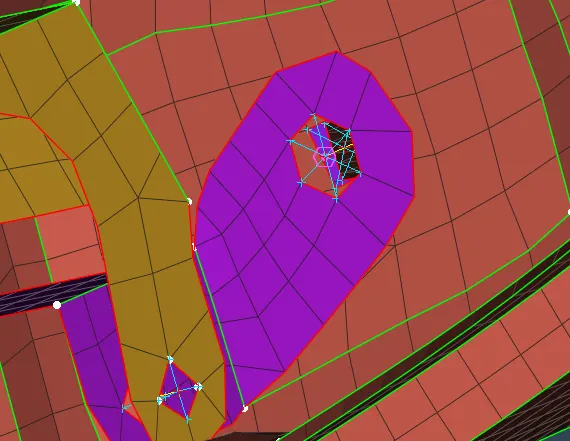

Photos:
