Week 9 Challenge

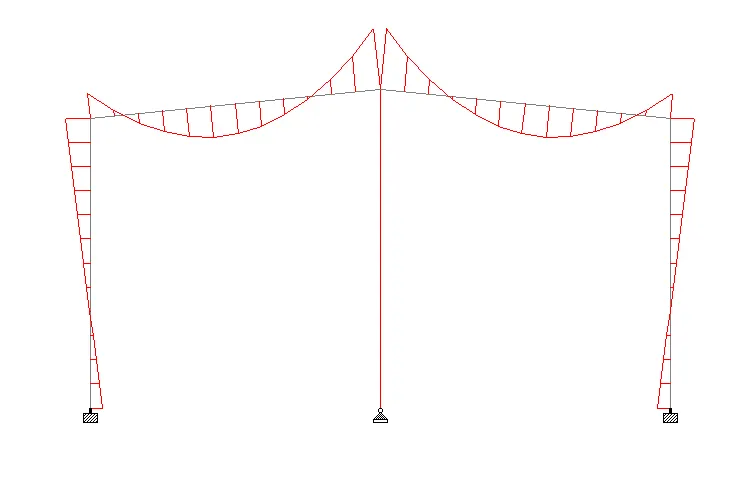

Question 2 Figure 1 : Bending moment diagram

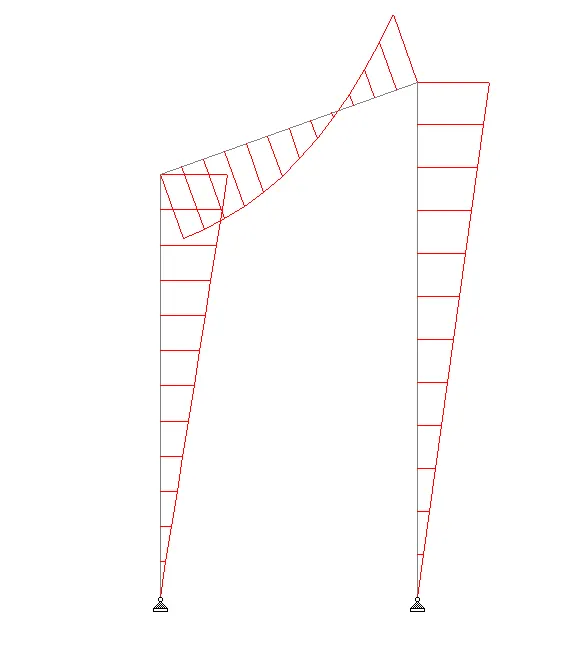

Question 2 Figure 2 : Bending Moment Diagram

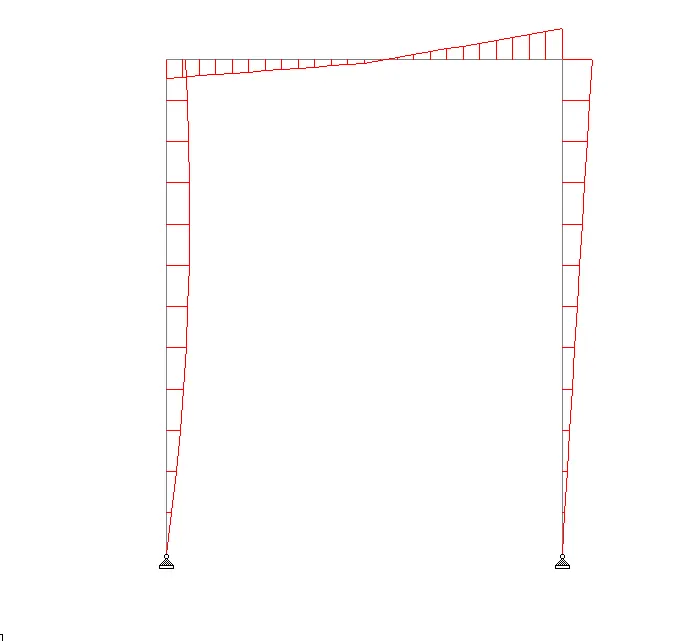

Question 2 Figure 3 : Bending Moment Diagram

Question 3.1 :

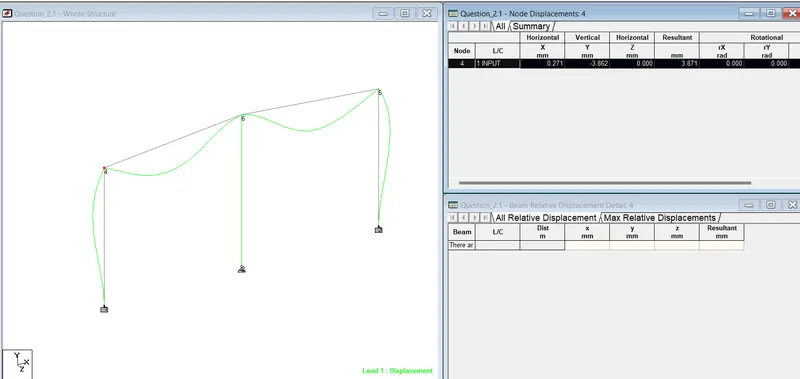

Lateral deflection at A is 0.271mm

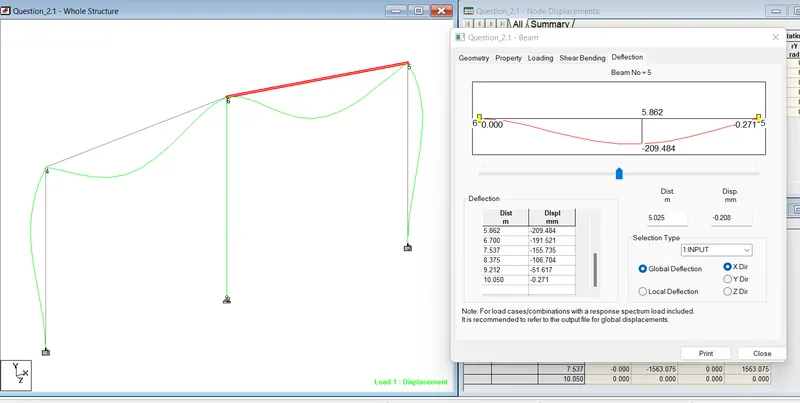

Vertical deflection at mid point of B and C is 0.208 mm

Question 3.2 :

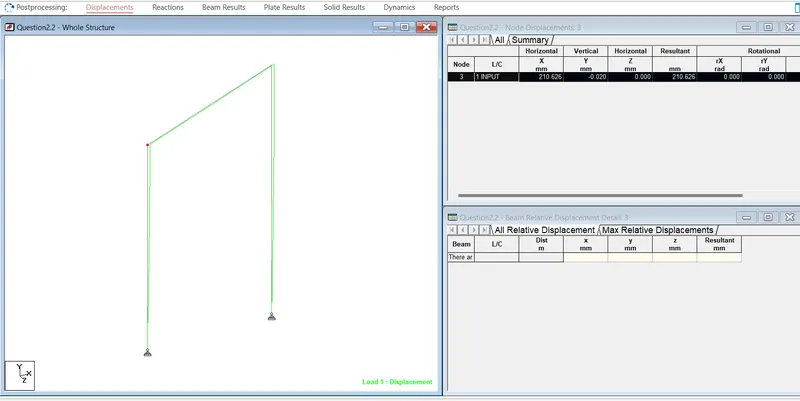

Lateral Deflection at point A is 210.62 mm

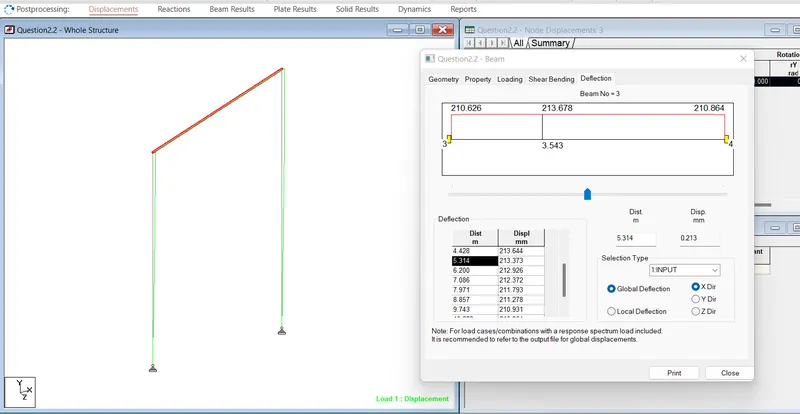

Deflection at midpoint of A and B is 0.213 mm

Question 3.3 :

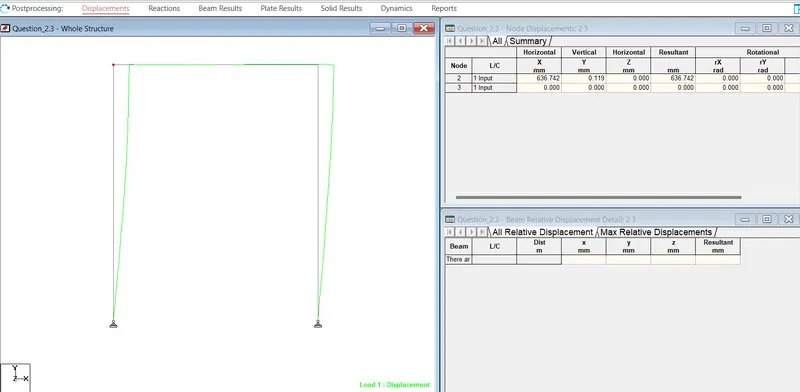

Lateral Deflection at point A is 636.742 mm

Lateral Deflection at point B is 0 mm
