Week 9 - Challenge 3 - Bumper

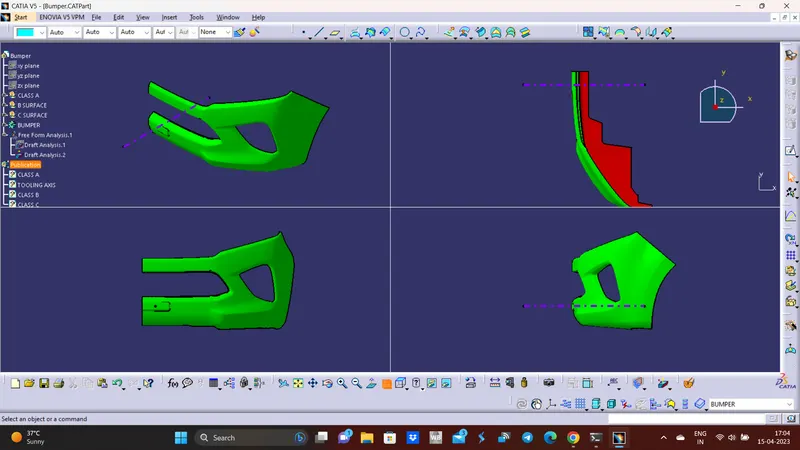

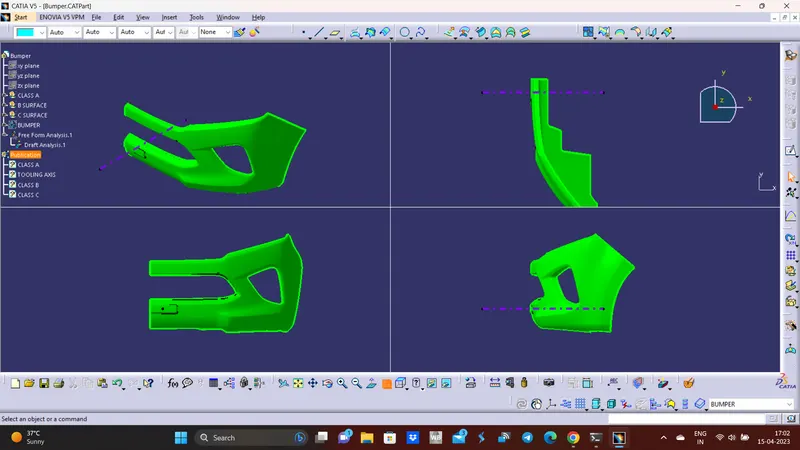

DRAFT ANALYSIS:

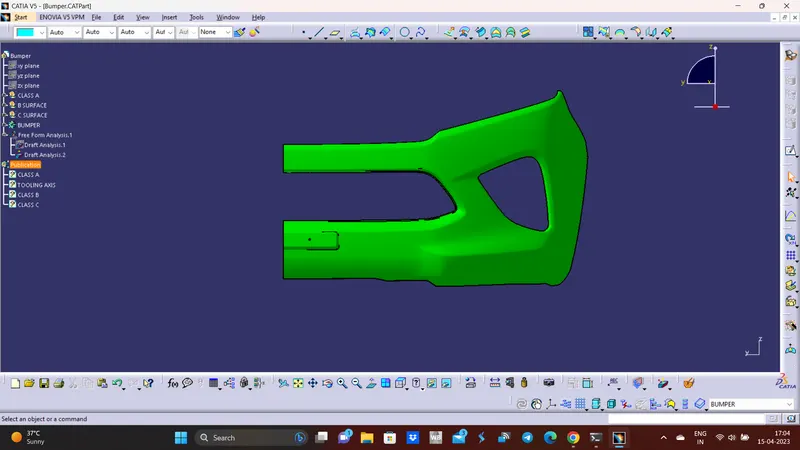

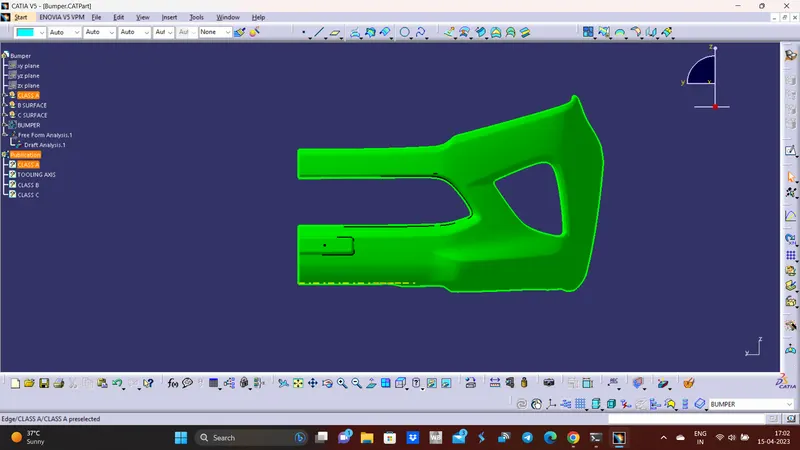

CLASS A

FINAL PLASTIC COMPONENT

TOOLING AXIS CREATION

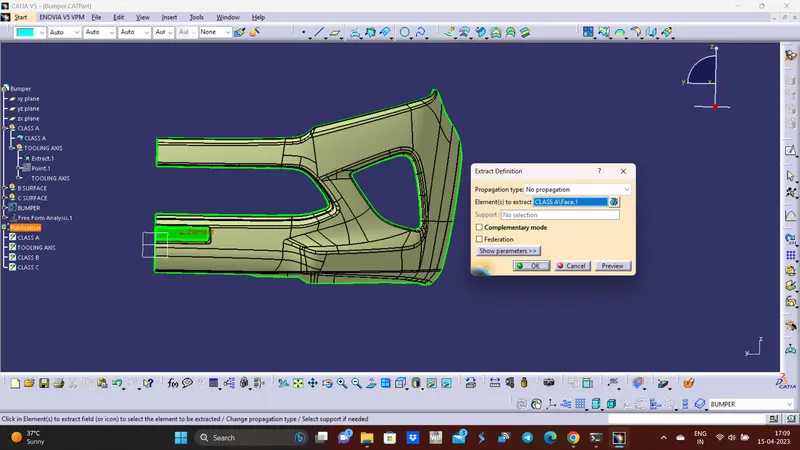

1. The class A surface was checked in all the views and the yz plane was convenient. So, a face on the yz plane was extracted.

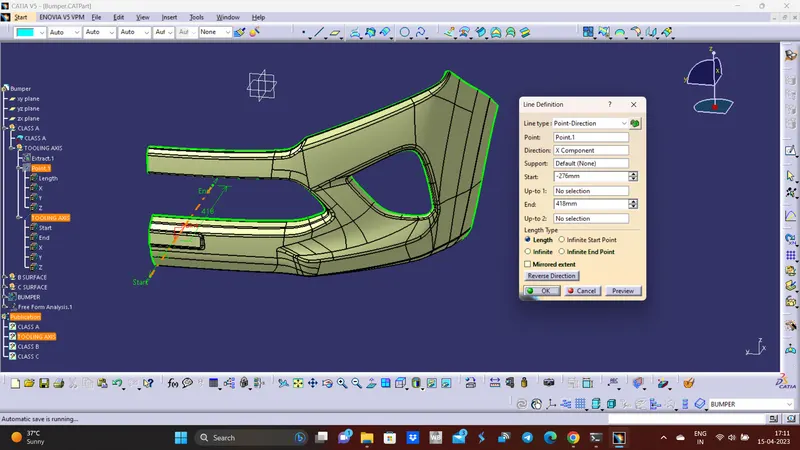

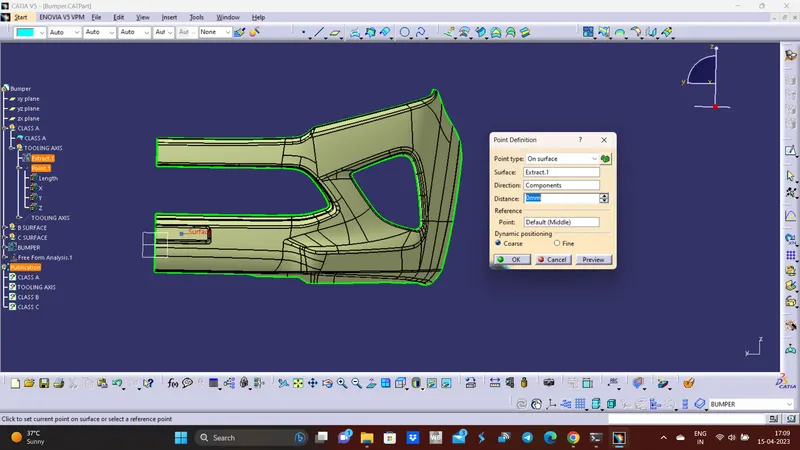

2. A point was created on the surface and a line was created on the point in the X direction. That is our tooling axis.
