Week 9 - Challenge 3 - Bumper
LOTS CONFUSION IN LIVE SESSIONS SO I COULD'NT ABLE SOLVE MY DOUBTS WHICH MAY BE THE REASON FOR MY LATE SUBMISSION. I COULDN'T ABLE TO CATCH WHAT THE MENTOR SAYS IN LIVE SESSIONS. I DIDN'T SAY THIS IS BECAUSE OF MENTORS BECAUSE THEY HAVE TO CLEAR ALL THE DOUBTS OF EVERY PERSON WITHIN THE ALLOWED 1 HOUR RIGHT? IT IS DIFFICULT FOR THEM ALSO. SO, KINDLY BRING BACK THE INDIVIDUAL SESSIONS.
REPORT:

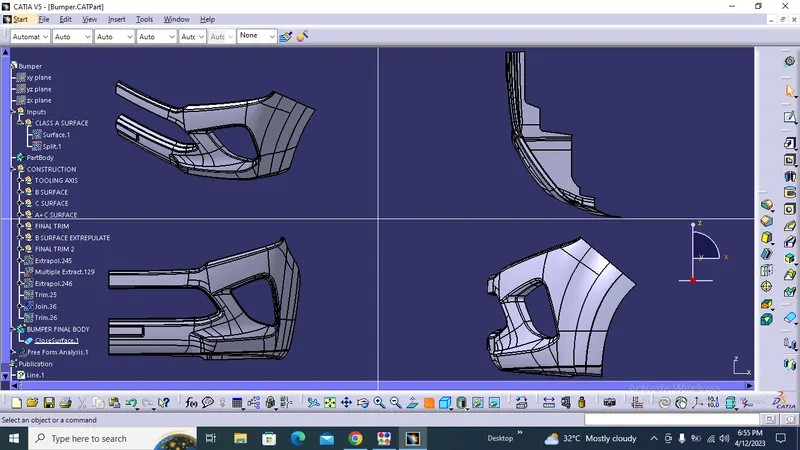

- TO CREATE A TOOLING AXIS, SELECT THE FLATE PLANE AND CREATE A POINT OVER THE MIDDLE OF THE SURFACE AND CREATE A LINE ON THE PINT AND FIX IT AS A TOOLING AXIS.
- FIRSTLY, B SURFACE TO BE CREATED WITH 3mm OFSET AND SOME FILLETS WILL BE DELETED AND IT SHOULD BE FILLED BY MAKING IT INTO TWO SURFACE USING MULTIPLE EXTRACT OR JOIN THE EXTRAPULATE THE BOUNDARIES AND TRIM IT TOGETHER.
- SECONDLY, BY SELECTING THE BOUNDARIES AND SWEEPING THE AREA WHICH IS PERPENDICULAR TO THE AXIS WITH REF TO DRAFT AND SWEEPING THE PARALLEL AREA WITH REF TO SURFACE IN 90 DEGREES THEN BY TRIMMING IT CLASS C SURFACE IS CREATED.
- THIRDLY, BY JOINING CLASS A AND CLASS C AND THEN INTERSECTING THEM WITH B SURFACE AND THE OPEN BOUNDARY SHOULD BE EXRAPULATED ON THE B SURFACE.
- FINALLY, TRIMMING A+C AND B IN THE CLOSED BODY IS GETTABLE.
- THEN USING A CLOSE SURFACE IN PART BODY THE SURFACE WILL BE CONVERTED AS SOLID.
