Week 9 - Challenge 2 - Switch Bezel Design

• CREATED A TOOLING AXIS BY INTERSECTING THE CLASS A SURFACE YZ & ZX PLANE. SINCE WE HAVE ONLY 3 SIDES SO WE HAVE TO CREATE AN IMAGINARY LINE ON THE ZX PLANE AND CREATE A BISECTING LINE IN YZ PLANE THEN USING BISECTING LINE BISECT THE TWO SKETCHES AND THUS THE TOOLING AXIS HAS BEEN CREATED.
• SECONDLY CLASS B SURFACE SHOULD BE CREATED BY EXTRACTING BEZEL REST, WALLS AND BASE. THEN WE SHOULD USE UNTRIM AND THEN EXTRAPULATE THE UNTRIMED SURFACE. AND USE TRIM COMMAND TO GET CLASS B SURFACE.
• THIREDLY CLASS C SURFACE, USING MULTIPLE EXTRACT THE BOUNDRY IS CREATED AND THEN SMOOTH CURVE COMMAND(CURVATURE) IS USED IN THAT BOUNDRY. THEN SWEEP COMMAND IS USED THEN EXTRAPULATED THE EDGES TO TRIM AND JOIN CLASS C SURFACE.
• FOURTHLY, CLASS A AND CLASS C IS JOINED AND TRIMMED WITH CLASS B SURCAFE TO GET FINAL BODY.THEN EXTRUDED IT WITH CLOSED SURFACE COMMAND.

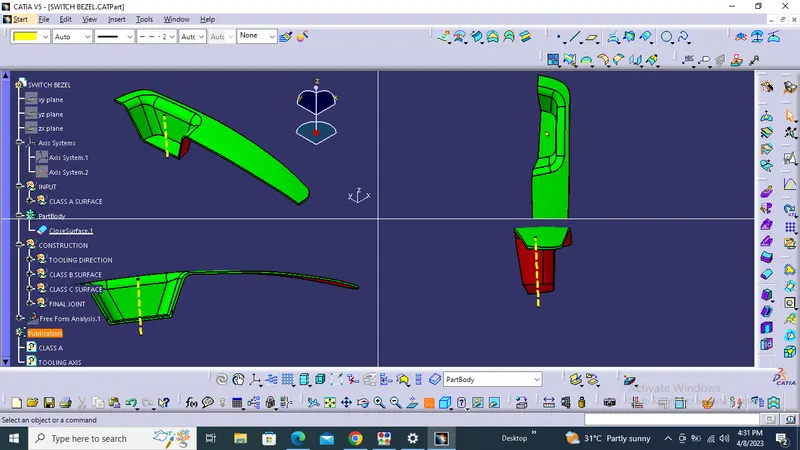

• FINALLY THE DRAFT ANALYSIS IS DONE WITH THE INITIALLY CREATED TOOLING AXIS. AND GIVEN MINIMUM 3 DEGREE DRAFT ANGLE.

IN LAST CHALLENGE I HAVENT SEEN THE DETAILED REPORT PART SO IVE SUBMITTED THE CHALLENGE WITHOUT WRITING REPORT.

I DONT KNOW HOW TO WRITE REPORT BUT I HAVE TRIED IT.

KINLDY MENTION HOW TO WRITE REPORT IN COMMENT SECTION SO THAT I CAN LEARN.
