Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

REPORT:

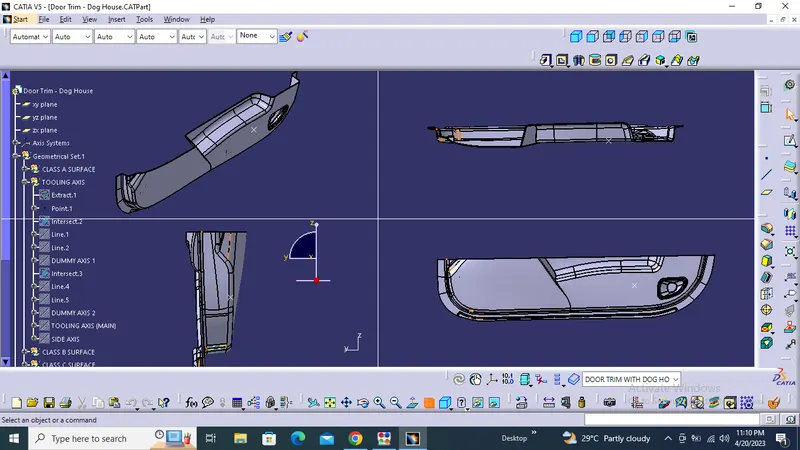

• TO CREATE A TOOLING AXIS, SELECT THE FLATE PLANE AND CREATE A POINT OVER THE SURFACE MIDDLE AND CREATE A LINE ON THE POINT AND FIX IT AS A DUMMY TOOLING AXIS.
• THEN INTERSECT CLASS A AND DRAW TWO LINES AT THE CRITICAL TOOLING SIDES AND BISECT THE TWO LINES AND CREATE THE MAIN TOOLING AXIS.
• THE DRAFT ANALYSIS IS DONE USING THE MAIN TOOLING AXIS.

• FIRSTLY, B SURFACE TO BE CREATED WITH 2.5mm OFSET AND SOME FILLETS WILL BE DELETED AND IT IS FILLED WITH MULTIPLE EXTRACTS AND MAKE IT AS TWO SURAFAE FOR EACH GAP AND CREATE A BOUNDARY AND EXTRAPULATE IT AND TRIM IT.
• FILLETS ARE TO BE GIVEN AT THE EDGES.

• SECONDLY, BY SELECTING THE BOUNDARIES OF THE A SURFACE AND SWEEPING THE AREA WHICH IS PERPENDICULAR TO THE AXIS WITH REF TO DRAFT.

• THIRDLY, BY JOINING CLASS A AND CLASS C AND THEN INTERSECTING THOSE WITH B SURFACE AND THE OPEN BOUNDARY SHOULD BE EXRAPULATED ON THE B SURFACE.

• FINALLY, TRIMMING A+C AND B IN THE CLOSED BODY IS GETTABLE.
• THEN USING A CLOSE SURFACE IN PART BODY THE SURFACE WILL BE CONVERTED AS SOLID.
• THE SIFE CORE AXIS IS CREATED WITH THE POINT USED FOR THE MAIN TOOLING AXIS IN X DIRECTION. THIS SIDE AXIS IS USED FOR ALL THE DRAFTS INSIDE THE DOG HOUSE.
• THEN THE DOG HOUSE IS CREATED BY CREATING A PLANE AND SKETCHING A SQUARE OVER IT AND PAD THEN A SHELL IS USED WITH A 2 MM THICKNESS. AND DRAFT IF GIVEN AT OUTER SURFACE FOR 1.5DEREE AND INNER WITH 0.5 DEGREE THEN FILLET IT.
• AND THE C IS CREATED BY OFSETING PLANE AND DRAWING A LINE AND EXRUDING AND THE INNER SURFACE OF THE DOG HOUSE IS OFFSET FOR AND TRIMMED IT.
• AND IN PART DESIGN IT IS CUT AND THE FINAL DOG HOUSE IS TRANSLATED TO THE ANOTHER POINT USING POINT-TO-POINT.
