Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

REPORT:

TOOLING AXIS:

I CREATED TOOLING AXIS WITH RESPECT TO CREATING A POINT ON THE CLASS A SURFACE.

DRAFT ANALYSIS FOR CLASS A SURFACE:

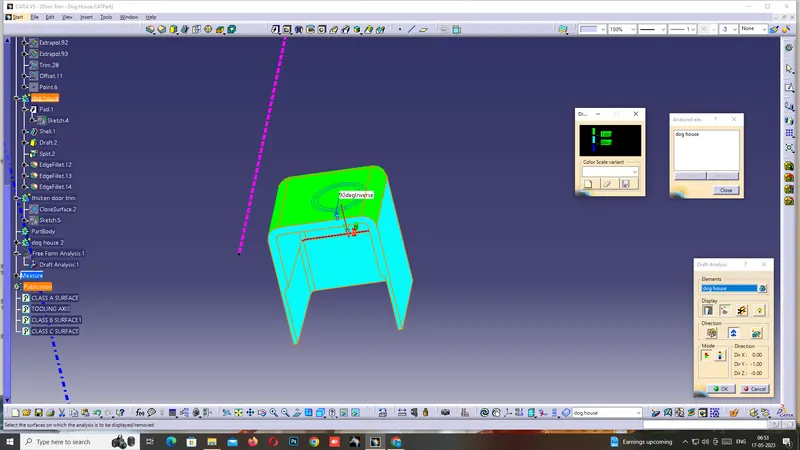

THE DRAFT ANALYSIS IS DONE FOR THE CHECKING OF THE DRAFT ANGLE INSPECTIONS. AND THE DRAFT ANALYSIS HAS BEEN GENERETED WITH THE PRESENCE OF TOOLING AXIS AND COMPASS.

CLASS B SURFACE CREATION:

BY OFFSETTING CLASS A SURFACE BY 3MM AND USING THE JOIN COMMAND I CREATED THE SPACE FOR CREATING NEW PATCH SURFACES.THEN I EXTRAPOLATED THE SOME SURFACES AND TRIM TO GET A CONNECTED SURFACE. THEN I CREATED BOUNDARY AND SPLINES IN THE GAPS. THE I USED MULTI SURFACE COMMAND TO FILL THE BOUDARIES AND SPLINES. AFTER THAT I CREATED RADIUS EDGES USING FILLET COMMANDS. THEN I USED JOIN COMMAND TO JOIN THE PATCHES AND CREATED IT AS A SINGLE SURFACE.

CLASS C SURFACE:

BY CREATING BOUNDARIES IN THE CIRCUMFERENCIAL OUTER SURFACE AND I SWEEPED TO DRAFT DIRECTION. I SWEEPED NORMAL TO REFERENCE FOR SOME BOUNDARIES. THEN I JOINED THE SWEEPS AND CLASS A SURFACE.

THEN USING CLOSED SURFACE COMMAND IN THE PART BODY I CREATED A NEW PART BODY.

DOG HOUSE:

I CREATED A POINT IN THE CLASS A SURFACE AND THROUGH THAT POINT I CREATED A PLANE. IN THAT PLANE I CREATED A NEW SKETCH FOR DOG HOUSE AT REQUIRED DIMENSIONS. THEN I PAD THAT SURFACE AND SHELL IT TO REQUIRED THICKNESS. THEN I DRAFTED THE PART BODY AT AN ANGLE OF 1.5 DEGREES.

THEN EXTRACTED THE THREE INNER SURFACES AND TRIM THEM WITH INNER TOP EXTRACTED SURFACE. THEN I OFFSET THE SURFACE FOR 2.5MM. THEN I SPLIT THE PART BODY WITH THE OFFSET SURFACE.

THEN I KEPT THE DOG HOUSE IN THE DOOR TRIM PART BODY AT REQUIRED AREAS TO GET COMPLETE PART.
