Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

Dear team,

Please find the attached images required and dog house challenge cat part for your reference.

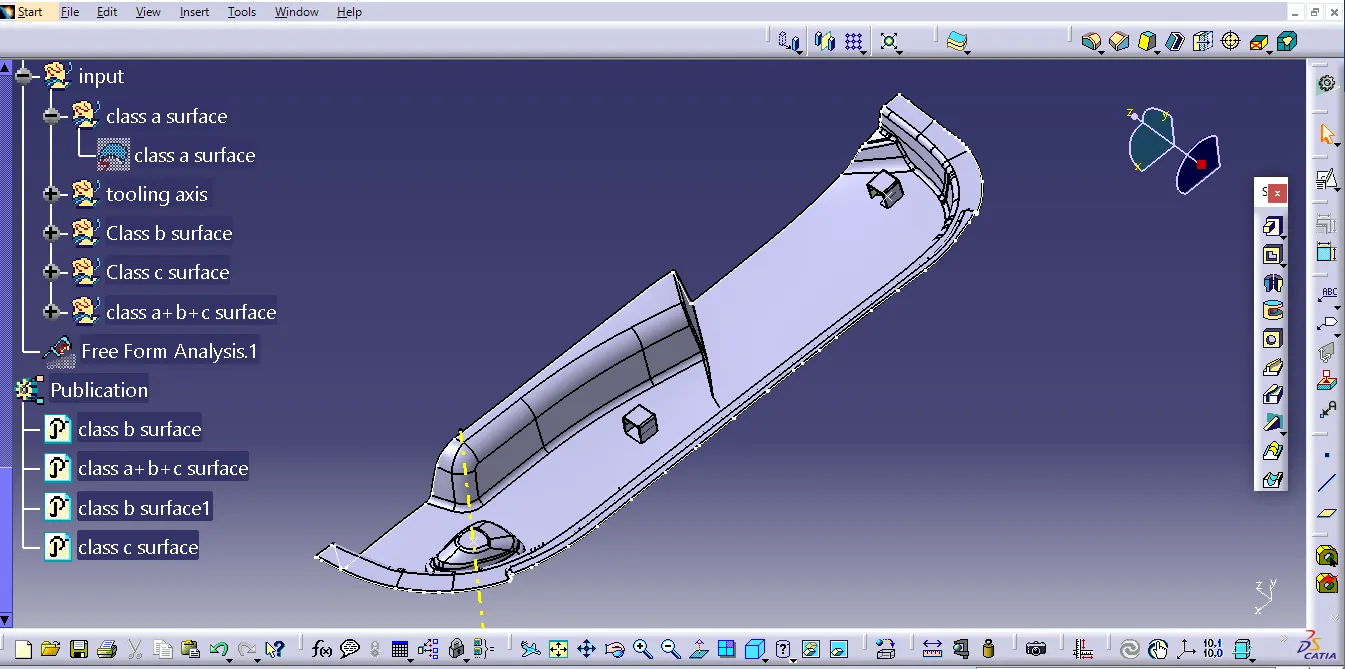

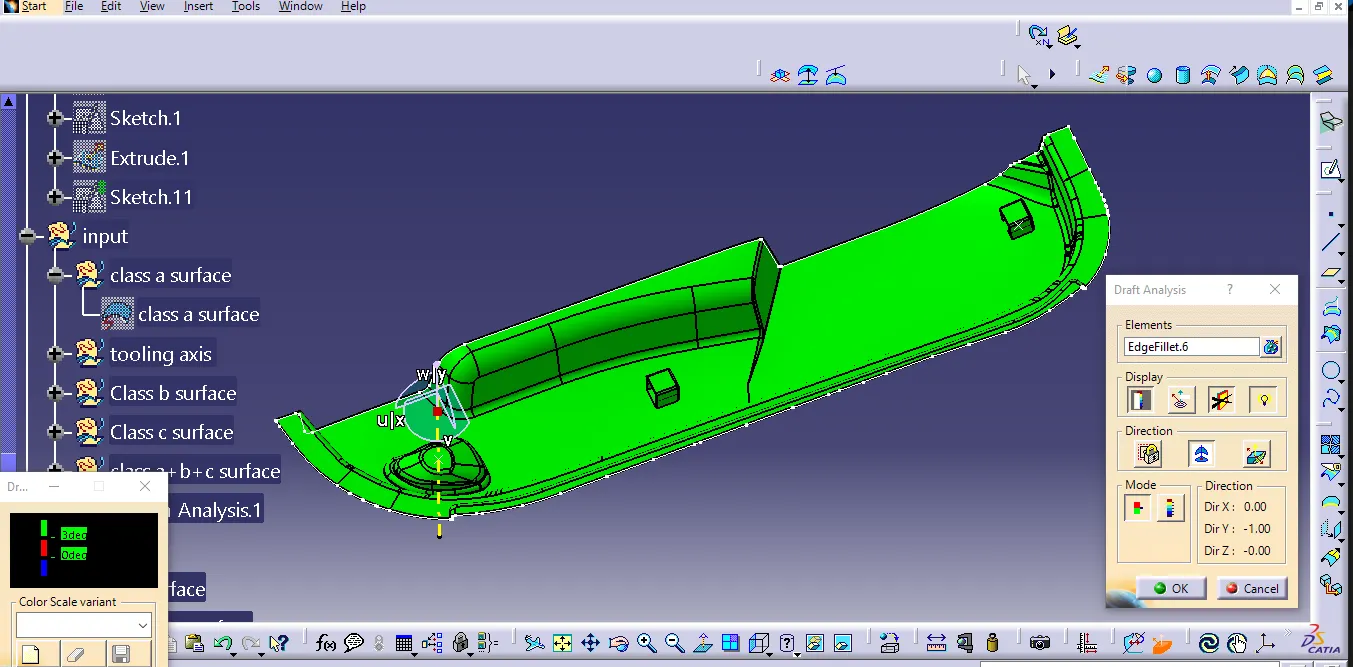

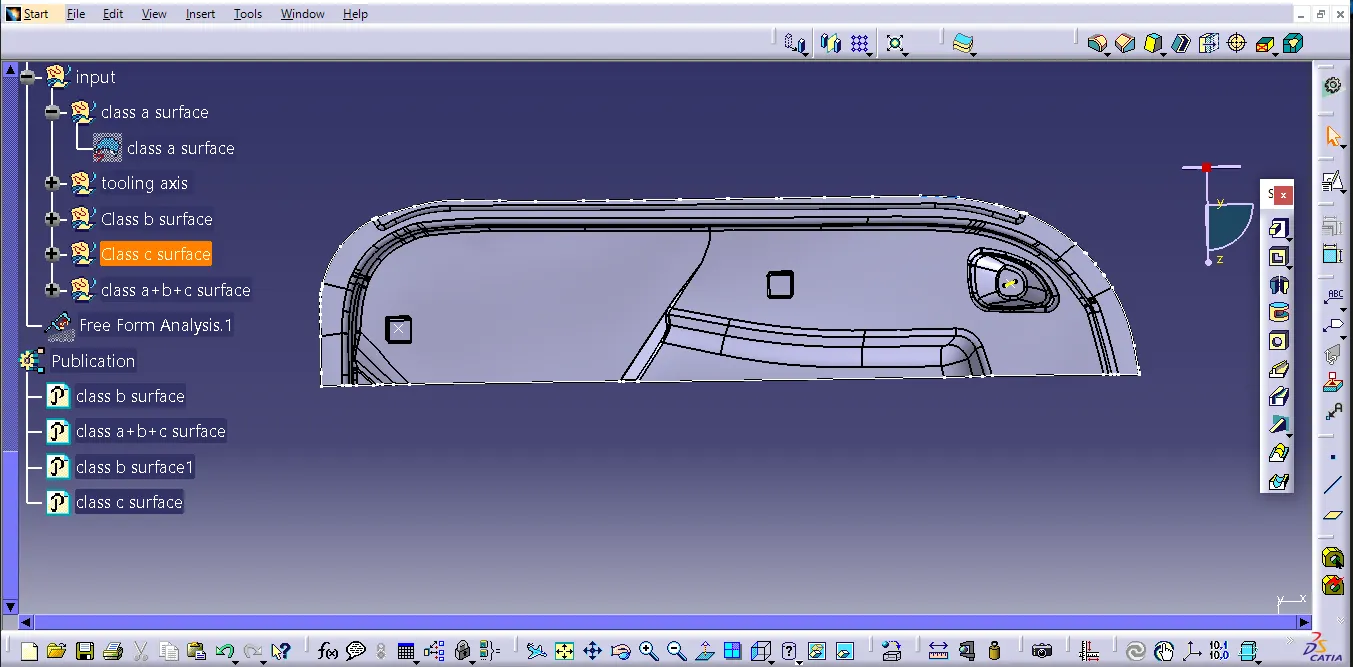

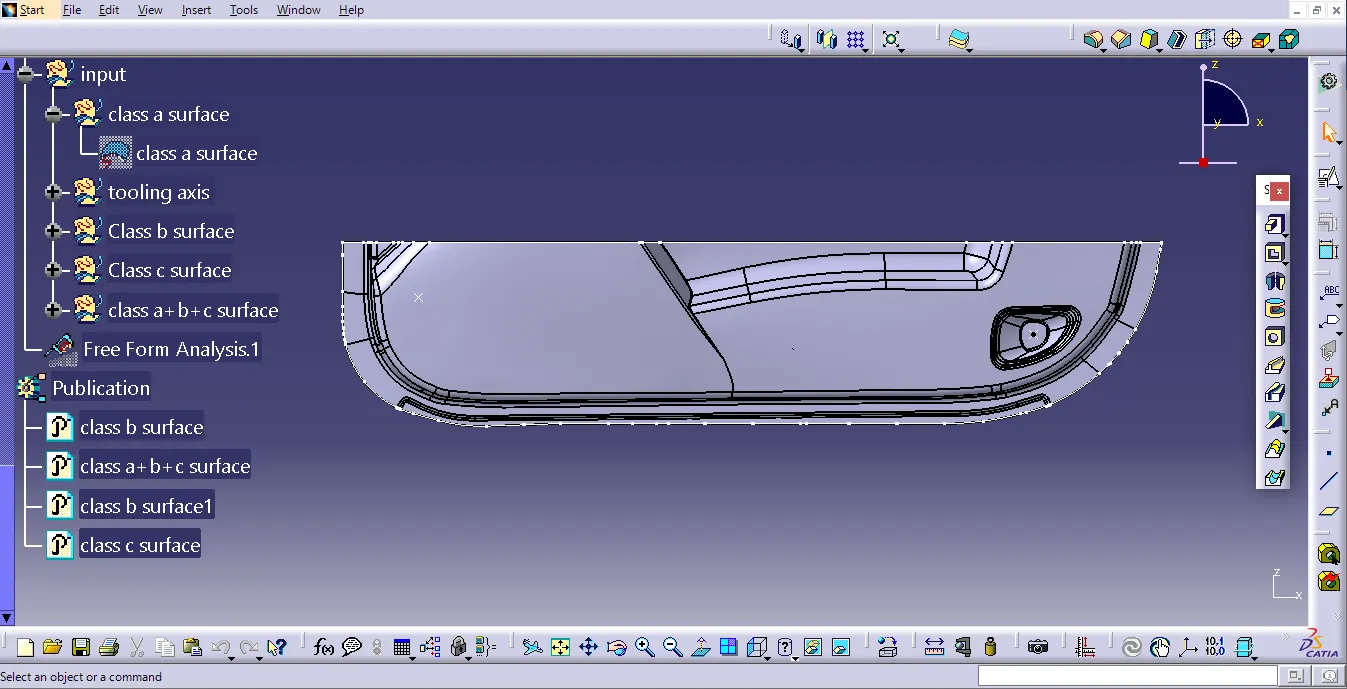

Initially,I created a tooling axis by finding correct axis in axis system.After creating tooling axis ,I done a draft analysis which resulted ok. After that, I made offset for 2.5 mm from given class a surface. In that ofset I closed some patches and make it as a proper Class b surface.After that, I created a sweep by making boundary from class a surface. and joined it with class a surface.then i made final trim with Class a ,b & c surface.and made it as a closed body. after finishing this, I make a 2 positioned sketches in surface of closed body for doghouse. and thickend it to 2mm. Finaly I done a draft analysis which resulted ok and confirms the tooling axis direction is correct.
