Week 9 - Challenge 3 - Bumper

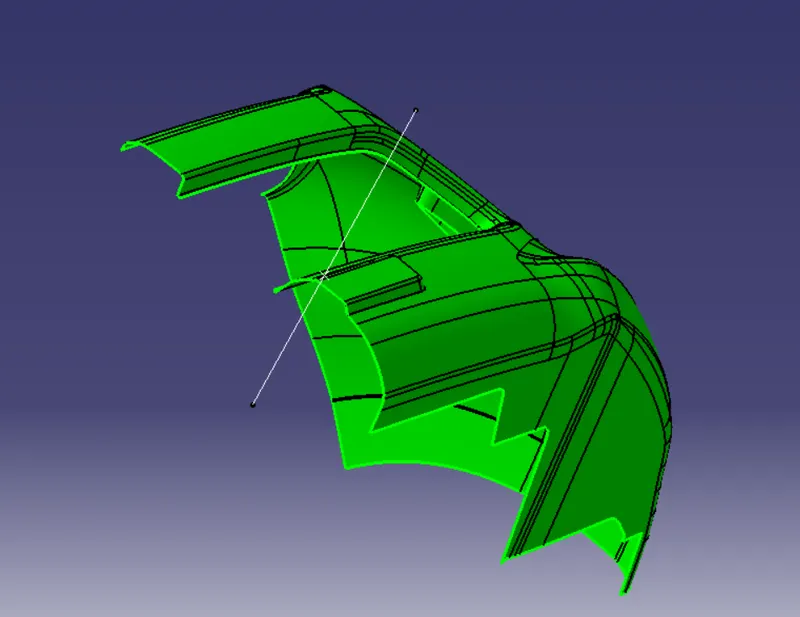

Creating Tooling Axis

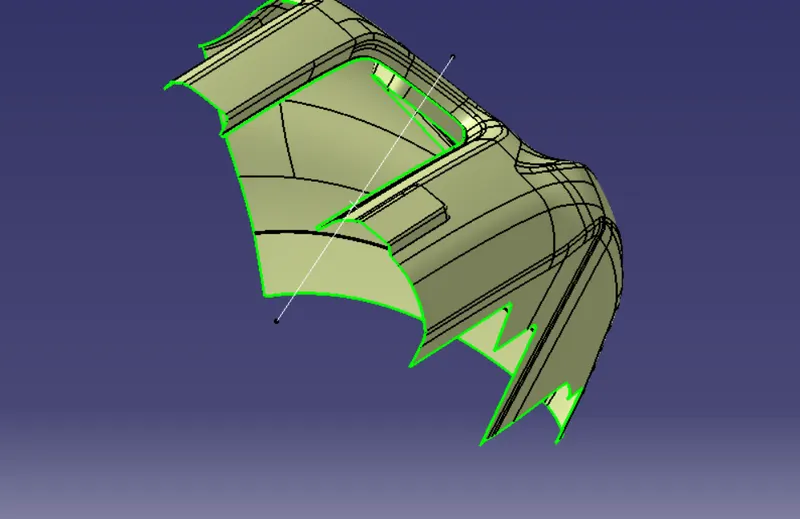

We createde a point and line on that point along X direction

That wiil be the Tooling Axis

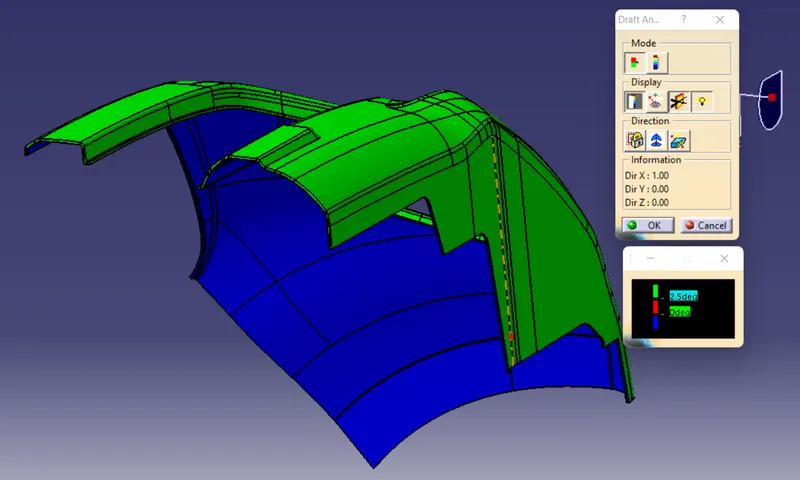

Draft analysis For Class A Surface

Draft Analysis For Final product. We did the draft analysis for 2.5 degree For final product

Also We did the draft analyasis for 2.8 it is good but small area of component get red color.

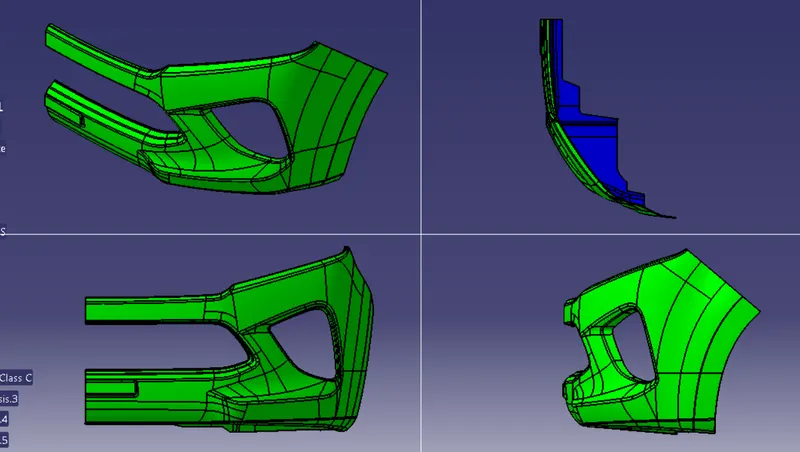

solid model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View)

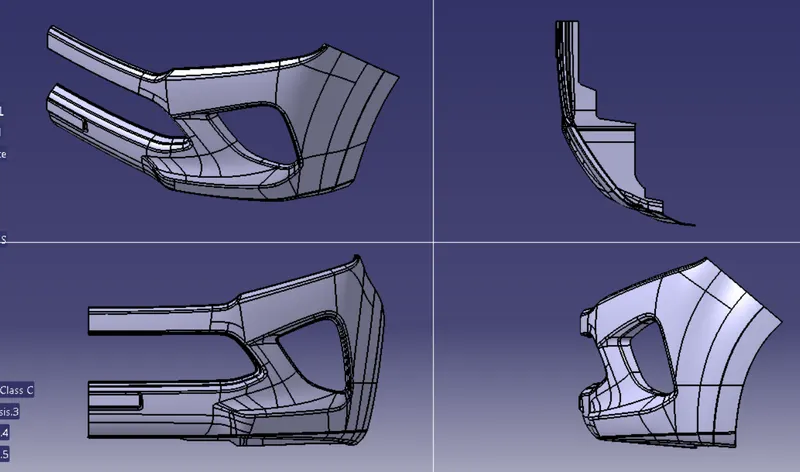

solid model without the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View)
