Week 9 - Challenge 3 - Bumper

Bumper Component :

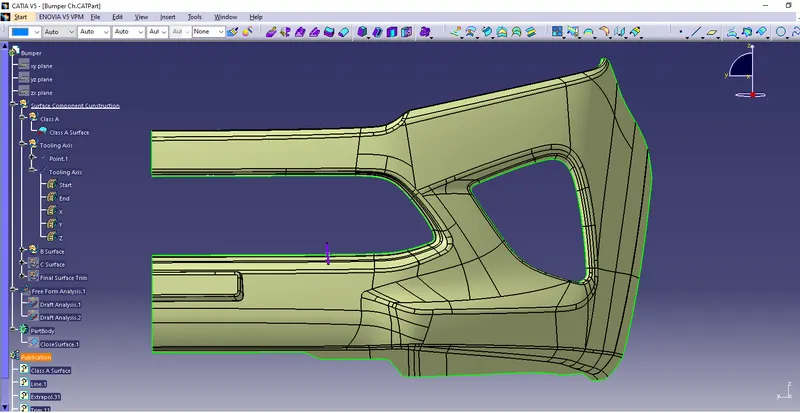

Tooling Axis:

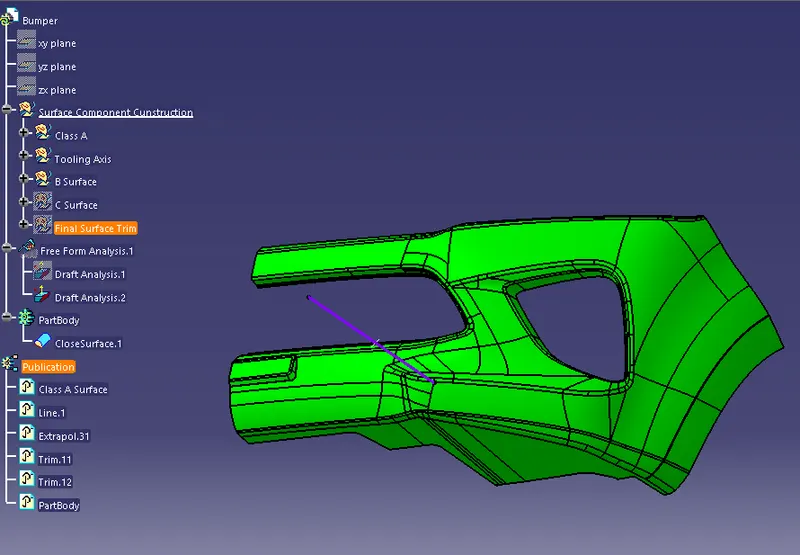

1. All surfaces visible from normal view to X axis, thus X axis clears all surfaces.
2. Creating tool axis on X axis.

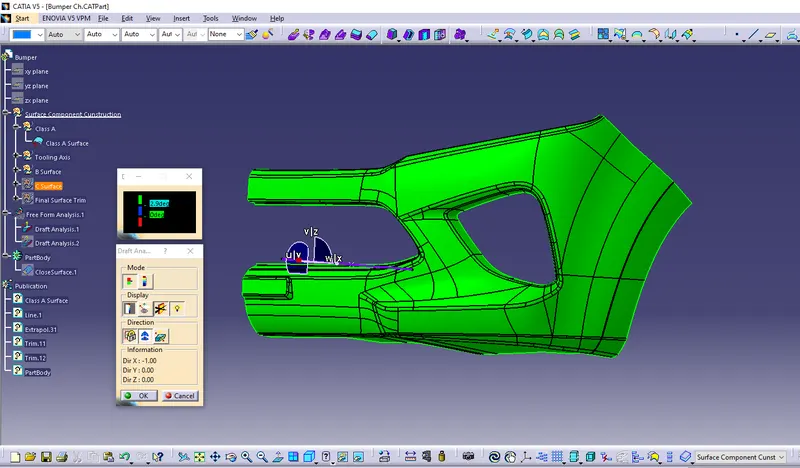

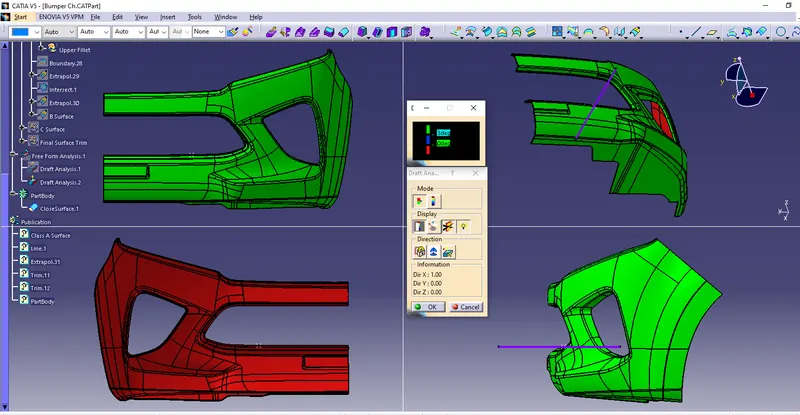

Draft Analysis:

1. Class A surface:

• Using earlier created tooling axis as referance for Compass and fix Draft direction.
• Using Colour scale as reference checked draft values using Running point.
• Green colour shows draft within limits.

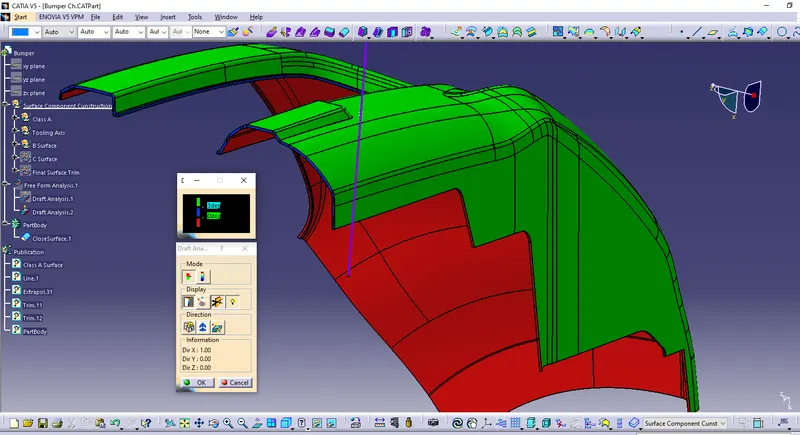

2. Bumper Solid Plastic Component:

• Using earlier created tooling axis as referance for Compass and fix Draft direction.
• Using Colour scale as reference checked draft values using Running point.
• Green colour shows draft within limits.

Publications:

• Tooling Axis
• Class A, B, and C surface
