Week 9 - Challenge 3 - Bumper

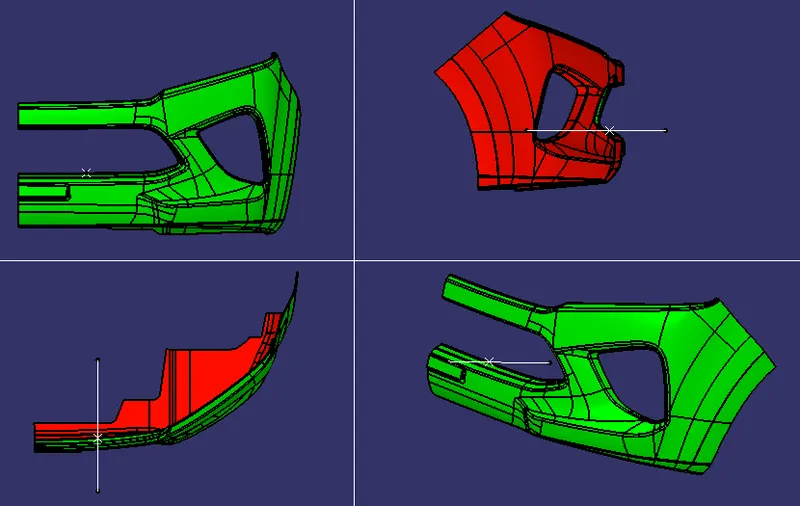

DRAFT ANALYSIS OF CLASS A

DRAFT ANALYSIS OF FINAL COMPONENT

DRAFT ANALYSIS OF FINAL COMPONENT WITH VARIOUS VIEWS

DETAILED REPORT

STEP 1: CONNECTIVITY OF CLASS-A SURFACE

First check the connectivity of the given surface or component
This is done by creating boundaries or by using Join command
Ensure that there is no gap between surface connection
From this image we can see the boundary inside the surface, it indicates there is a gap.
To solve this gap, use join option to merging the gap (use merging value as 0.003)

STEP 2: TOOLING AXIS CREATION

First visually analyse the possible direction of Tooling direction.
Create dummy tooling axis for possible dolling direction.
Using the Intersection command create intersection line for all X,Y,Z axis direction.

Inter section of X direction:

If we have a surface with one sided wall, then create a opposite wall with own.
Make angle constraint for this line with wall.
Bisecting these X,Y directions tooling axis, the main tooling axis will create, Where the two lines and one point will be selected as inputs

STEP 3: B-SURFACE CREATION

B-surface creation is done by offsetting class-A surface to required thickness.
Offsetting class-A surface with fillets are more complicated, so go with extract and untrim the surfaces.
Extract the all the sketch or surfaces used to create object and Untrim it.
Extrapolate the surfaces till interact each relative surfaces.
OFFSET it into required thickness of part
Trim the surfaces to get proper surface without fillets, then fillet it.

STEP 4: CLASS-C CREATION

Create the boundary around the given Class-A surface.
If this boundary has more surface, then split it into two or more boundary around the surface.
Here the boundary has lots of intermediate joints, this create gap while sweeping.
To clear this joint make smoothening the curvature.
Now sweep the boundary with direction of tooling axis.
This sweeping area is the thickness of the Class-C surface.
Make extrapolate the sweep area to attain the interact with Class-A and Class-B surface if required.
Do trim operation sweep area with both class-A&B surfaces.

make it solid by using close command on Part workbench

STEP 5: DRAFT ANALYSIS

Draft analysis is done after determine the tooling axis.
Ensure weather all the surface angles are more than 3 degrees along with tooling axis direction.

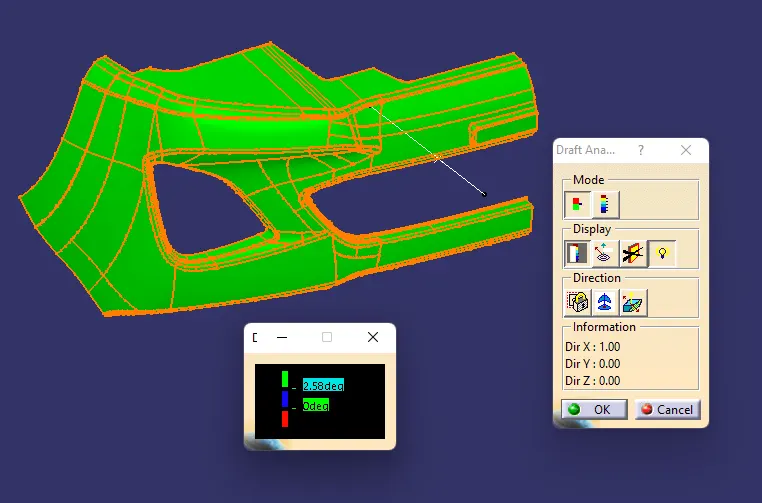

There are some colour codes are used to easily determine the angle value
If the whole angle is more than 3 degrees, then surface colour turned into Green for one type scale and for another scale it has 5 colour variation.

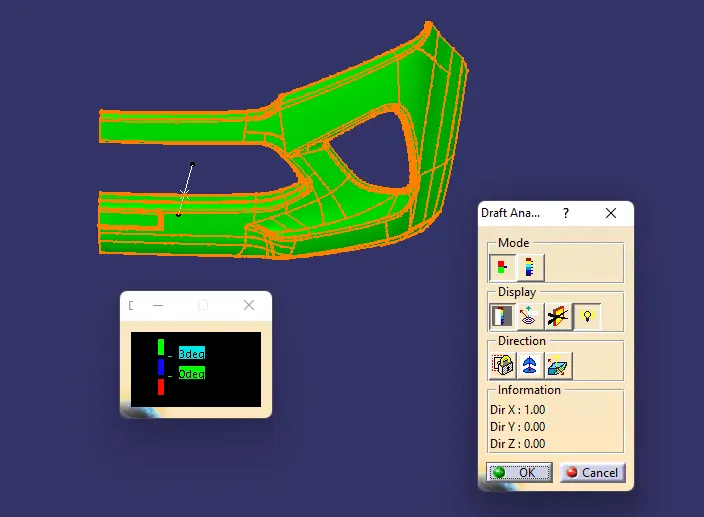

Here our surface area has more than 3 degrees.
Below 0° angle indicated by red in colour, these are has negative angles.
