Week 9 - Challenge 3 - Bumper

DRAFT ANALYSIS :

The draft analysis technique is used to analyze whether our part model created in CAD is manufacturable based on the draft condition applied. Here the part should get easily removed from the panel dies (in case of Sheet metal part) or Mold (in case of plastic).

No parts can be ejected from the tool if it is having a straight 90-degree profile from its base surface. A small draft angle is provided to each and every area of the component in order to get easy removal of the component from the tool.

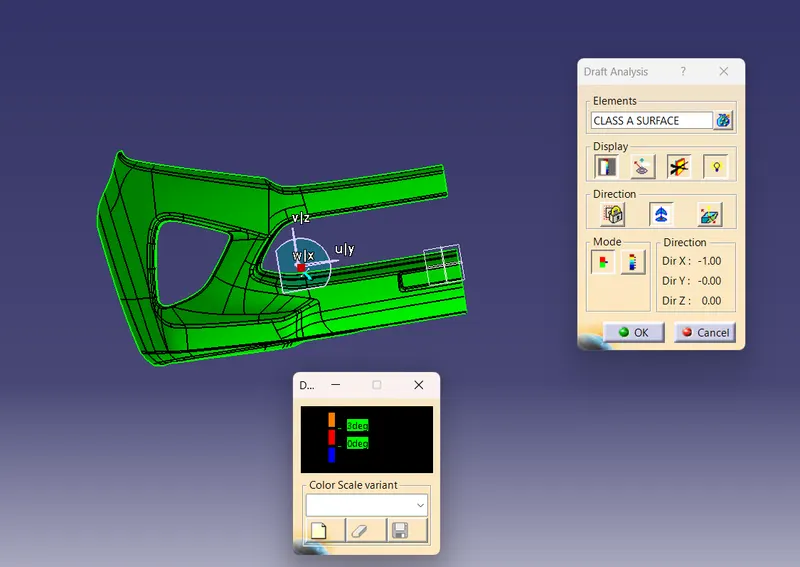

DRAFT ANALYSIS OF CLASS A SURFACE :

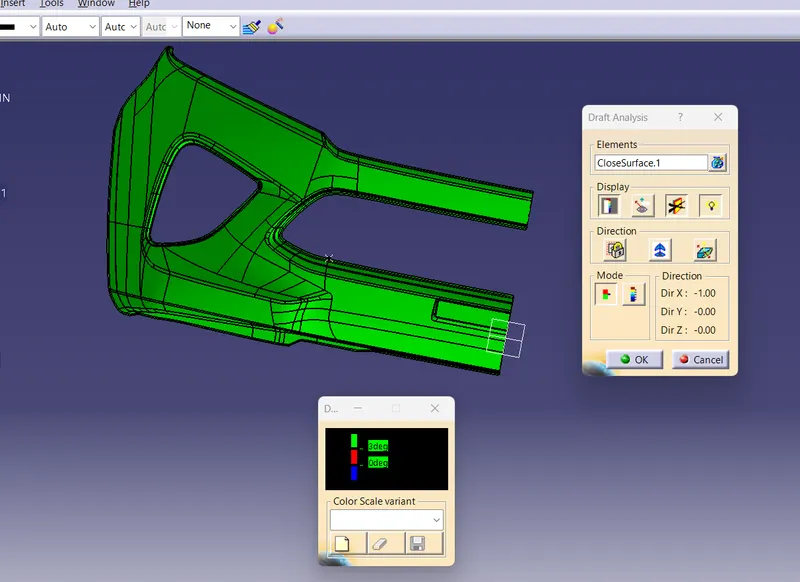

DRAFT ANALYSIS OF FINAL OBJECT :

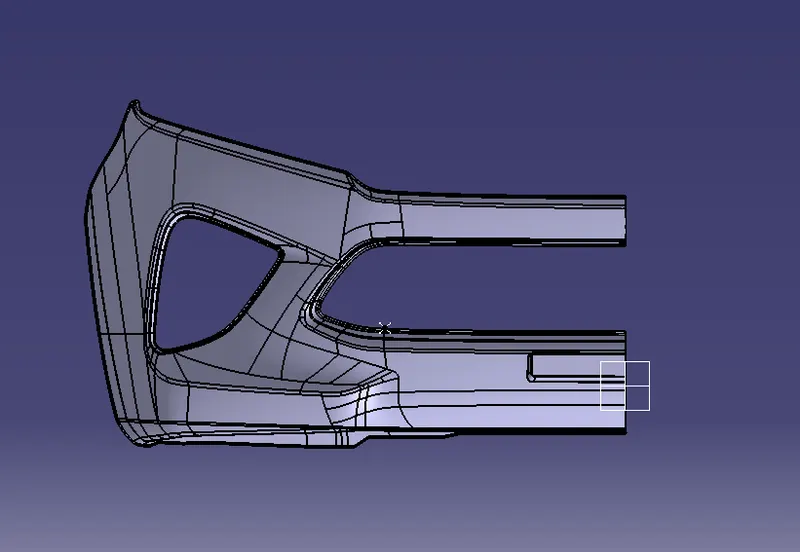

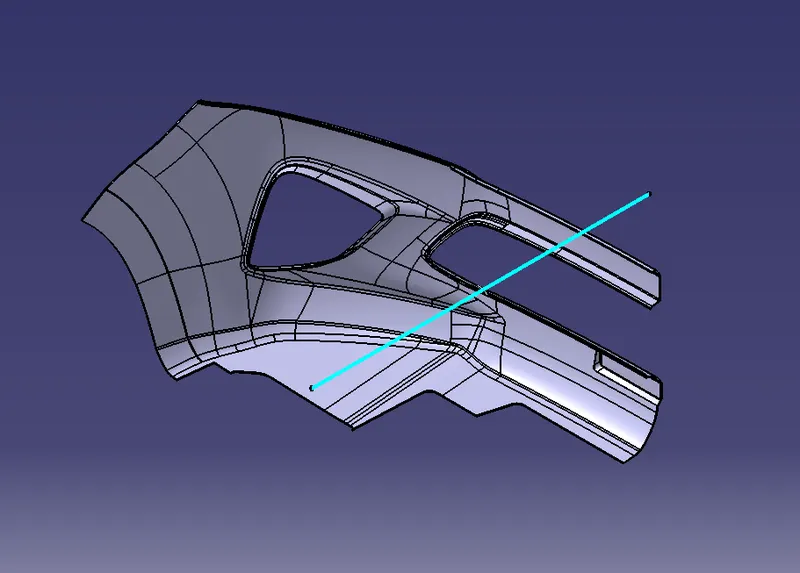

ISOMETRIC VIEW :

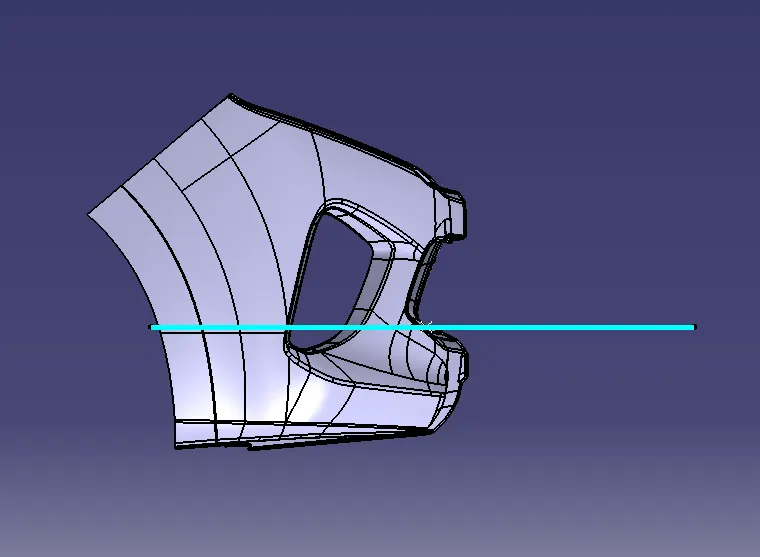

FRONT VIEW :

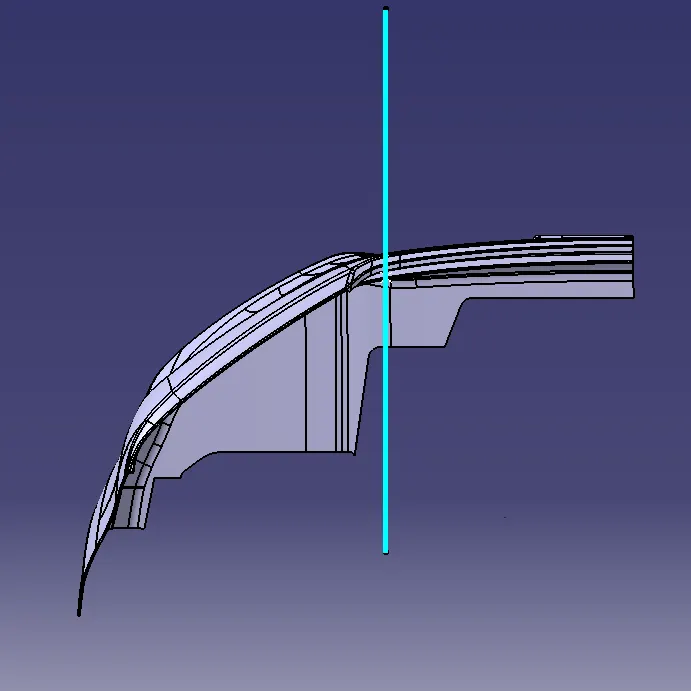

SIDE VIEW :

TOP VIEW :
