Week 9 - Challenge 3 - Bumper

Explanation of bisecting method:- A point was created at the center of the large circle, Using that axis system is inserted, using the ZX plane an intersection is to be made.Two lines need to be created from the points-take any two of the incline lines as reference, Create a bisecting line for the inclination lines,

The tooling axis is the tool movement axis (core/cavity).

This axis helps to decide the draft direction.

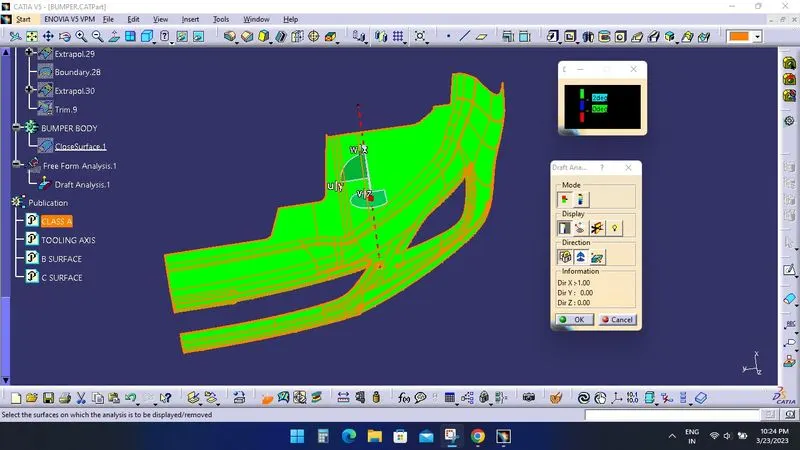

Explanation of draft analysis :- To perform the Draft analysis use the Featured Draft Analysis tool in the tools.
Then after opening the draft analysis tool box go for the compass and place the compass alinged to tooling axis and click on the lock symbol after alinging and further click on the surface. The draft analysis is use to see if threre is any undercut possiblities.

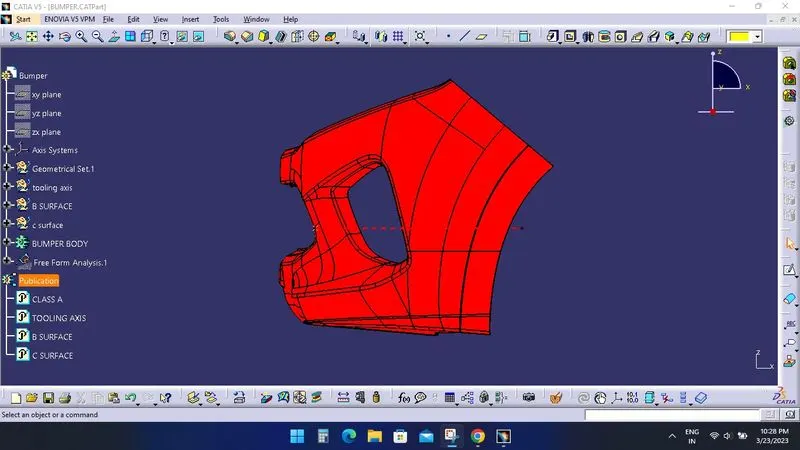

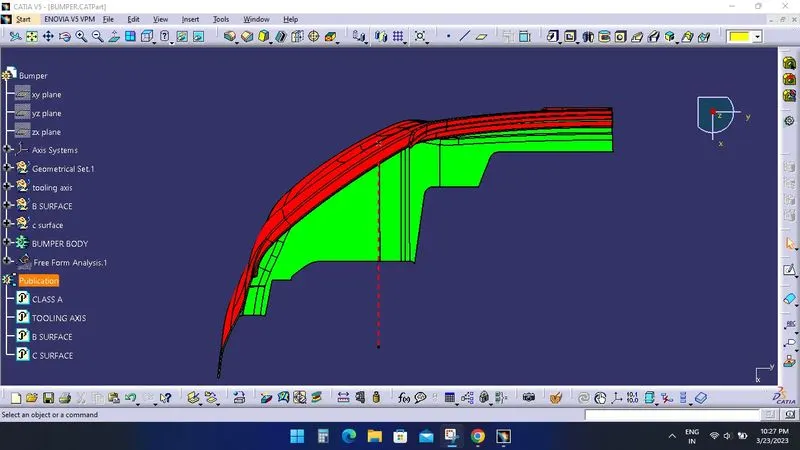

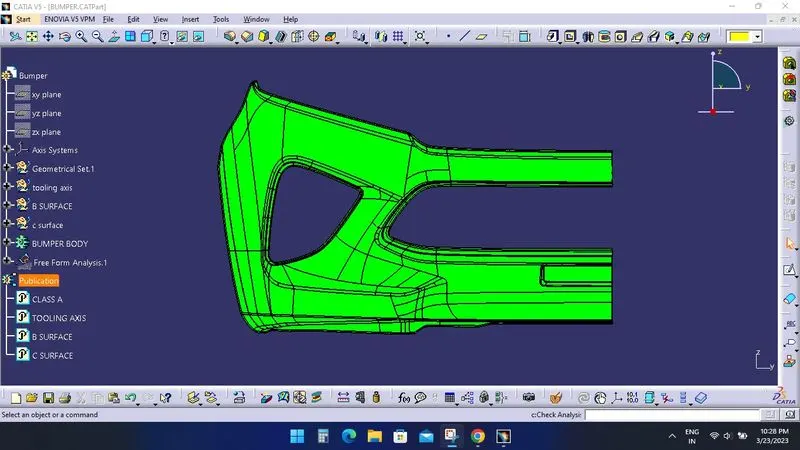

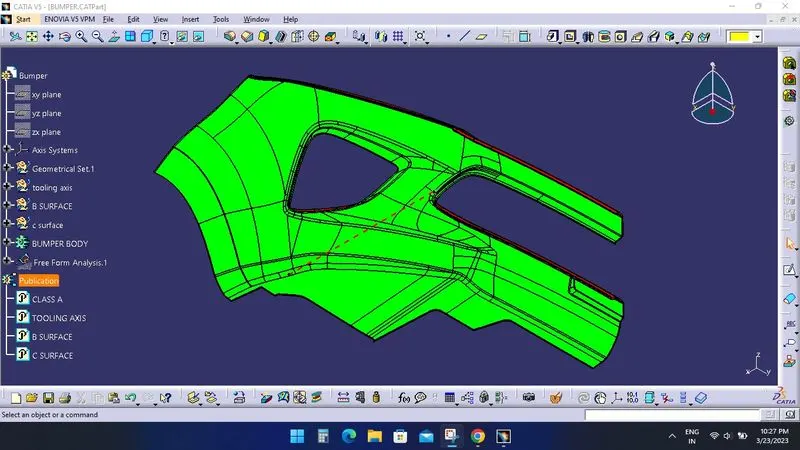

Images :-

CAD FILE IS ATTCHED.
