Week 9 - Challenge 3 - Bumper

Methods used to create the solid surface:

* offset the class A surface

* recreate the existing patch fillets obtained from class A surface

* using the join option remove the fillets using the sub-elements to remove method

* extract the two surfaces and extrapolate

* trim the extrapolated surface using the trim option

* then give the fillets

Class A+C join :

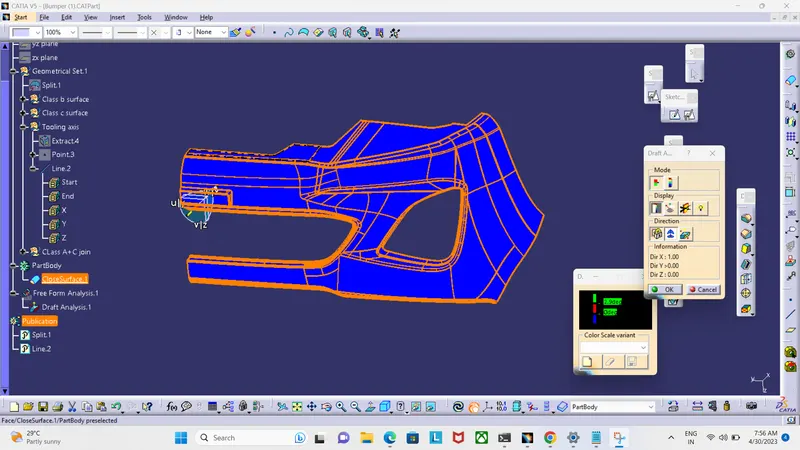

* sweep the class A surface which is perpendicular to tooling axis as a draft direction with 3 degree

* sweep the parallel surface with reference to surface using 90 degree with tooling axis

* then join the A+C surface

Final Trim:

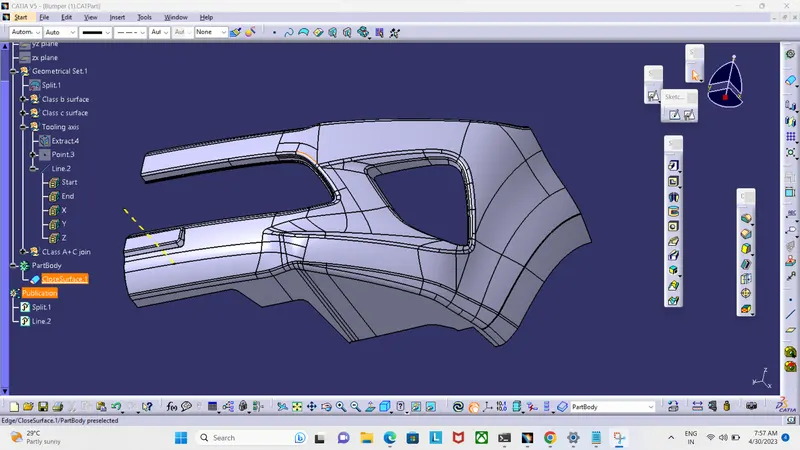

* Trim the B surface with A+C join surface to get the complete closed body

Creation of tooling Axis:

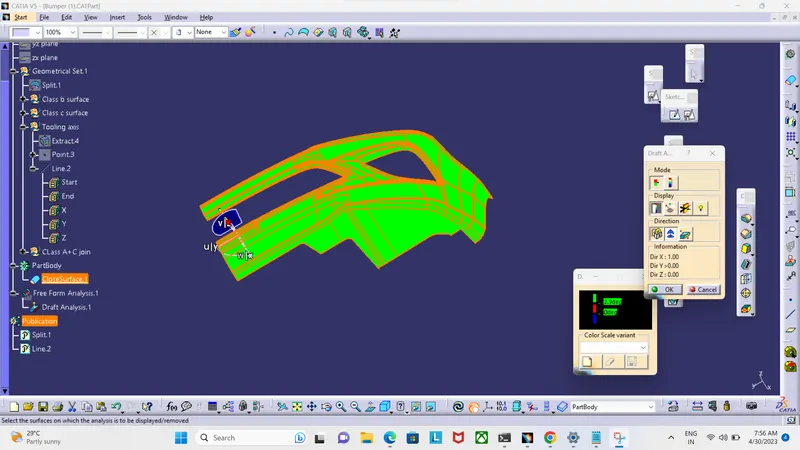

* it clears the draft using the draft direction with point direction method using X axis.
