Week 9 - Challenge 2 - Switch Bezel Design

Methods used to create the solid surfcae:

* offset the class A

* extract the surface and untrim

* extrapolate in point propogation and trim the surface to get the closed body

* once the B surface is done , sweep the A surface to form the Class c surface with draft angle 3 degree

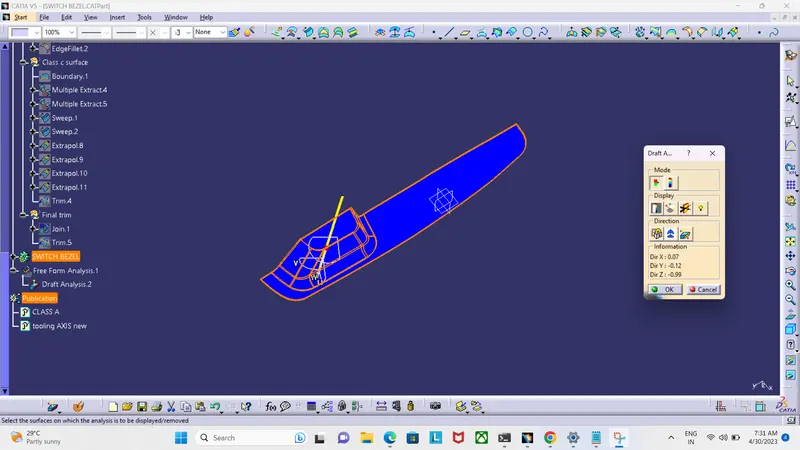

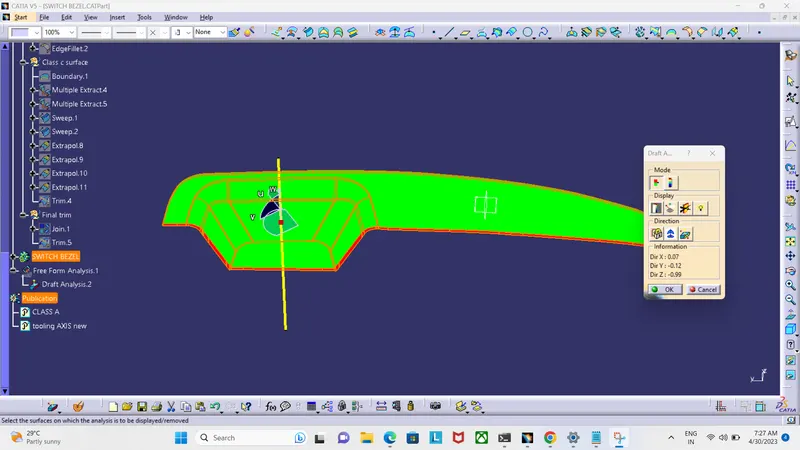

* join the A+C surface anf finally trim it with B to get the complete closed body and check the draft analysis of the final product

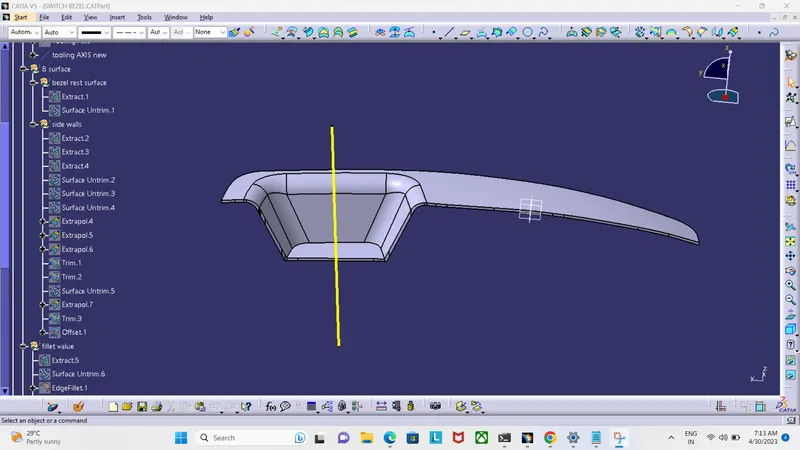

Creation of tooling axis:

* In the switch bezel we use a draft direction with normal to surface with draft angle of 3 degree in order to get the proper moulding of plastic surface
