Week 9 - Challenge 2 - Switch Bezel Design

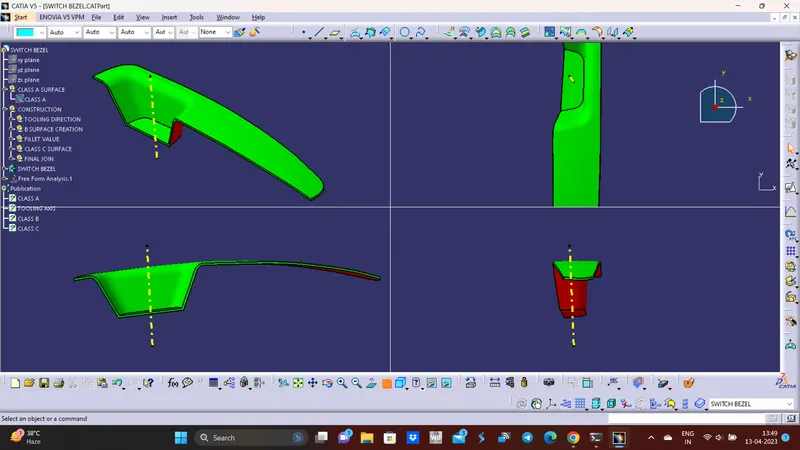

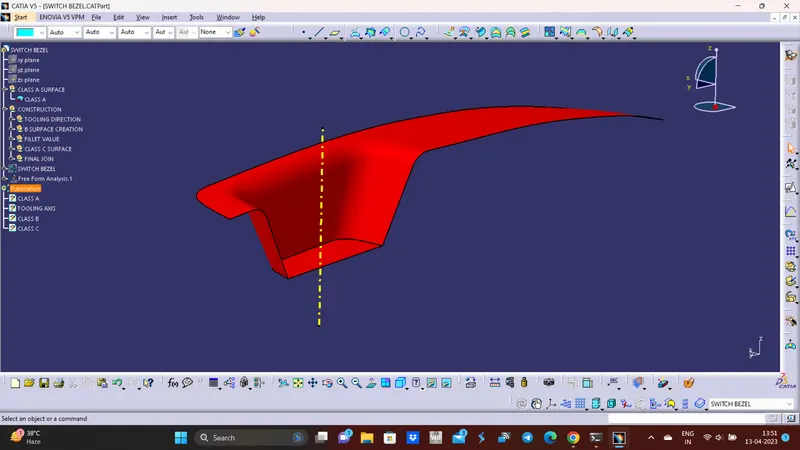

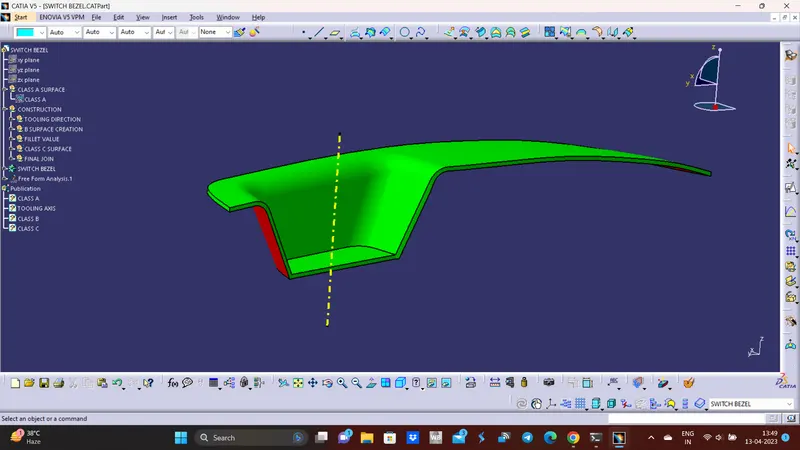

DRAFT ANALYSIS

Color code: Red - < 0deg, blue - 0-2deg, green - >2.9deg

CLASS A

FINAL PLASTIC COMPONENT

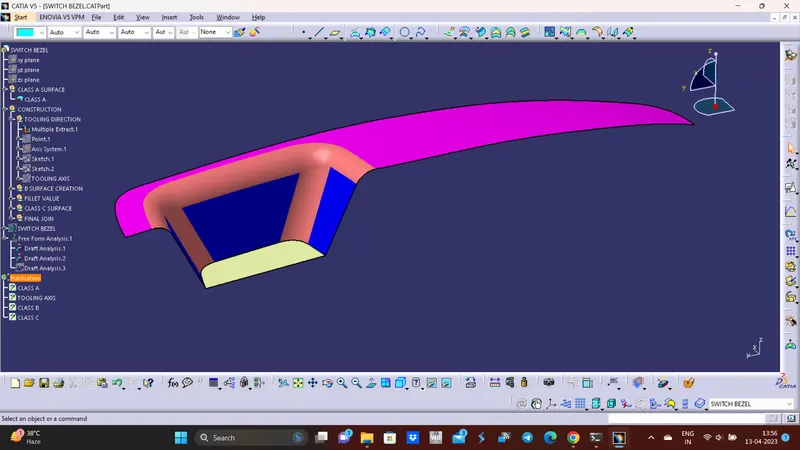

TOOLING AXIS CREATION

Procedure:

1. Extract the base face where the tooling axis is needed

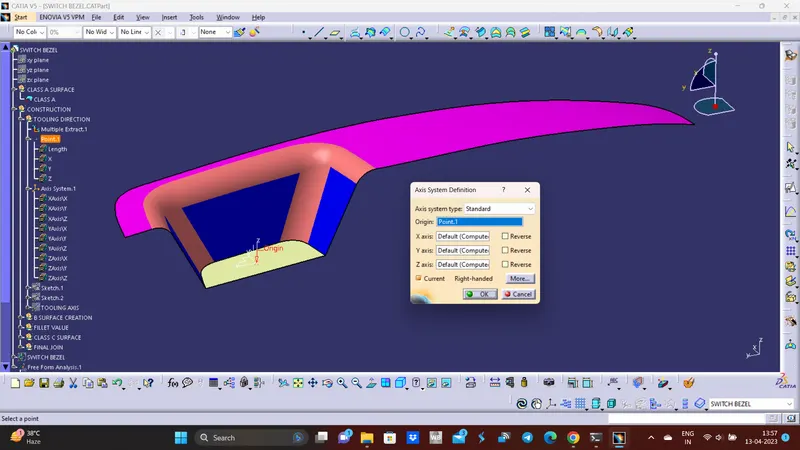

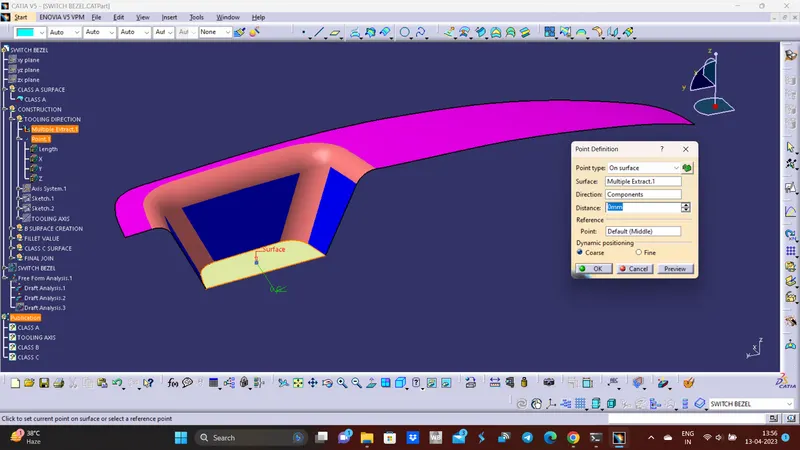

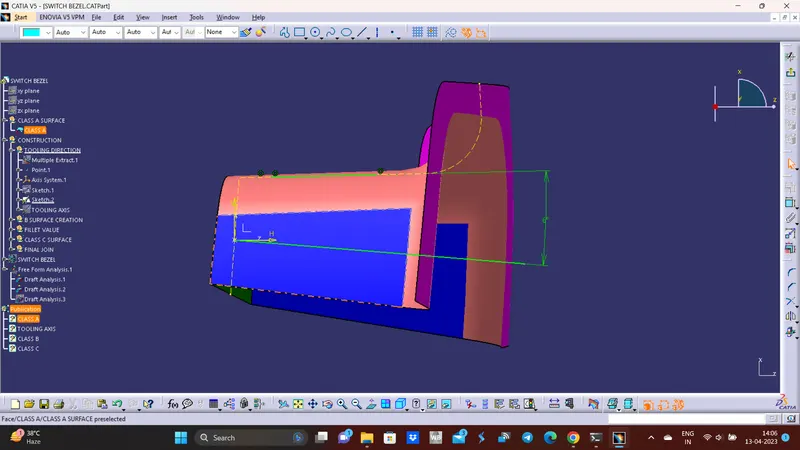

2. Create a point on the surface and insert an axis system using that point

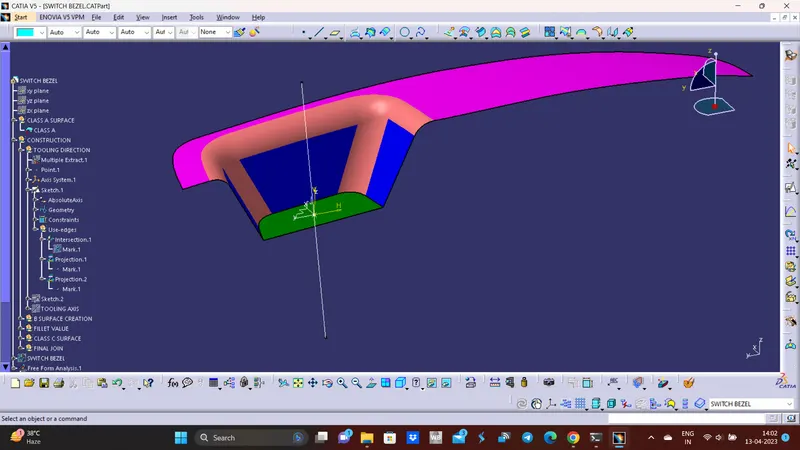

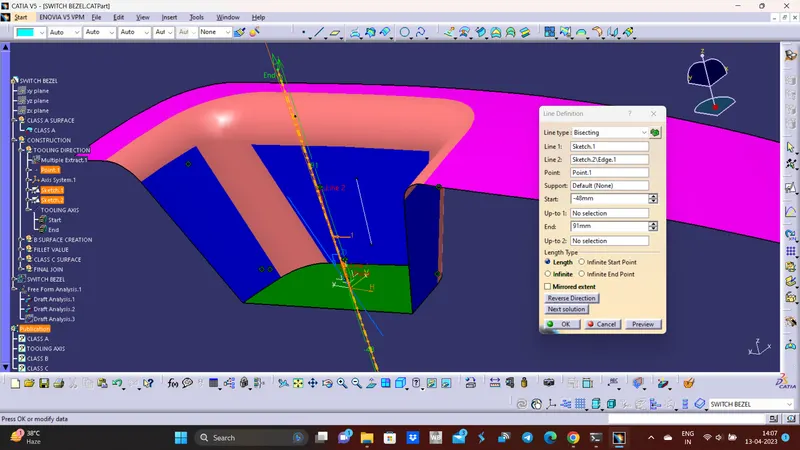

3. Create a positioned sketch on yz plane and project elements required for the tooling axis creation. Then, bisect the two lines to get the tooling axis for that face.

4. Now, create another sketch and repeat the same procedure for another face.

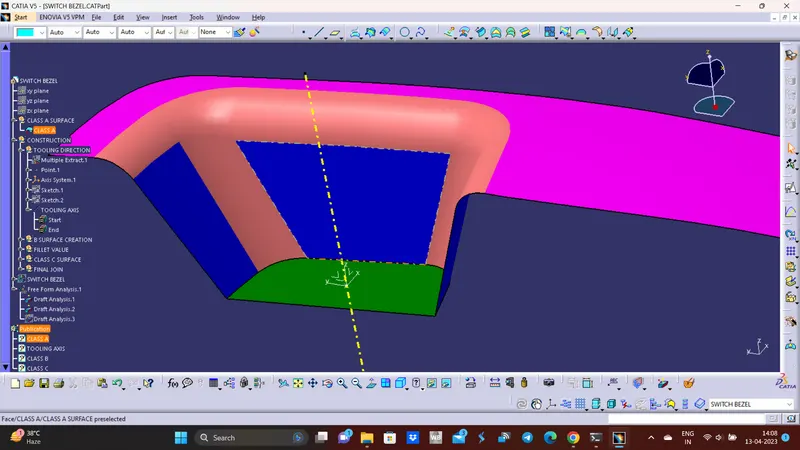

5. Now, bisect the two tooling axis created to get the real tooling axis for the part.
