SWITCH BEZEL

A)CREATING THE TOOLING AXIZ.

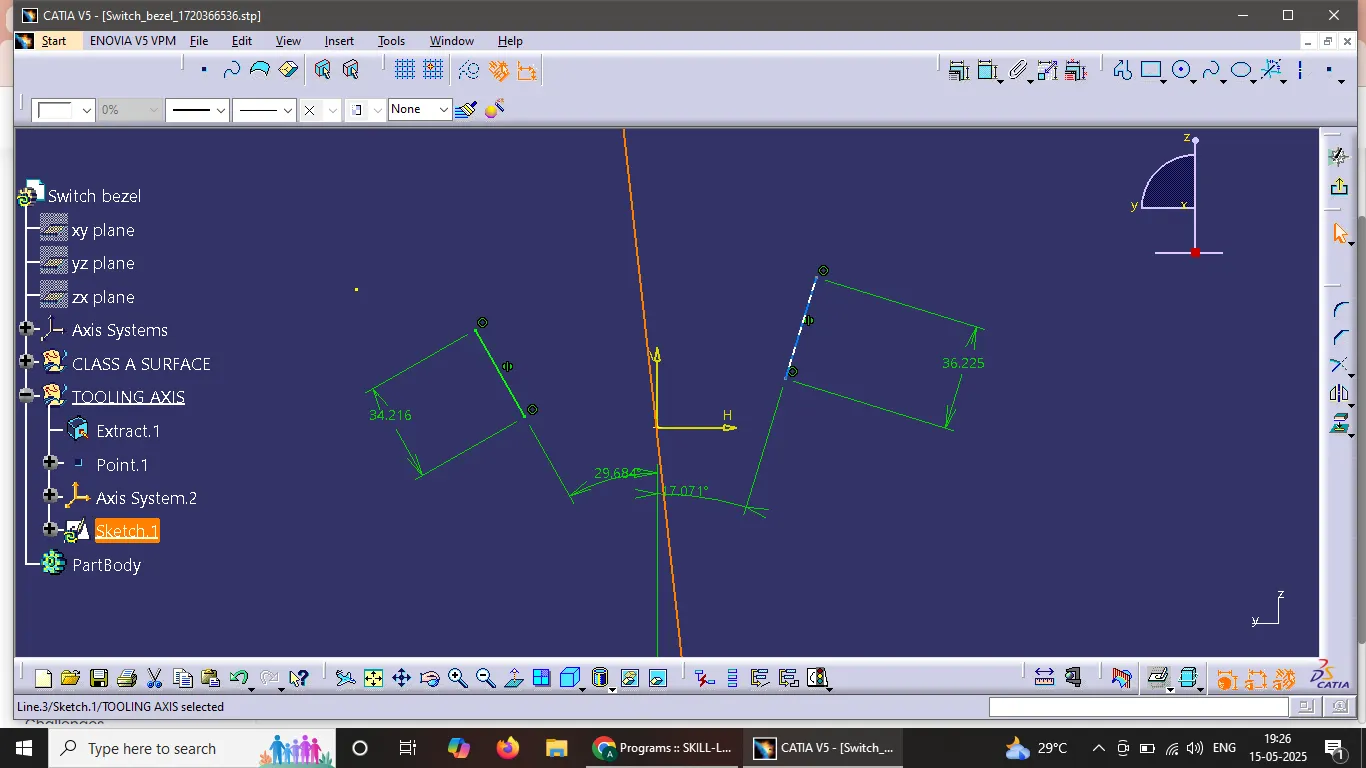

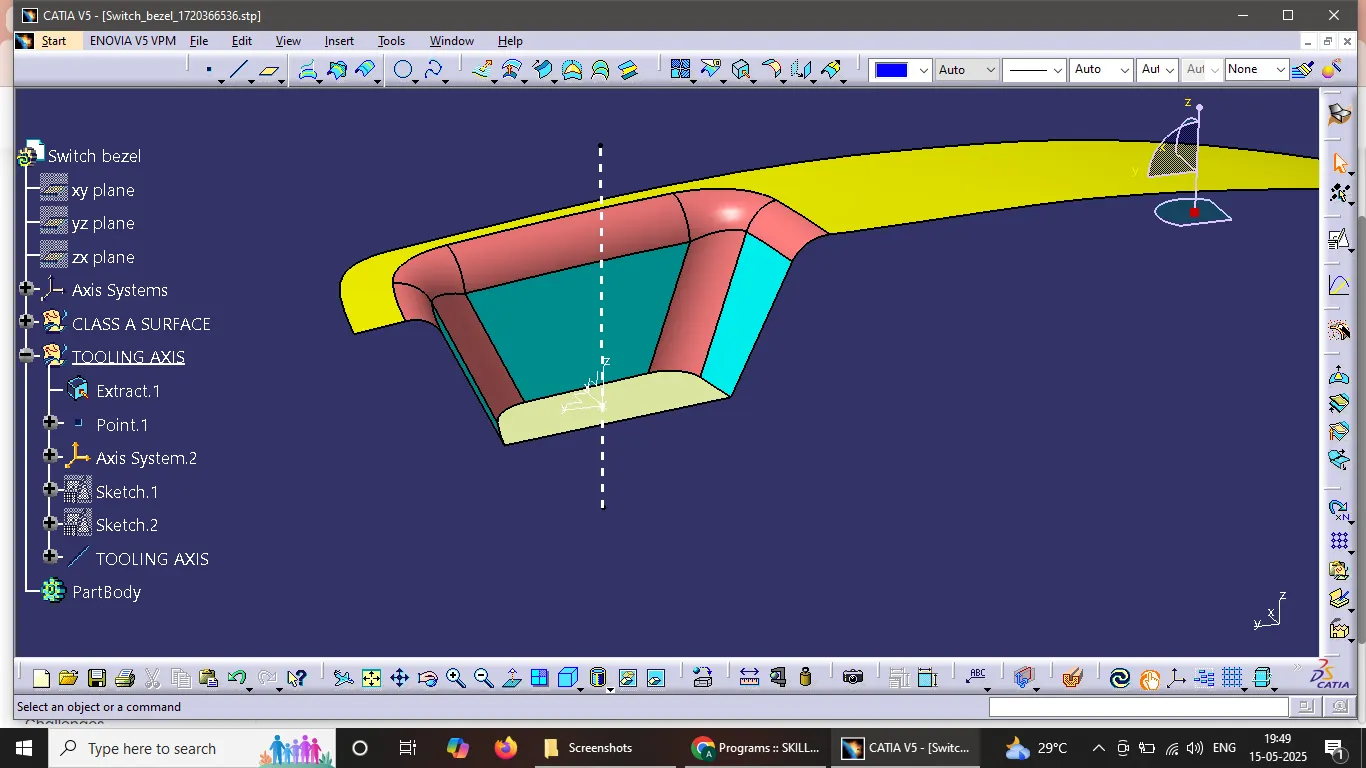

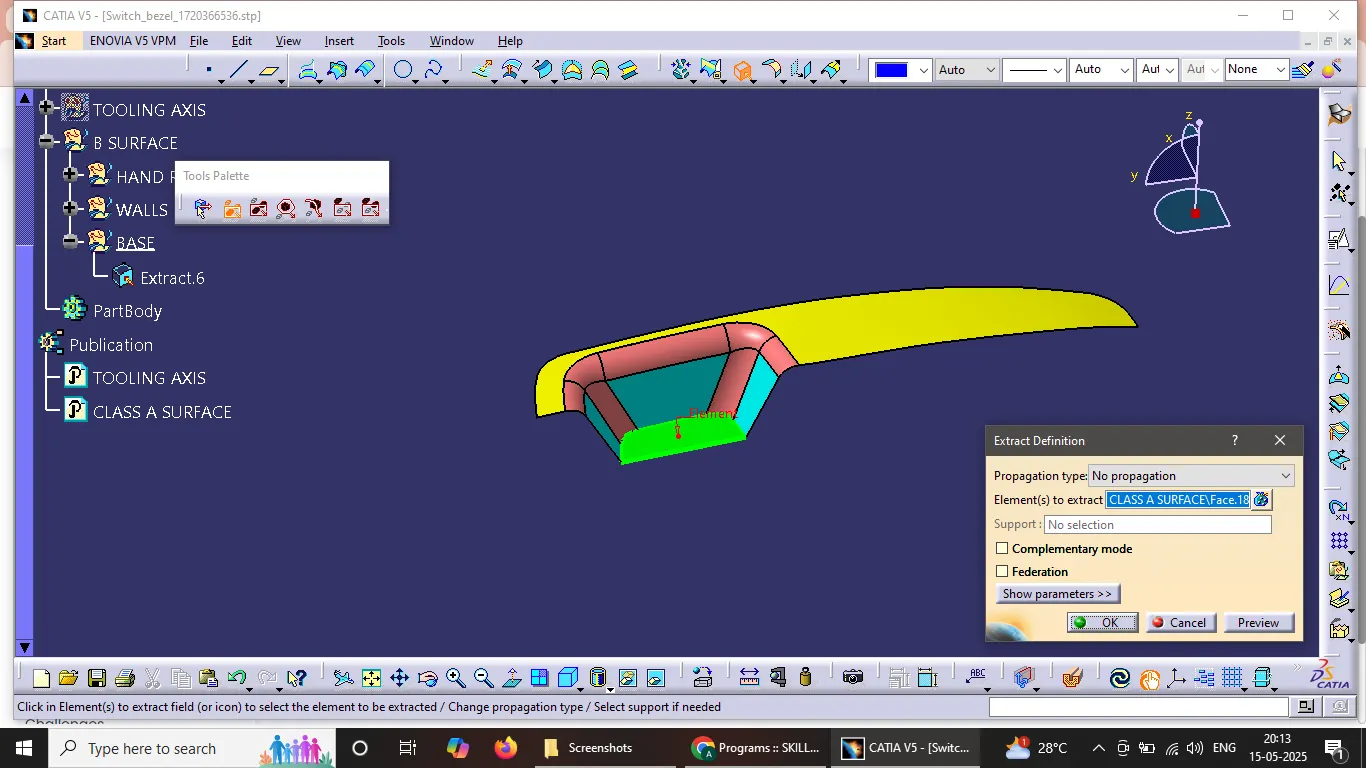

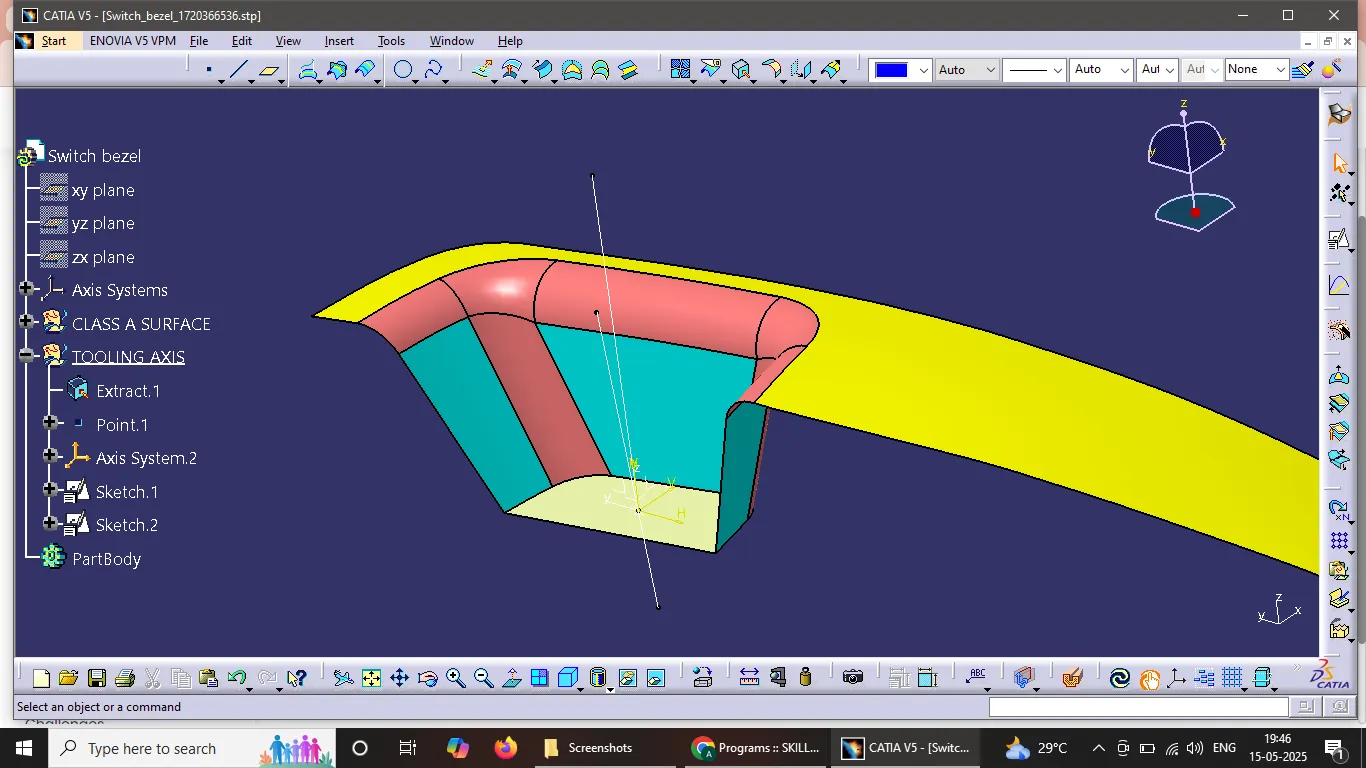

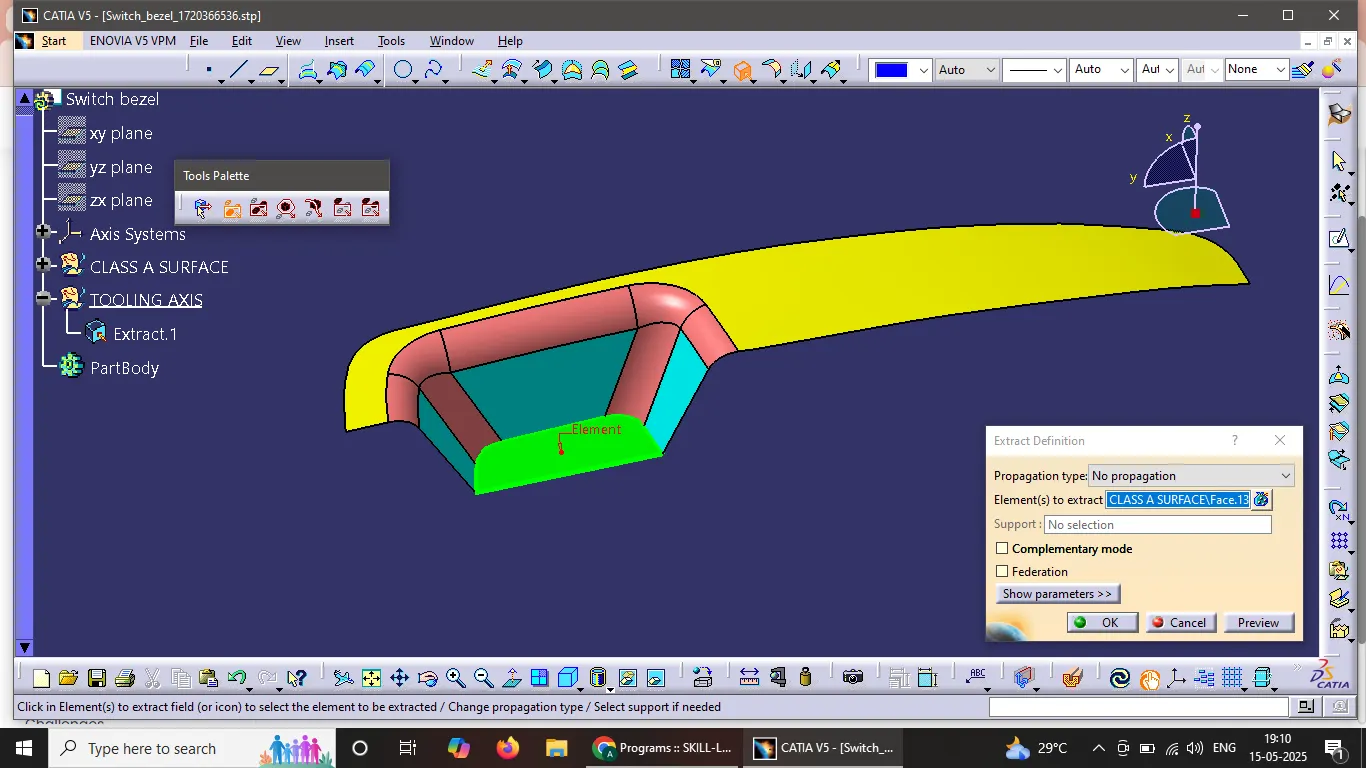

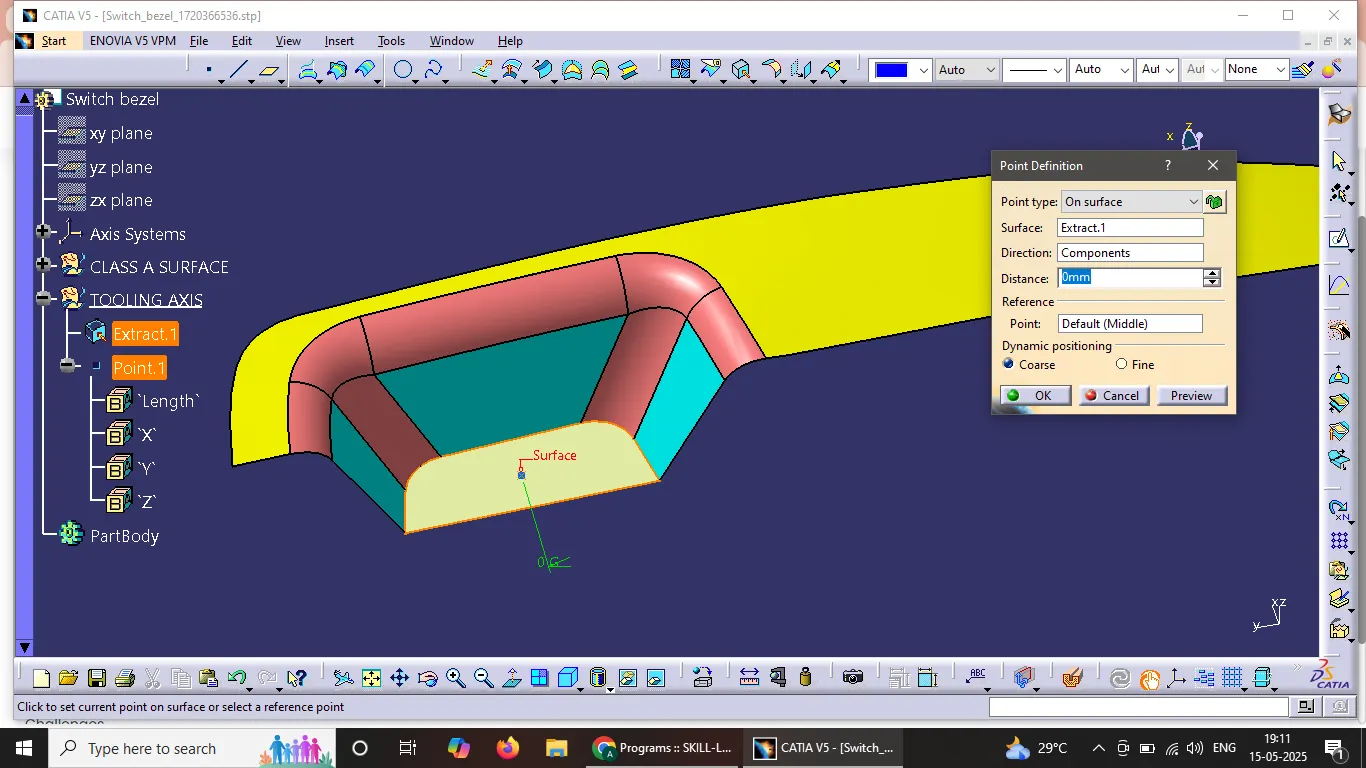

1)EXTRACT THE BASE THEN MAKE A POINT AND AXIS WITH RESPECT THE POINT FOR SKETCHING THE OFFSETTING LINES.

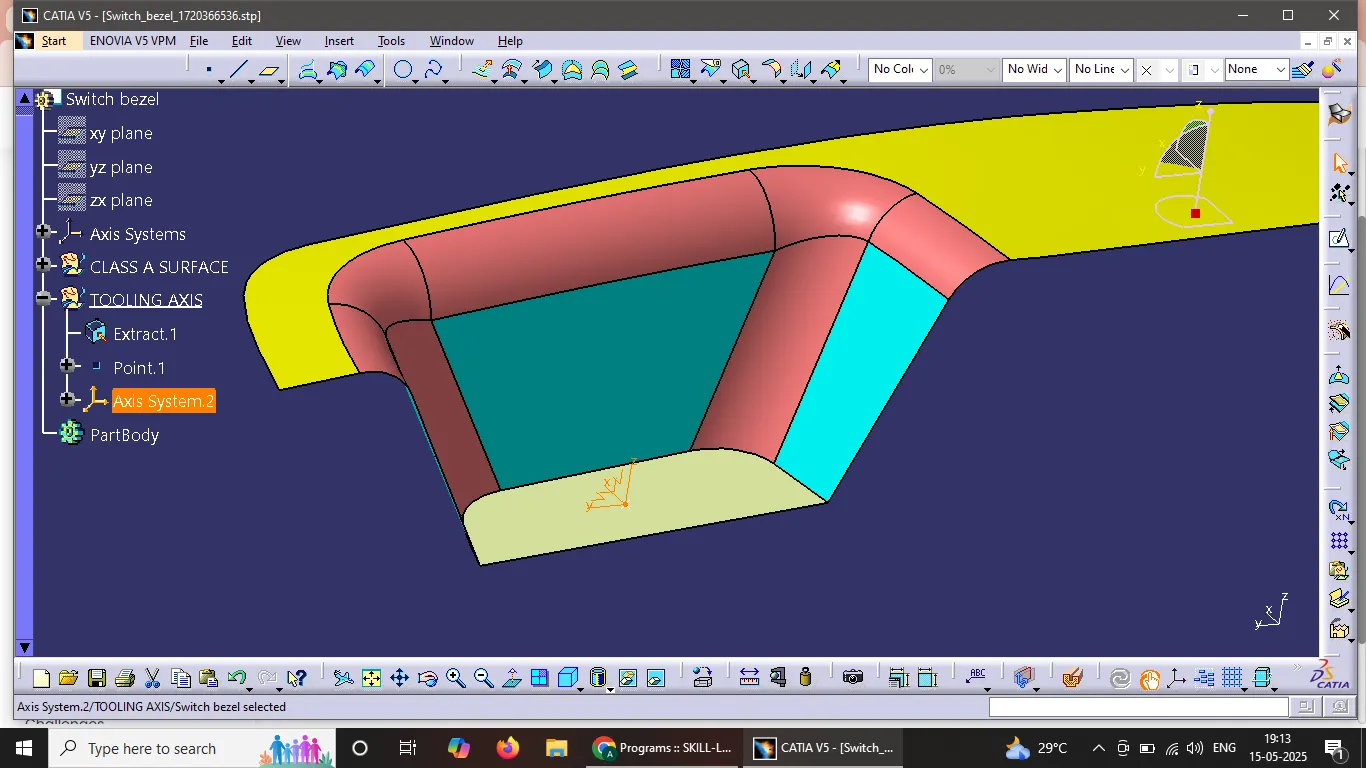

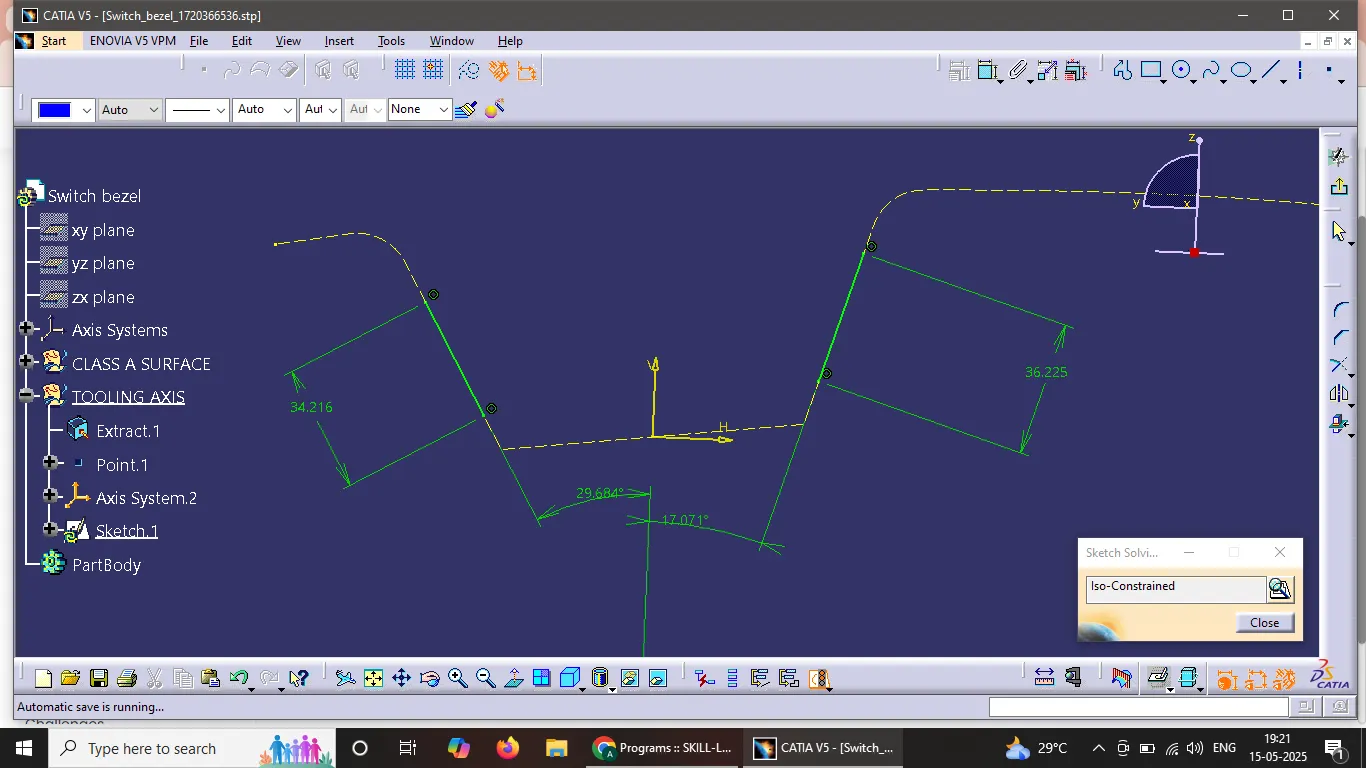

2)CREATED THE FIRST DUMMY TOOL AXIS.

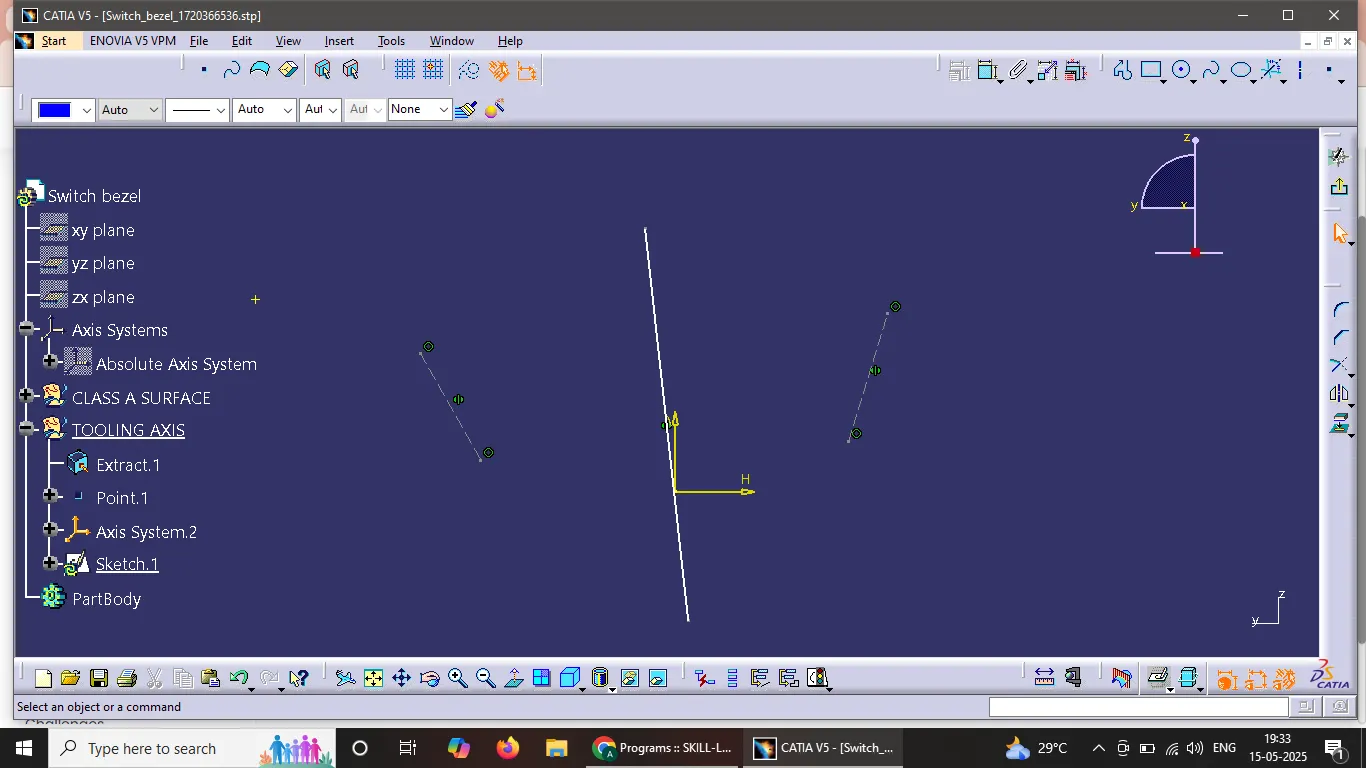

3)CREATED THE SECOND DUMMY TOOL AXIS BY THE STD 3 DEGREE VALUE.

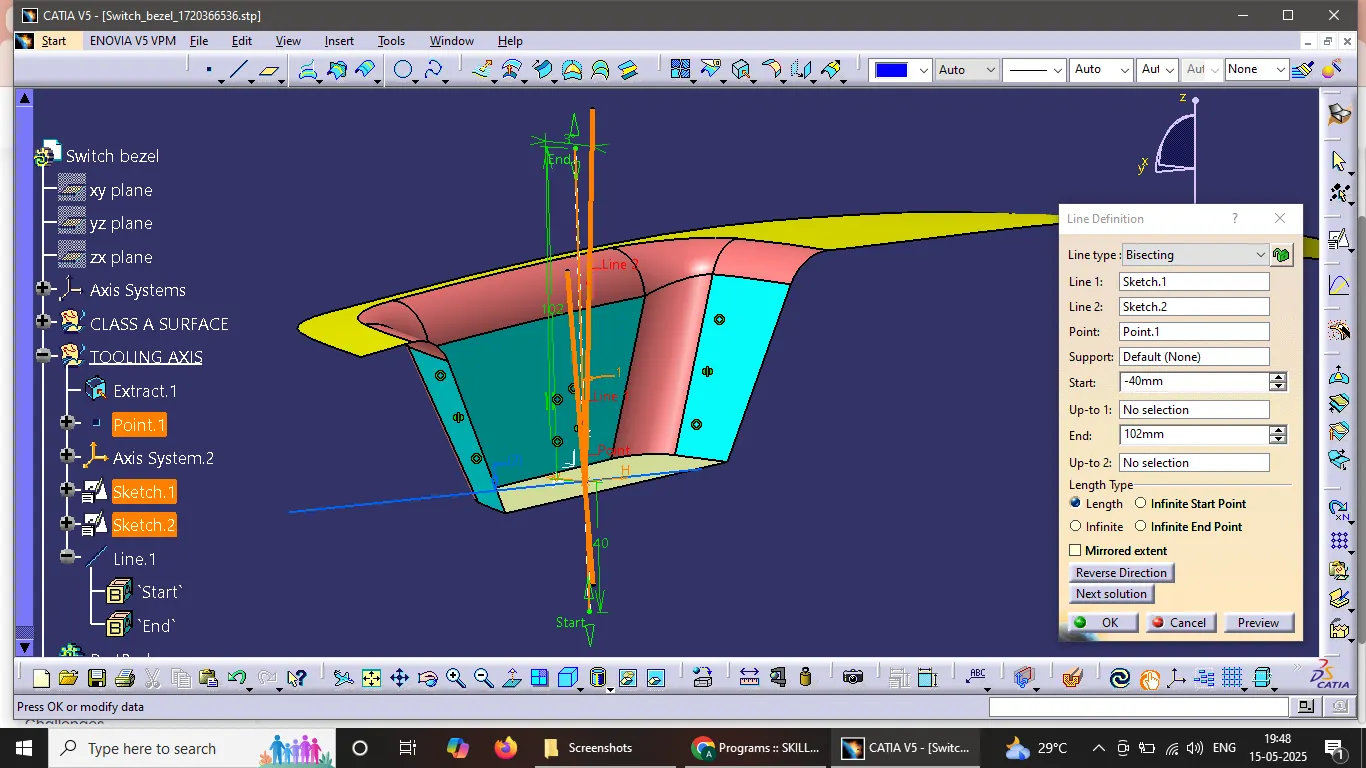

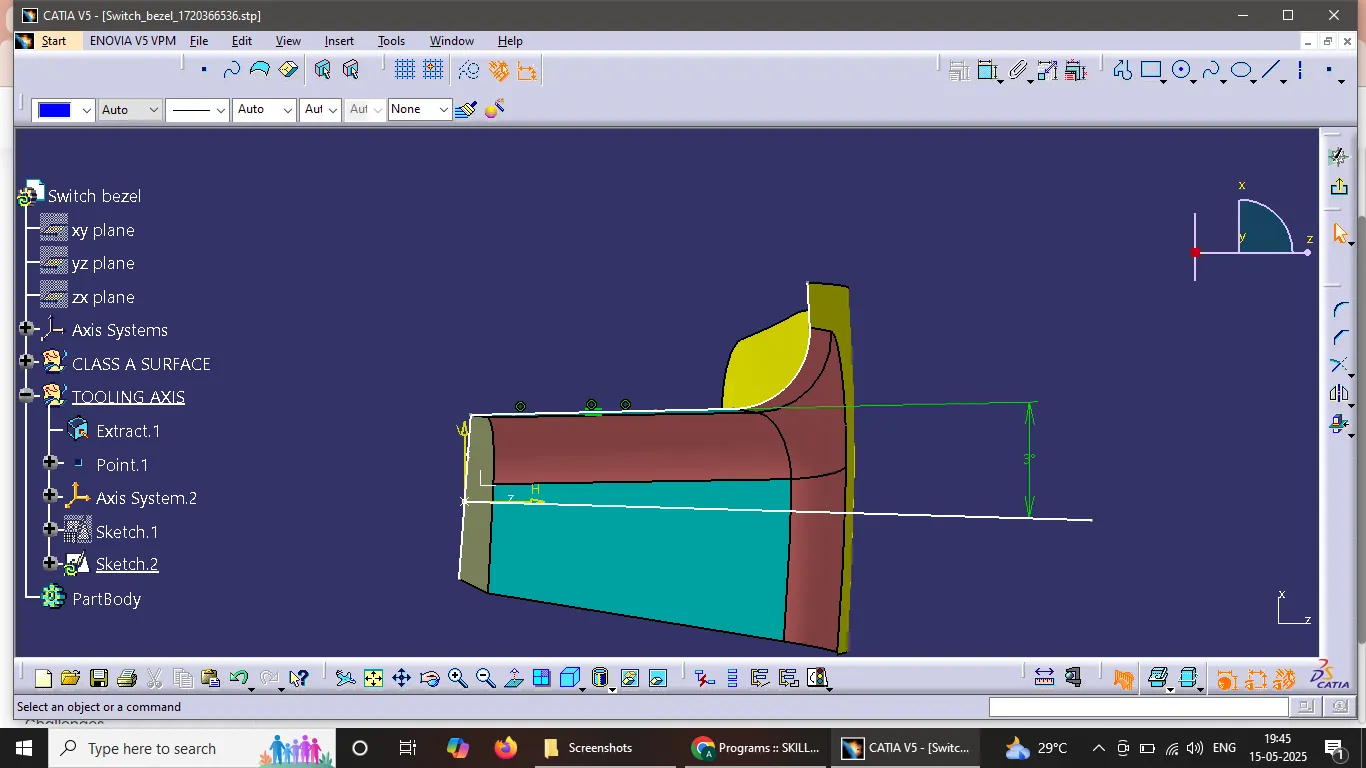

4)BISECTING THIS TWO TO CREATE THE TOOLING AXIS.

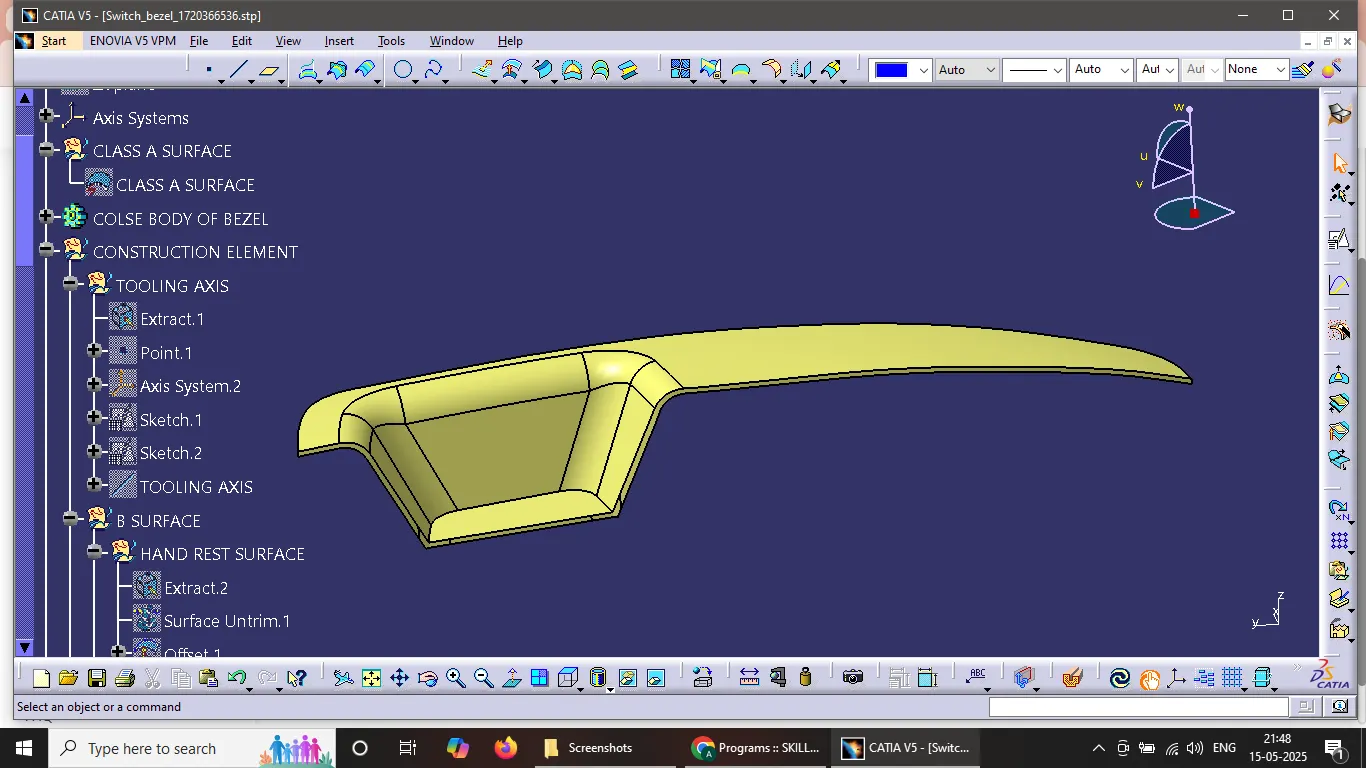

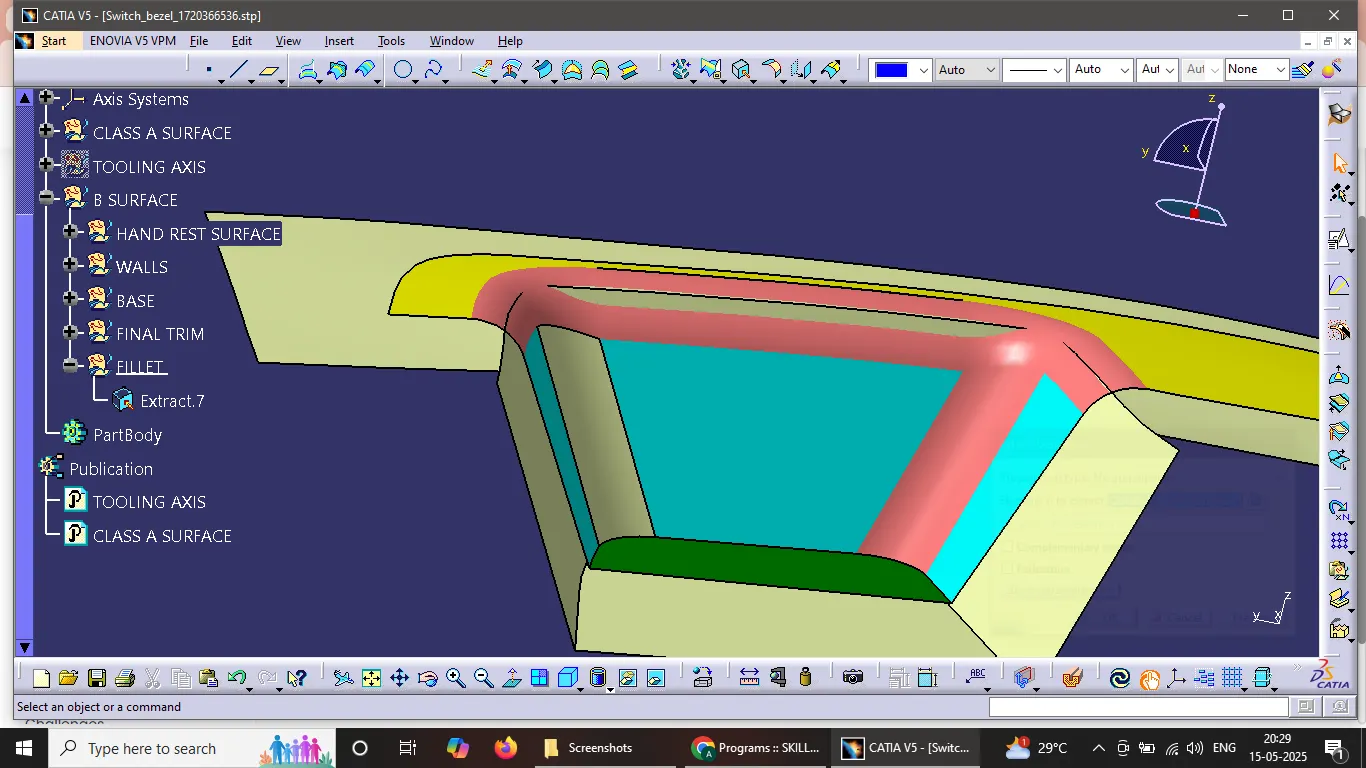

B)CREATING THE B SURFACE.

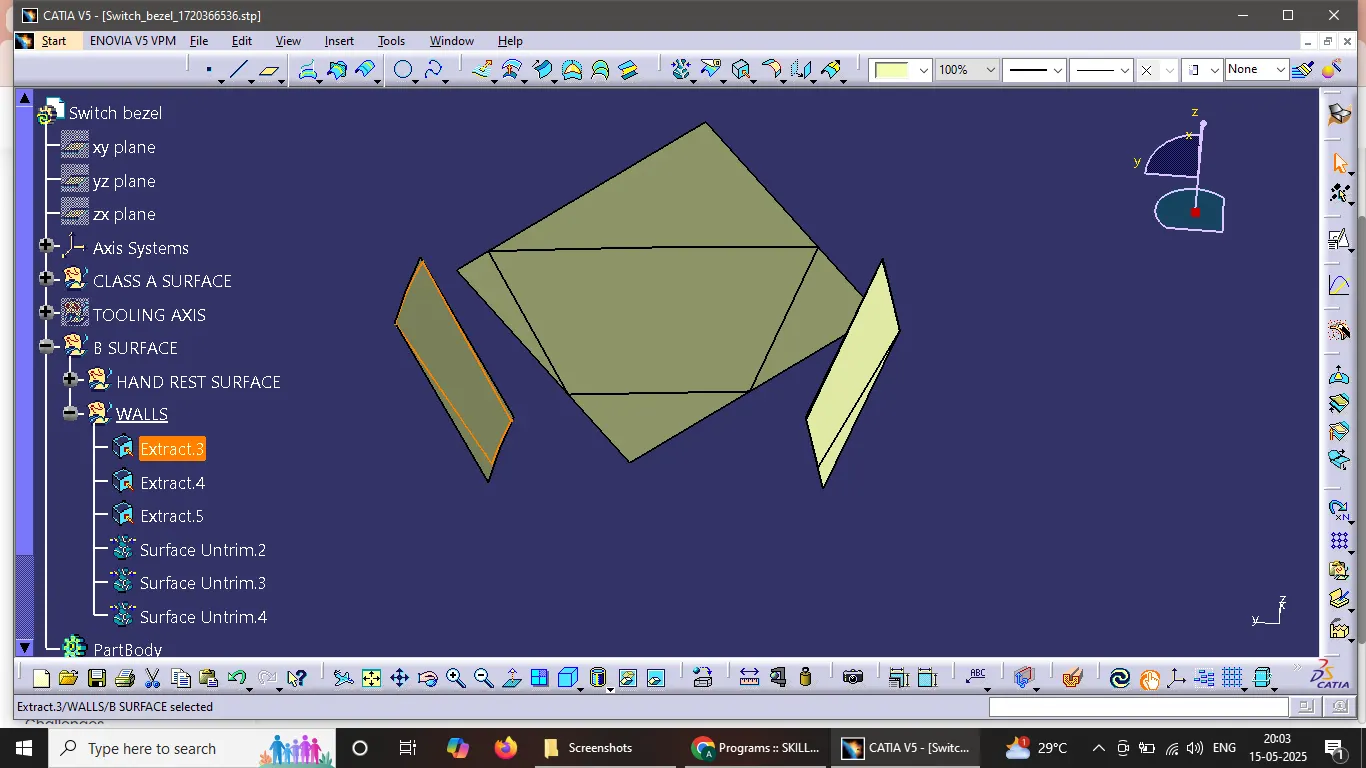

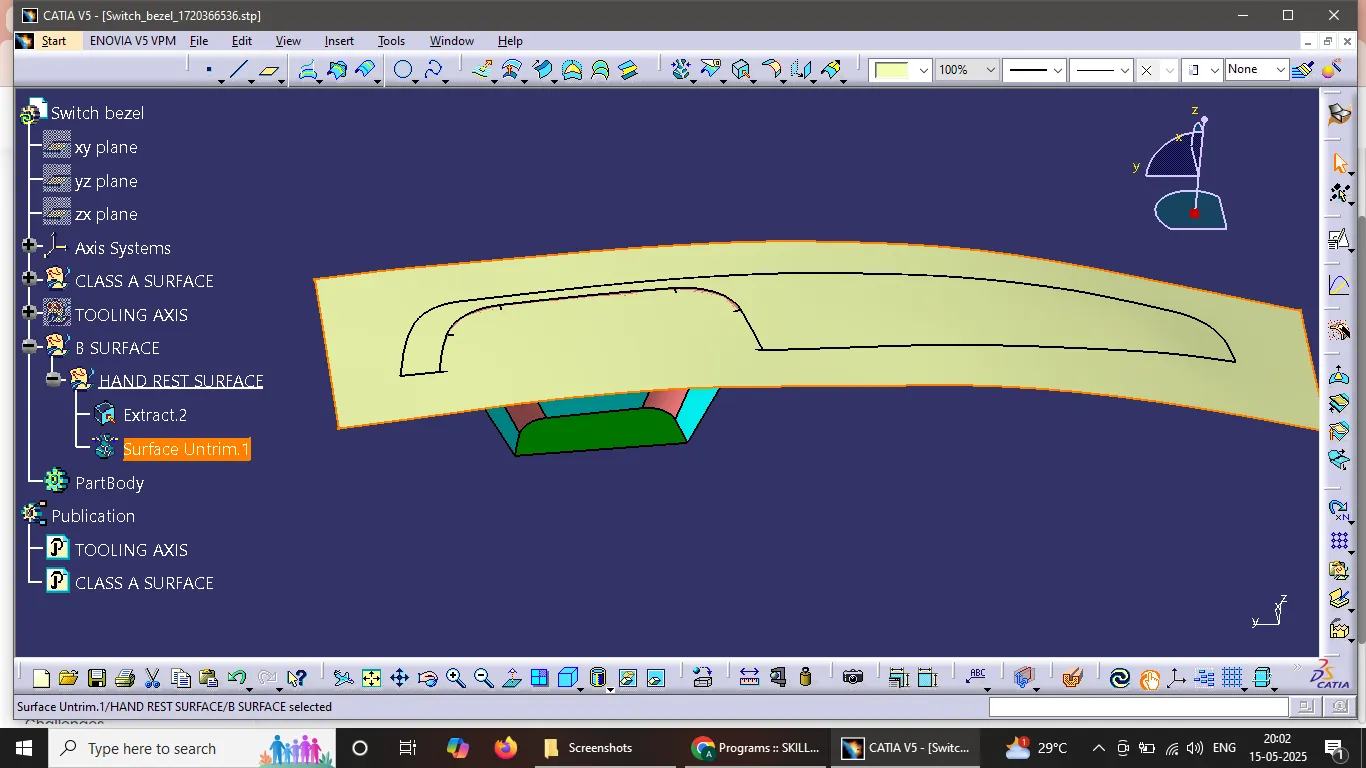

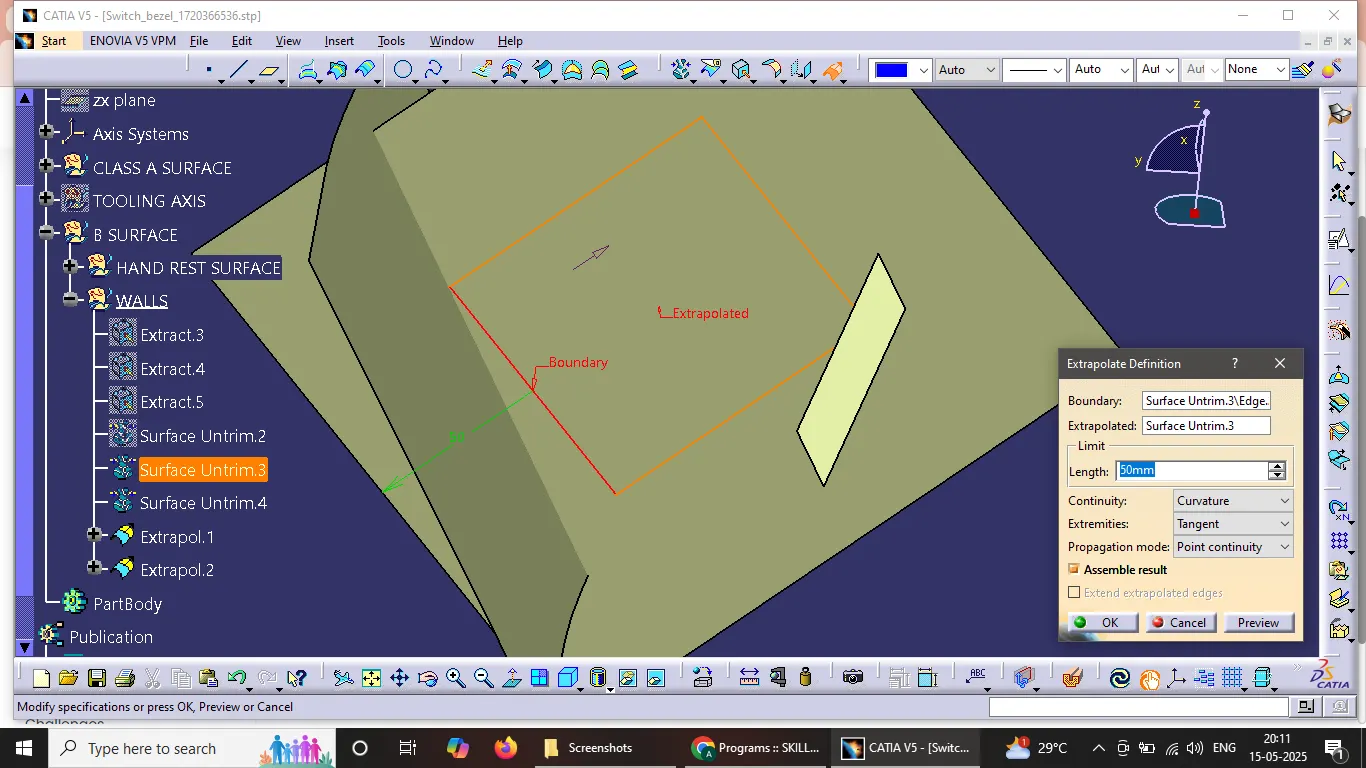

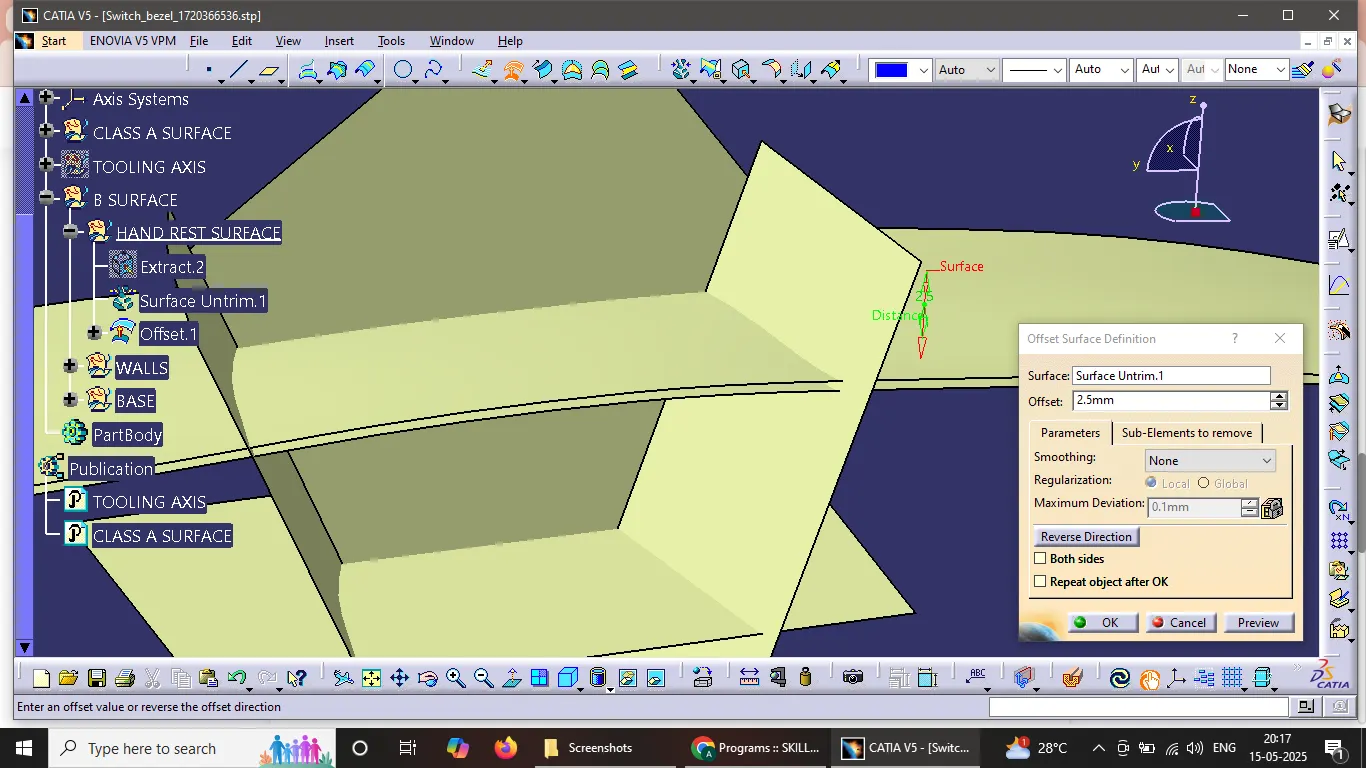

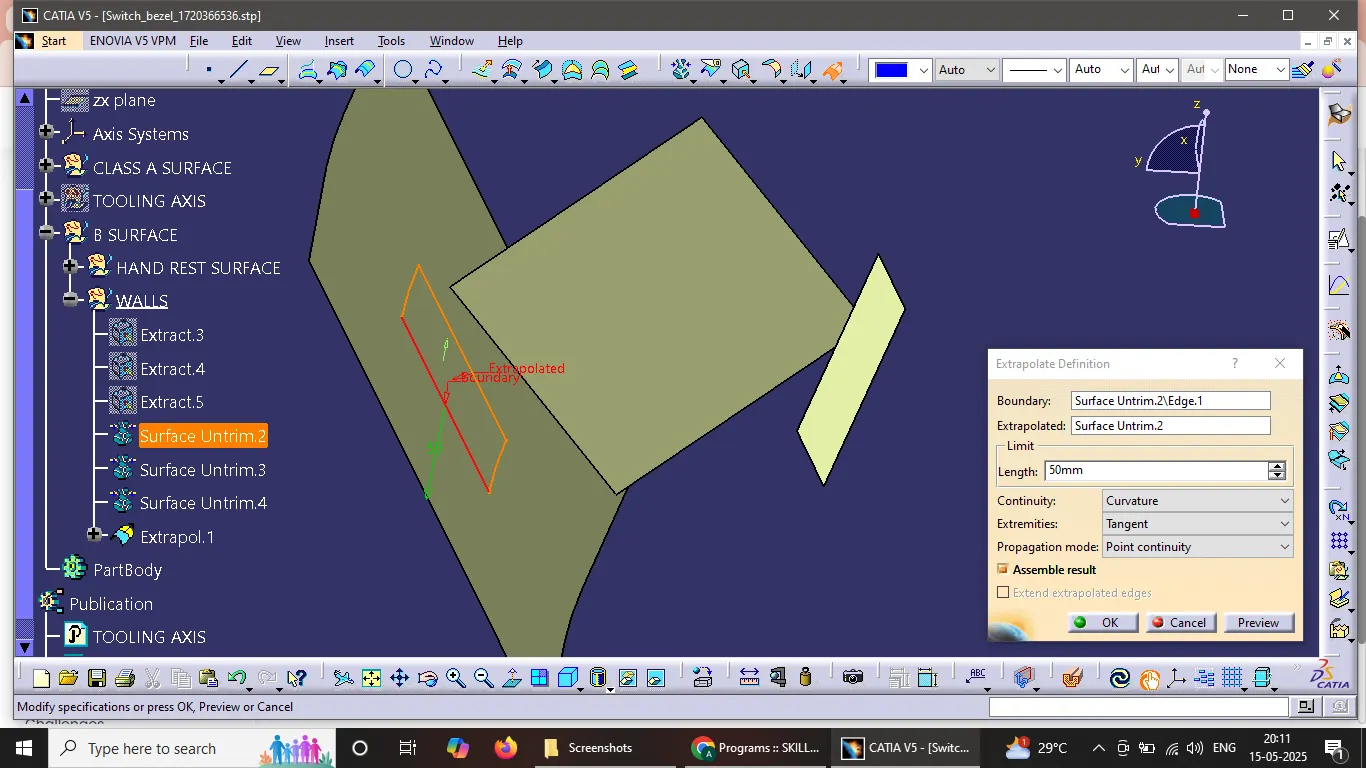

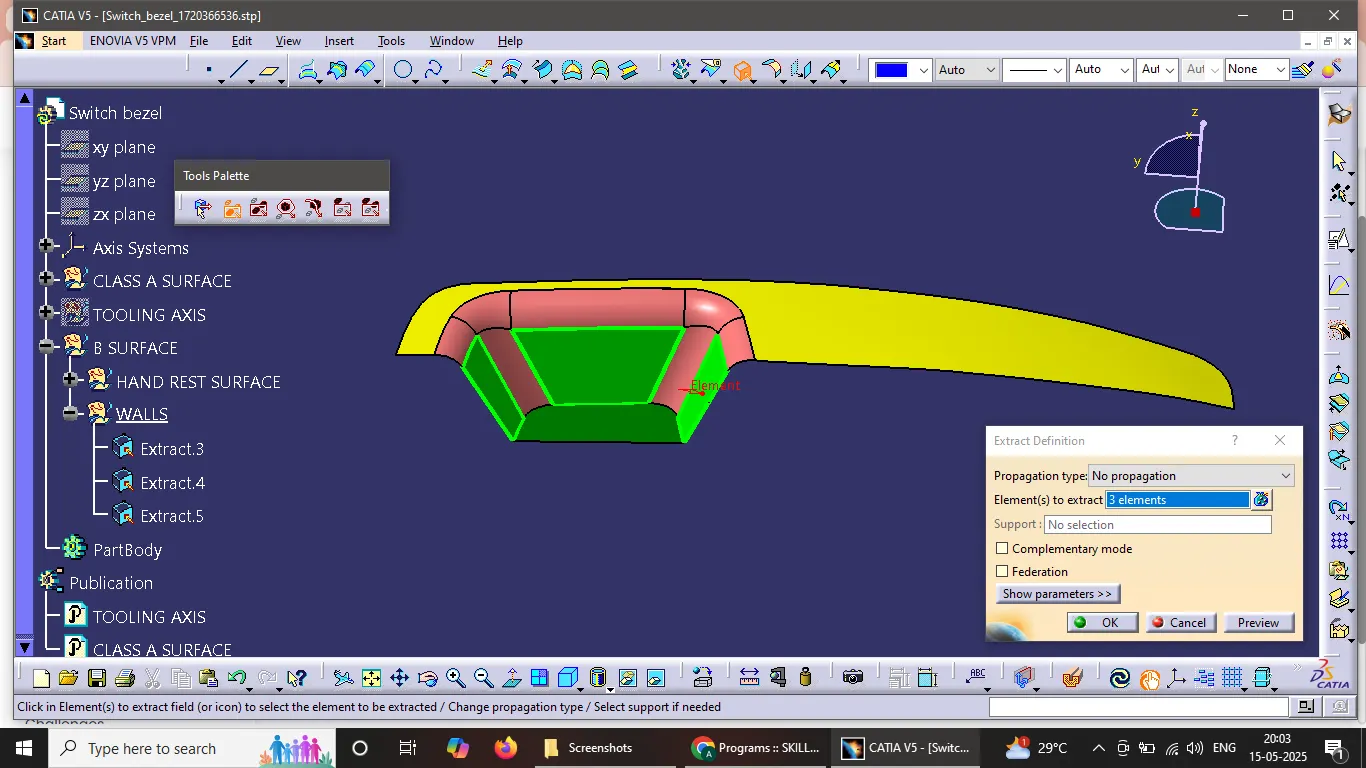

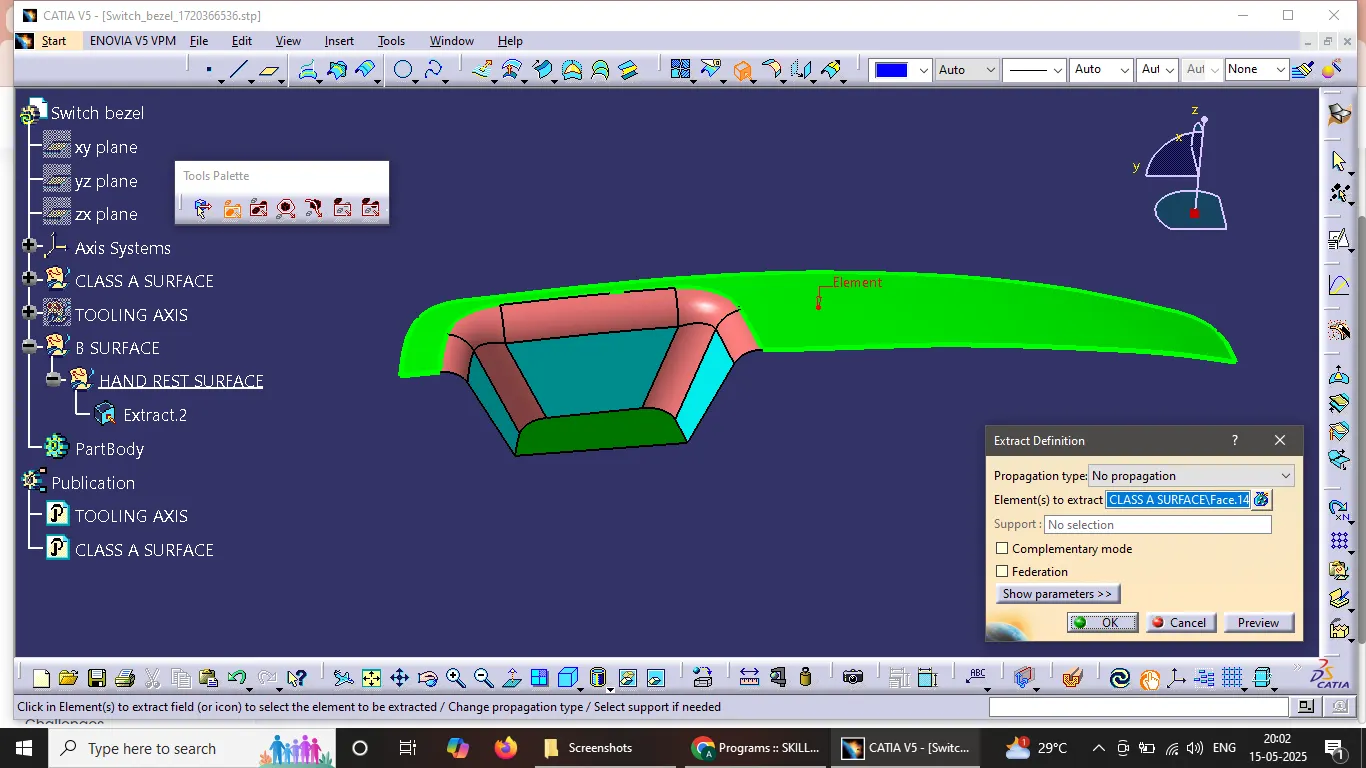

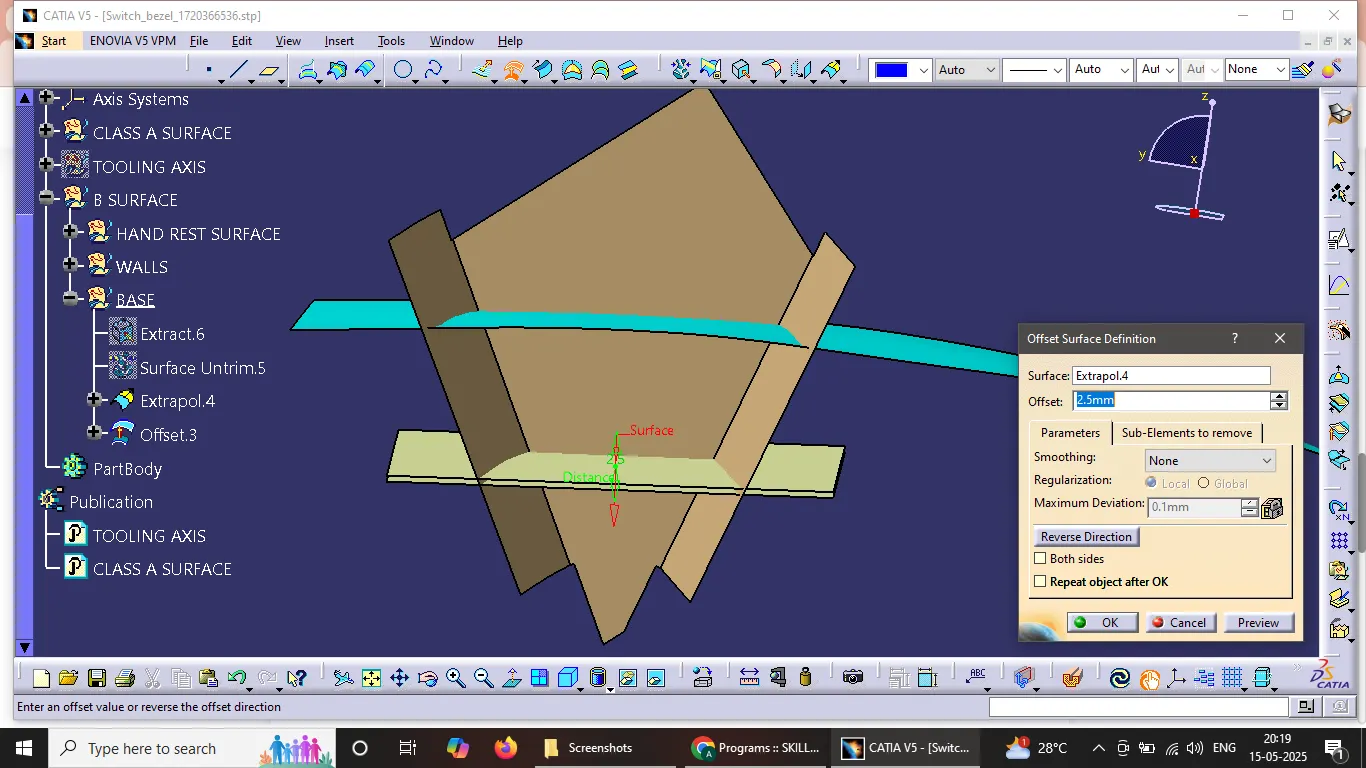

1) EXTRACTING EACH MAIN SURFACE INDIVIDUALLY THE UNTRIM, EXTRAPOLATE, THE OFFSET EACH MAIN SURFACE OF CLASS A.

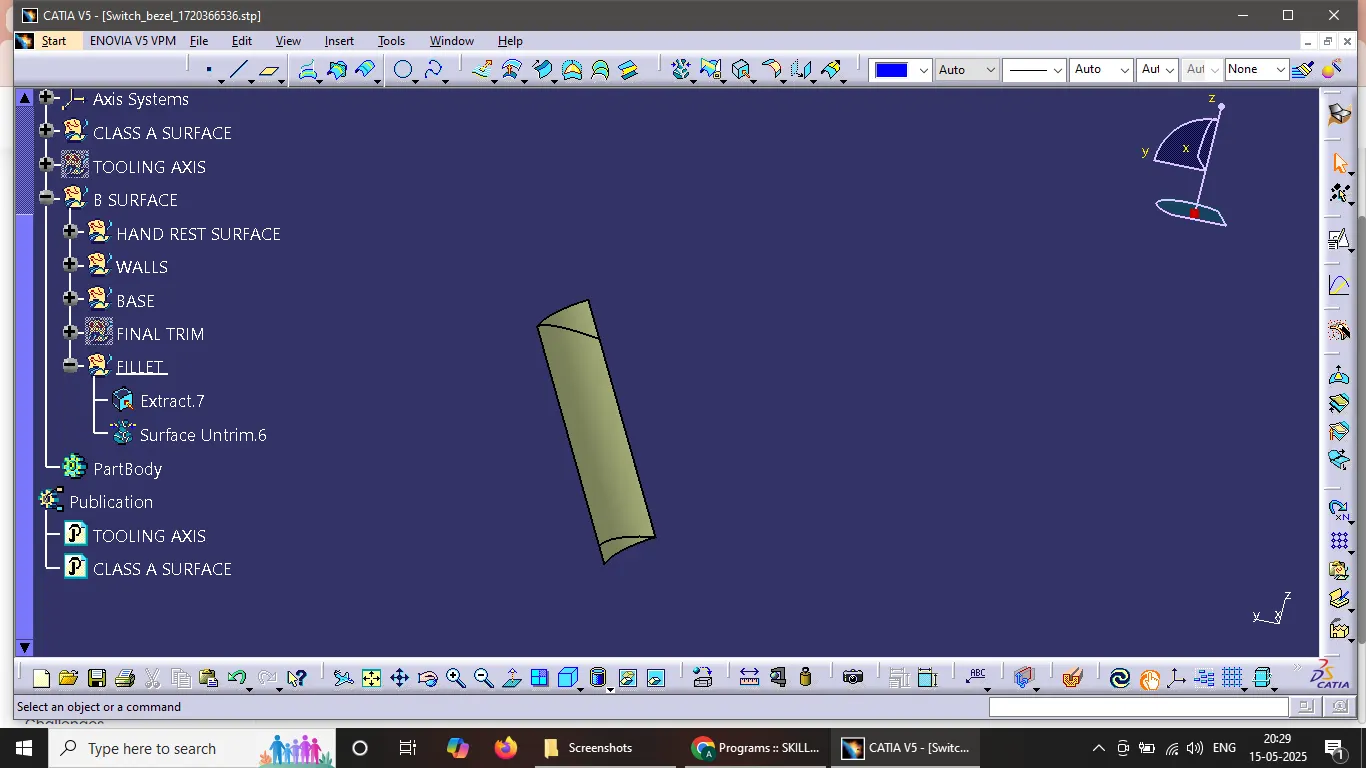

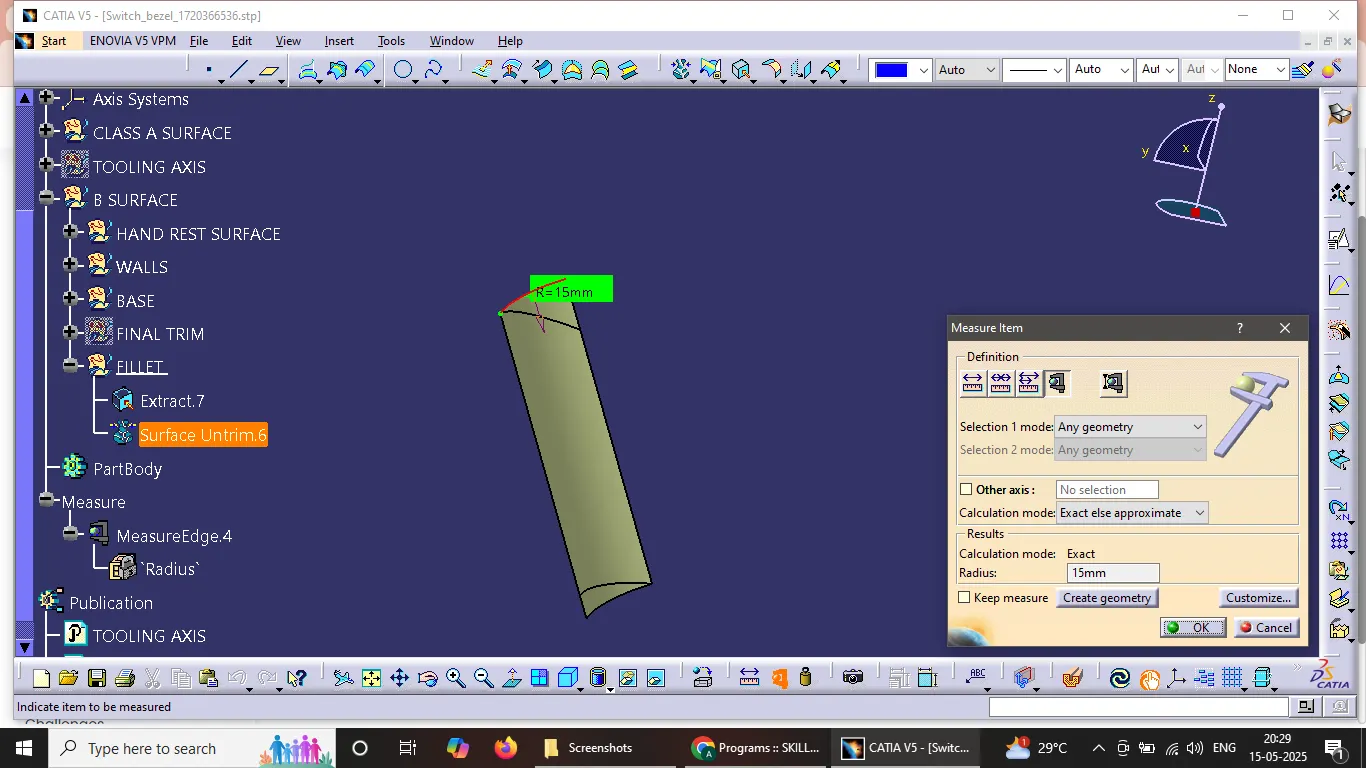

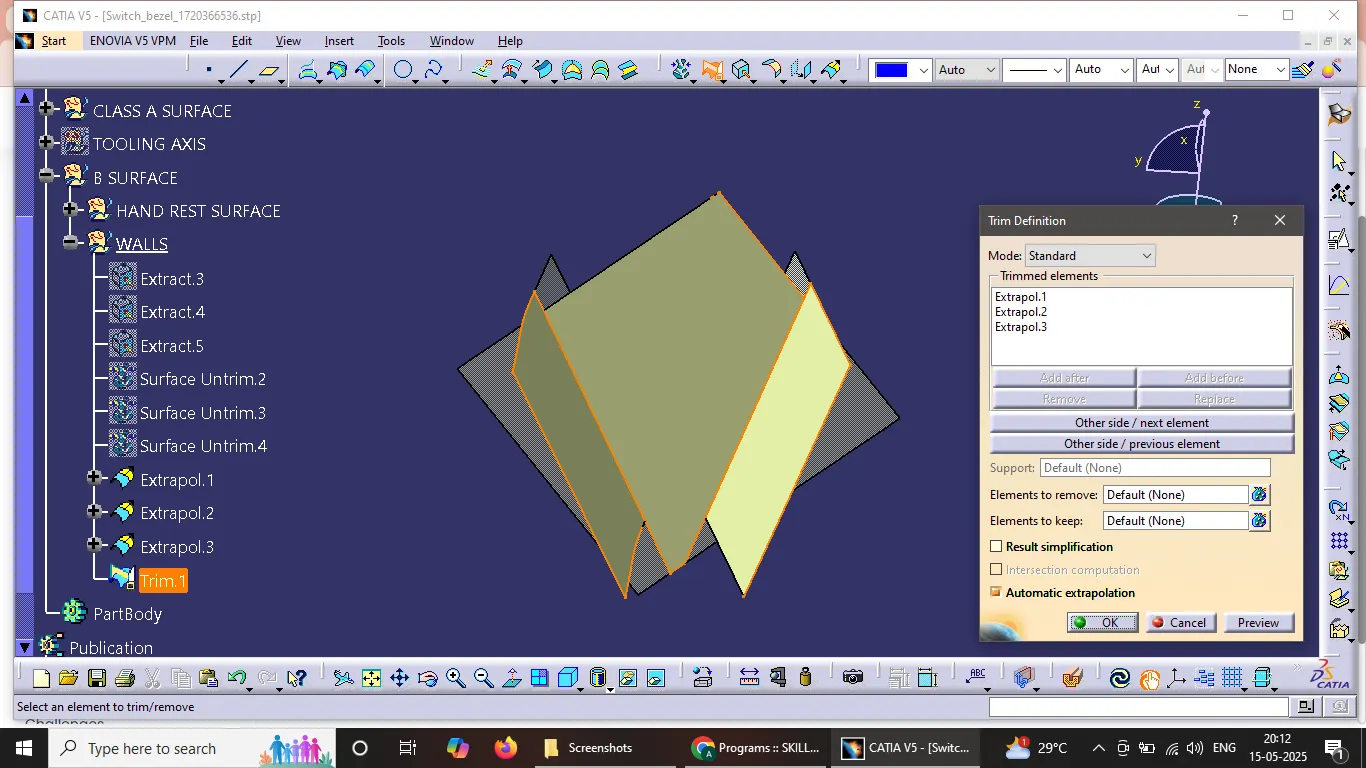

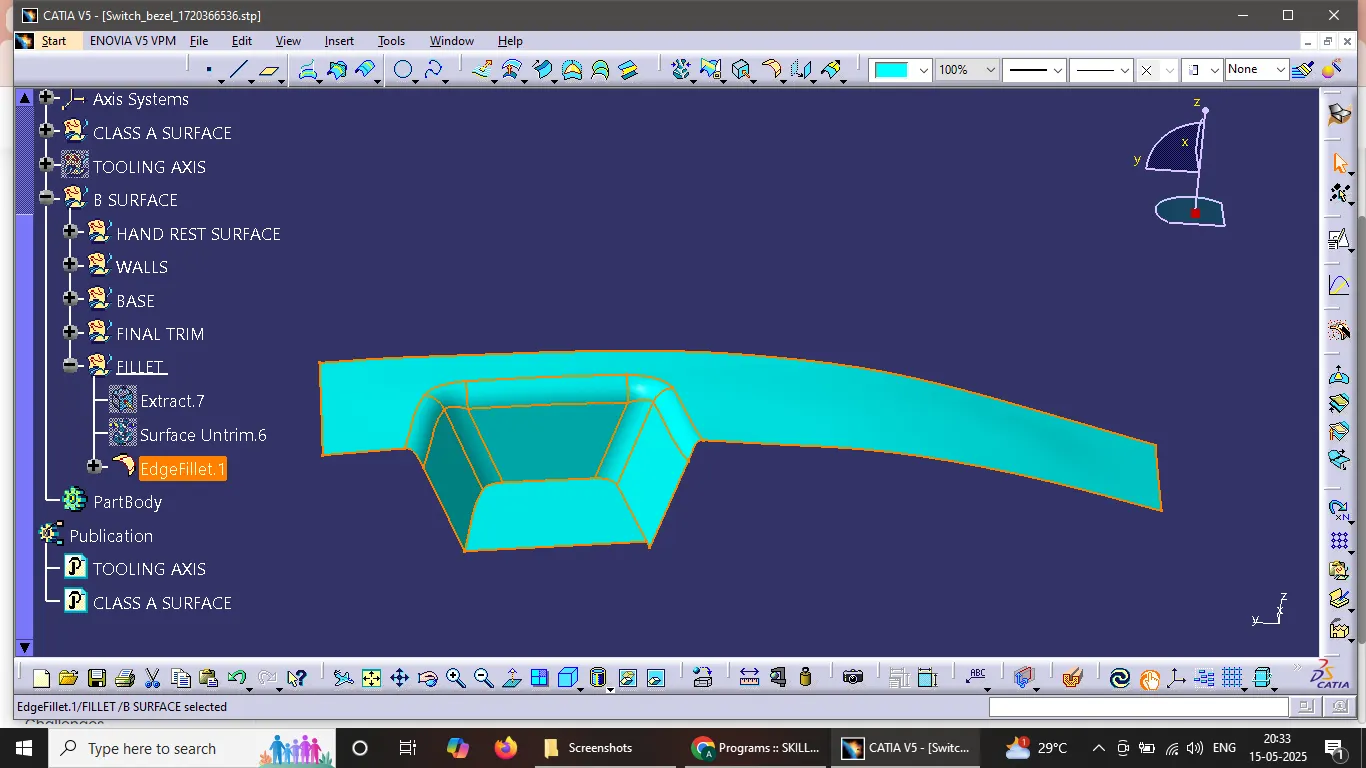

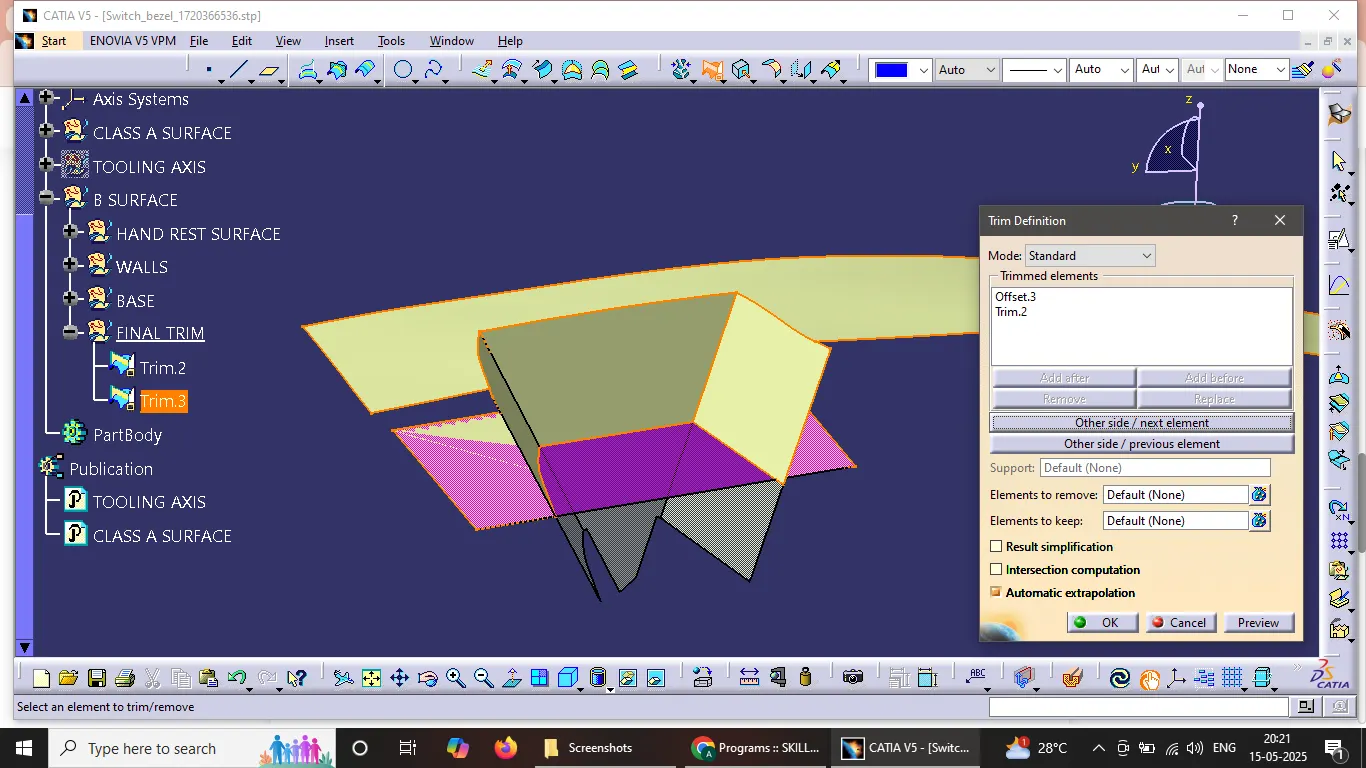

2) TRIM THE SURFACES THEN GIVING THE FILLET BY TAKING THE FILLET VALUE FROM A SURFACE.

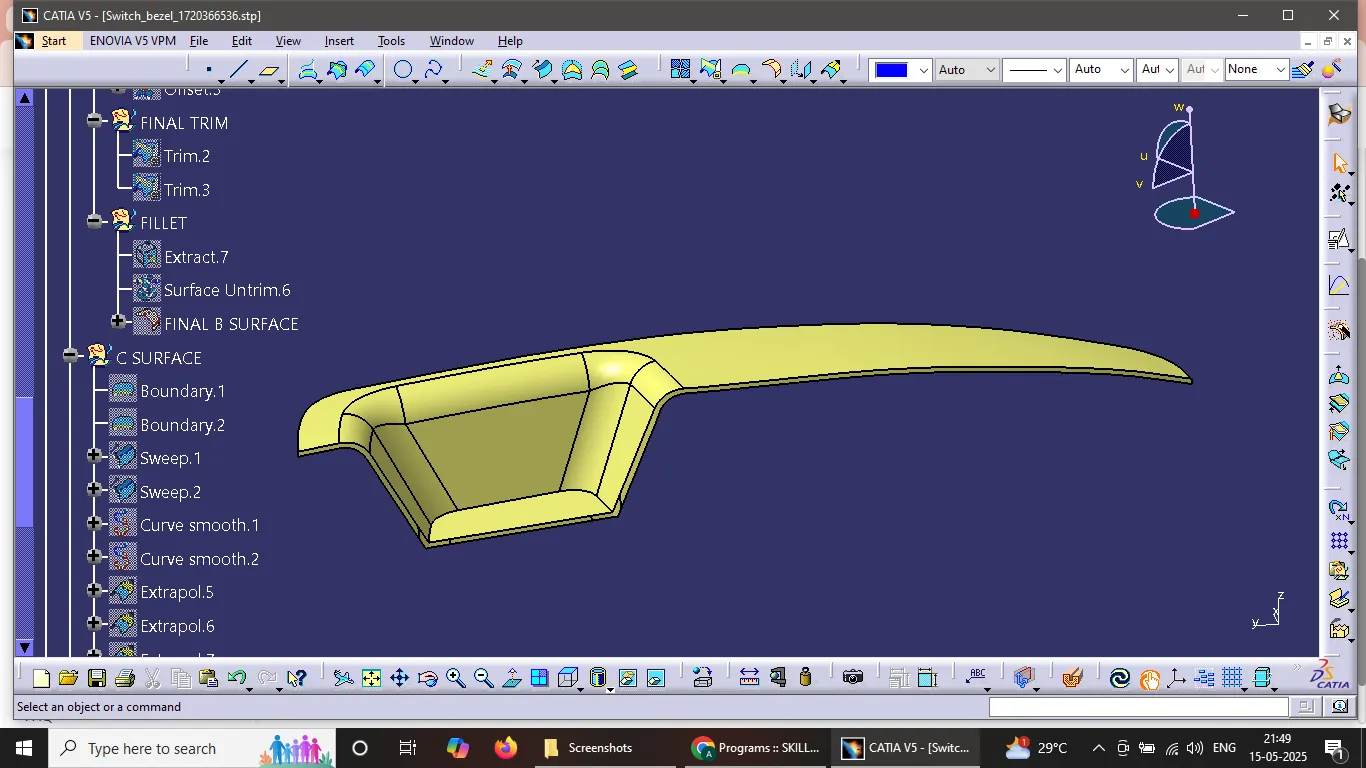

3)FINAL B SURFACE.

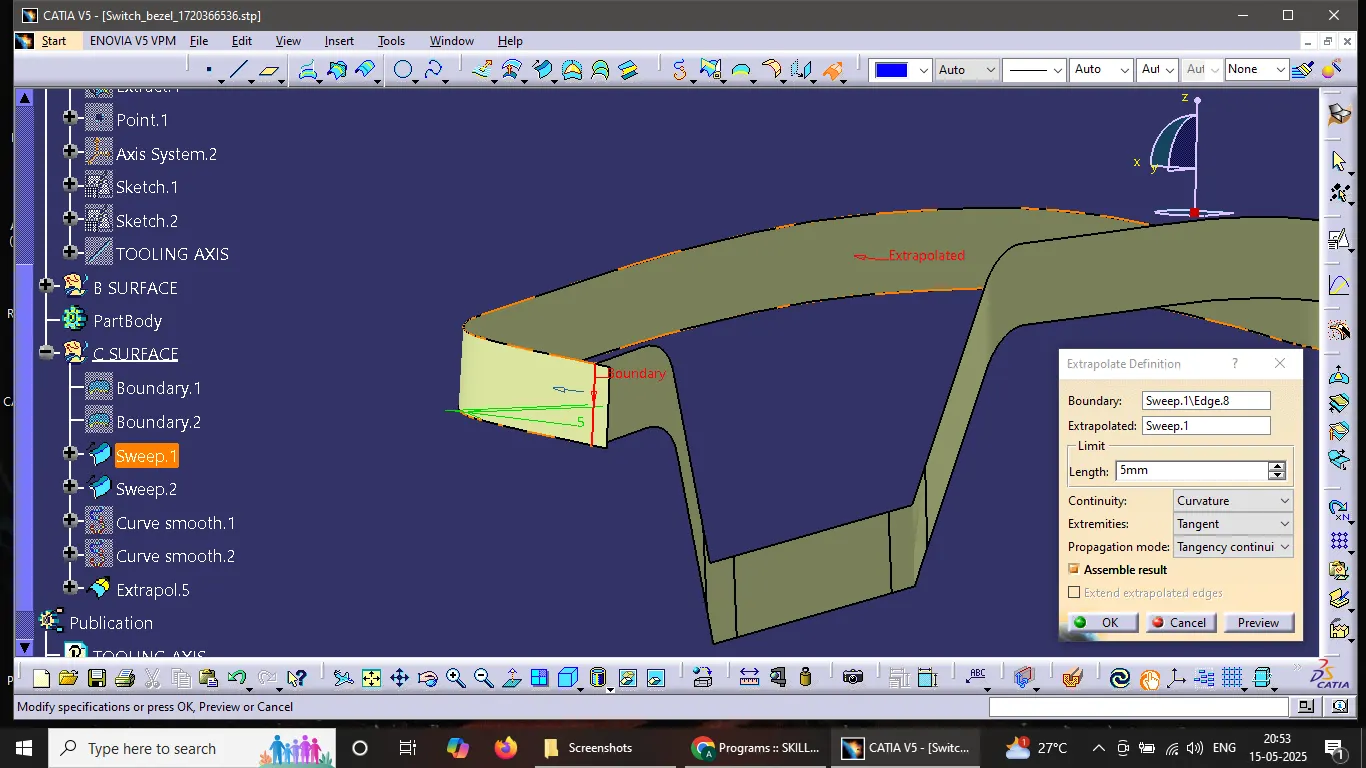

C)CREATING C SURFACE.

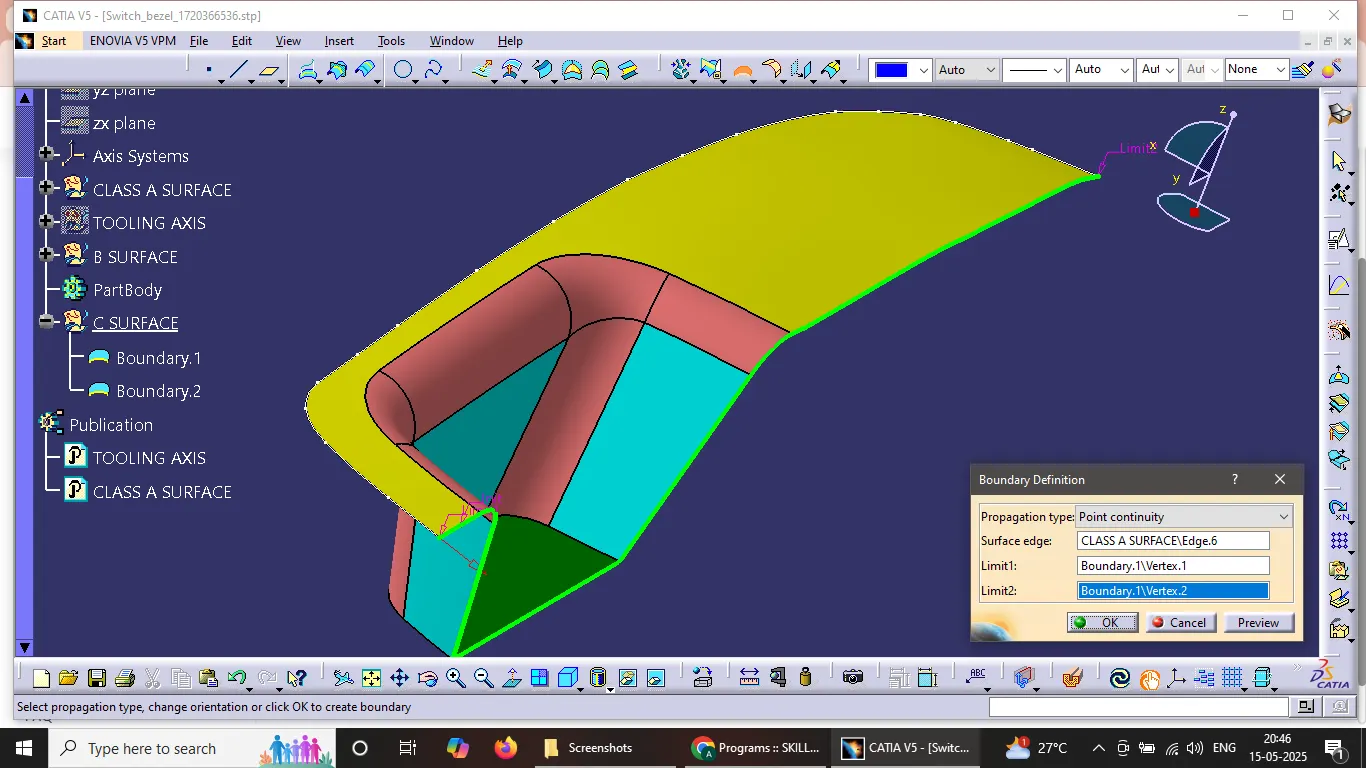

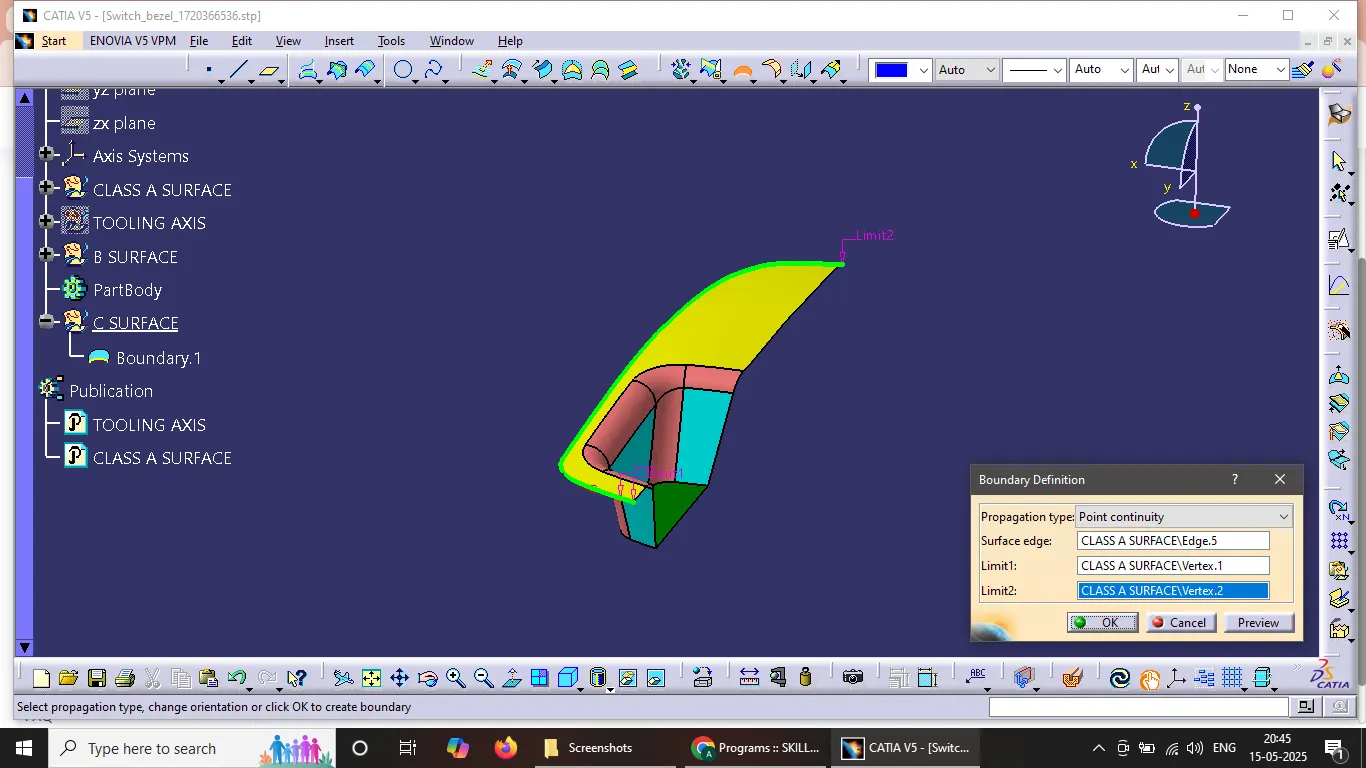

1) MAKING THE BOUNDARY IF TWO FACES.

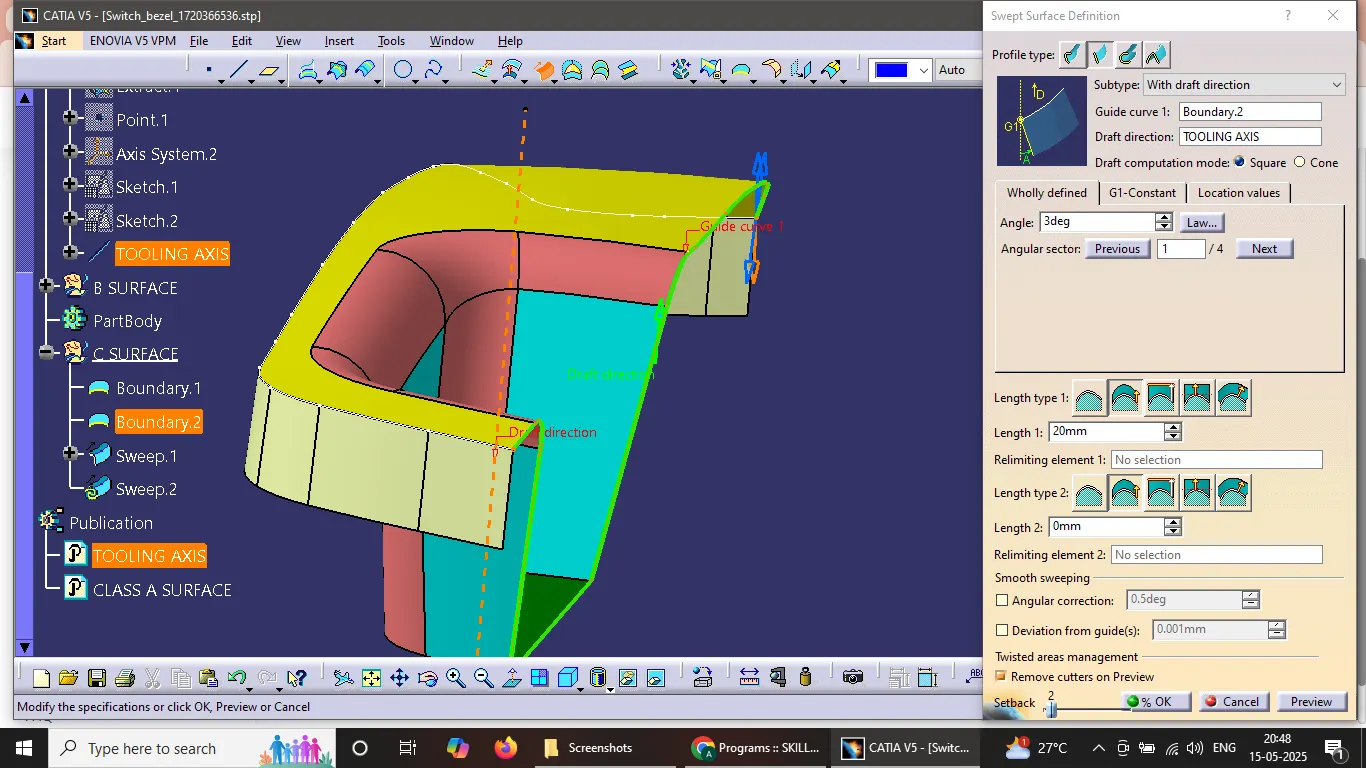

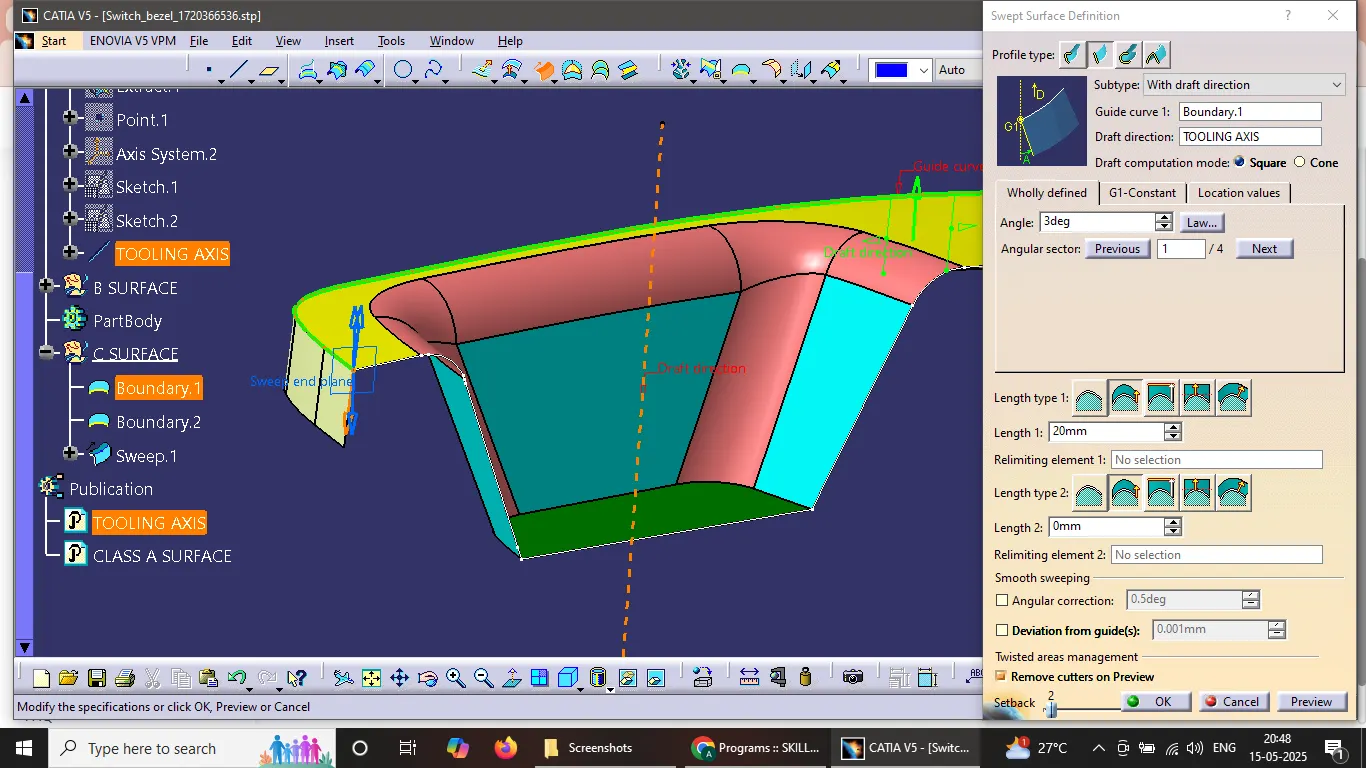

2)THEN SWEEP IT OUTER WITH 3 DEGREE.

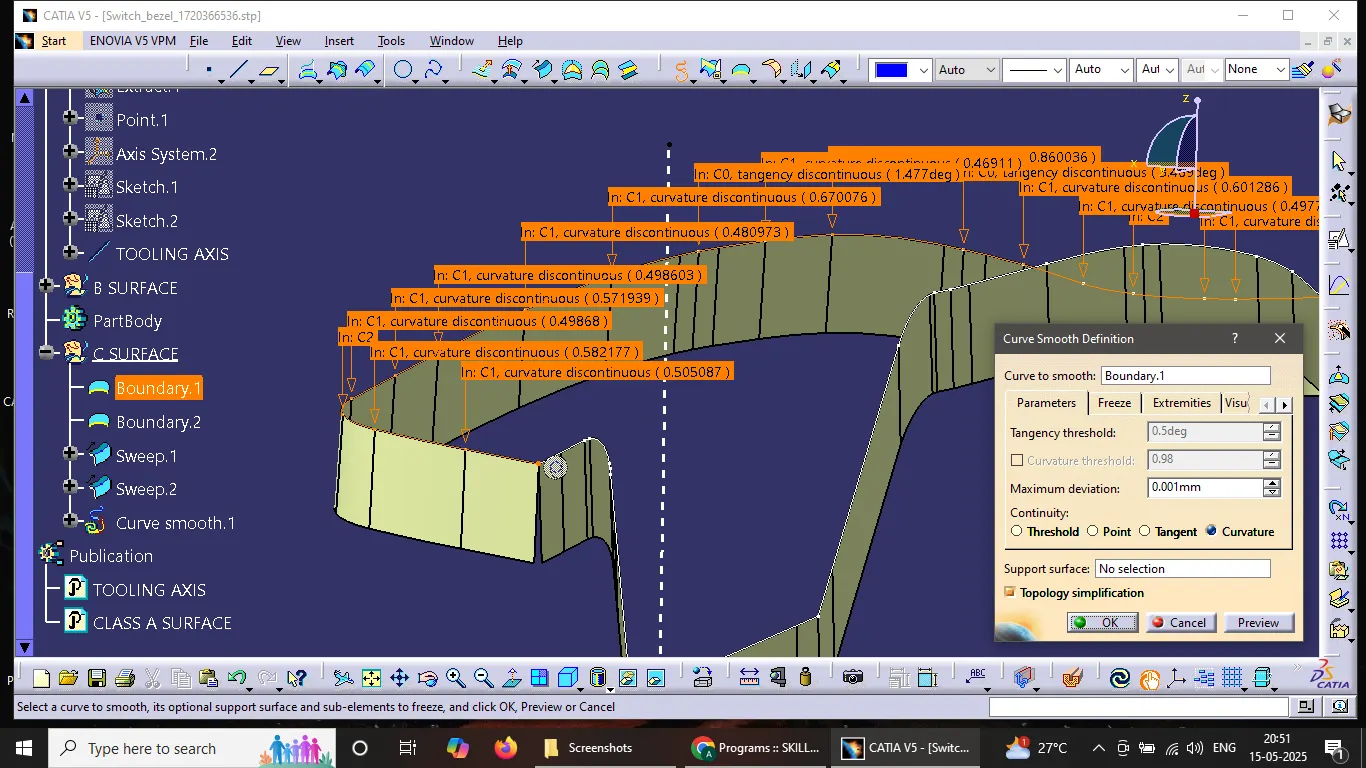

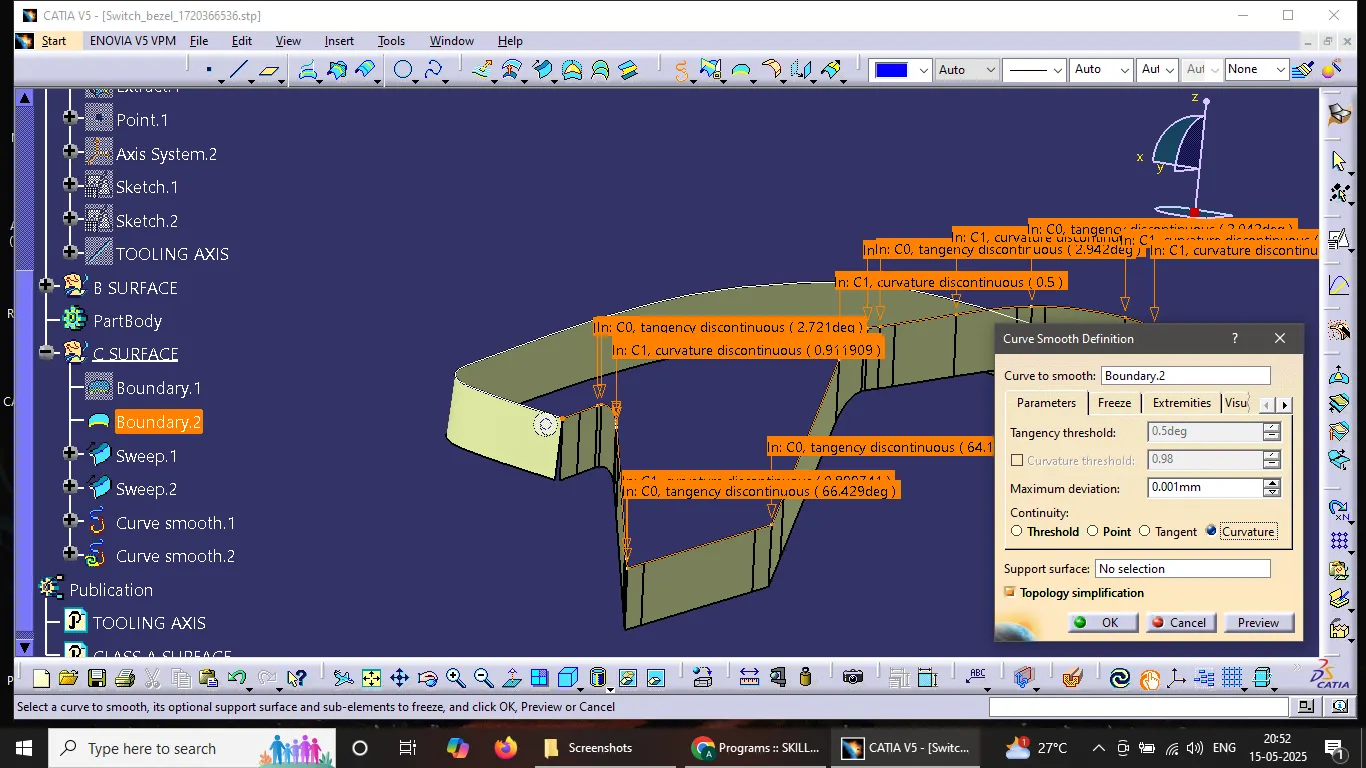

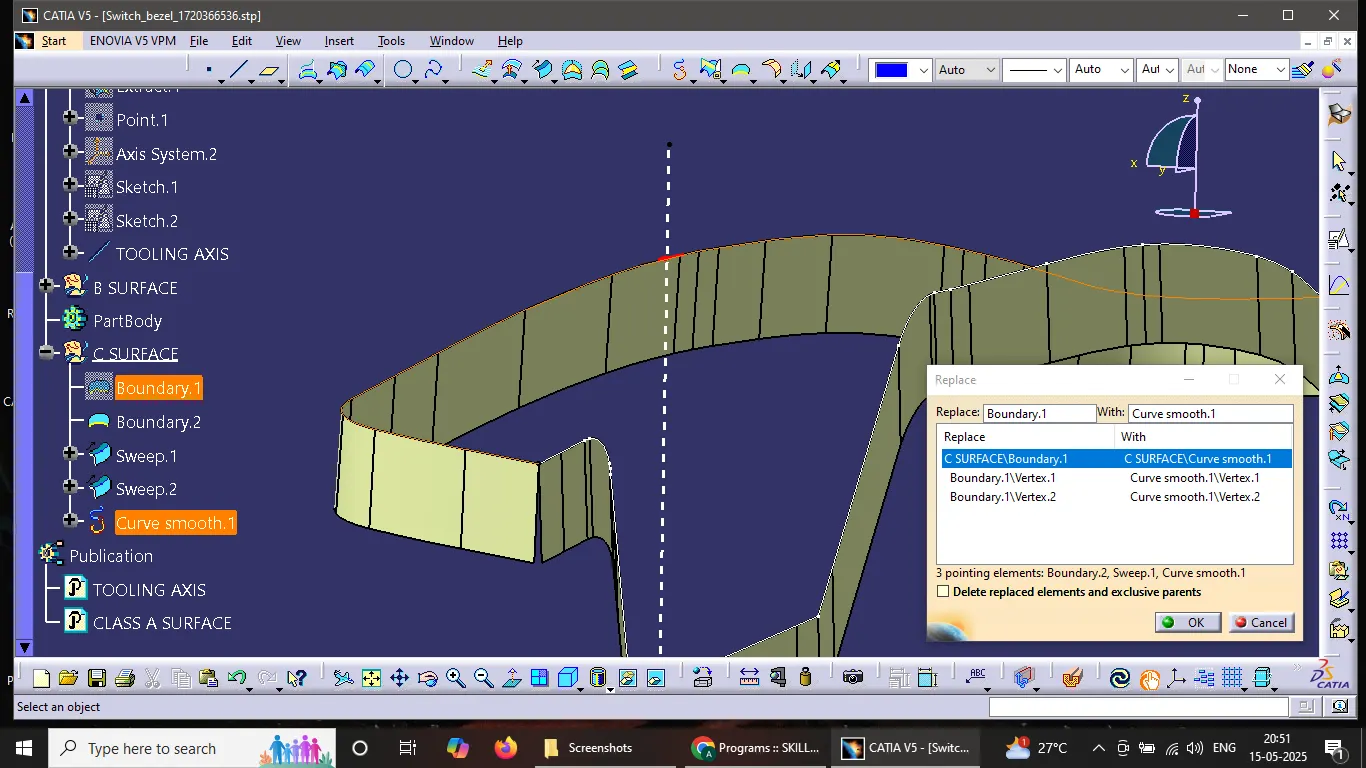

3) PERFORMING SMOOTH CURVE TO REMOVE SPATCHES.

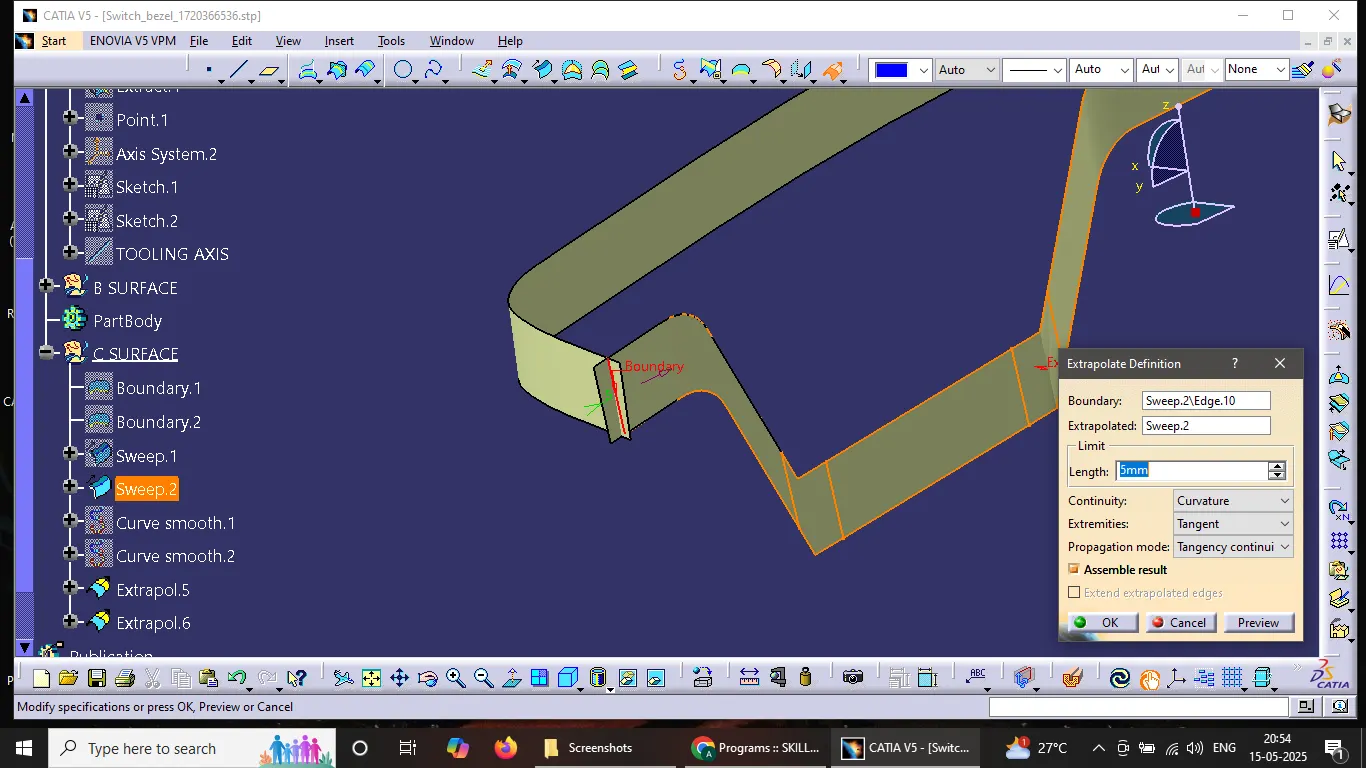

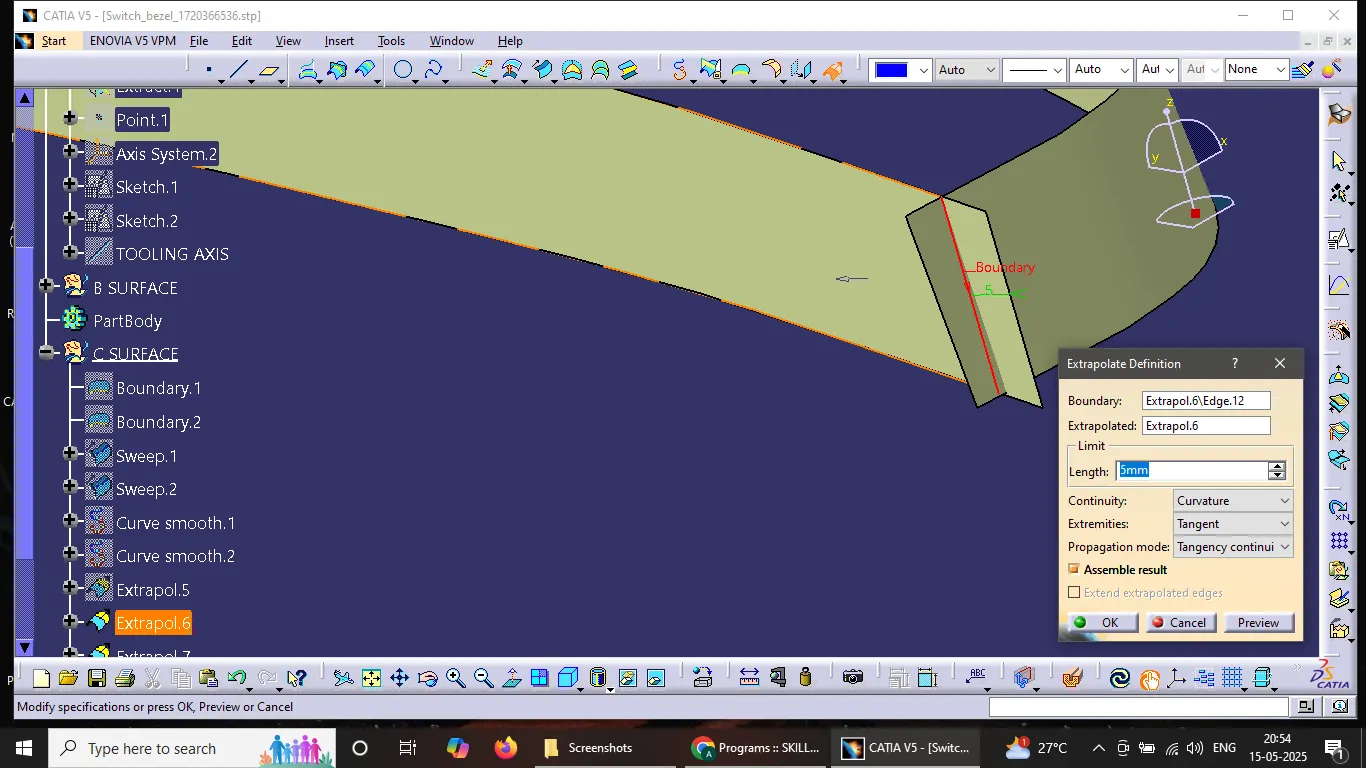

4)EXTRAPOLATE THE SWEEP TO TRIM.

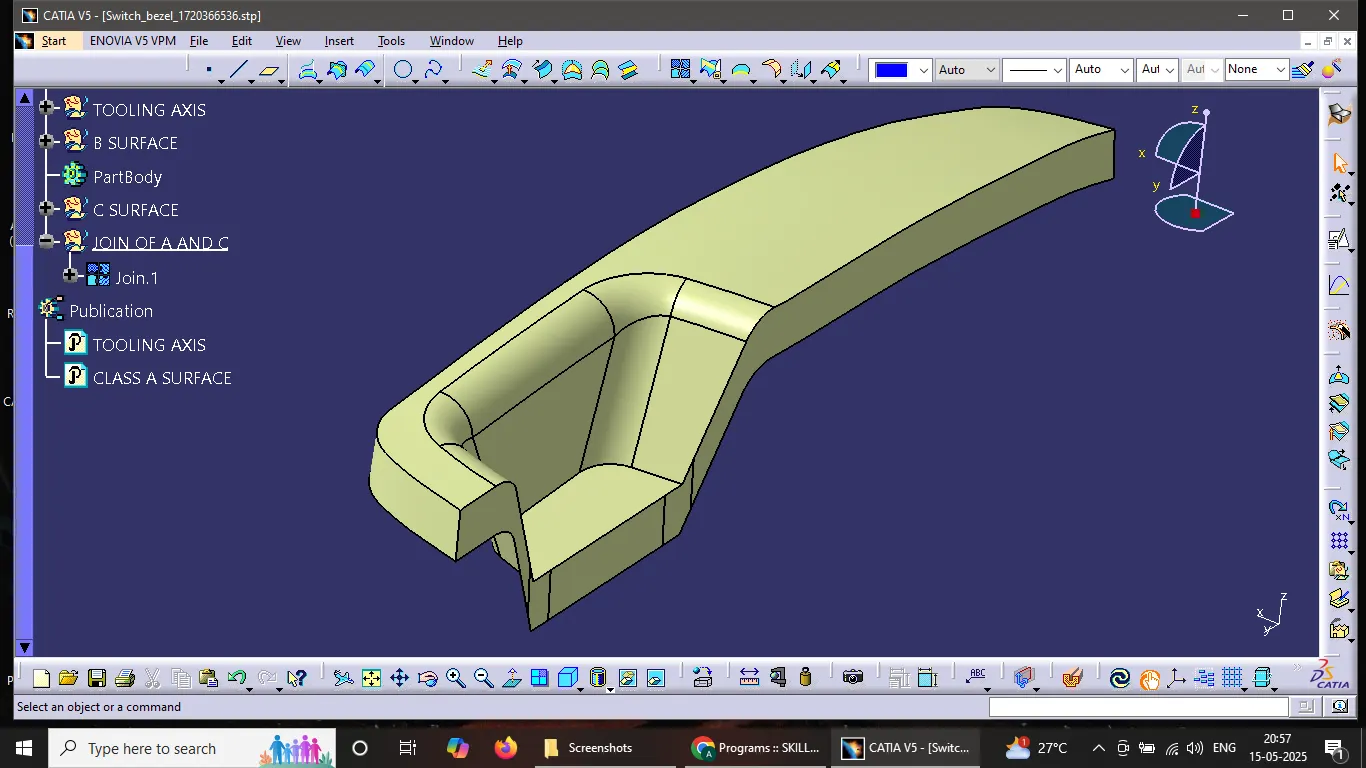

5) JOINED THE C AND A.

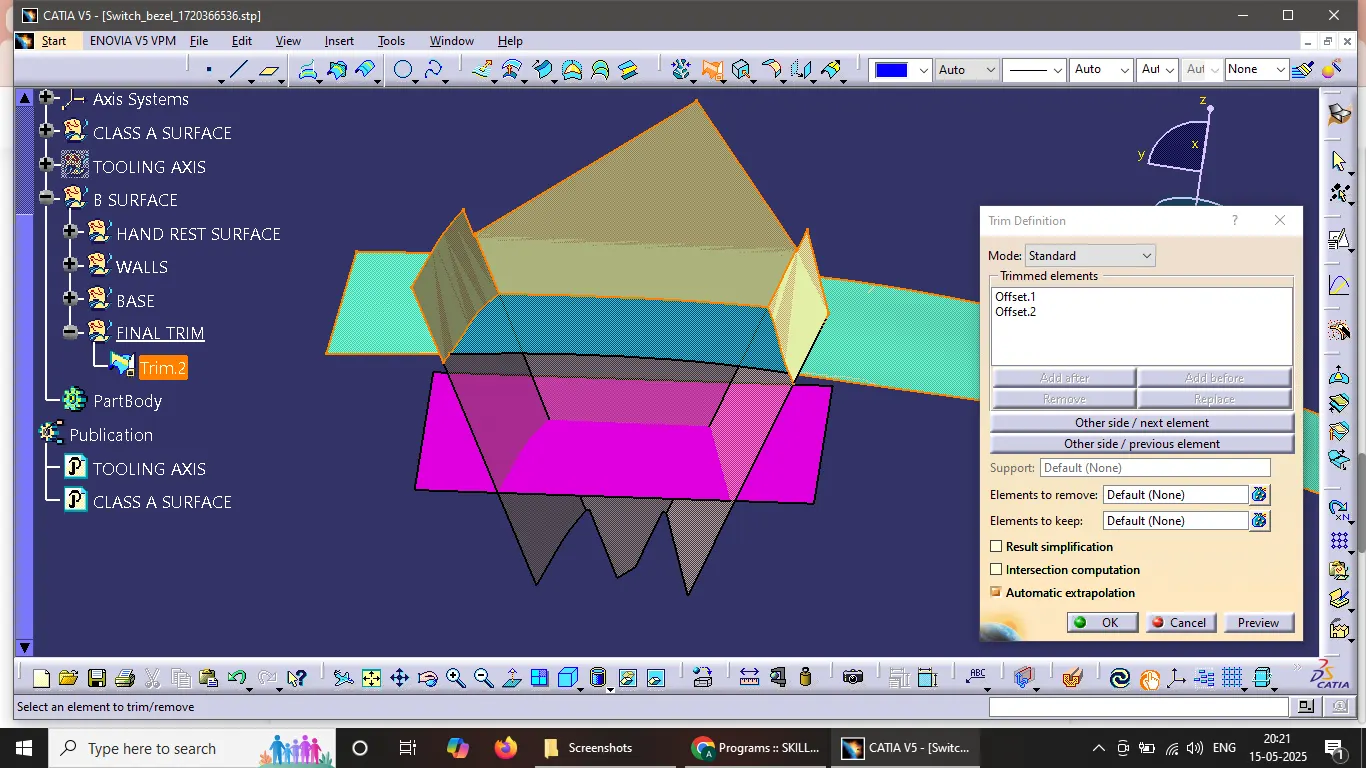

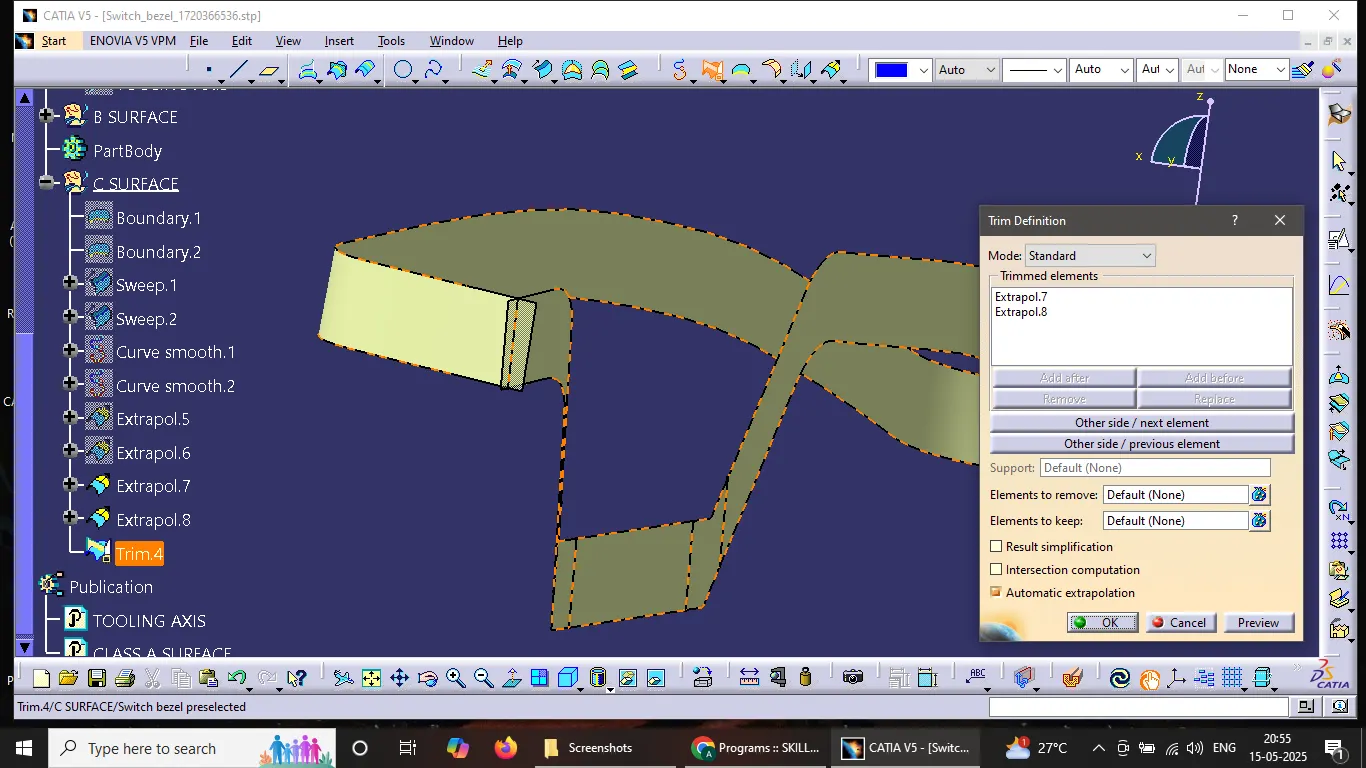

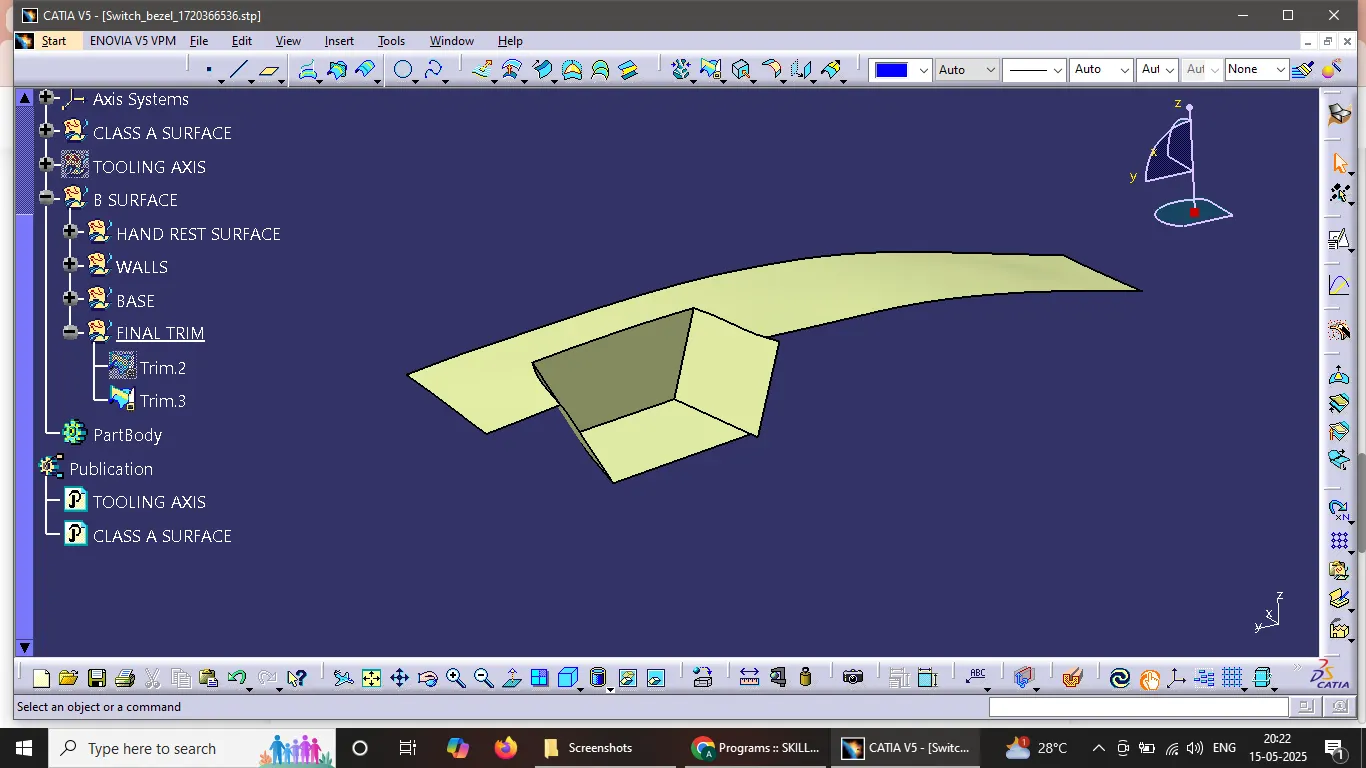

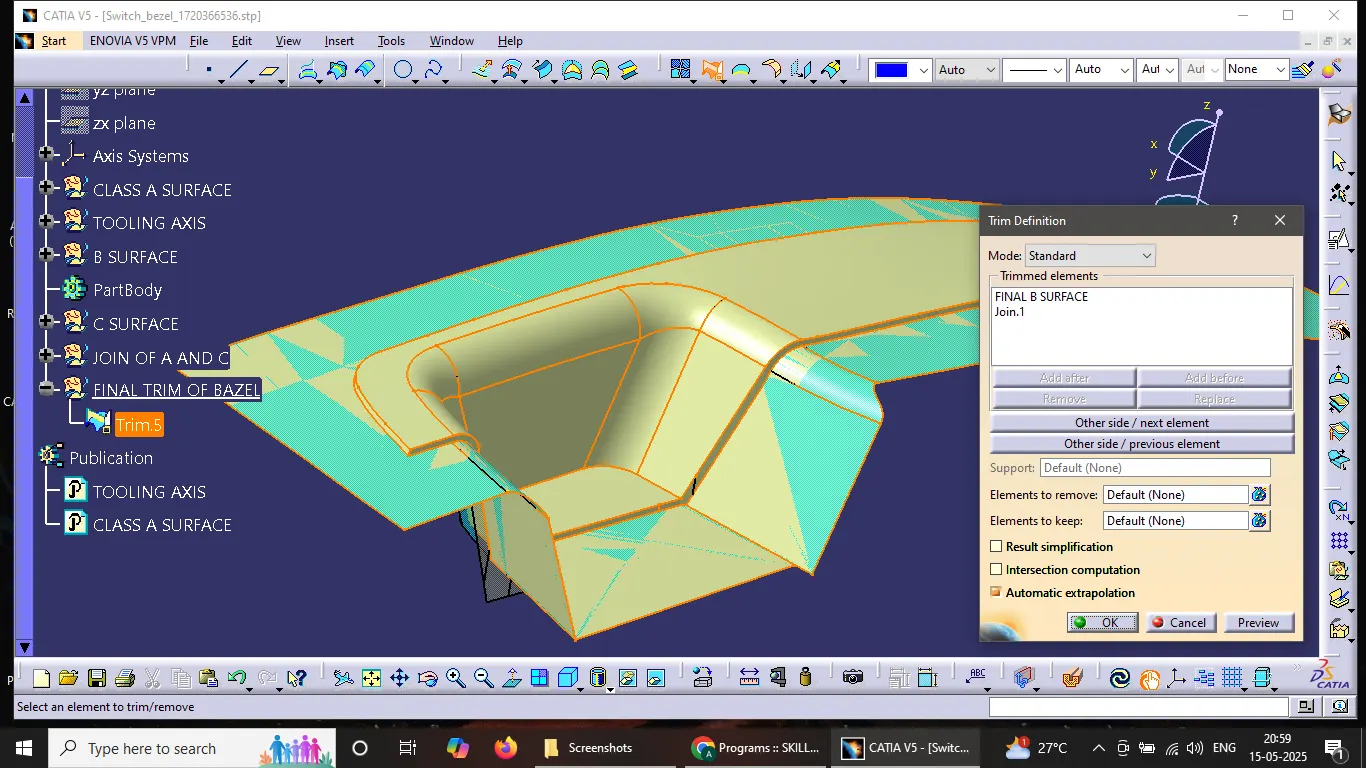

6)TRIM JOIN A AND C TO B SURFACE.

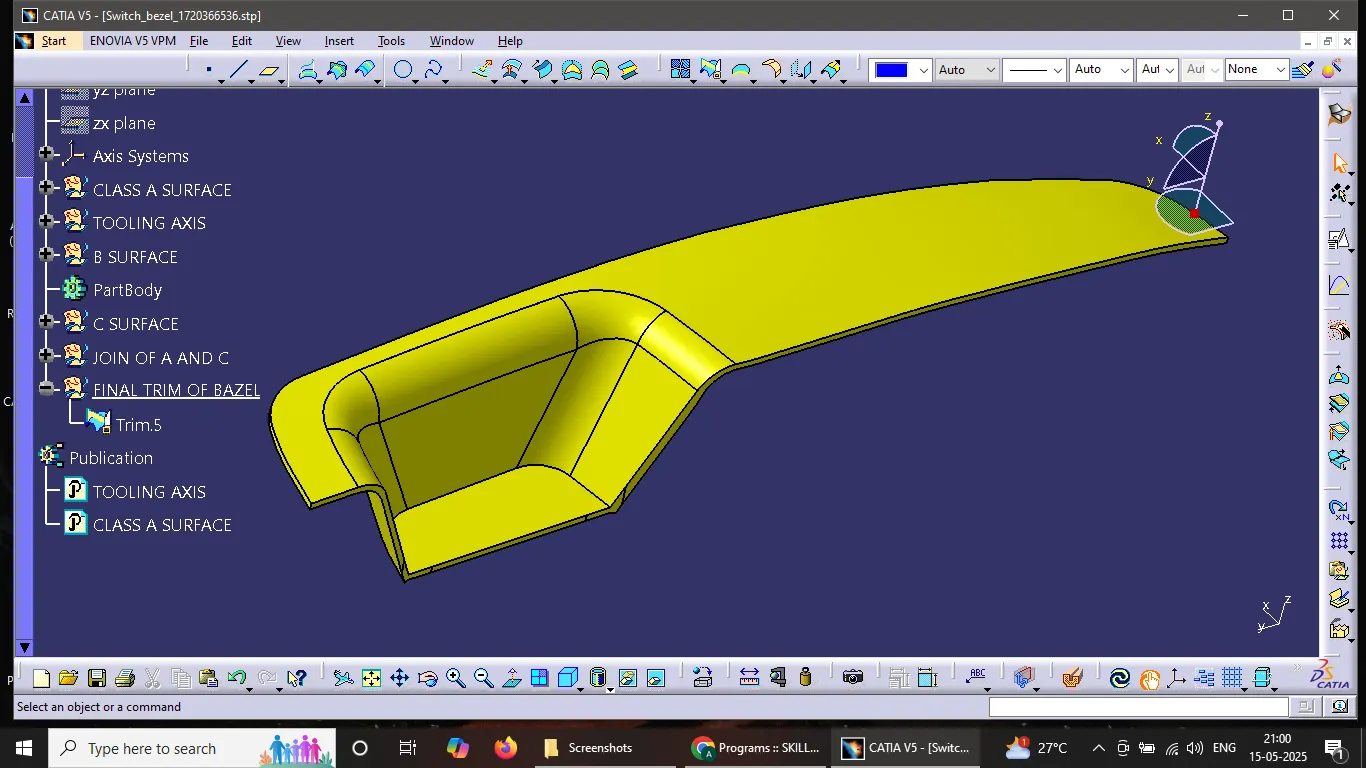

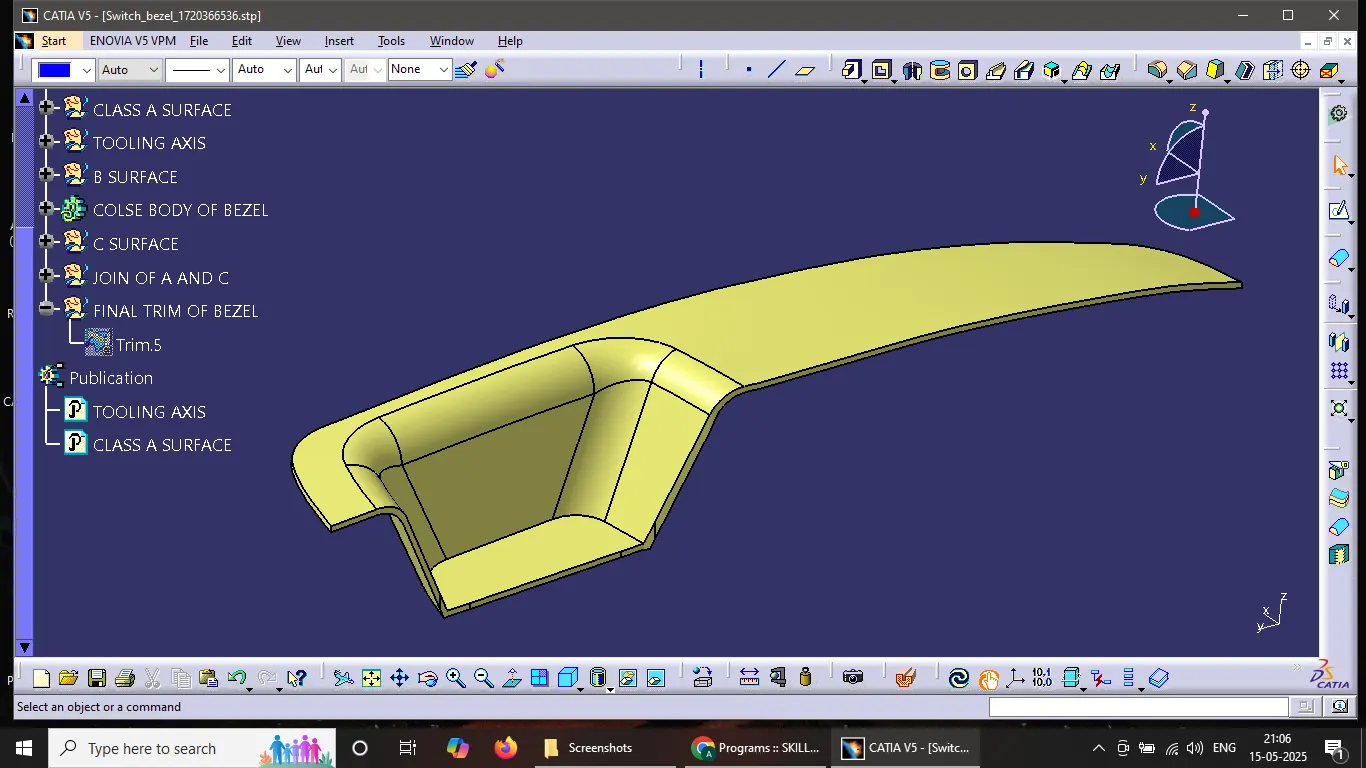

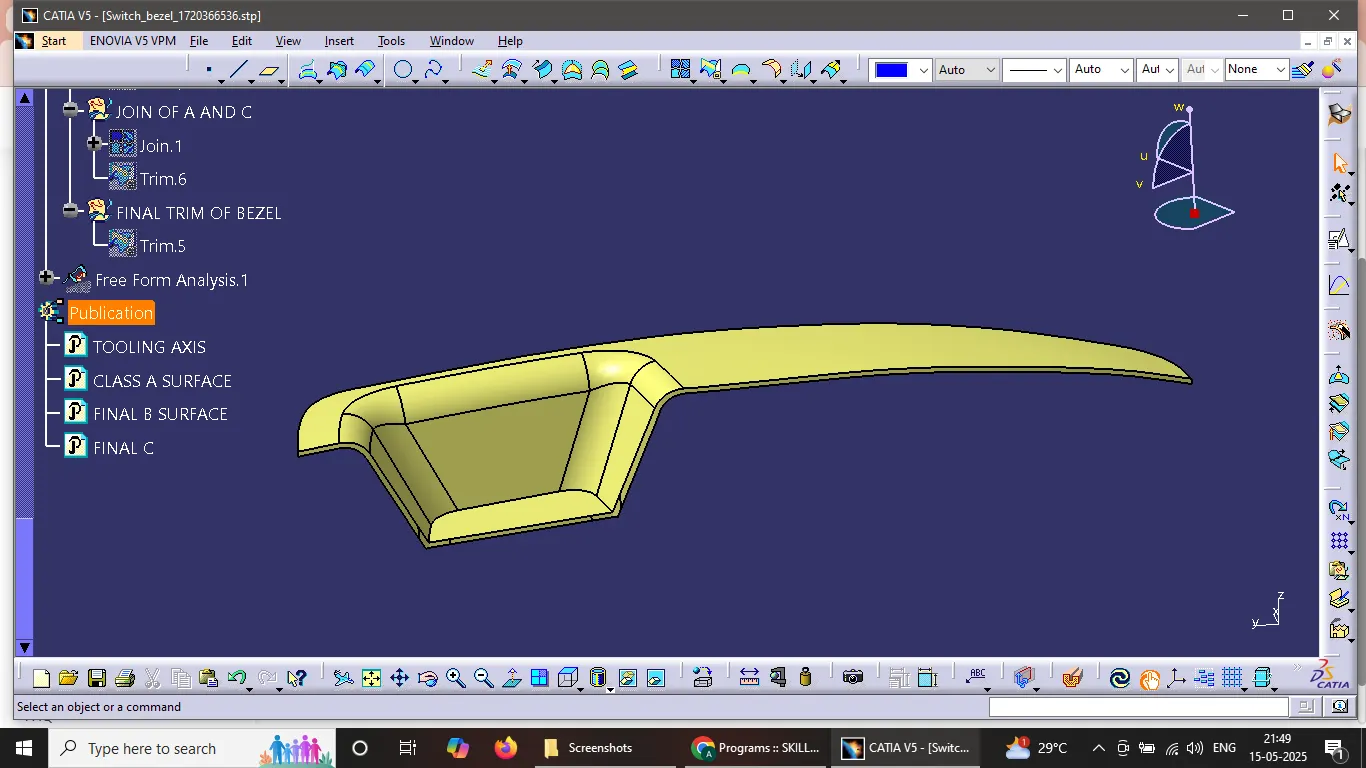

7)THE FINAL CLOSE BODY.

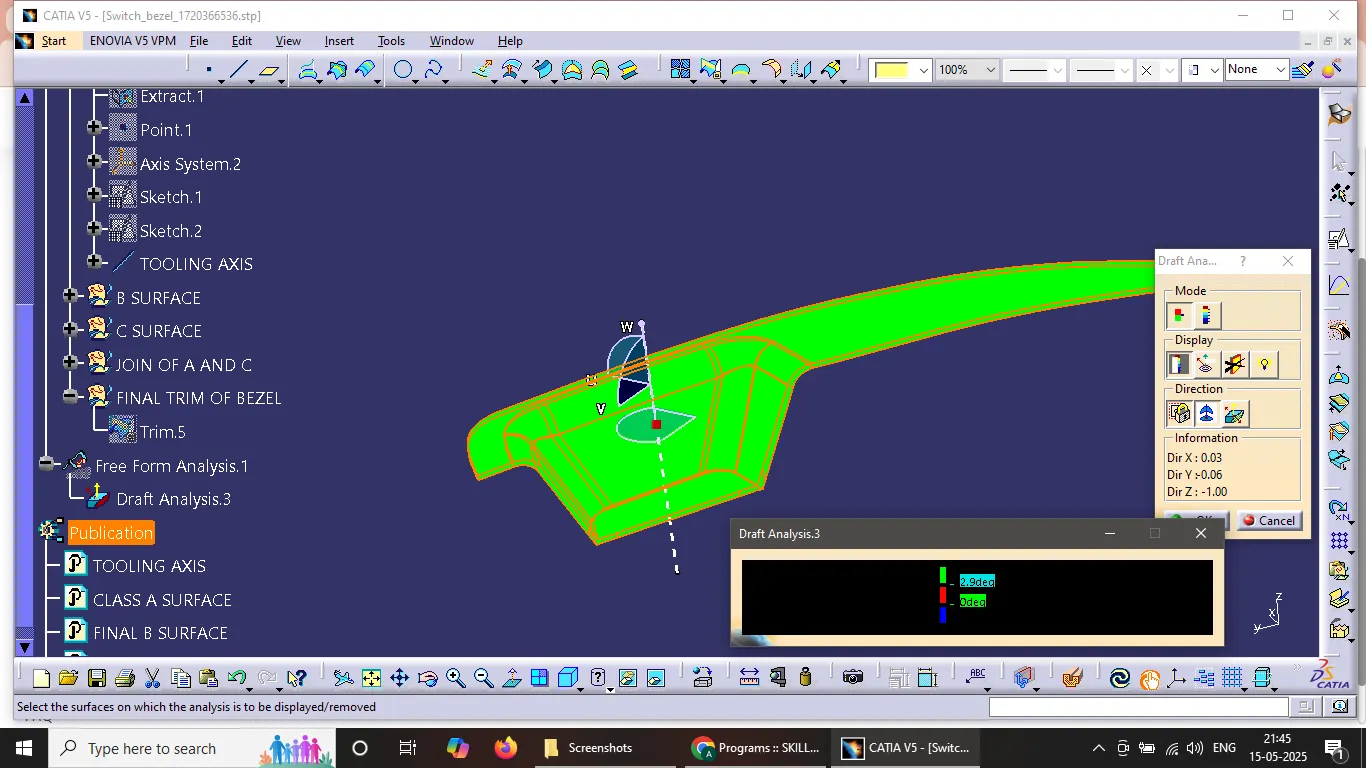

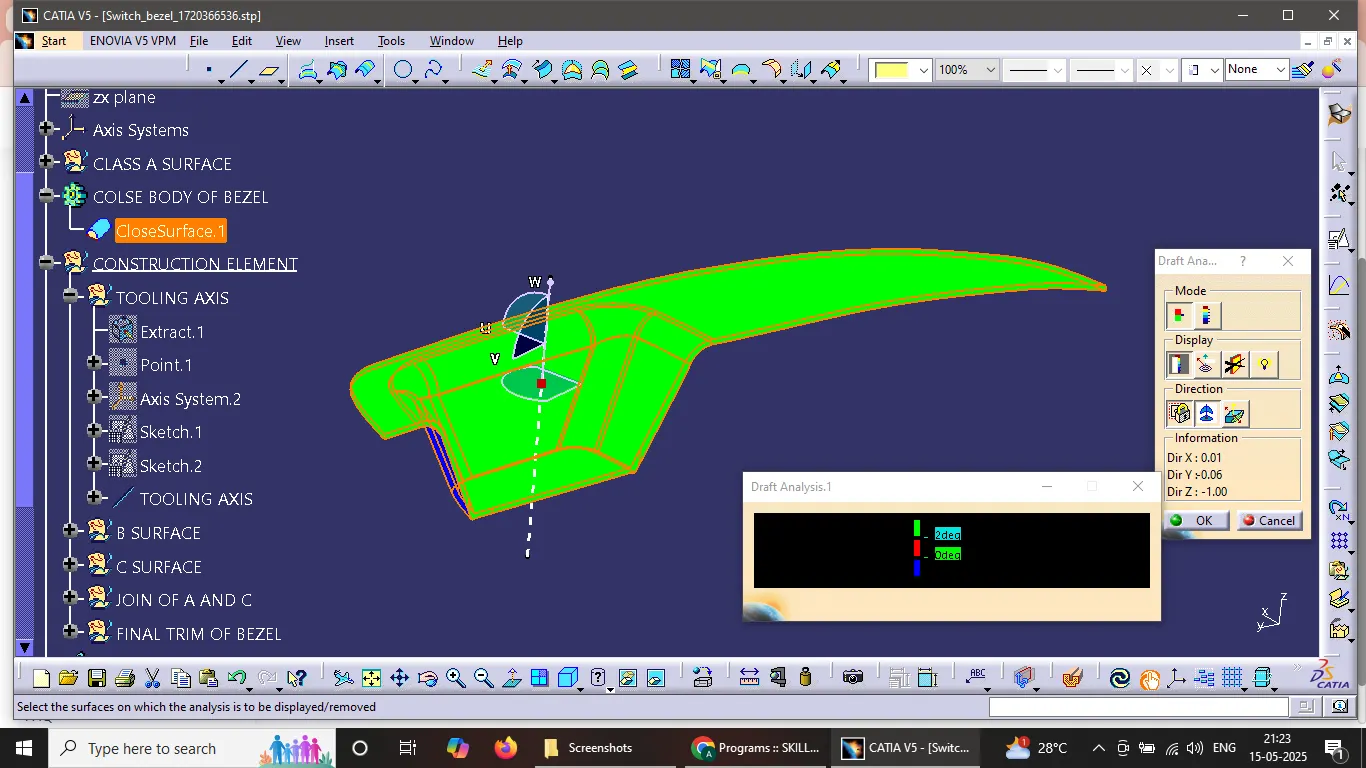

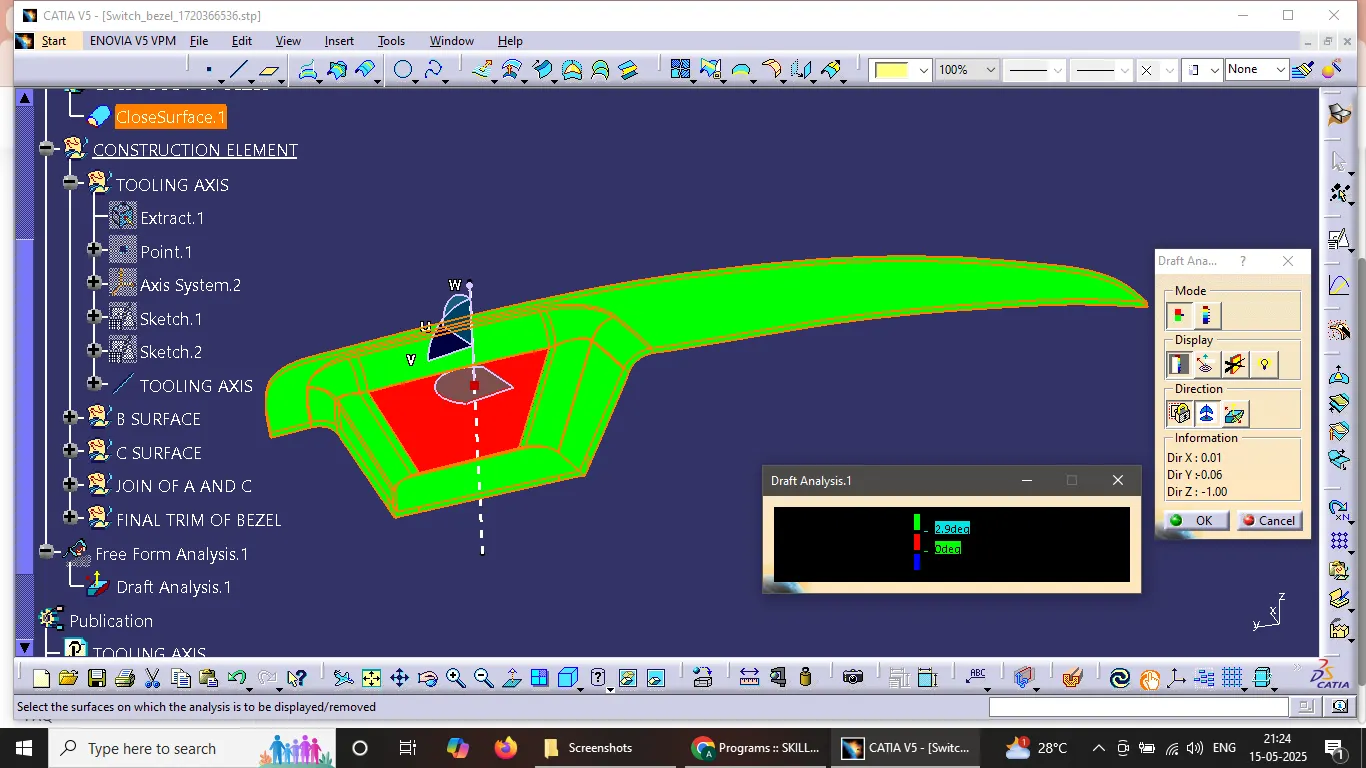

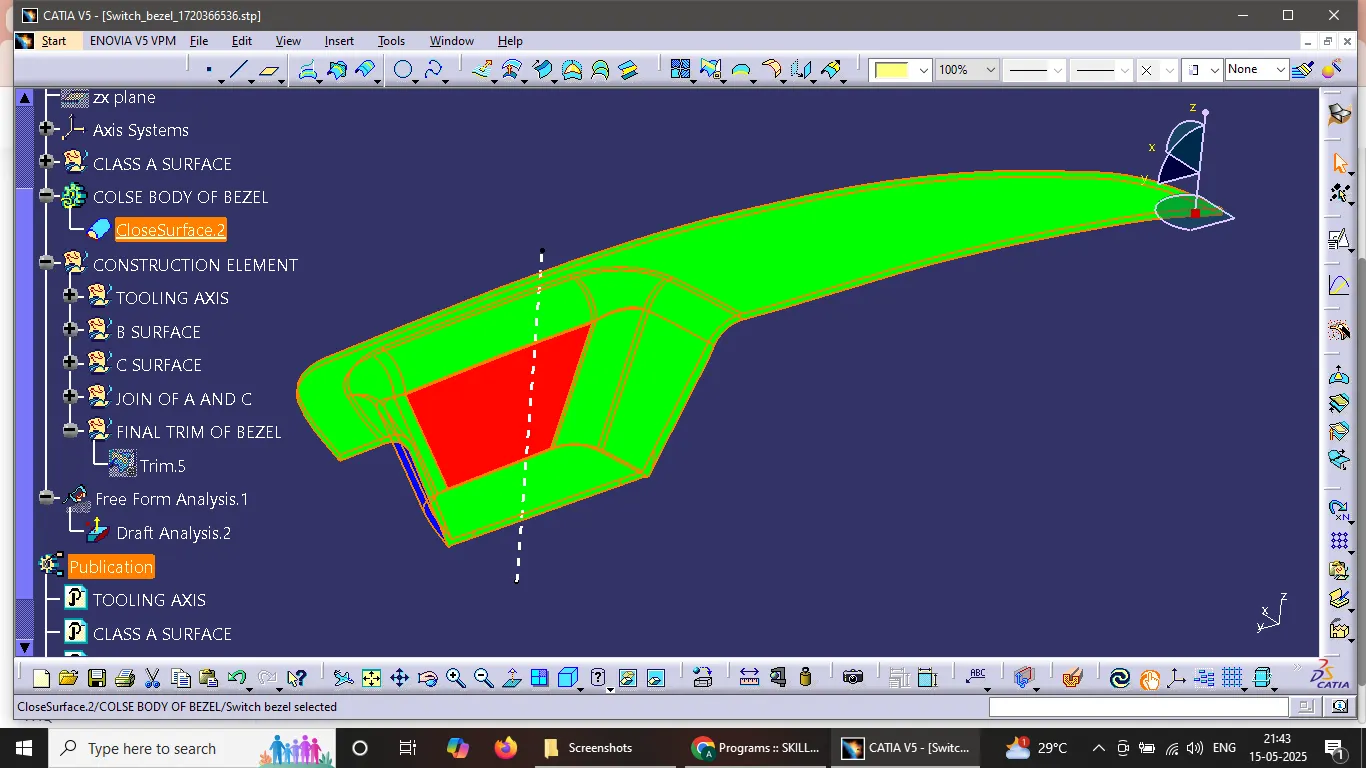

D)DONE THE DRAFT ANALYSIS

1) VALUE OF ANGLE 2 DEGREE.

2)VALUE 2.9 DEGREE.

3) ADJUST THE ANGLE WHICH GIVEN IN PREVIOUS TOOLING AXIS AS 4 DEGREE.

4) WHEN THE ANGLE GIVE 5 DEGREE THE DRAFT WILL GET.

5)DIFFERENT VIEWS.

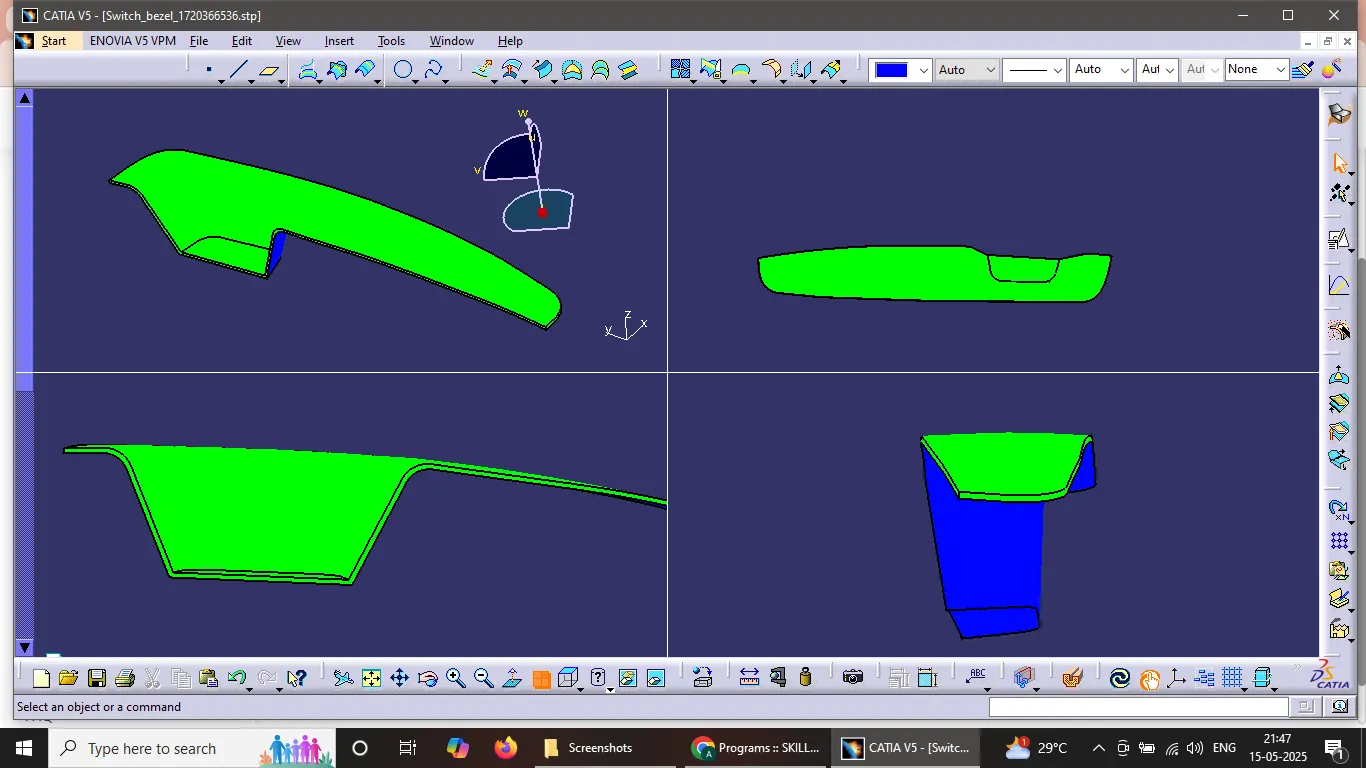

THE FULL GEOMETRY SET OF THE DESIGN.
