Week 9 - Challenge 2 - Switch Bezel Design

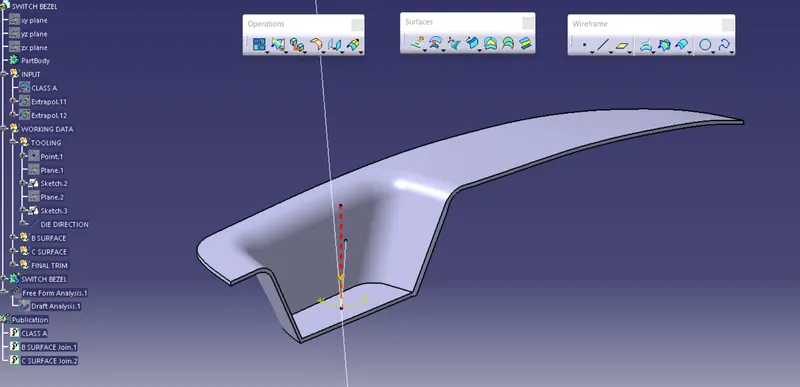

Tooling axis
- For tooling a the sketch method is used.

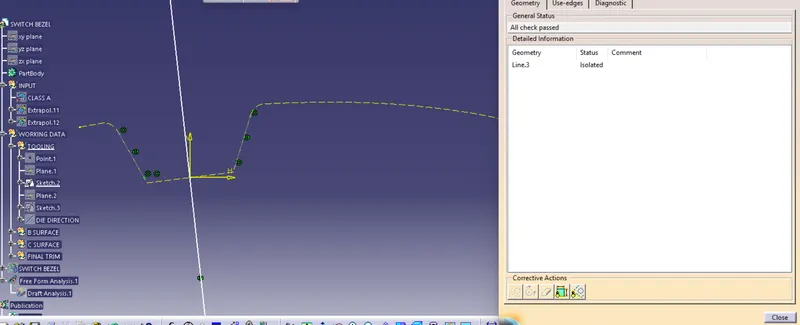

- For the wall surfaces a sketch is created from the bottom flat surface by creation of a bisecting line in the sketch.

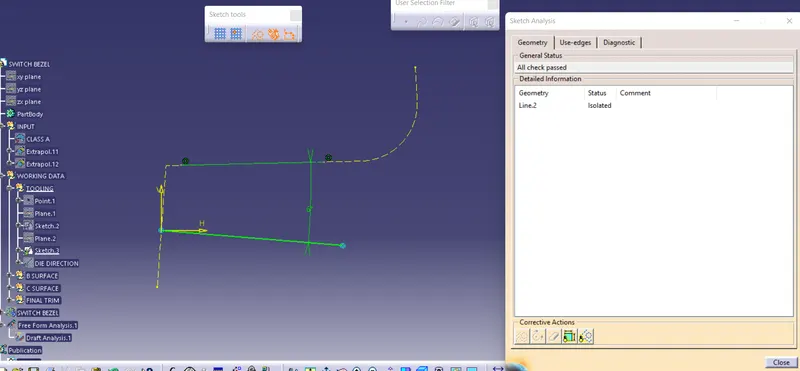

- For the third isolated wall same sketch is created in a different orientation and a line for 6 degreee is created from origin.
- Both sketch lines are bisected using the wireframe bisection line feature and tooling axis is created.

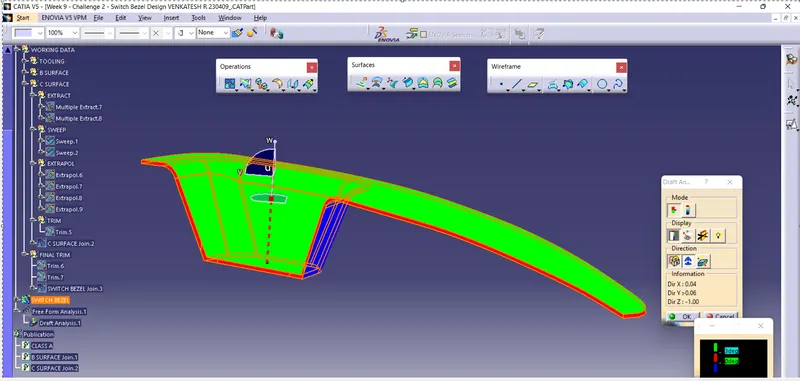

Draft analysis

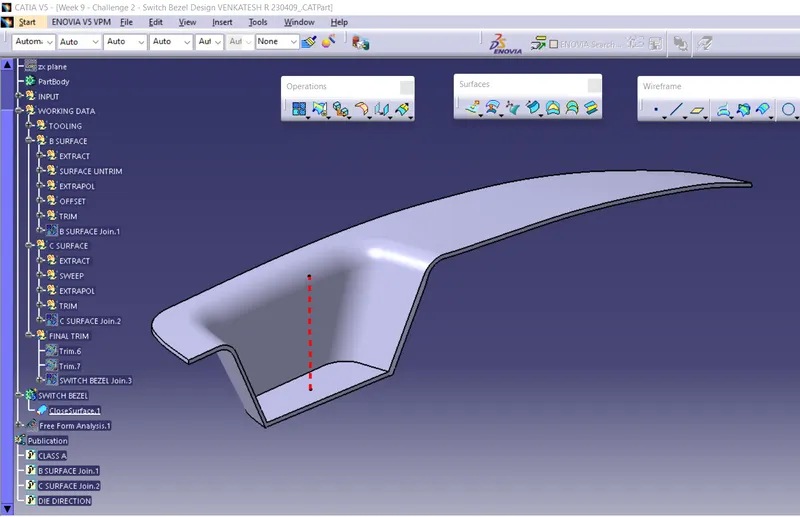

Tree structure
